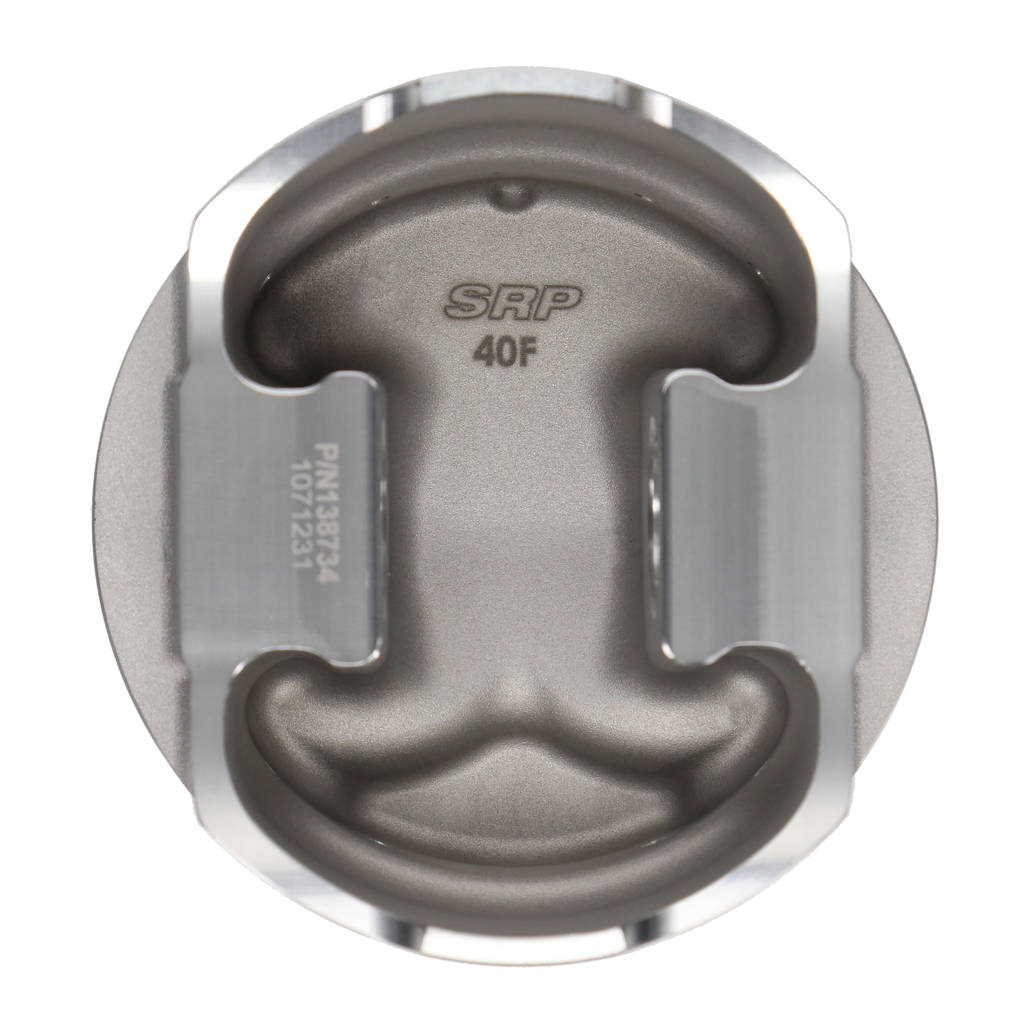

JE 206058S Piston Single SRP (4.040 in. Bore, 1.230 in. CH, -5.00 CC) for FORD Small Block Engine Photo-2
JE 206058S Piston Single SRP (4.040 in. Bore, 1.230 in. CH, -5.00 CC) for FORD Small Block Engine Photo-3
JE 206058S Piston Single SRP (4.040 in. Bore, 1.230 in. CH, -5.00 CC) for FORD Small Block Engine Photo-4
JE 206058S Piston Single SRP (4.040 in. Bore, 1.230 in. CH, -5.00 CC) for FORD Small Block Engine Photo-5

JE 206058S Piston Single SRP (4.040 in. Bore, 1.230 in. CH, -5.00 CC) for FORD Small Block Engine

€184,07

VAT included. Shipping calculated at checkout

JE PISTONS P/N: 206058S GTIN: 193564261205
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

JE 206058S Piston Single SRP (4.040 in. Bore, 1.230 in. CH, -5.00 CC) for FORD Small Block Engine

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+491732982897

Description JE 206058S Piston Single SRP (4.040 in. Bore, 1.230 in. CH, -5.00 CC) for FORD Small Block Engine

Born from the racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line bridges the gap between high-quality forged piston performance and affordability.

Forged from strong 4032 aluminum alloy, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance. They are suitable for mild to moderate performance engines on a sportsman budget.

  • Forged in the USA from 4032 aluminum for tensile strength and minimal thermal expansion
  • Dedicated forging optimizes strength and weight throughout the piston design
  • Suitable for street/strip applications
  • Forced pin oiling improves pin lubrication

Specifications:

  • Piston Series: SRP
  • Cylinder Head: SMALL BLOCK FORD 20 DEG
  • Bore Diameter: 4.040 IN
  • Piston Head Type: Flat
  • Compression Height: 1.230 IN
  • Piston Volume: -5.00 CC
  • Piston Material: 4032
  • Forging Type: FSR
  • Piston Average Weight: 449 GR
  • Ring Set Included: No
  • Top Compression Ring Thickness: 0.0640 IN
  • Second Compression Ring Thickness: 0.0640 IN
  • Oil Ring Thickness: 0.188 IN
  • Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
  • Wrist Pin Length: 2.750 IN
  • Wrist Pin Wall Thickness: 0.150 IN
