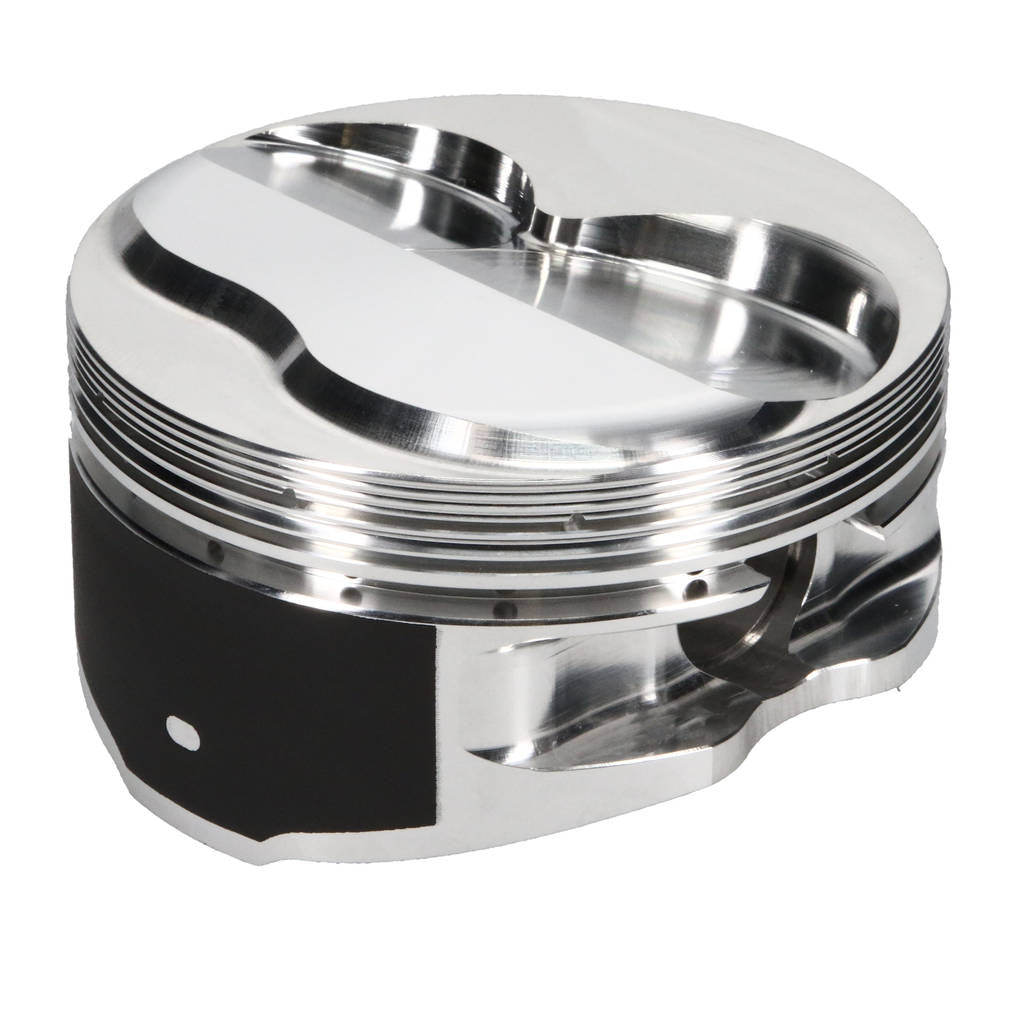

JE 218595 Piston Kit (4.125 in. Bore, 1.000 in. CH, 2.50 CC) for CHEVROLET 400 Small Block Engine Photo-0

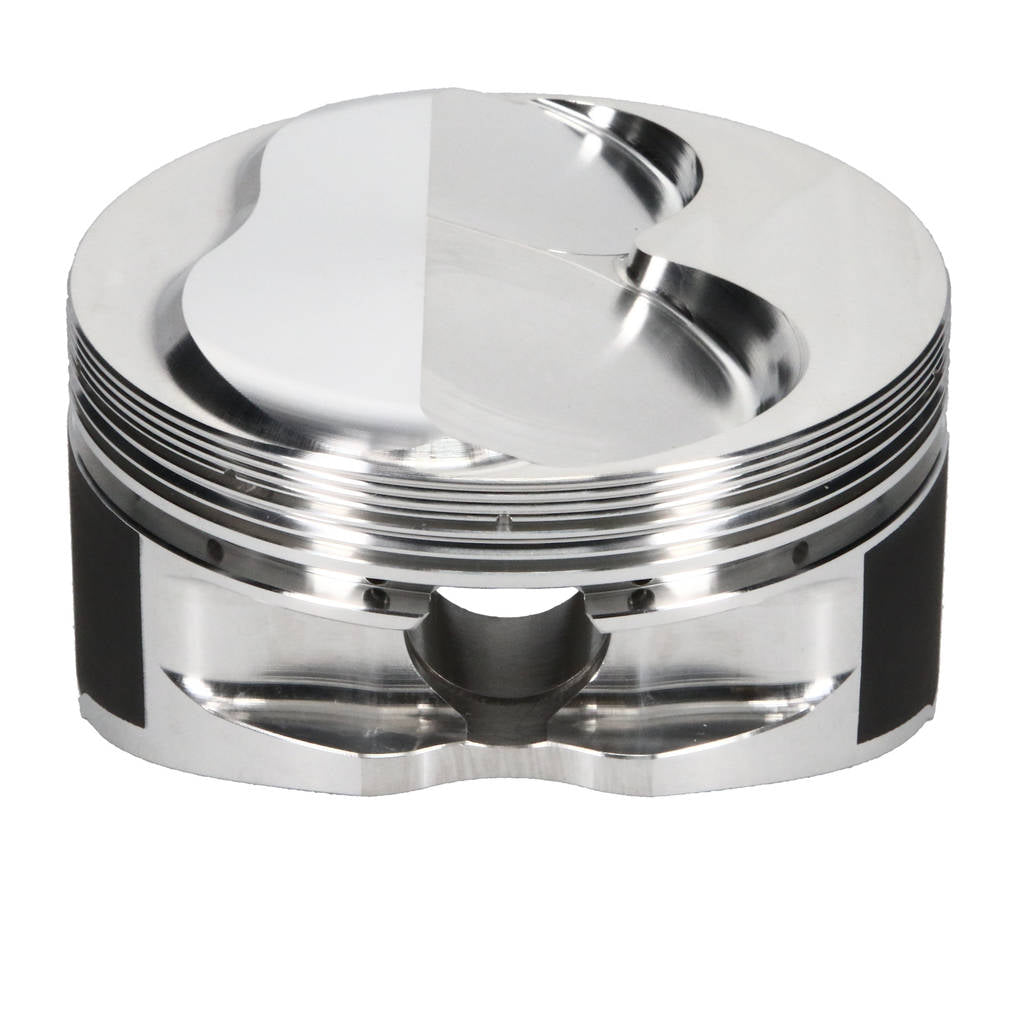

JE 218595 Piston Kit (4.125 in. Bore, 1.000 in. CH, 2.50 CC) for CHEVROLET 400 Small Block Engine Photo-1

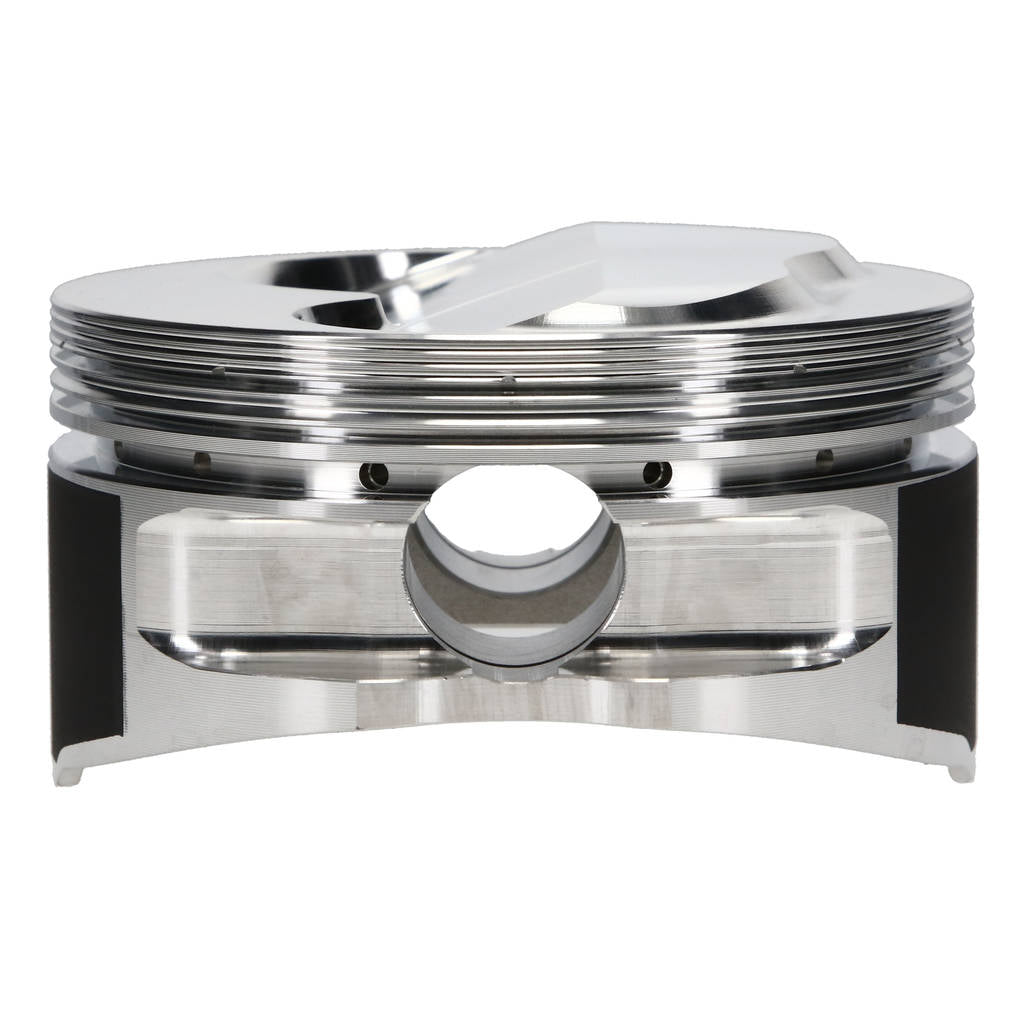

JE 218595 Piston Kit (4.125 in. Bore, 1.000 in. CH, 2.50 CC) for CHEVROLET 400 Small Block Engine Photo-2

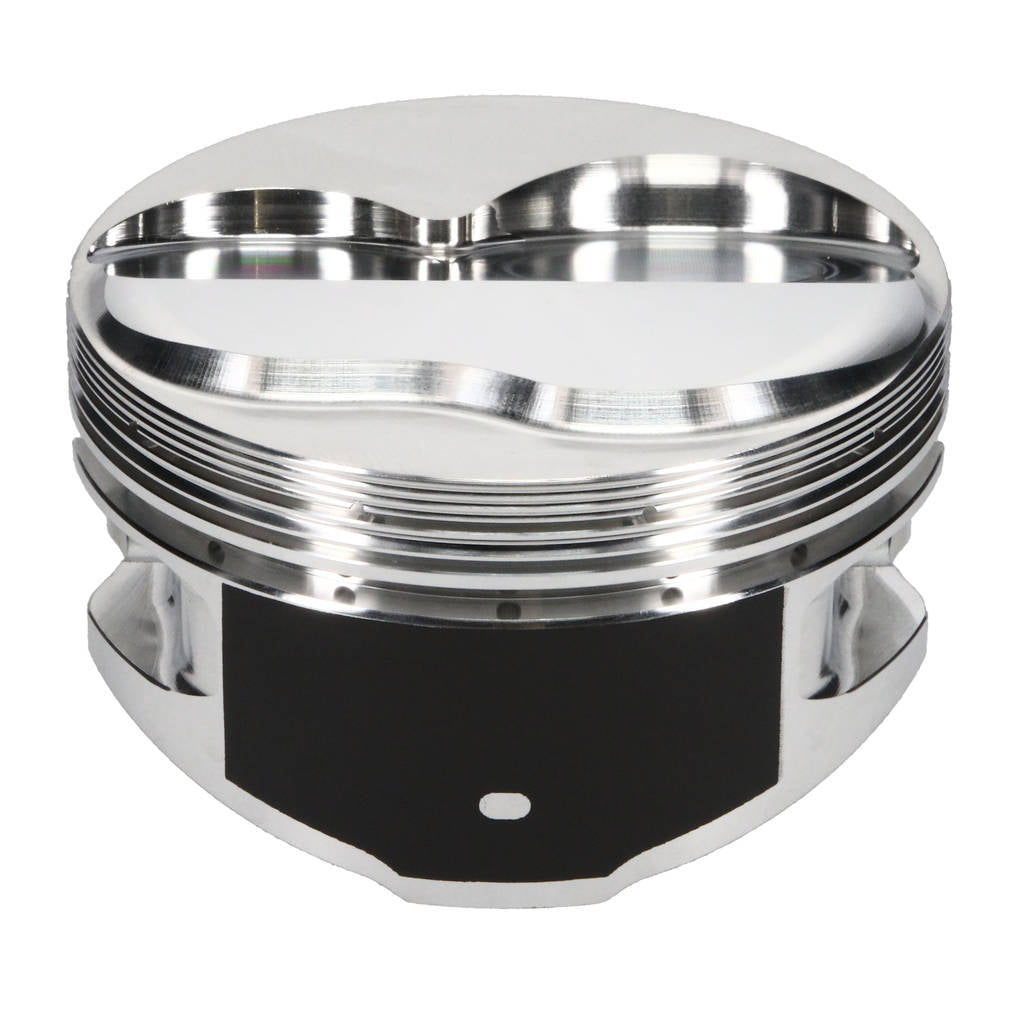

JE 218595 Piston Kit (4.125 in. Bore, 1.000 in. CH, 2.50 CC) for CHEVROLET 400 Small Block Engine Photo-3

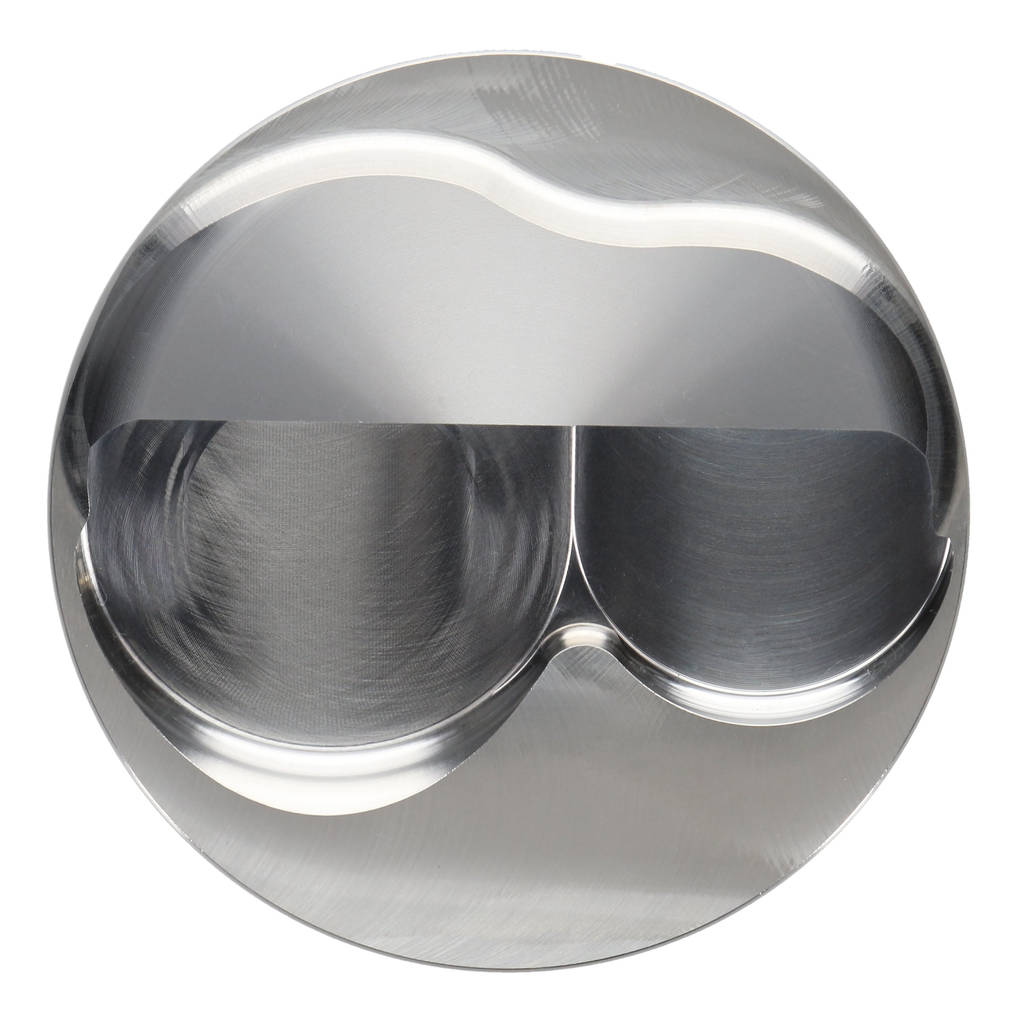

JE 218595 Piston Kit (4.125 in. Bore, 1.000 in. CH, 2.50 CC) for CHEVROLET 400 Small Block Engine Photo-4

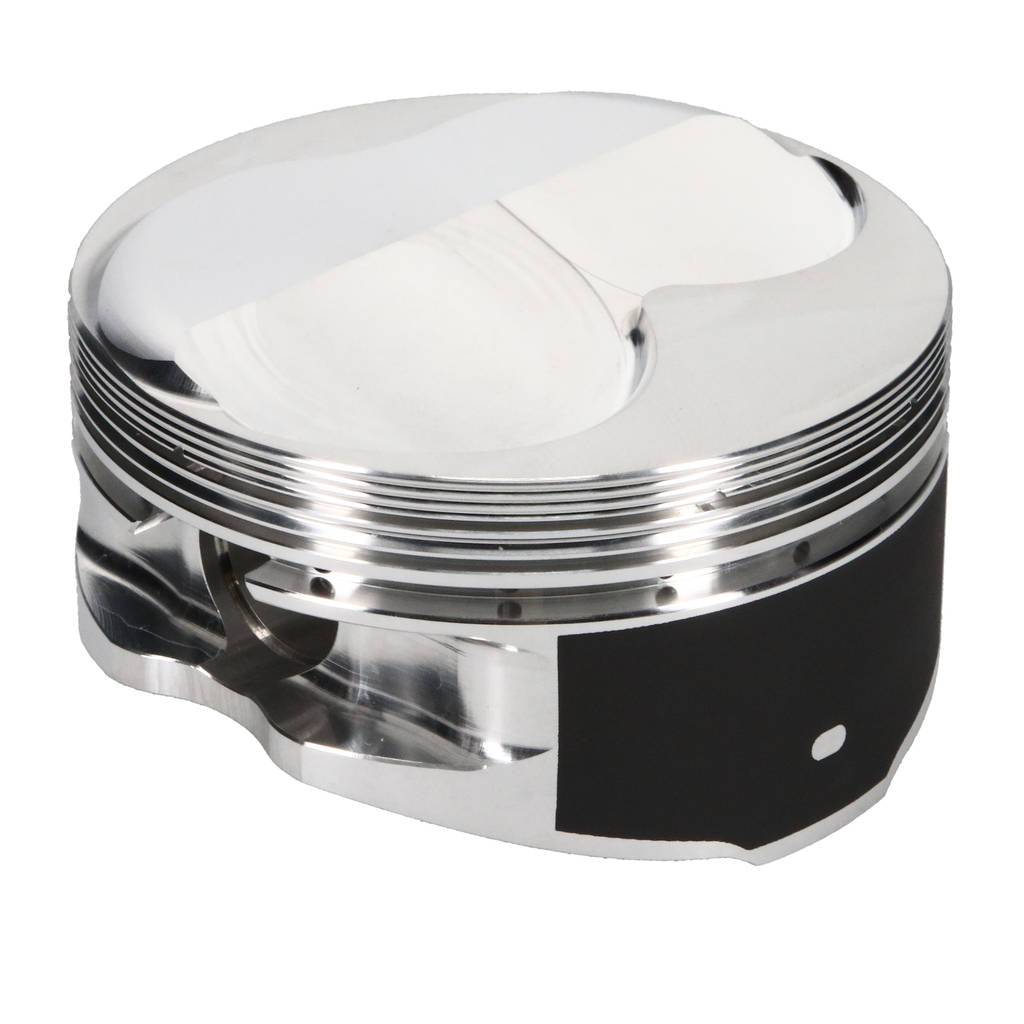

JE 218595 Piston Kit (4.125 in. Bore, 1.000 in. CH, 2.50 CC) for CHEVROLET 400 Small Block Engine Photo-5

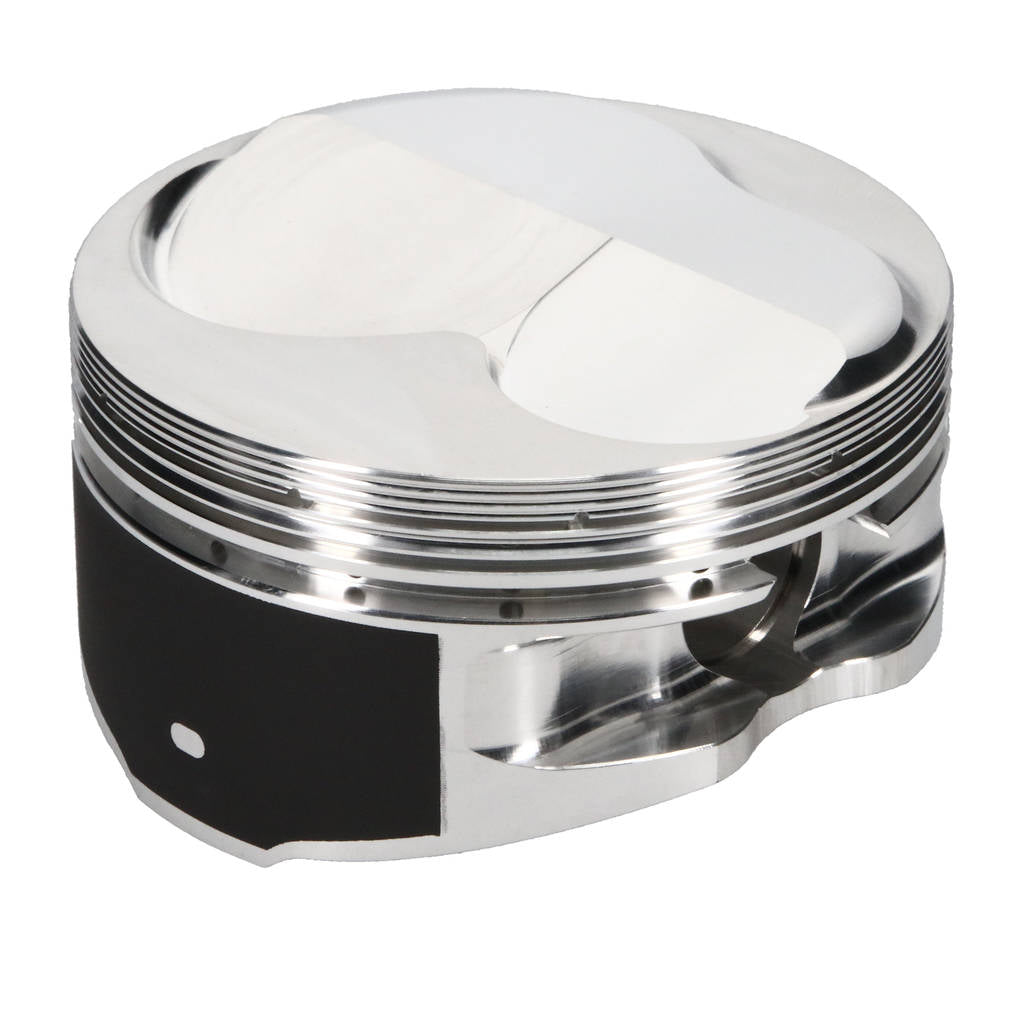

JE 218595 Piston Kit (4.125 in. Bore, 1.000 in. CH, 2.50 CC) for CHEVROLET 400 Small Block Engine Photo-6

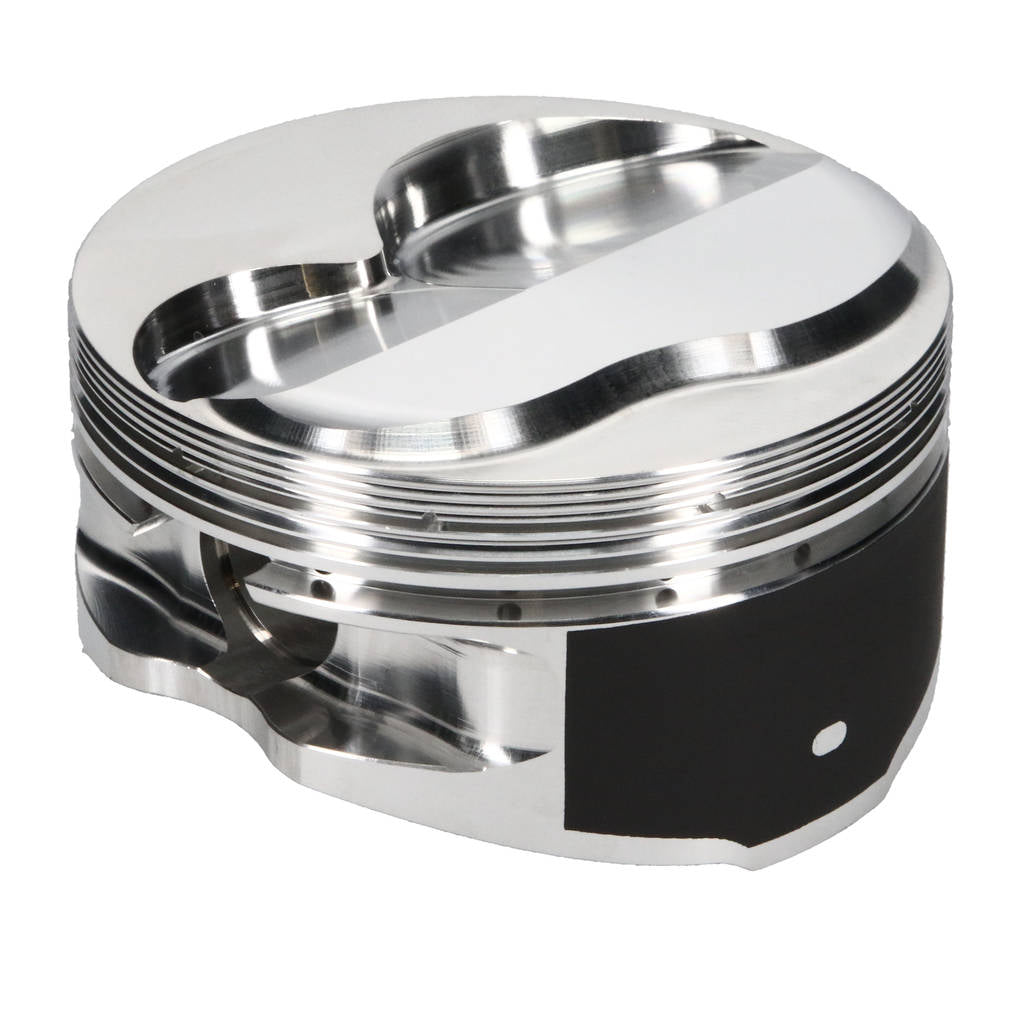

JE 218595 Piston Kit (4.125 in. Bore, 1.000 in. CH, 2.50 CC) for CHEVROLET 400 Small Block Engine Photo-7

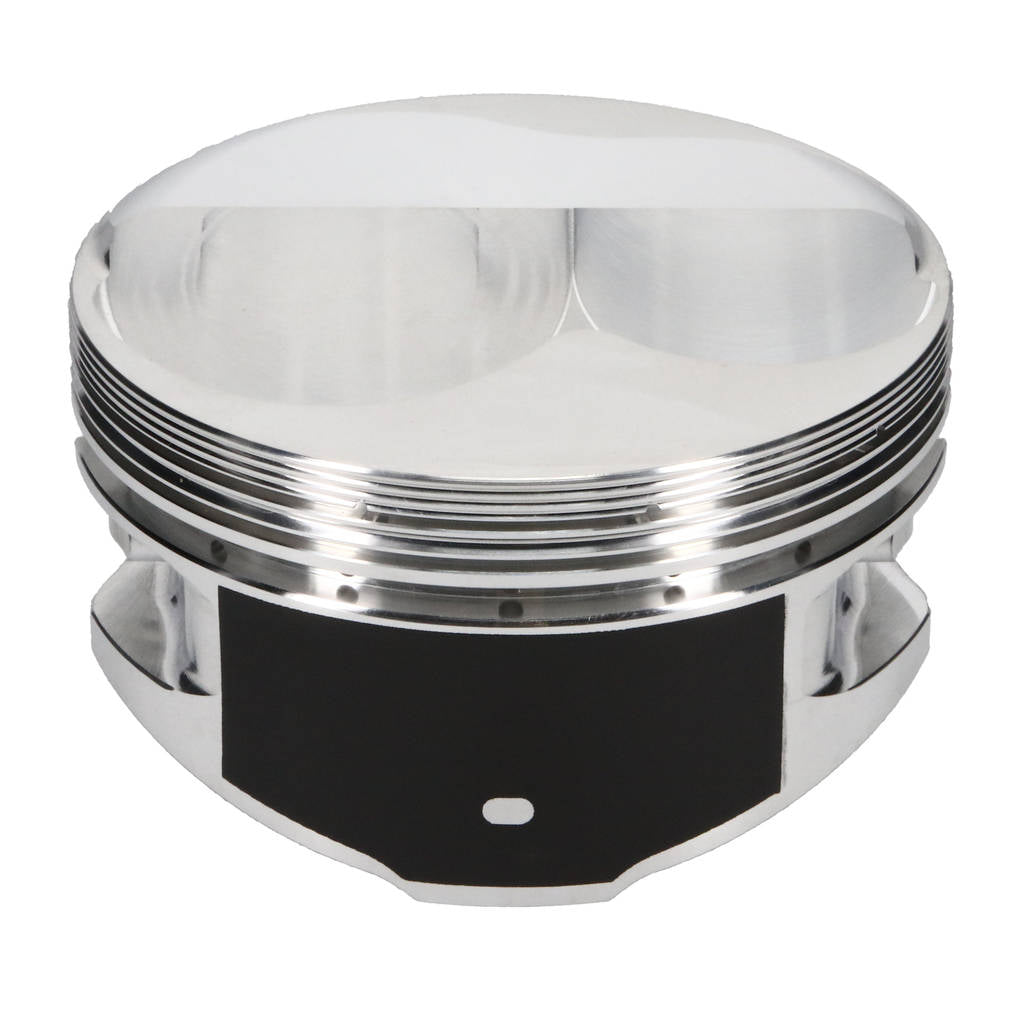

JE 218595 Piston Kit (4.125 in. Bore, 1.000 in. CH, 2.50 CC) for CHEVROLET 400 Small Block Engine Photo-8

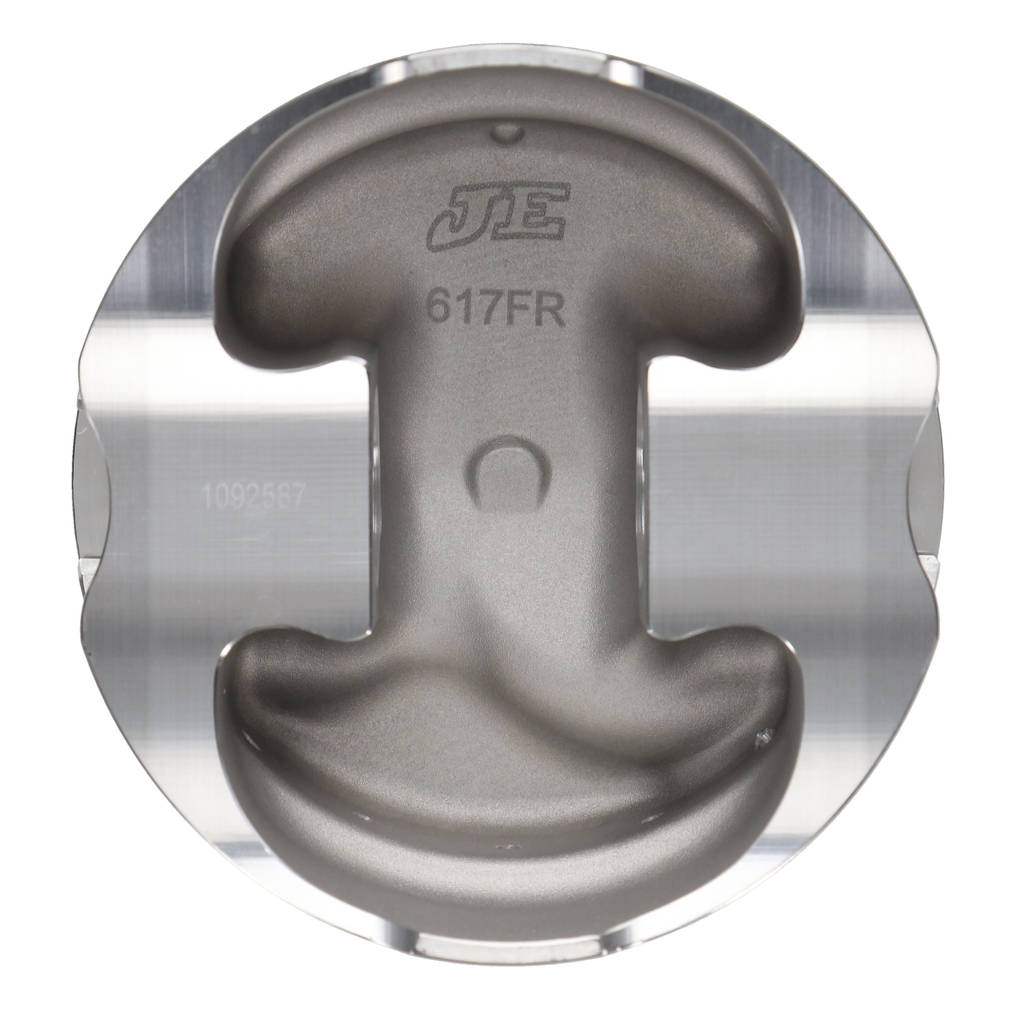

JE 218595 Piston Kit (4.125 in. Bore, 1.000 in. CH, 2.50 CC) for CHEVROLET 400 Small Block Engine Photo-9

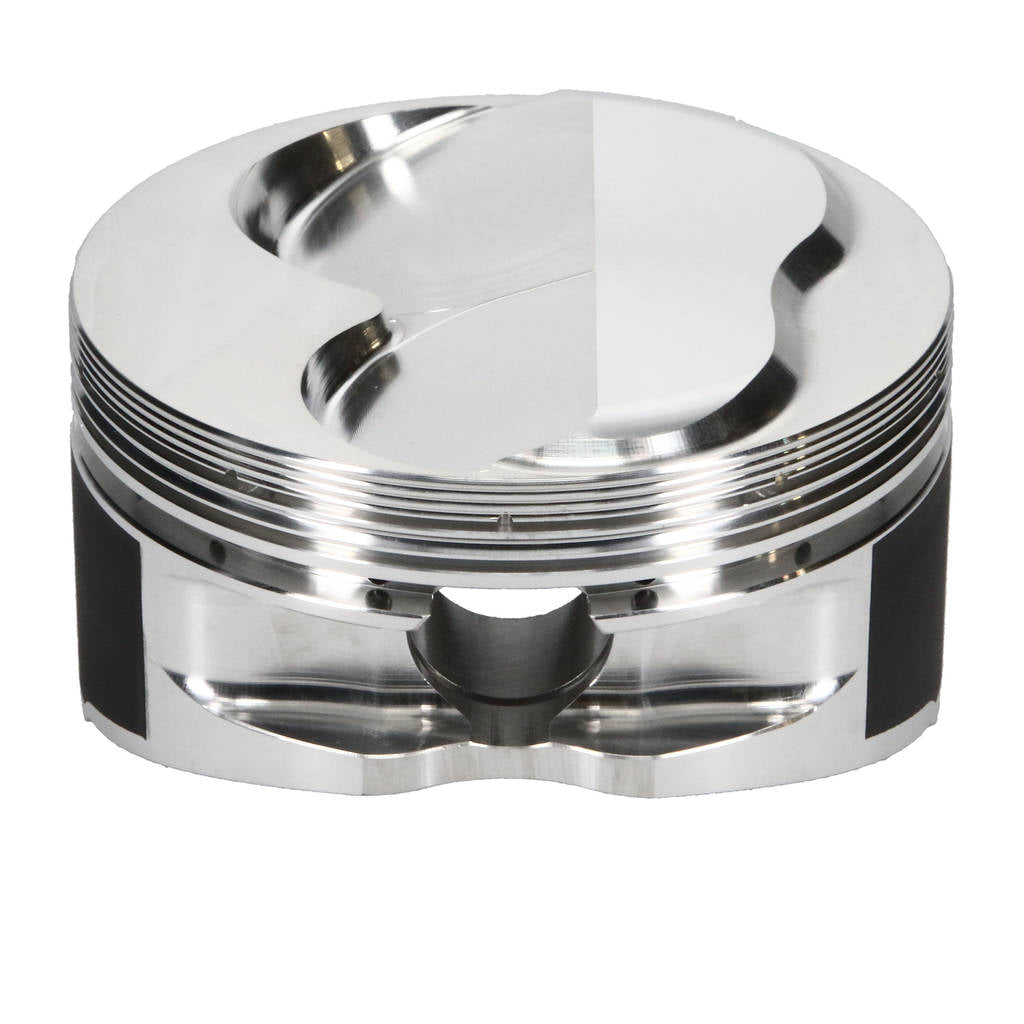

JE 218595 Piston Kit (4.125 in. Bore, 1.000 in. CH, 2.50 CC) for CHEVROLET 400 Small Block Engine Photo-10

JE 218595 Piston Kit (4.125 in. Bore, 1.000 in. CH, 2.50 CC) for CHEVROLET 400 Small Block Engine

€1.371,32

VAT included. Shipping calculated at checkout

JE PISTONS P/N: 218595 GTIN: 193564030610
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

JE 218595 Piston Kit (4.125 in. Bore, 1.000 in. CH, 2.50 CC) for CHEVROLET 400 Small Block Engine

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+491732982897

Description JE 218595 Piston Kit (4.125 in. Bore, 1.000 in. CH, 2.50 CC) for CHEVROLET 400 Small Block Engine

JE Pistons applies over 75 years of experience to its range of premium forged racing pistons for European, import, and sport compact applications.

Engineered, forged, and machined 100% in the USA, these pistons are Designed for each specific engine and racing application to provide durability and performance.

  • Forged from 4032 aluminum for tensile strength and minimal thermal expansion
  • Proprietary Forged Side Relief design minimizes friction and power loss while reducing skirt width, weight, and Wrist Pin length
  • Application-dependent skirt coating reduces friction, piston skirt and cylinder Wall wear, and operating noise
  • Application-dependent accumulator groove reduces combustion gas pressure and Piston Ring flutter while improving ring seal

Specifications:

  • Piston Series: JE Pistons
  • Cylinder Head: CHEVROLET 18 DEG
  • Bore Diameter: 4.125 IN
  • Piston Head Type: Dome
  • Compression Height: 1.000 IN
  • Piston Volume: 2.50 CC
  • Piston Material: 2618
  • Piston Quantity: 8
  • Forging Type: Round
  • Piston Average Weight: 444 GR
  • Ring Set Included: No
  • Top Compression Ring Thickness: 0.0475 IN
  • Second Compression Ring Thickness: 0.0600 IN
  • Oil Ring Thickness: 0.149 IN
  • Wrist Pin Outer Diameter: 0.927 IN
  • Wrist Pin Length: 2.750 IN
  • Wrist Pin Wall Thickness: 0.150 IN
  • Top Groove Width: 0.04750 IN
  • 2nd Groove Width: 0.06000 IN
  • Oil Groove Width: 0.15000 IN
  • Product Type: Engine Piston Kit
  • Product Market: Domestic
  • Small Block
