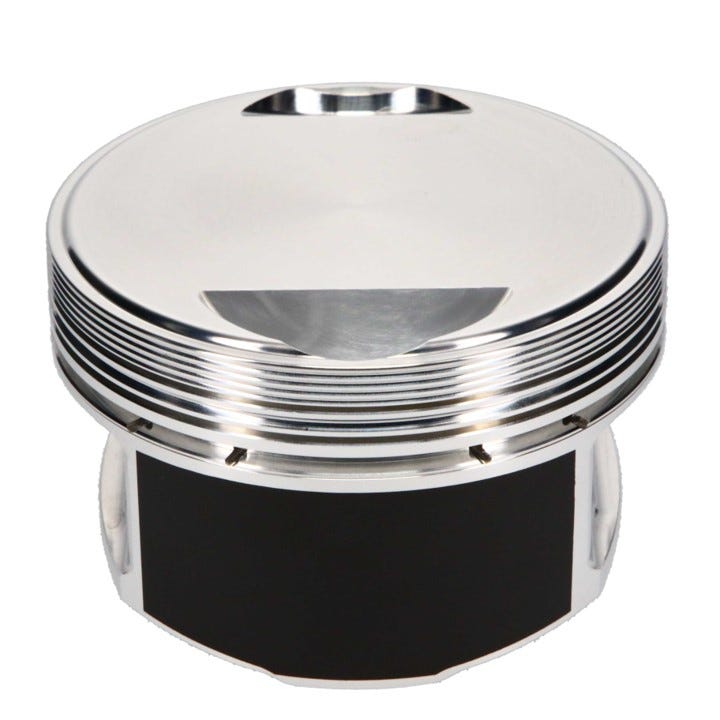

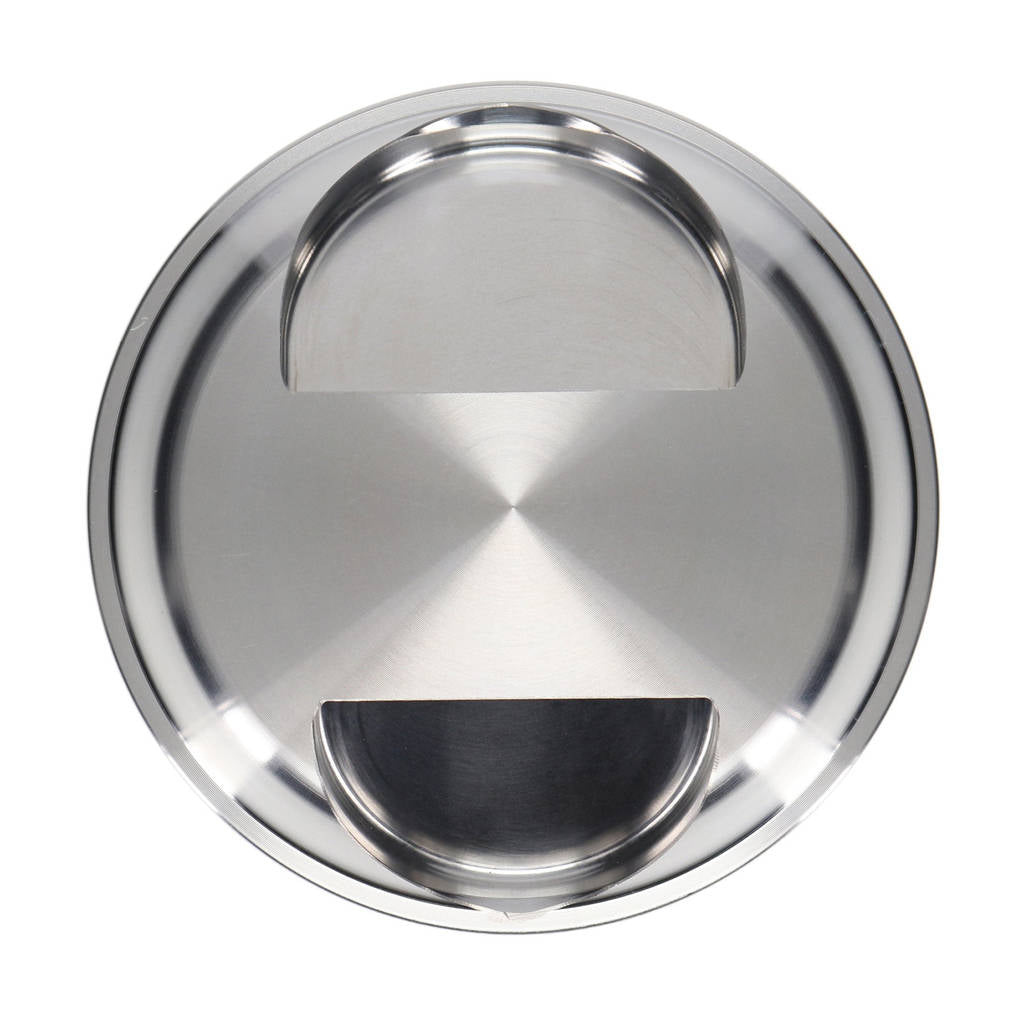

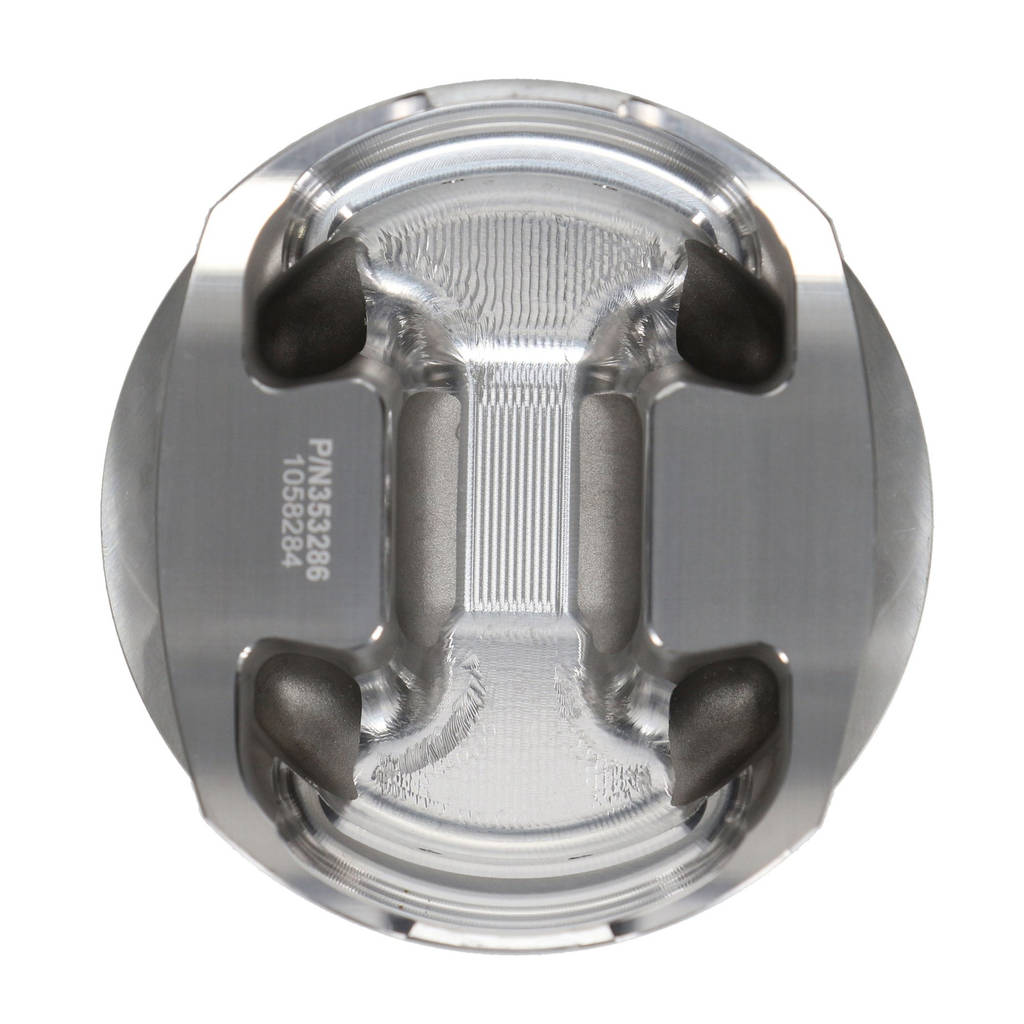

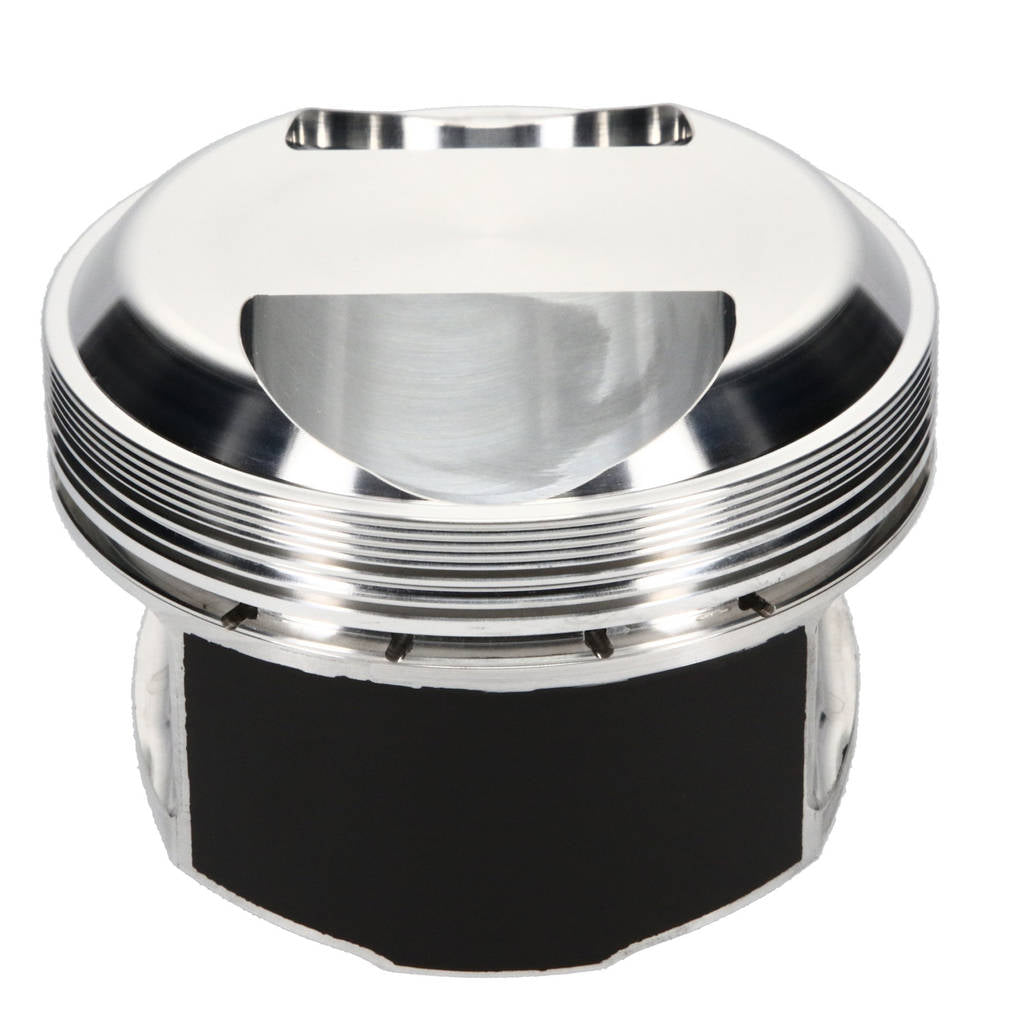

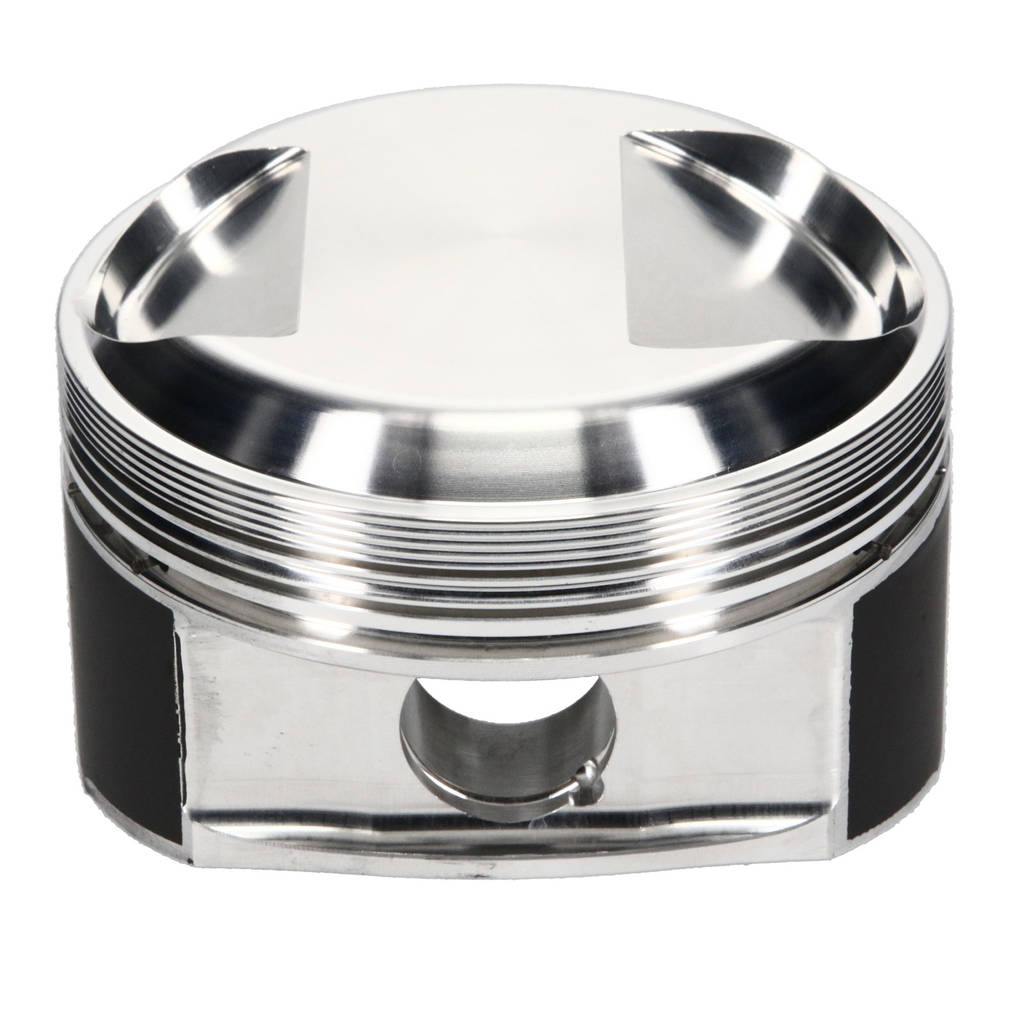

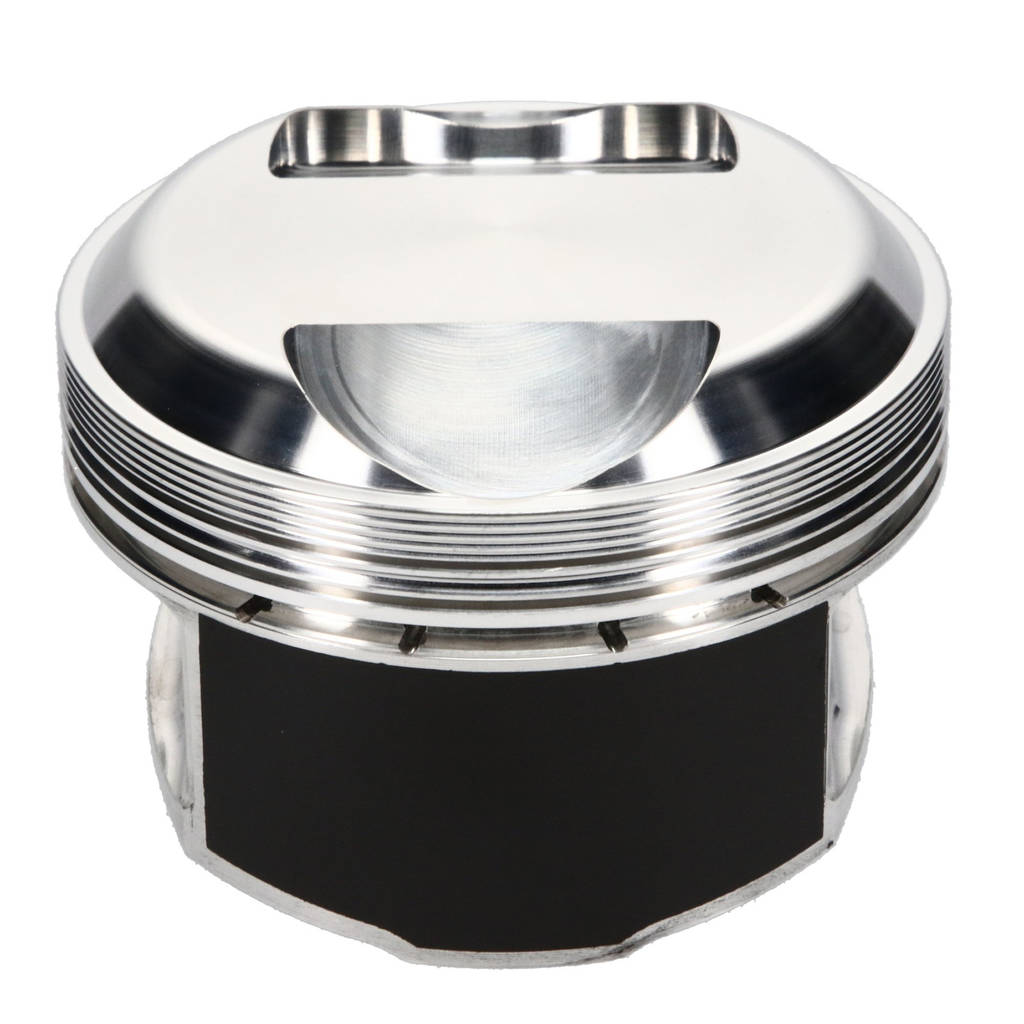

JE 261664S Piston PORSCHE 2.7L 10.5 (Single Piece Set) Photo-0

JE 261664S Piston PORSCHE 2.7L 10.5 (Single Piece Set)

€410,53

VAT included. Shipping calculated at checkout

JE PISTONS P/N: 261664S GTIN: 193564016331
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

JE 261664S Piston PORSCHE 2.7L 10.5 (Single Piece Set)

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+4926916879995
Bore (in) 3.543
Bore (mm) 90.
Top Compression Ring Thickness 0.0400
Second Compression Ring Thickness 0.0480
Oil Ring Thickness 0.111
Forging Type Round
Volume (cc) 27.30
Series JE Pistons
Piston Head Type Dome
Pin Diameter (IN) 0.866
Compression Height 1.335
Make PORSCHE
Wrist Pin Style - floating or press fit Floating
Wall Type CHAMFERED
Wall Thickness (IN) 0.150
Ringset Part Number JG1001-3543
Ring Brand ProSeal
Ringset Included Yes
Retainer Thickness 0.063
Retainer Lock Style Wire Lock
Retainer Lock Part Number 866-063-MW
Retainer Diameter (IN) 0.866
Replacement Single Piston 261664S
Piston Pin Inside Diameter 0.566
Piston Pin Material 9310 NICKEL CARBON STEEL ALLOY
Piston Material 2618
Piston Pin Length (IN) 2.500
Piston Avg Wt 419
Pin Offset No
Pin Brand JE Pistons
Pin Part Number 866-2500-15-93C
Pin Included Yes
Pin Diameter (mm) 22.00
Oil Rail Support Included No
Deck Clearance 0.000
Brand JE Pistons
