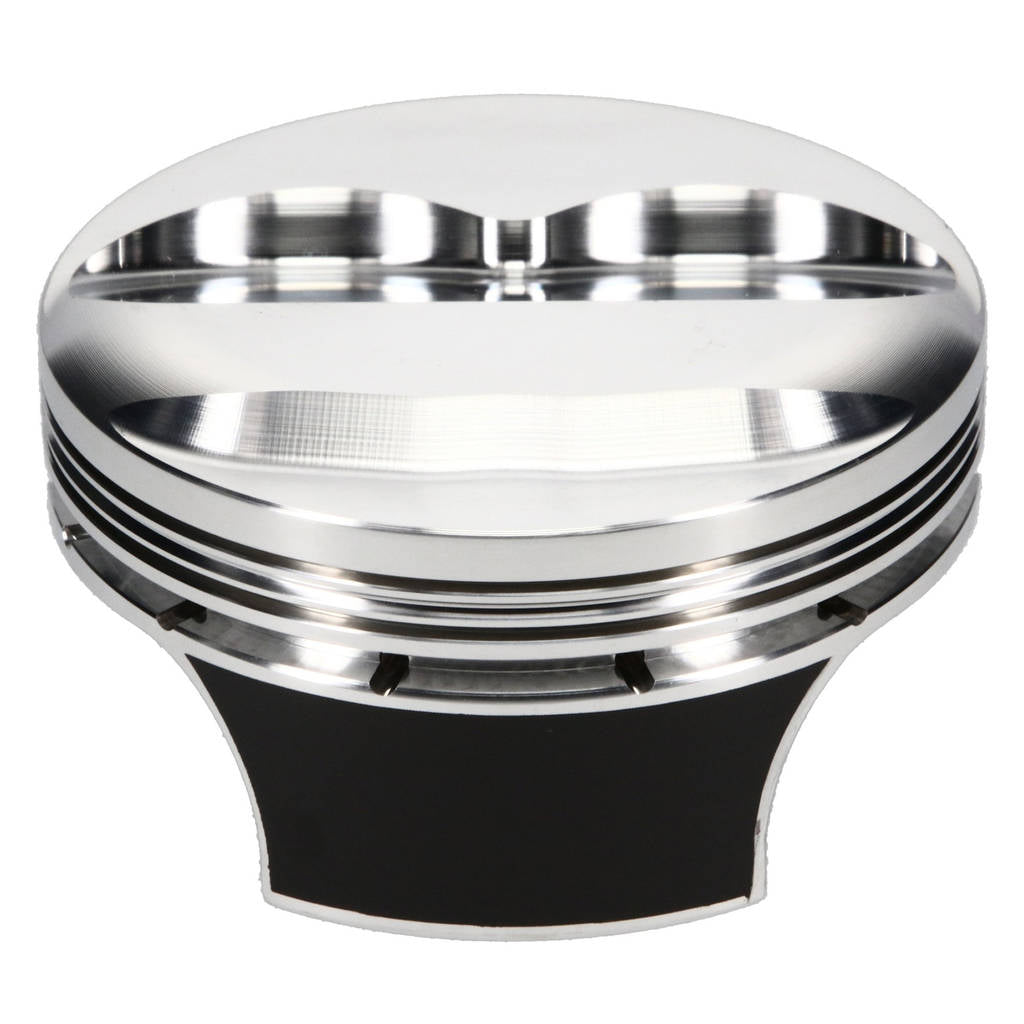

JE 271059 Piston Kit SRP Pro 4032 (4.030 in. Bore, 1.260 in. CH, 11.00 CC) for CHEVROLET Small Block Engine Photo-0
JE 271059 Piston Kit SRP Pro 4032 (4.030 in. Bore, 1.260 in. CH, 11.00 CC) for CHEVROLET Small Block Engine Photo-1
JE 271059 Piston Kit SRP Pro 4032 (4.030 in. Bore, 1.260 in. CH, 11.00 CC) for CHEVROLET Small Block Engine Photo-2
JE 271059 Piston Kit SRP Pro 4032 (4.030 in. Bore, 1.260 in. CH, 11.00 CC) for CHEVROLET Small Block Engine Photo-3
JE 271059 Piston Kit SRP Pro 4032 (4.030 in. Bore, 1.260 in. CH, 11.00 CC) for CHEVROLET Small Block Engine Photo-4
JE 271059 Piston Kit SRP Pro 4032 (4.030 in. Bore, 1.260 in. CH, 11.00 CC) for CHEVROLET Small Block Engine Photo-5

JE 271059 Piston Kit SRP Pro 4032 (4.030 in. Bore, 1.260 in. CH, 11.00 CC) for CHEVROLET Small Block Engine

€1.070,71

VAT included. Shipping calculated at checkout

JE PISTONS P/N: 271059 GTIN: 193564246271
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

JE 271059 Piston Kit SRP Pro 4032 (4.030 in. Bore, 1.260 in. CH, 11.00 CC) for CHEVROLET Small Block Engine

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+491732982897

Description JE 271059 Piston Kit SRP Pro 4032 (4.030 in. Bore, 1.260 in. CH, 11.00 CC) for CHEVROLET Small Block Engine

SRP Professional pistons combine forged piston durability with modern performance technology for a capable forged piston kit. Forged from 4032 aluminum, SRP Pro pistons experience minimal thermal expansion, making them suitable for reliable, high-performance engine builds from the track to the drag strip.

As with all JE Pistons products, SRP pistons are made 100% in the USA.

  • 4032 forged aluminum provides tensile strength and minimal thermal expansion
  • Proprietary Forged Side Relief forging design minimizes friction and power loss, reduces skirt width, and saves weight through a shorter Wrist Pin
  • Low-friction skirt coating reduces wear and operating noise while optimizing performance
  • Accumulator groove reduces combustion gas pressure, reducing Piston Ring flutter and improving ring seal for consistent power

Specifications:

  • Piston Series: SRP Pro 4032
  • Cylinder Head: CHEVROLET 23 DEG 20/30
  • Bore Diameter: 4.030 IN
  • Piston Head Type: Dome
  • Compression Height: 1.260 IN
  • Piston Volume: 11.00 CC
  • Piston Material: 4032
  • Forging Type: FSR
  • Piston Average Weight: 436 GR
  • Ring Set Included: Yes
  • Top Compression Ring Thickness: 0.0480 IN
  • Second Compression Ring Thickness: 0.0600 IN
  • Oil Ring Thickness: 0.119 IN
  • Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
  • Wrist Pin Length: 2.250 IN
  • Wrist Pin Wall Thickness: 0.150 IN
  • Intake Depth: .280 IN
  • Intake Diameter: 2.250 IN
  • Intake Angle: 22.5
  • Top Groove Width: 0.04800 IN
  • 2nd Groove Width: 0.06000 IN
  • Oil Groove Width: 0.11900 IN
  • Product Type: Engine Piston Kit
  • Product Market: Domestic
  • Small Block
