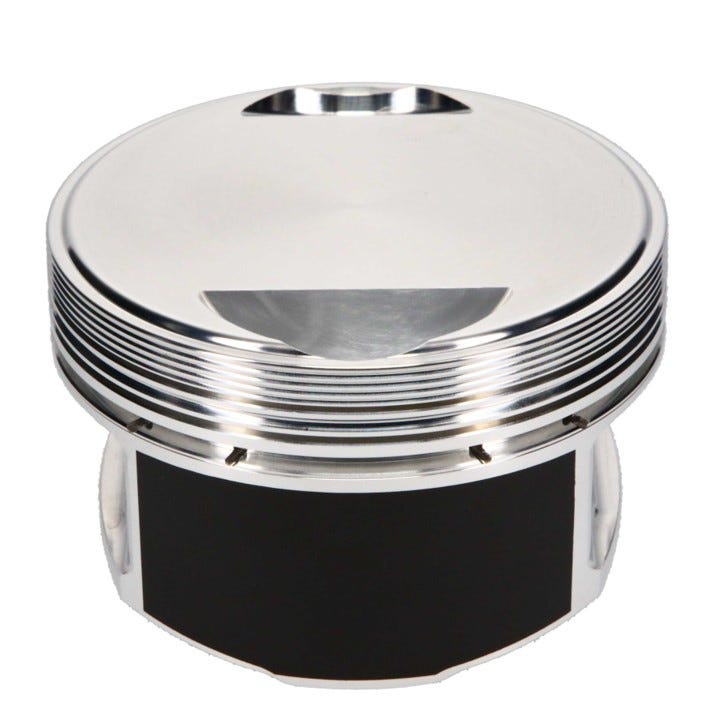

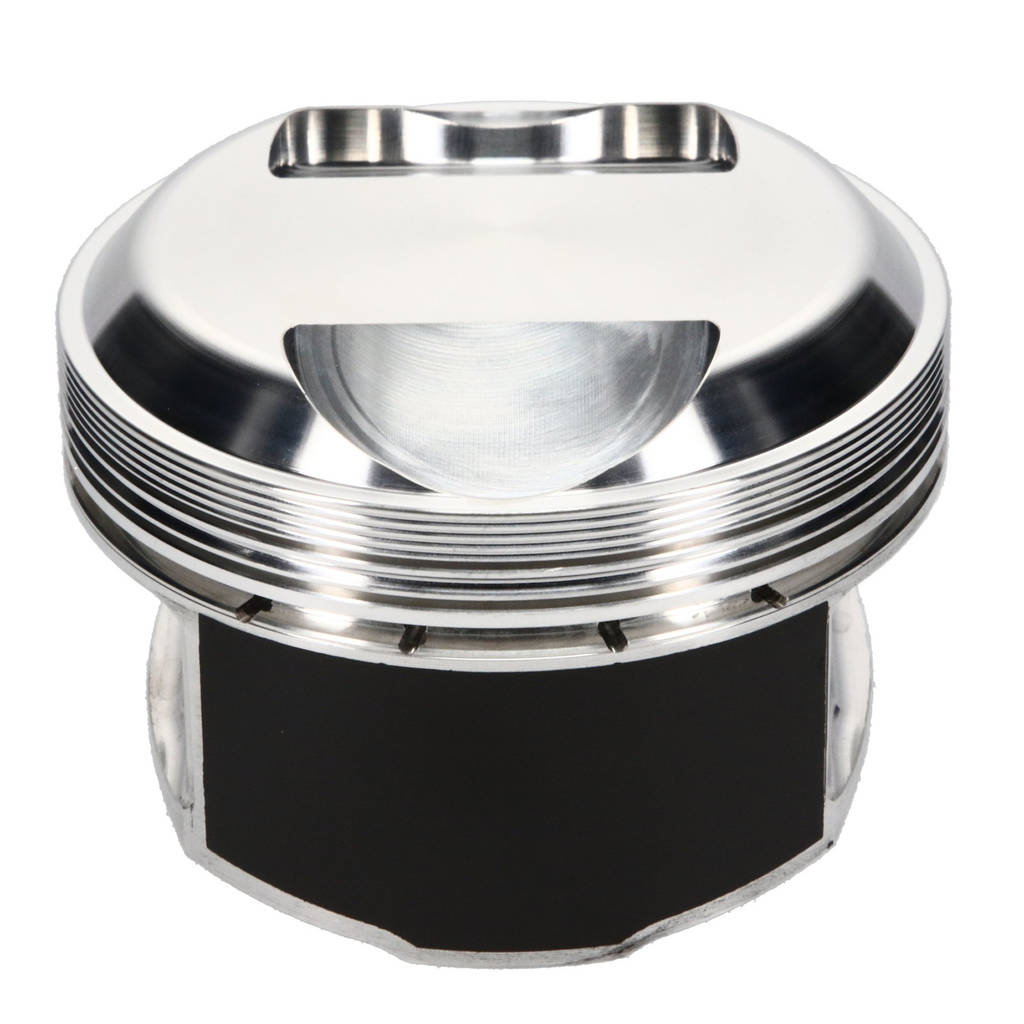

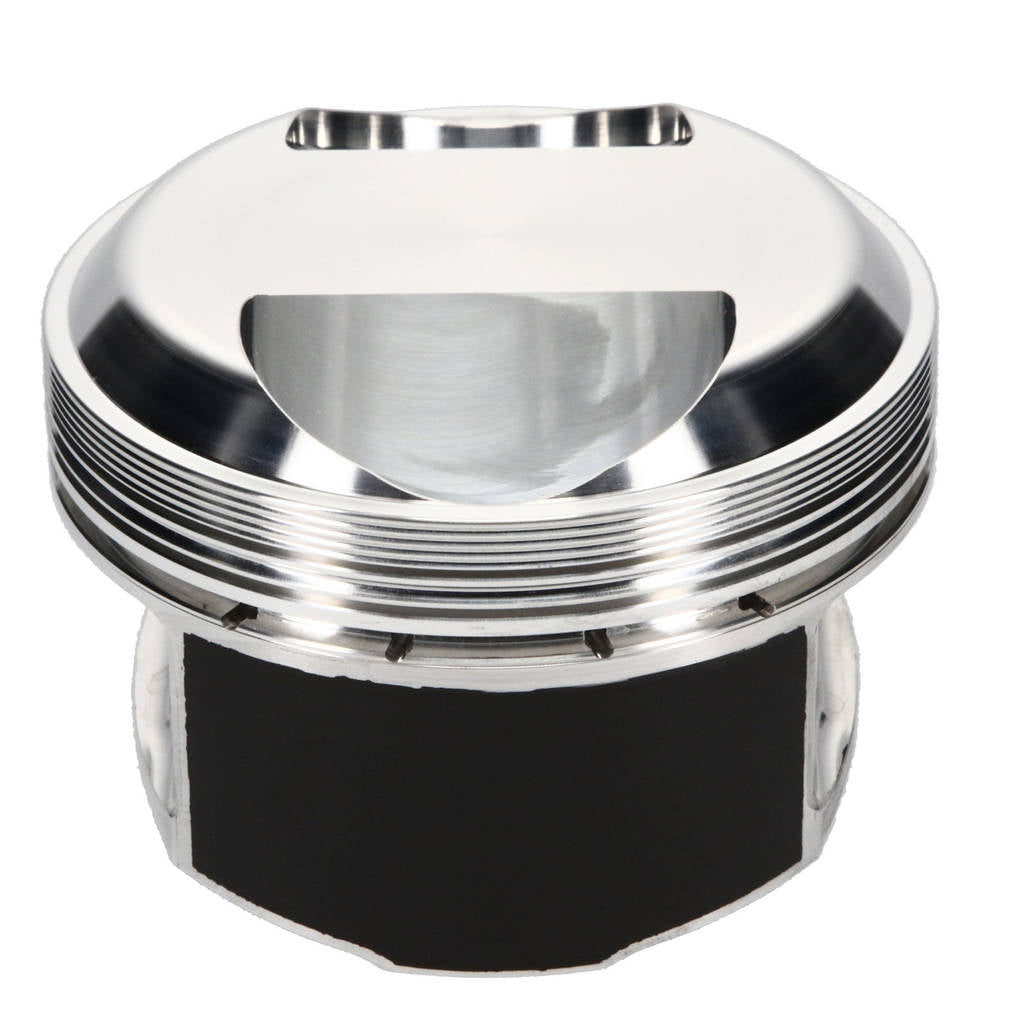

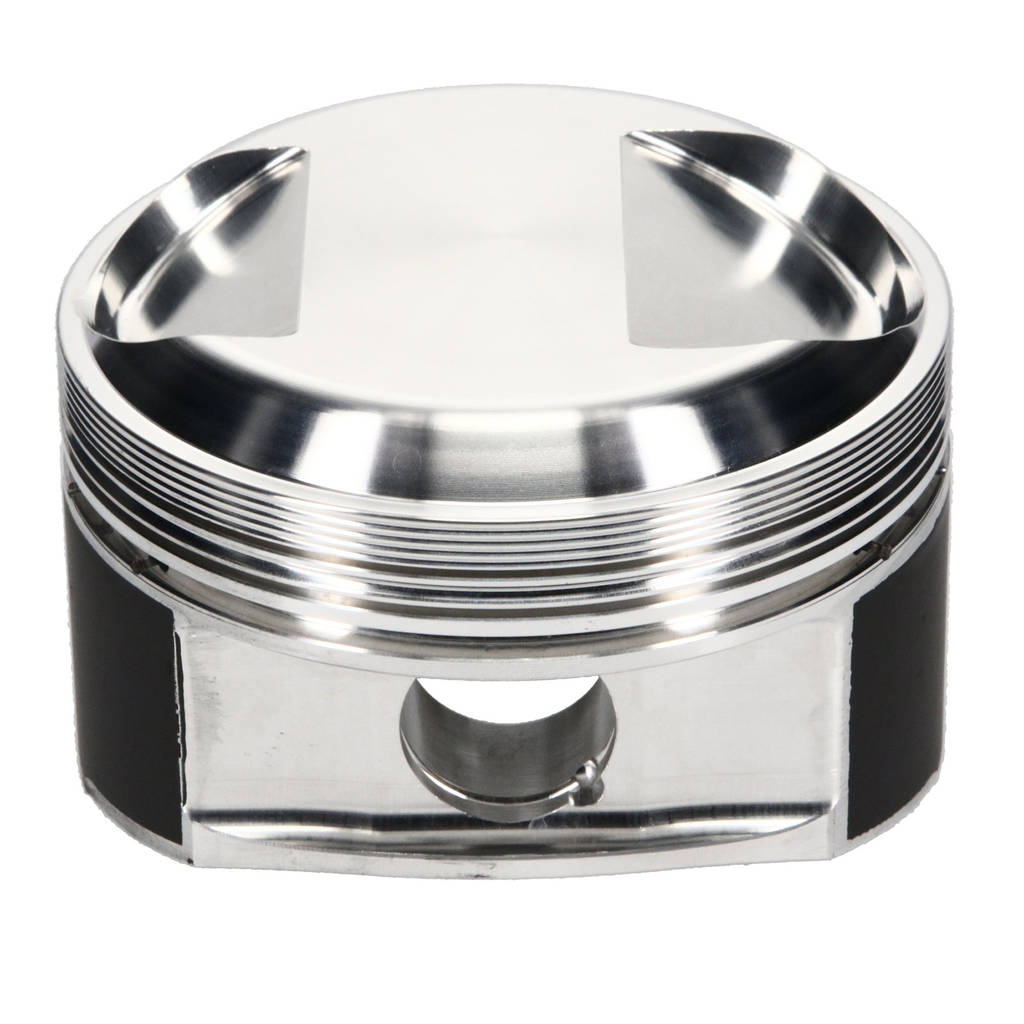

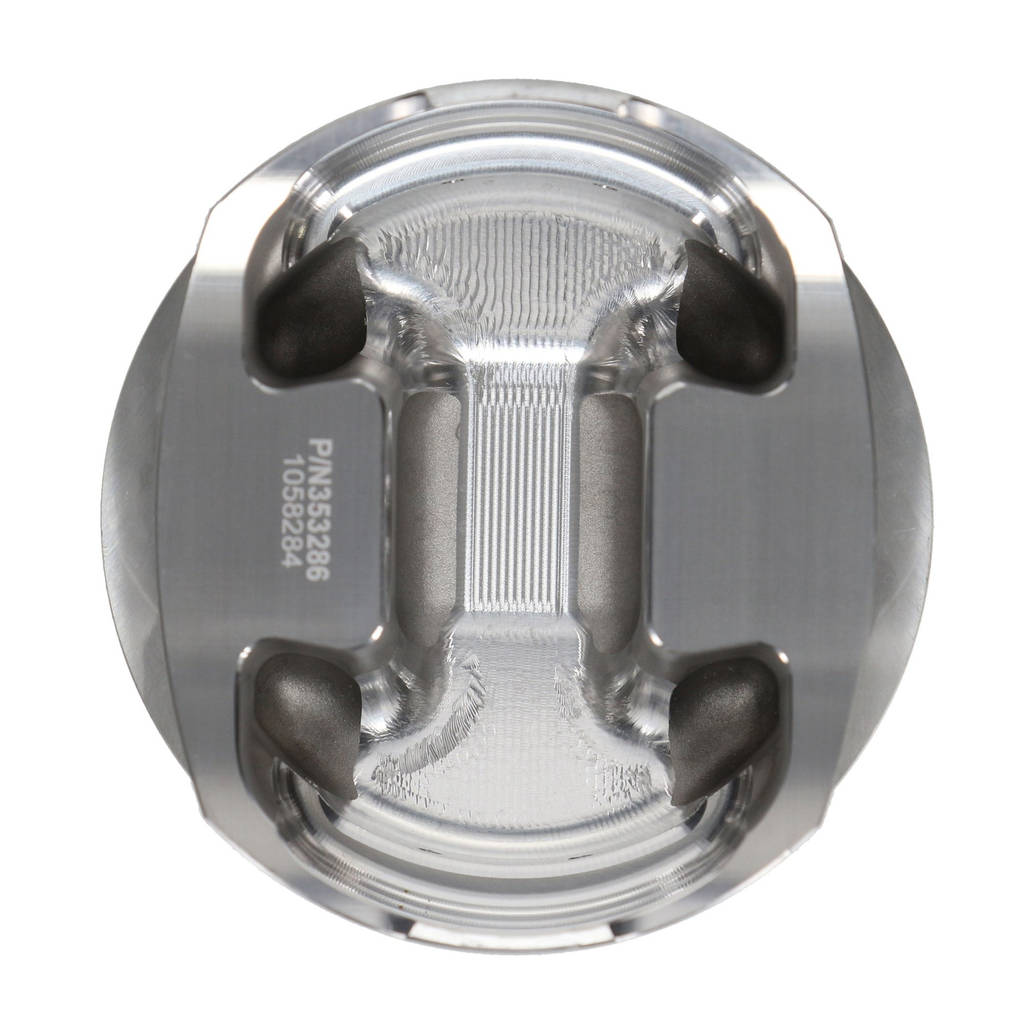

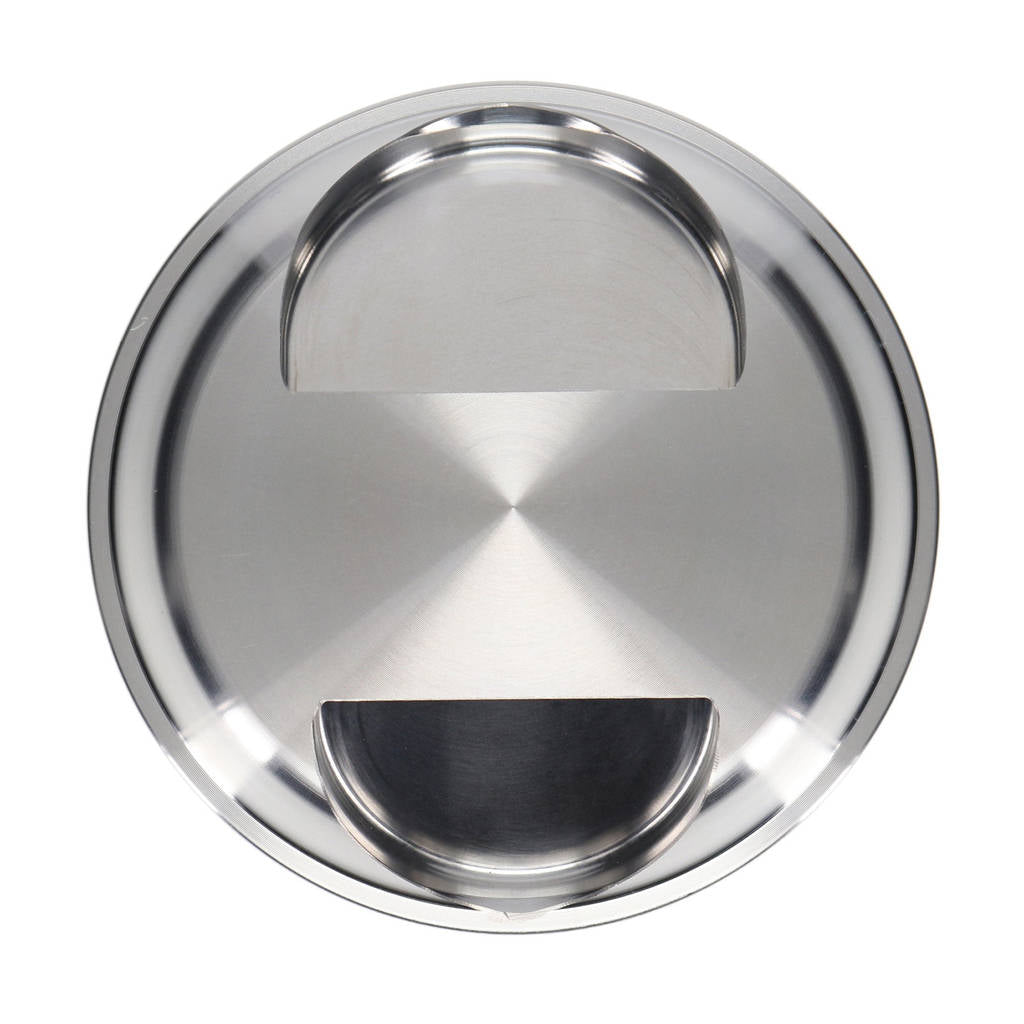

JE 274048 Pistons kit PORSCHE 3.0L DM (Set of 6 pic) Photo-0

JE 274048 Pistons kit PORSCHE 3.0L DM (Set of 6 pic)

Sale price€2.009,01

VAT included. Shipping calculated at checkout

JE PISTONSP/N: 274048
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

DESCRIPTION:

Piston Set, 2618, Dome, 3.740 Bore, 1.335 CD, 0.866, Pin Dia, Set of 6.

PORSCHE|AIRCOOLED 911 3.0L

Bore (in) 3.74
Bore (mm) 95.
Top Compression Ring Thickness 0.0595
Second Compression Ring Thickness 0.0700
Oil Ring Thickness 0.139
Forging Type Round
Volume (cc) 38.50
Series JE Pistons
Piston Head Type Dome
Pin Diameter (IN) 0.866
Compression Height 1.335
Make PORSCHE
Wrist Pin Style - floating or press fit Floating
Wall Type CHAMFERED
Wall Thickness (IN) 0.150
Ringset Part Number J650U1-3740
Ring Brand ProSeal
Ringset Included Yes
Retainer Thickness 0.063
Retainer Lock Style Wire Lock
Retainer Lock Part Number 866-063-MW
Retainer Diameter (IN) 0.866
Replacement Single Piston 274048S
Replaced By 212435
Piston Pin Inside Diameter 0.566
Piston Pin Material 9310 NICKEL CARBON STEEL ALLOY
Piston Material 2618
Piston Pin Length (IN) 2.500
Piston Avg Wt 450
Pin Offset No
Pin Brand JE Pistons
Pin Part Number 866-2500-15-93C
Pin Included Yes
Pin Diameter (mm) 22.00
Oil Rail Support Included No
Deck Clearance 0.000
Brand JE Pistons
