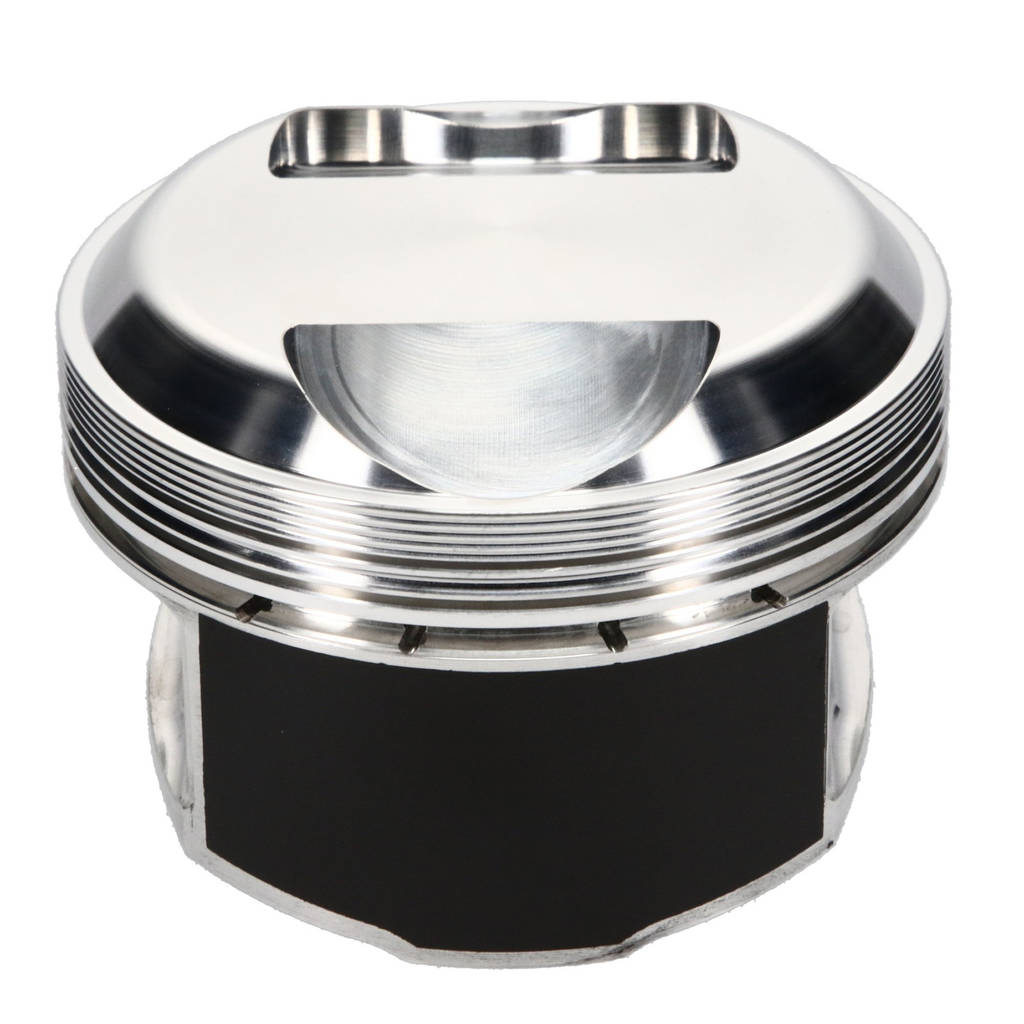

JE 274638 Piston Kit Aircooled (3.858 in. Bore, 1.335 in. CH, 35.20 CC) for PORSCHE 3.0L Engine Photo-0

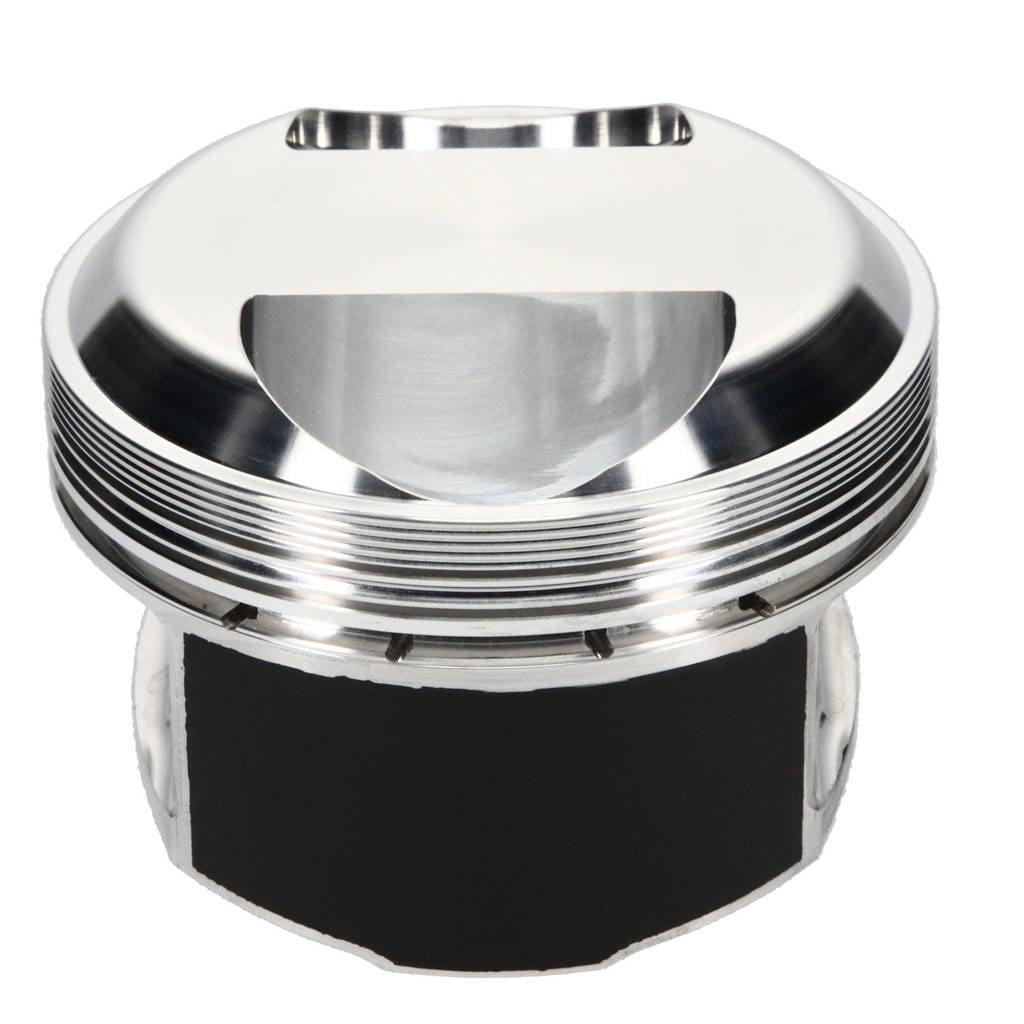

JE 274638 Piston Kit Aircooled (3.858 in. Bore, 1.335 in. CH, 35.20 CC) for PORSCHE 3.0L Engine Photo-1

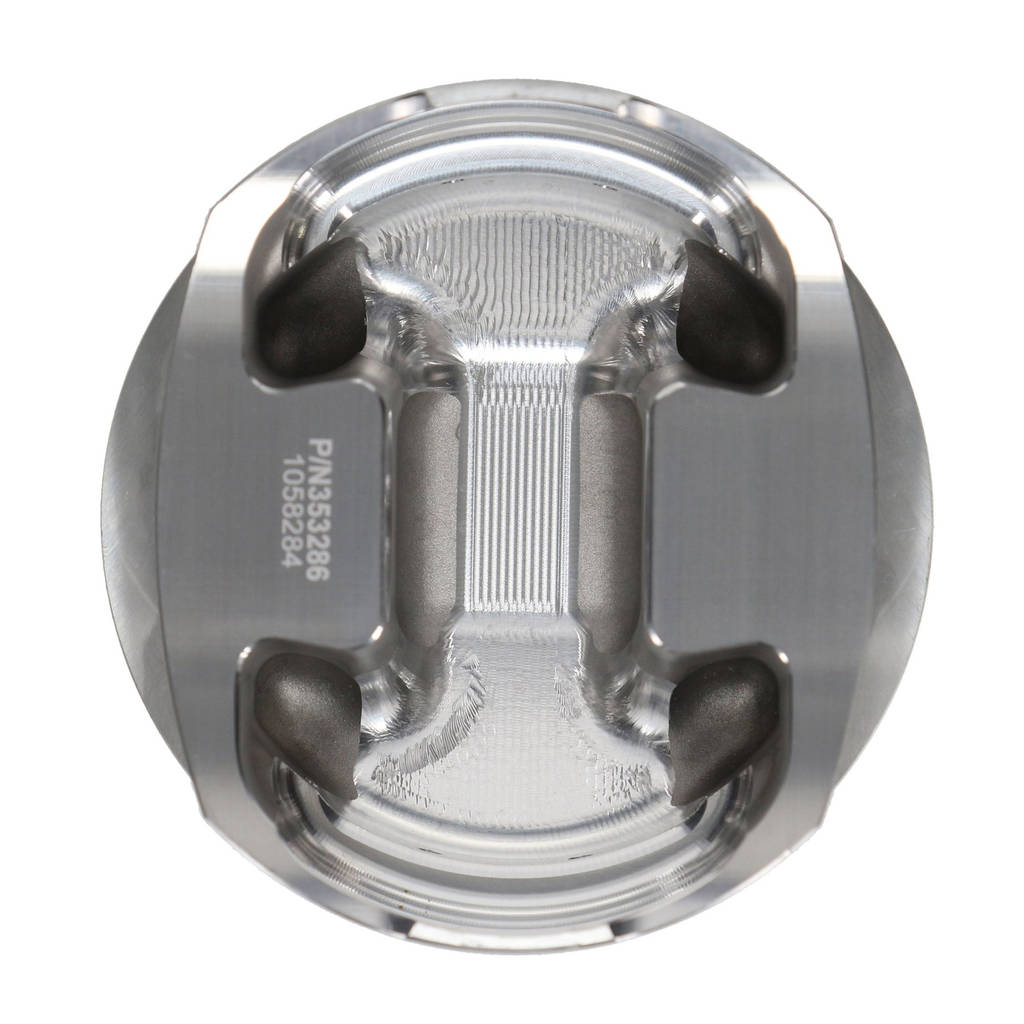

JE 274638 Piston Kit Aircooled (3.858 in. Bore, 1.335 in. CH, 35.20 CC) for PORSCHE 3.0L Engine Photo-2

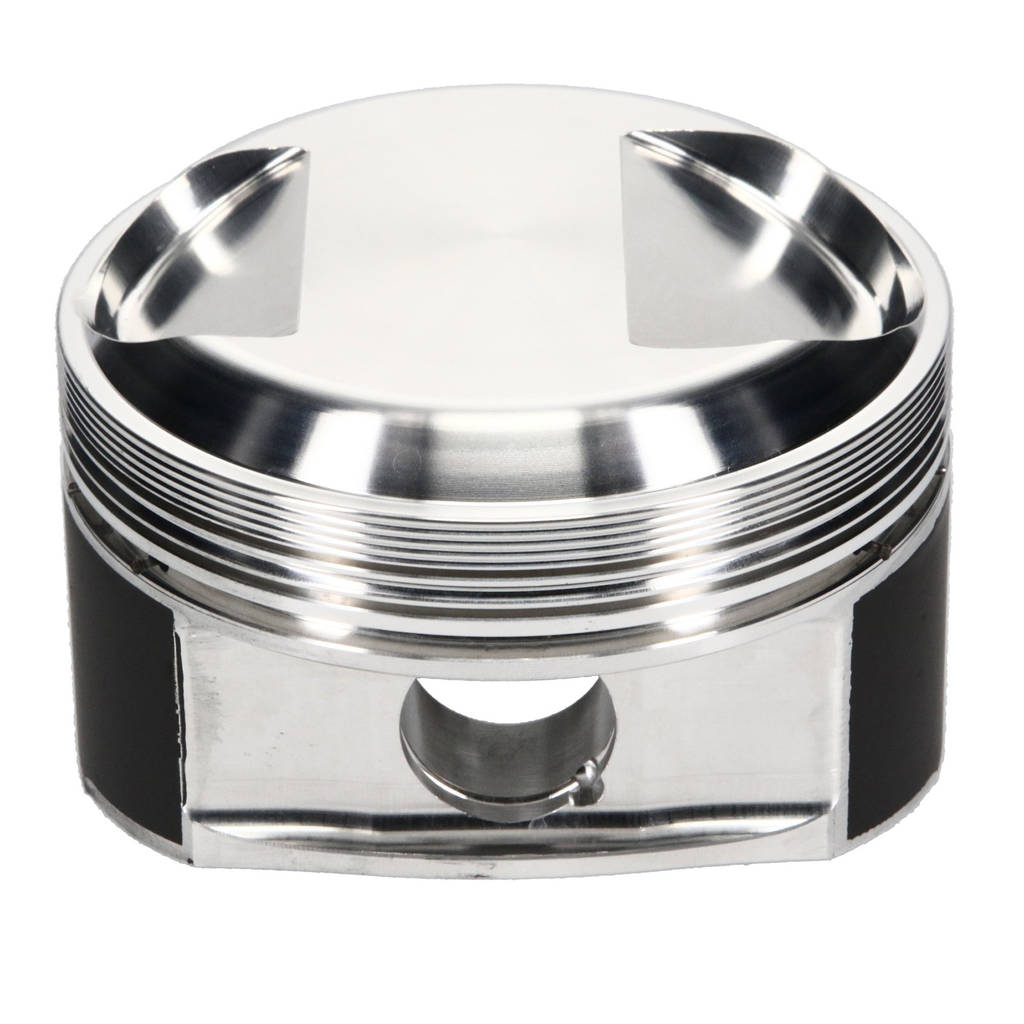

JE 274638 Piston Kit Aircooled (3.858 in. Bore, 1.335 in. CH, 35.20 CC) for PORSCHE 3.0L Engine Photo-3

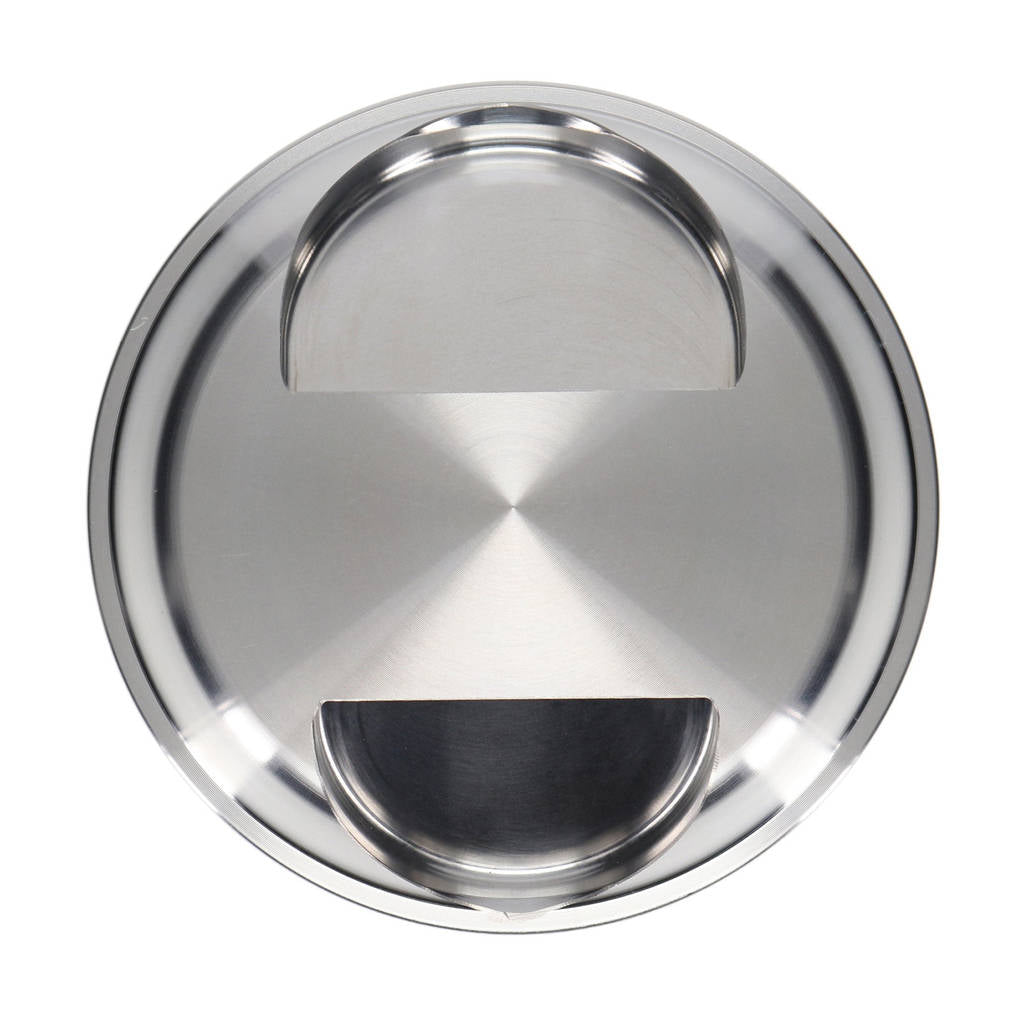

JE 274638 Piston Kit Aircooled (3.858 in. Bore, 1.335 in. CH, 35.20 CC) for PORSCHE 3.0L Engine Photo-4

JE 274638 Piston Kit Aircooled (3.858 in. Bore, 1.335 in. CH, 35.20 CC) for PORSCHE 3.0L Engine

€1.736,71

VAT included. Shipping calculated at checkout

JE PISTONS P/N: 274638 GTIN: 193564216892
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

JE 274638 Piston Kit Aircooled (3.858 in. Bore, 1.335 in. CH, 35.20 CC) for PORSCHE 3.0L Engine

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+491732982897

Description JE 274638 Piston Kit Aircooled (3.858 in. Bore, 1.335 in. CH, 35.20 CC) for PORSCHE 3.0L Engine

JE Pistons applies over 75 years of experience to its range of premium forged racing pistons for European, import, and sport compact applications.

Engineered, forged, and machined 100% in the USA, these pistons are Designed for each specific engine and racing application to provide durability and performance.

  • Forged from 4032 aluminum for tensile strength and minimal thermal expansion
  • Proprietary Forged Side Relief design minimizes friction and power loss while reducing skirt width, weight, and Wrist Pin length
  • Application-dependent skirt coating reduces friction, piston skirt and cylinder Wall wear, and operating noise
  • Application-dependent accumulator groove reduces combustion gas pressure and Piston Ring flutter while improving ring seal

Specifications:

  • Piston Series: JE Pistons
  • Bore Diameter: 3.858 IN
  • Piston Head Type: Dome
  • Compression Height: 1.335 IN
  • Piston Volume: 35.20 CC
  • Piston Material: 2618
  • Piston Quantity: 6
  • Wrist Pin Material: 9310 Nickel Carbon Steel Alloy
  • Wrist Pin Outer Diameter: 0.866 IN
  • Wrist Pin Length: 2.500 IN
  • Wrist Pin Wall Thickness: 0.150 IN
  • Intake Depth: .180 IN
  • Intake Diameter: 2.050 IN
  • Exhaust Depth: .135
  • Exhaust Diameter: 1.800
  • Exhaust Angle: 30
  • Top Groove Width: 0.05950 IN
  • 2nd Groove Width: 0.06000 IN
  • Oil Groove Width: 0.11900 IN
  • Product Type: Engine Piston Kit
  • Product Market: European
  • 3.0L Aircooled
