DESCRIPTION:

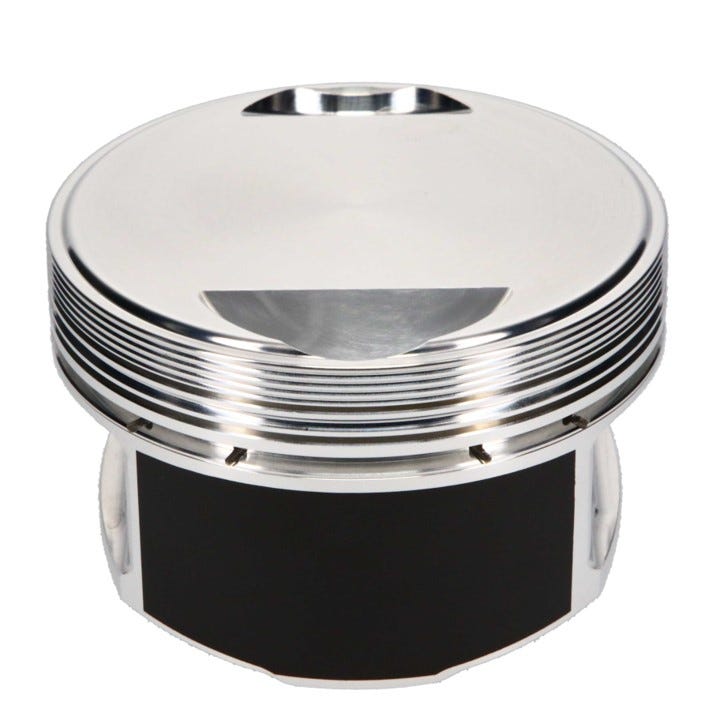

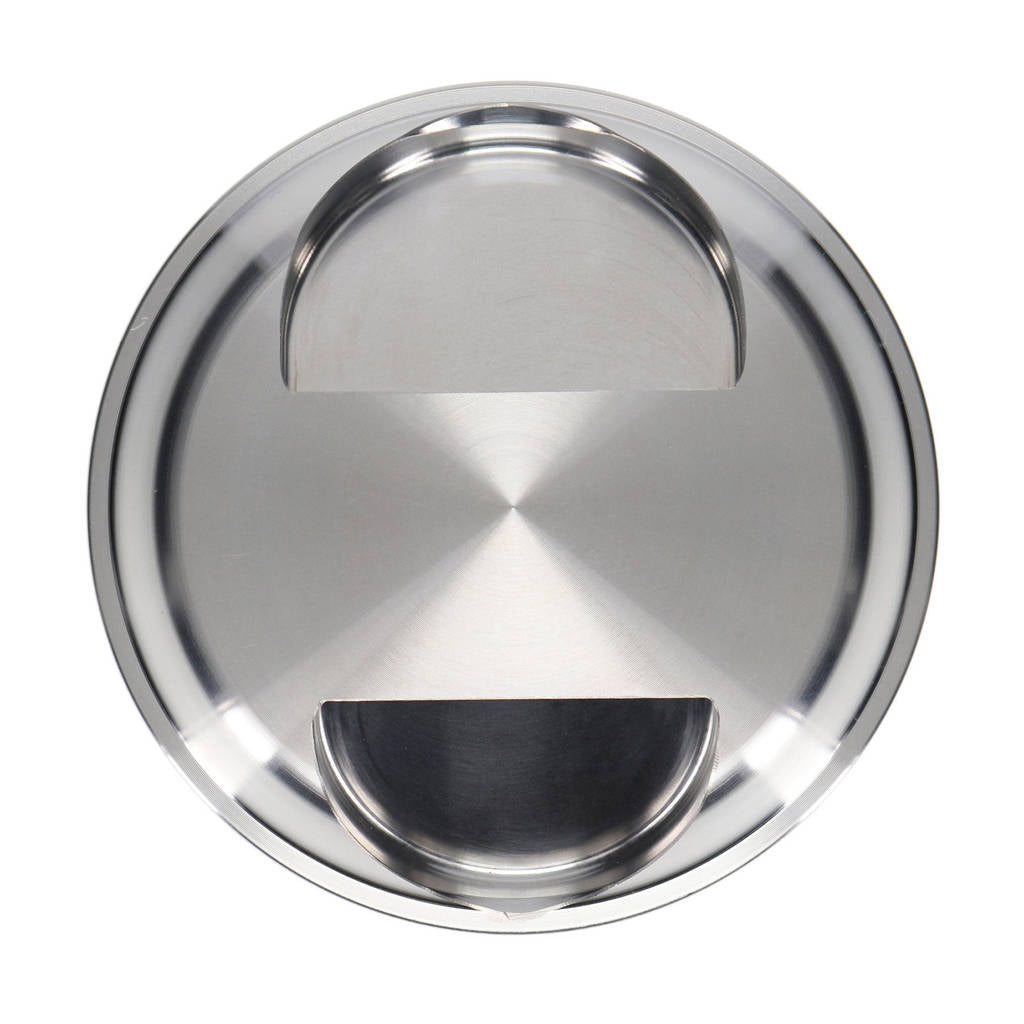

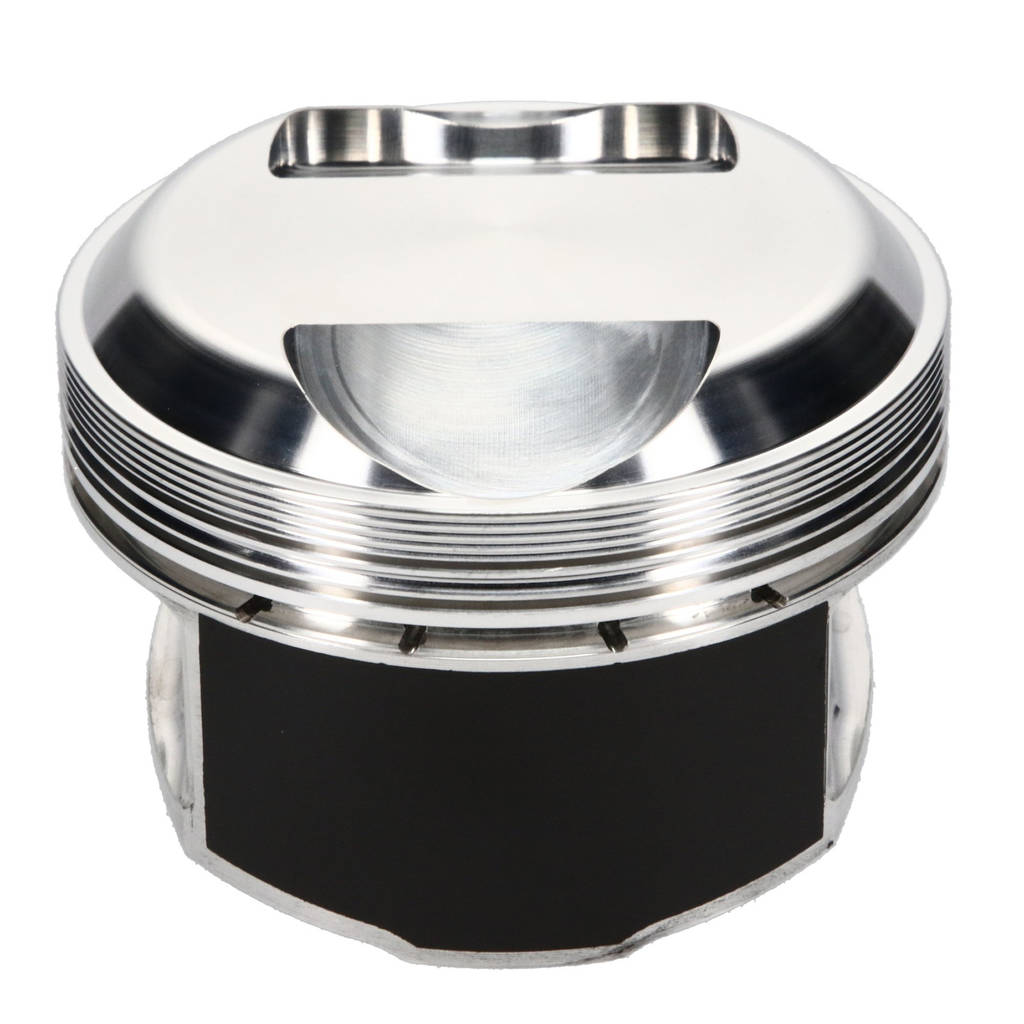

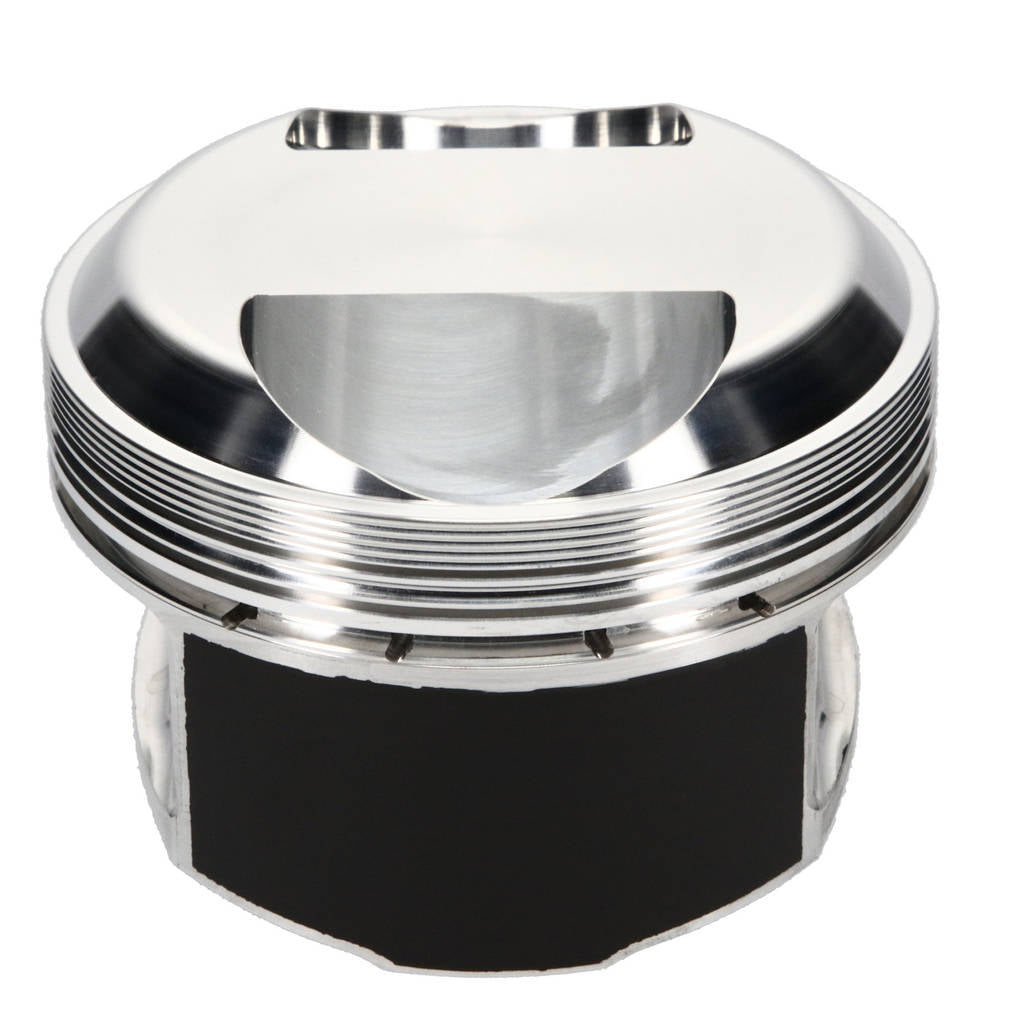

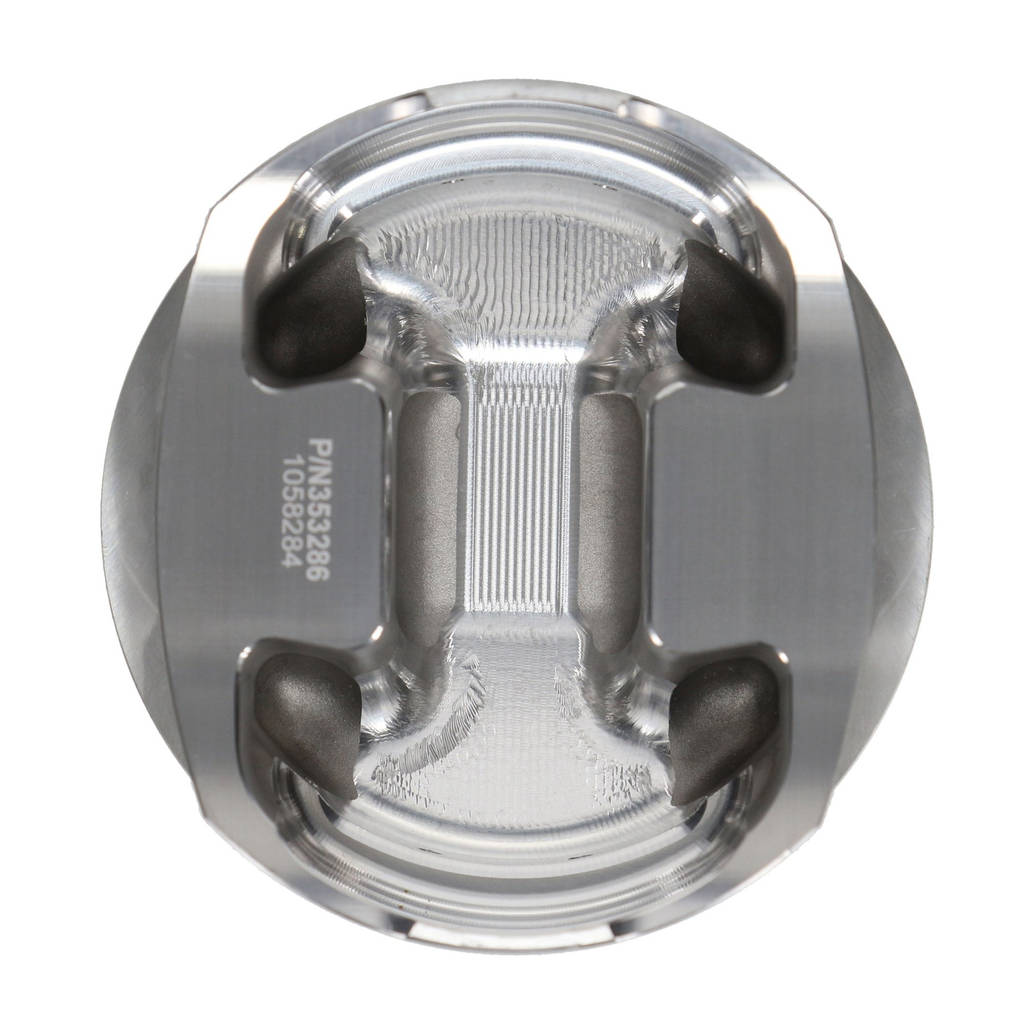

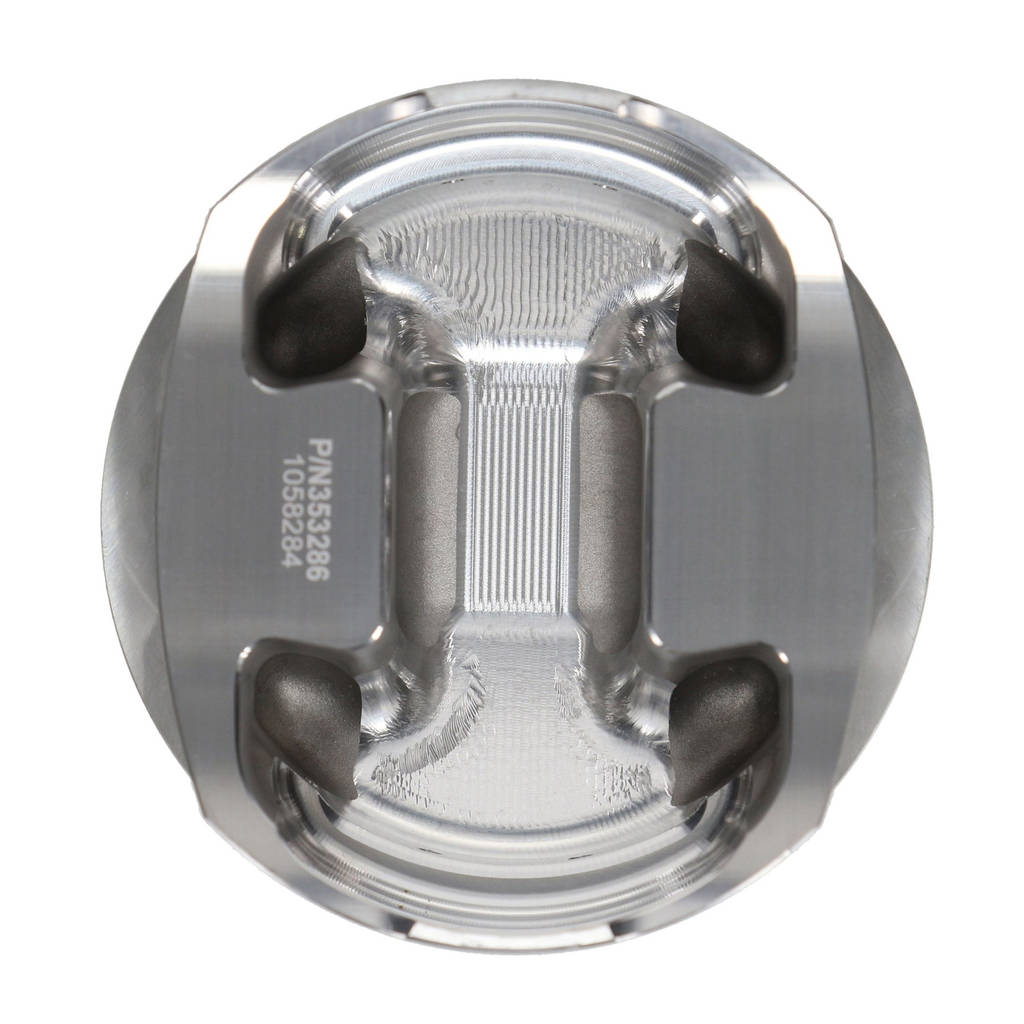

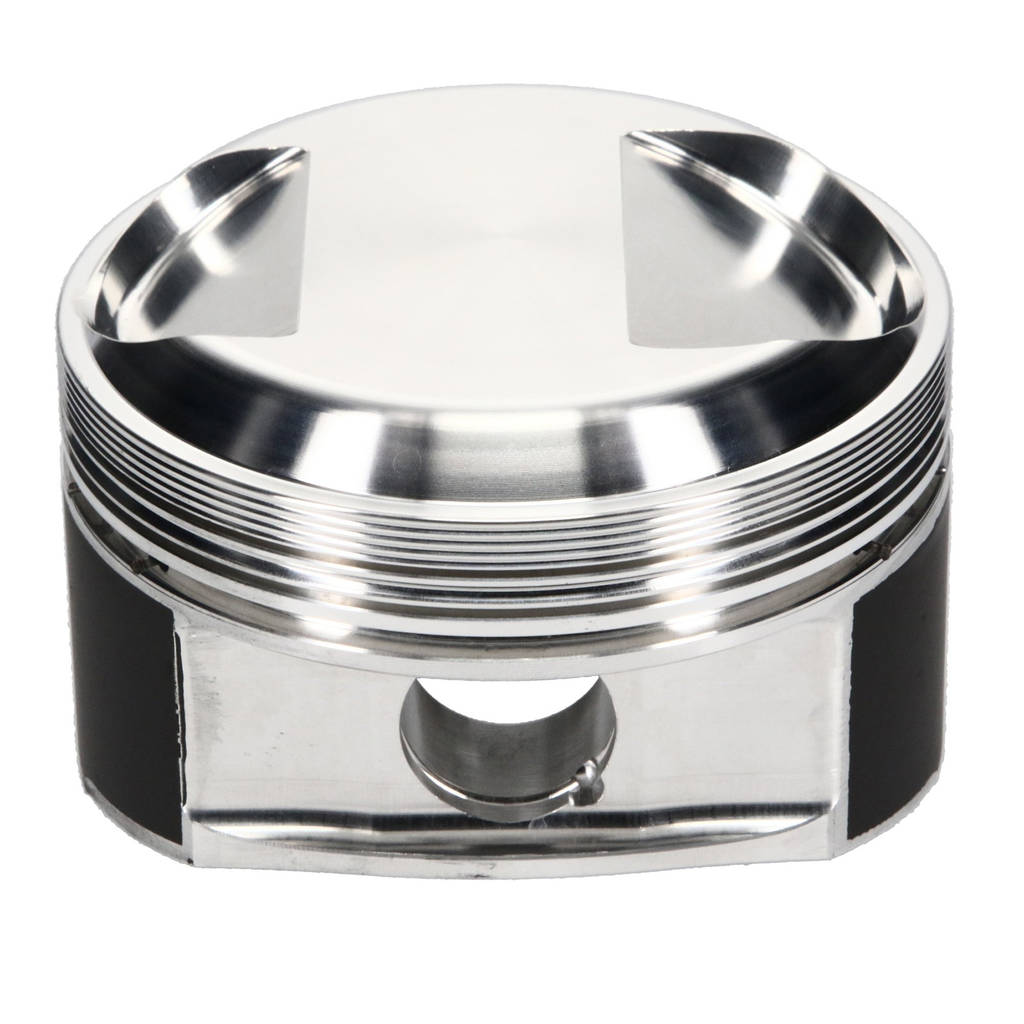

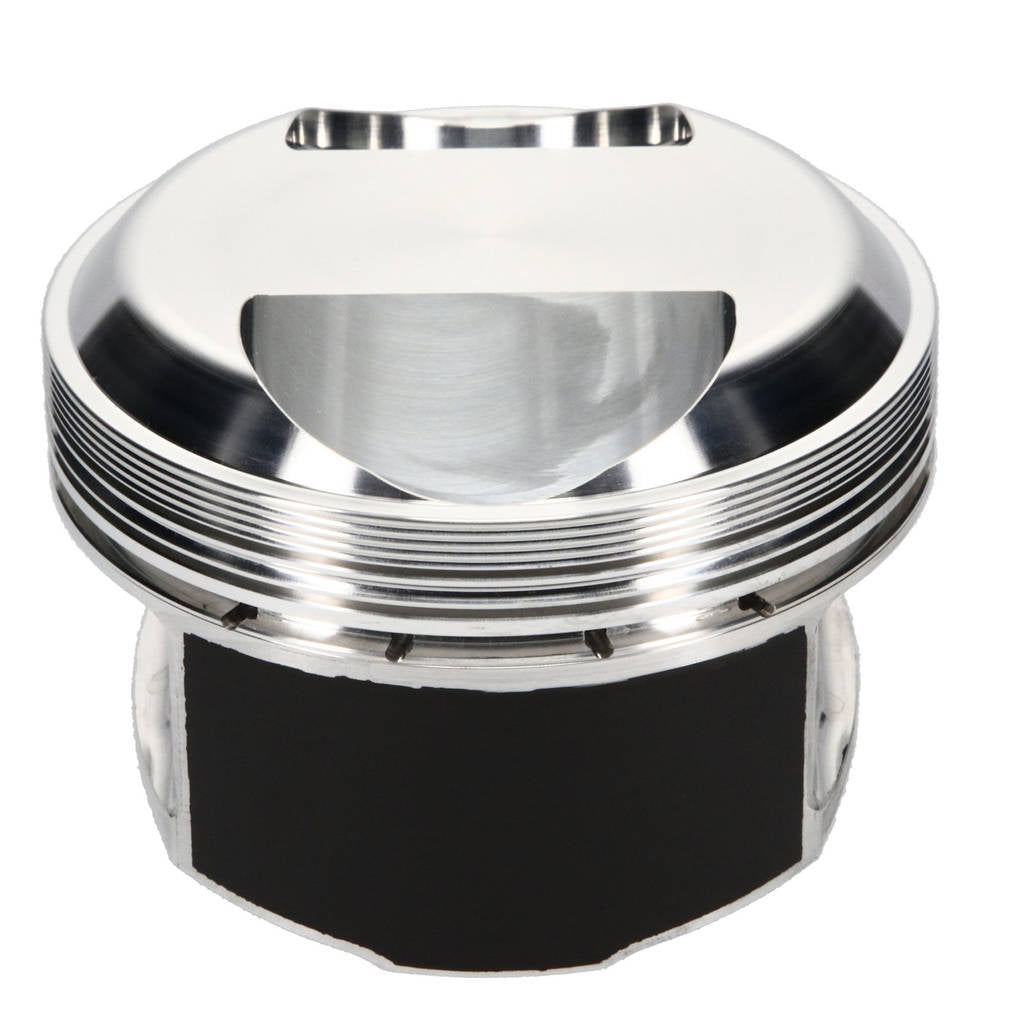

Piston Set, 2618, Dome, 3.858 Bore, 1.290 CD, 0.905, Pin Dia, Set of 6.
PORSCHE|AIRCOOLED 911 3.3L
| Bore (in) | 3.858 |
|---|---|
| Bore (mm) | 98. |
| Top Compression Ring Thickness | 0.0600 |
| Second Compression Ring Thickness | 0.0600 |
| Oil Ring Thickness | 0.119 |
| Forging Type | Round |
| Volume (cc) | 17.50 |
| Series | JE Pistons |
| Piston Head Type | Dome |
| Pin Diameter (IN) | 0.905 |
| Compression Height | 1.290 |
| Make | PORSCHE |
| Wrist Pin Style - floating or press fit | Floating |
| Wall Type | CHAMFERED |
| Wall Thickness (IN) | 0.180 |
| Ringset Part Number | J612U1-3858 |
| Ring Brand | ProSeal |
| Ringset Included | Yes |
| Retainer Thickness | 0.073 |
| Retainer Lock Style | Wire Lock |
| Retainer Lock Part Number | 905-073-MW |
| Retainer Diameter (IN) | 0.905 |
| Replacement Single Piston | 274648S |
| Piston Pin Inside Diameter | 0.545 |
| Piston Pin Material | 9310 NICKEL CARBON STEEL ALLOY |
| Piston Material | 2618 |
| Piston Pin Length (IN) | 2.500 |
| Piston Avg Wt | 439 |
| Pin Offset | No |
| Pin Brand | JE Pistons |
| Pin Part Number | 905-2500-18-93C |
| Pin Included | Yes |
| Pin Diameter (mm) | 23.00 |
| Oil Rail Support Included | No |
| Deck Clearance | 0.000 |
| Brand | JE Pistons |
