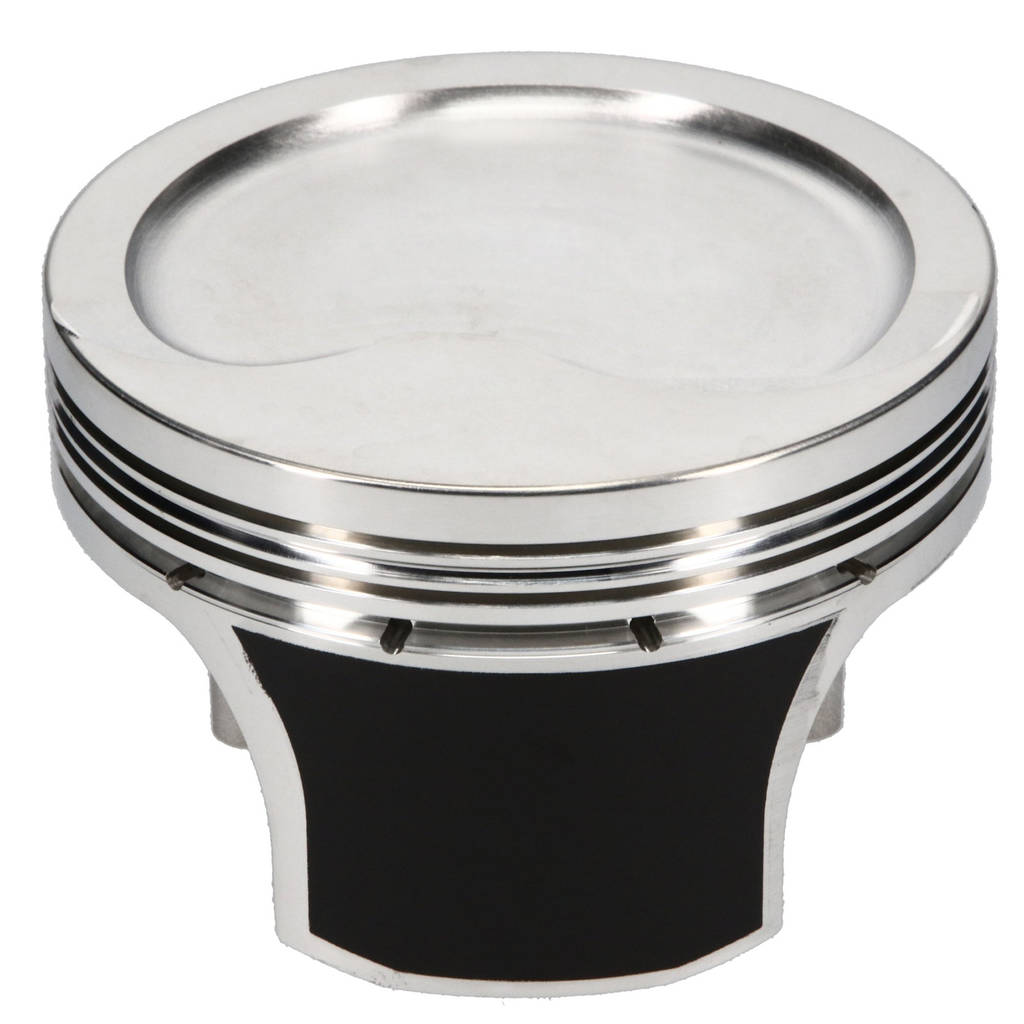

JE 315549 Piston Kit SRP Pro 2618 (3.780 in. Bore, 1.314 in. CH, 7.50 CC) for CHEVROLET LS Gen III/IV Engine Photo-0

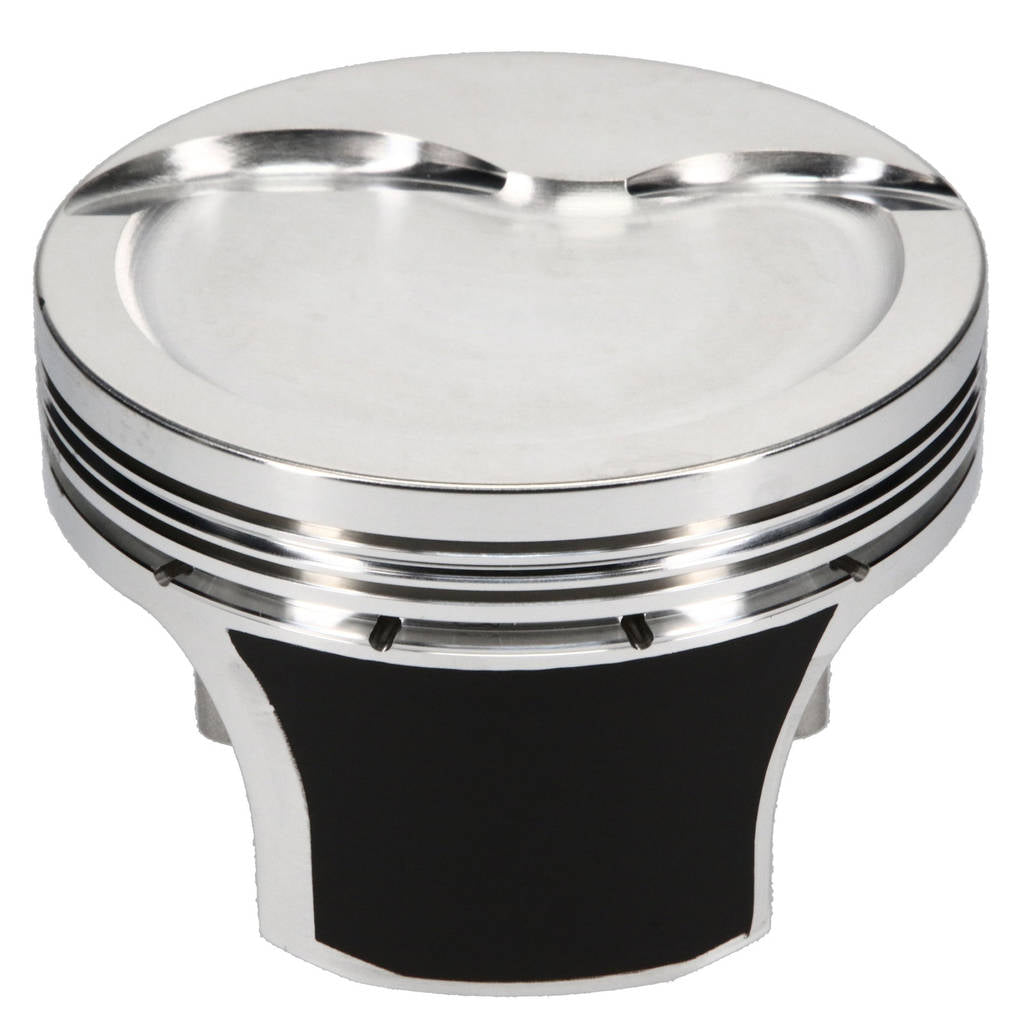

JE 315549 Piston Kit SRP Pro 2618 (3.780 in. Bore, 1.314 in. CH, 7.50 CC) for CHEVROLET LS Gen III/IV Engine Photo-1

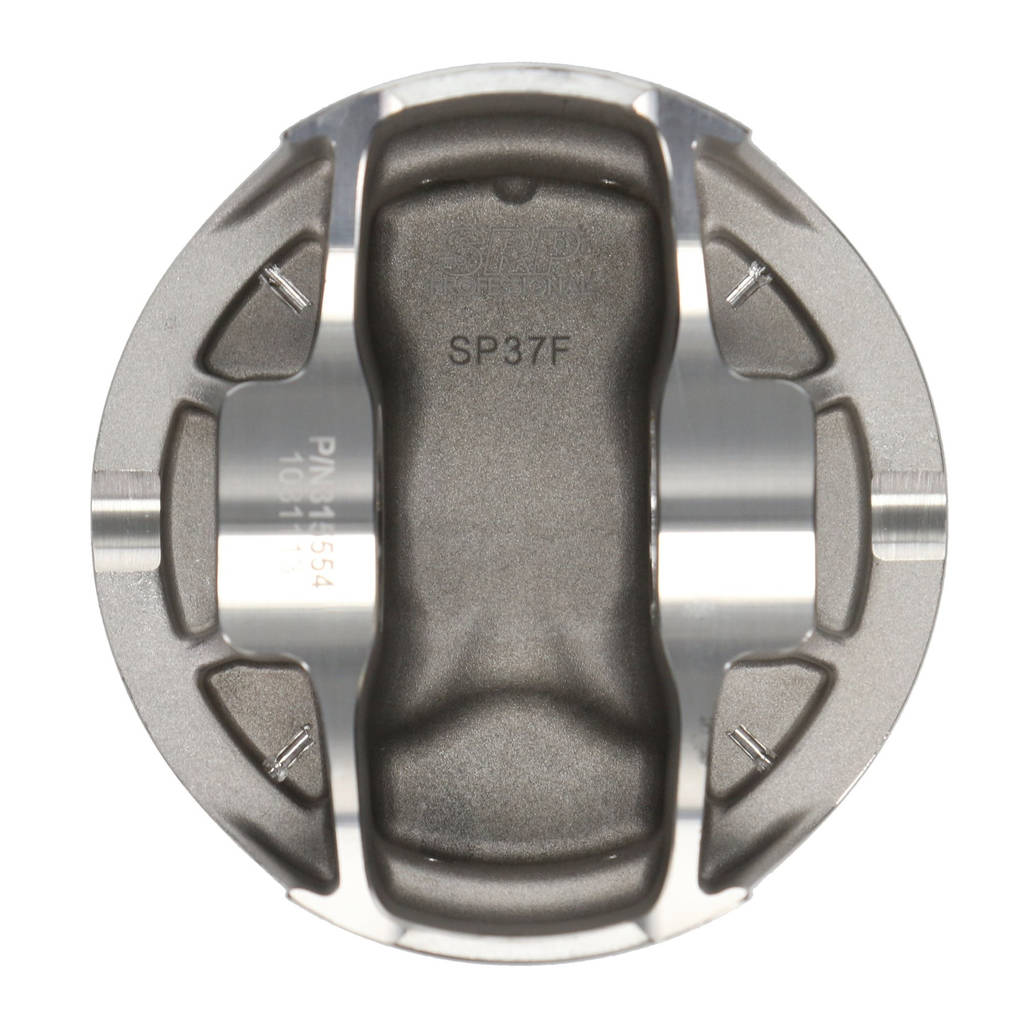

JE 315549 Piston Kit SRP Pro 2618 (3.780 in. Bore, 1.314 in. CH, 7.50 CC) for CHEVROLET LS Gen III/IV Engine Photo-2

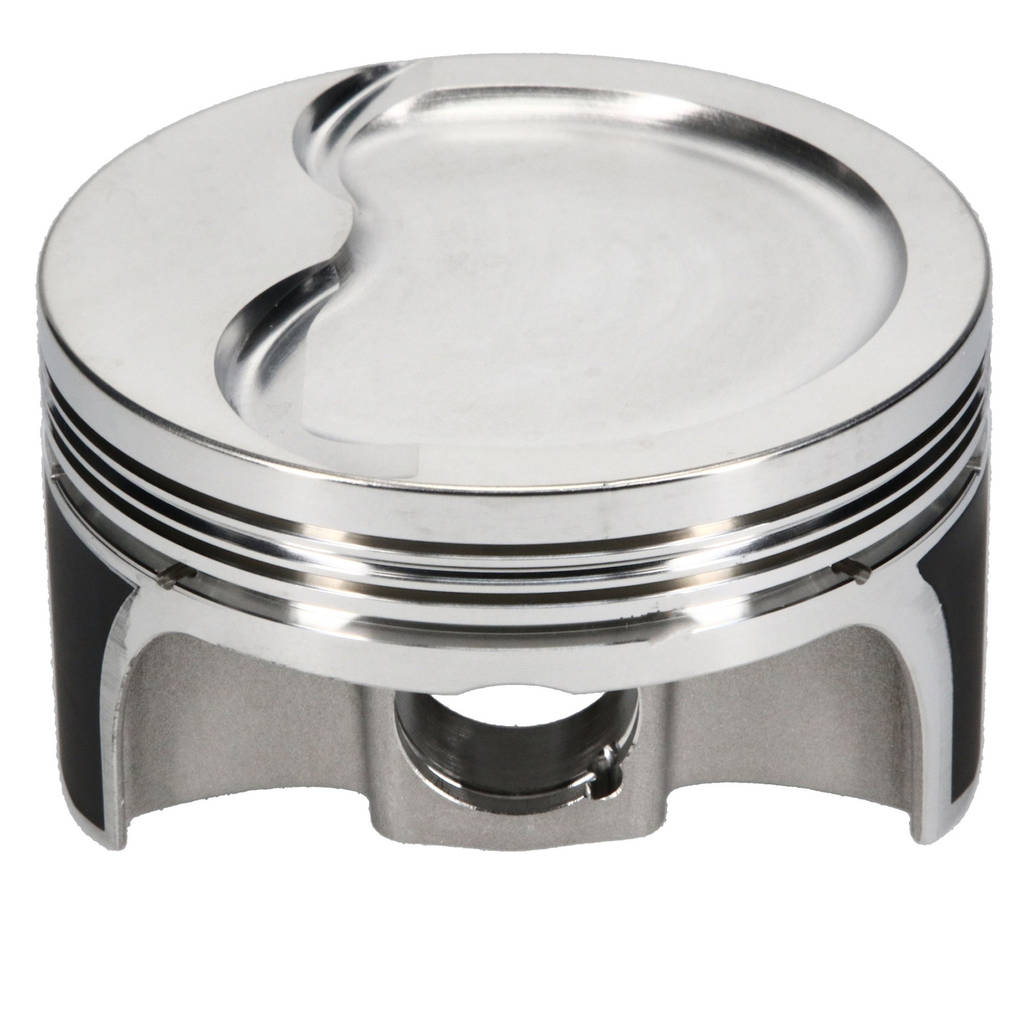

JE 315549 Piston Kit SRP Pro 2618 (3.780 in. Bore, 1.314 in. CH, 7.50 CC) for CHEVROLET LS Gen III/IV Engine Photo-3

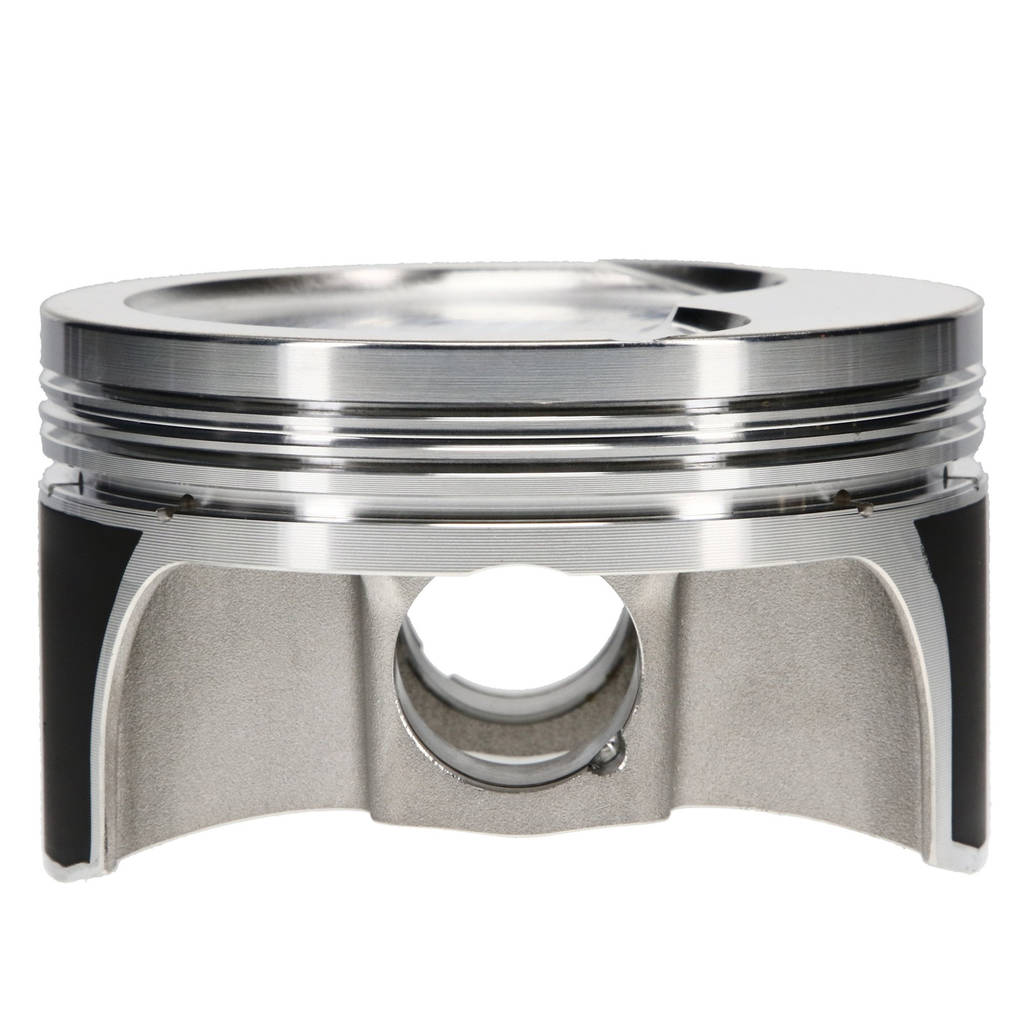

JE 315549 Piston Kit SRP Pro 2618 (3.780 in. Bore, 1.314 in. CH, 7.50 CC) for CHEVROLET LS Gen III/IV Engine Photo-4

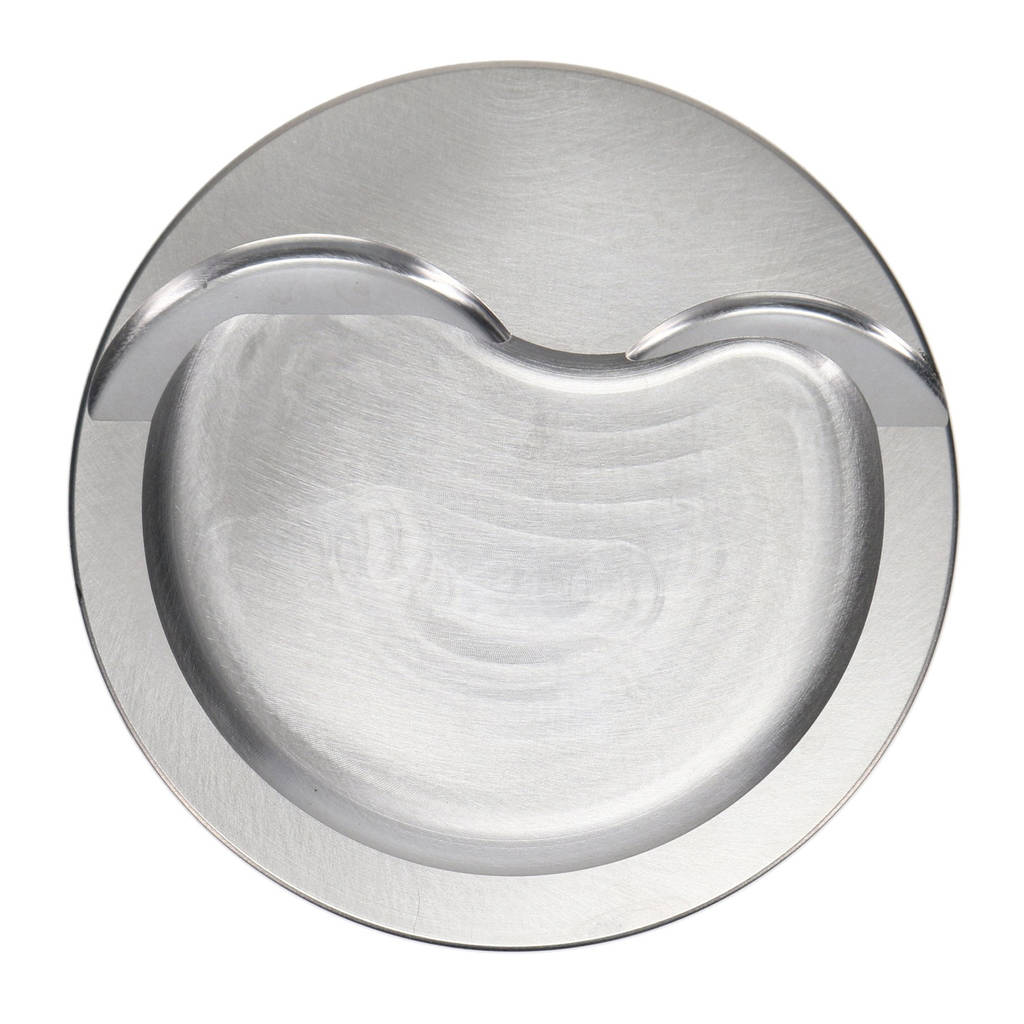

JE 315549 Piston Kit SRP Pro 2618 (3.780 in. Bore, 1.314 in. CH, 7.50 CC) for CHEVROLET LS Gen III/IV Engine Photo-5

JE 315549 Piston Kit SRP Pro 2618 (3.780 in. Bore, 1.314 in. CH, 7.50 CC) for CHEVROLET LS Gen III/IV Engine

€1.091,69

VAT included. Shipping calculated at checkout

JE PISTONS P/N: 315549 GTIN: 193564244611
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

JE 315549 Piston Kit SRP Pro 2618 (3.780 in. Bore, 1.314 in. CH, 7.50 CC) for CHEVROLET LS Gen III/IV Engine

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+491732982897

Description JE 315549 Piston Kit SRP Pro 2618 (3.780 in. Bore, 1.314 in. CH, 7.50 CC) for CHEVROLET LS Gen III/IV Engine

JE Pistons SRP Pro 2618 line expands on the premium features of the SRP Pro Series with extremely strong 2618 forged aluminum. The pistons maximize strength and value for small-block and big-block builds.

Forged in the USA, the 2618 aluminum provides the high tensile strength required for high-demand performance applications.

  • Proprietary Forged Side Relief (FSR) design minimizes friction and power loss, reduces skirt width, and saves weight with a shorter Wrist Pin
  • Ring groove placement maintains a positive seal in high-HP boosted applications, while the stout top land improves strength
  • Low-friction skirt coating reduces wear and operating noise while optimizing performance
  • Accumulator groove reduces combustion gas pressure and Piston Ring flutter, improving the Piston Ring seal for consistent power

Specifications:

  • Piston Series: SRP Pro 2618
  • Cylinder Head: GM LS1 15 DEG
  • Bore Diameter: 3.780 IN
  • Piston Head Type: Dome
  • Compression Height: 1.314 IN
  • Piston Volume: 7.50 CC
  • Piston Material: 2618
  • Forging Type: FSR
  • Piston Average Weight: 383 GR
  • Ring Set Included: Yes
  • Top Compression Ring Thickness: 0.0480 IN
  • Second Compression Ring Thickness: 0.0480 IN
  • Oil Ring Thickness: 0.0995 IN
  • Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
  • Wrist Pin Length: 2.250 IN
  • Wrist Pin Wall Thickness: 0.150 IN
  • Intake Depth: .180 IN
  • Intake Diameter: 2.100 IN
  • Intake Angle: 15
  • Exhaust Depth: S
  • Exhaust Diameter: 1.750
  • Exhaust Angle: 15
  • Top Groove Width: 0.04800 IN
  • 2nd Groove Width: 0.04800 IN
  • Oil Groove Width: 0.09950 IN

Vehicle Compatibility:

  • LS Gen III/IV
