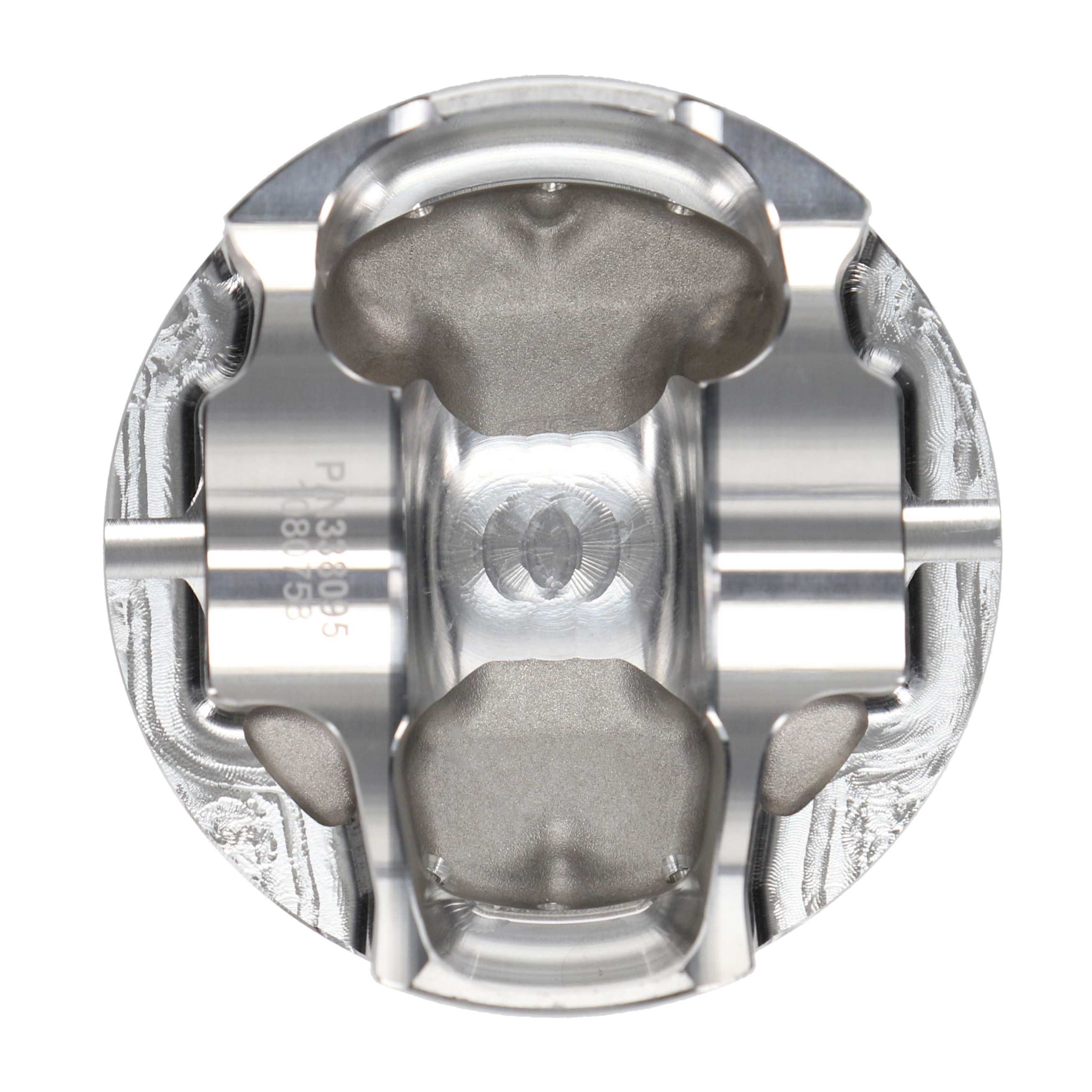

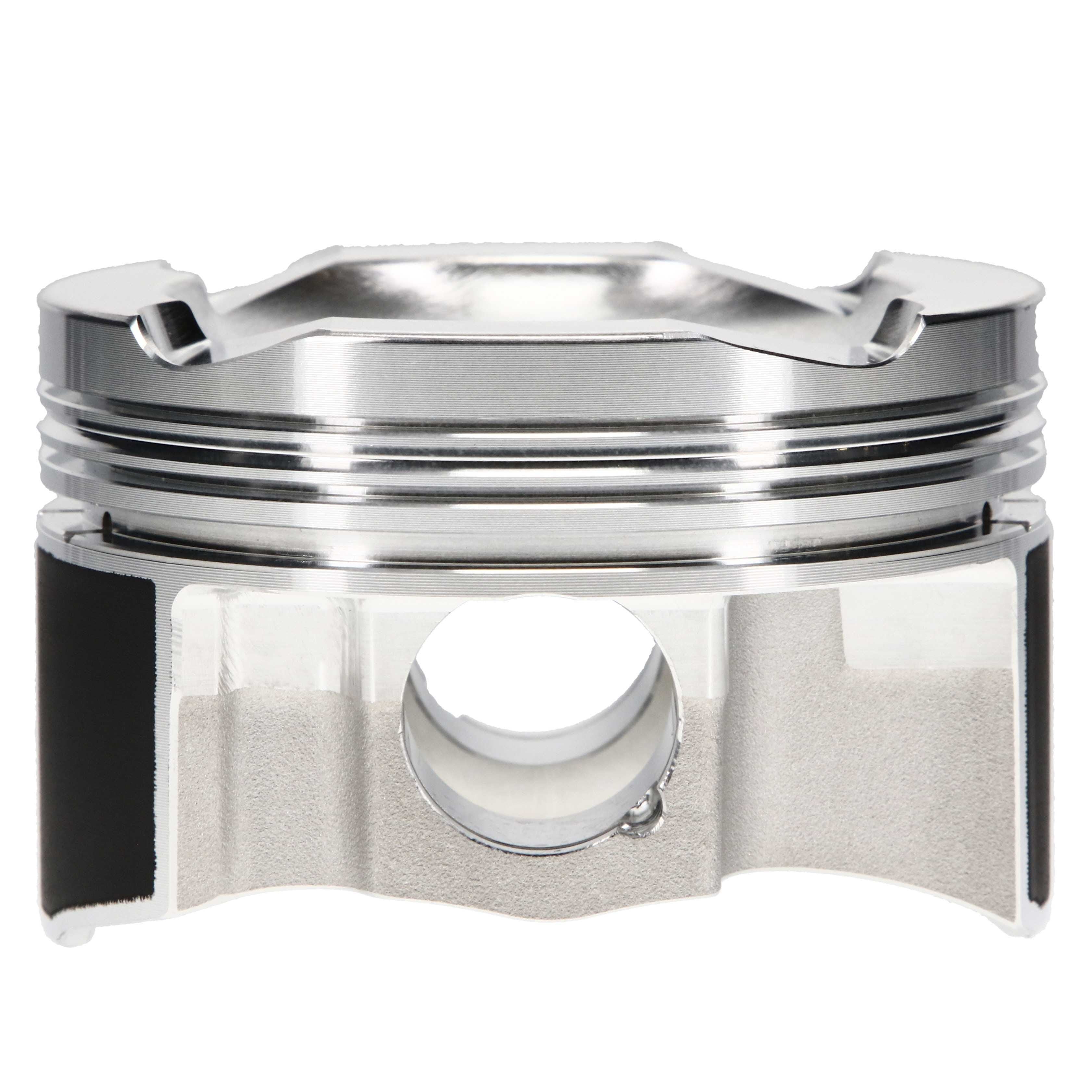

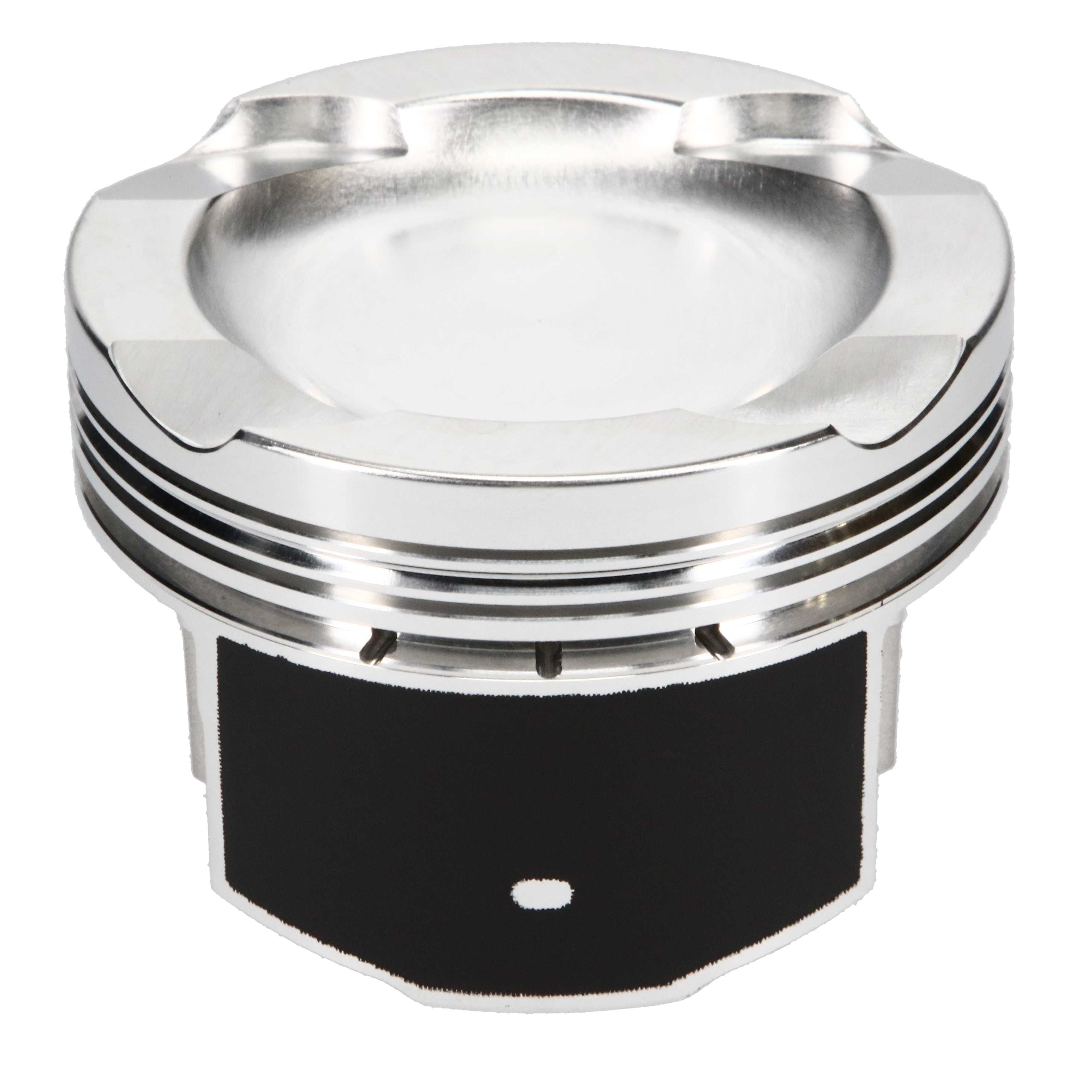

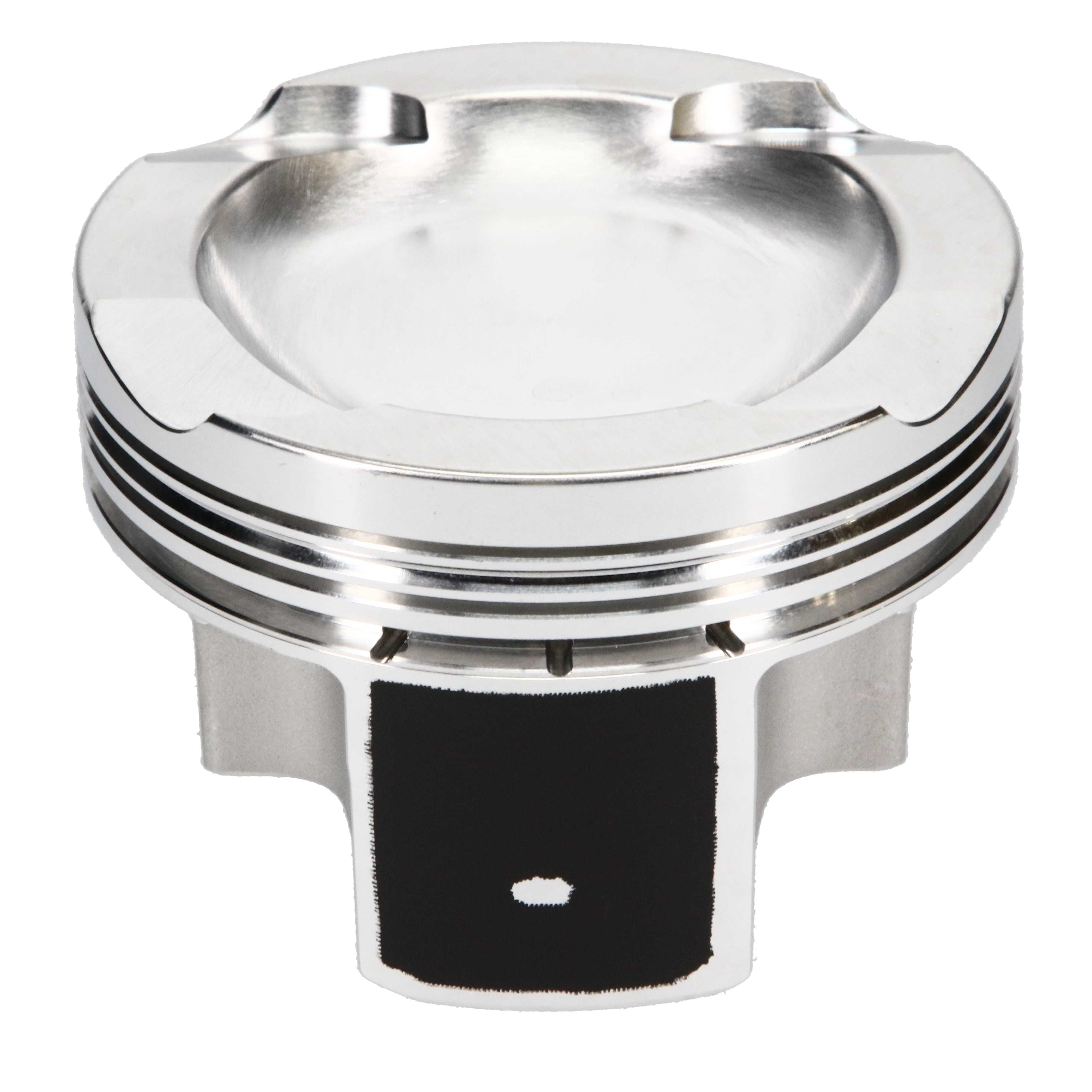

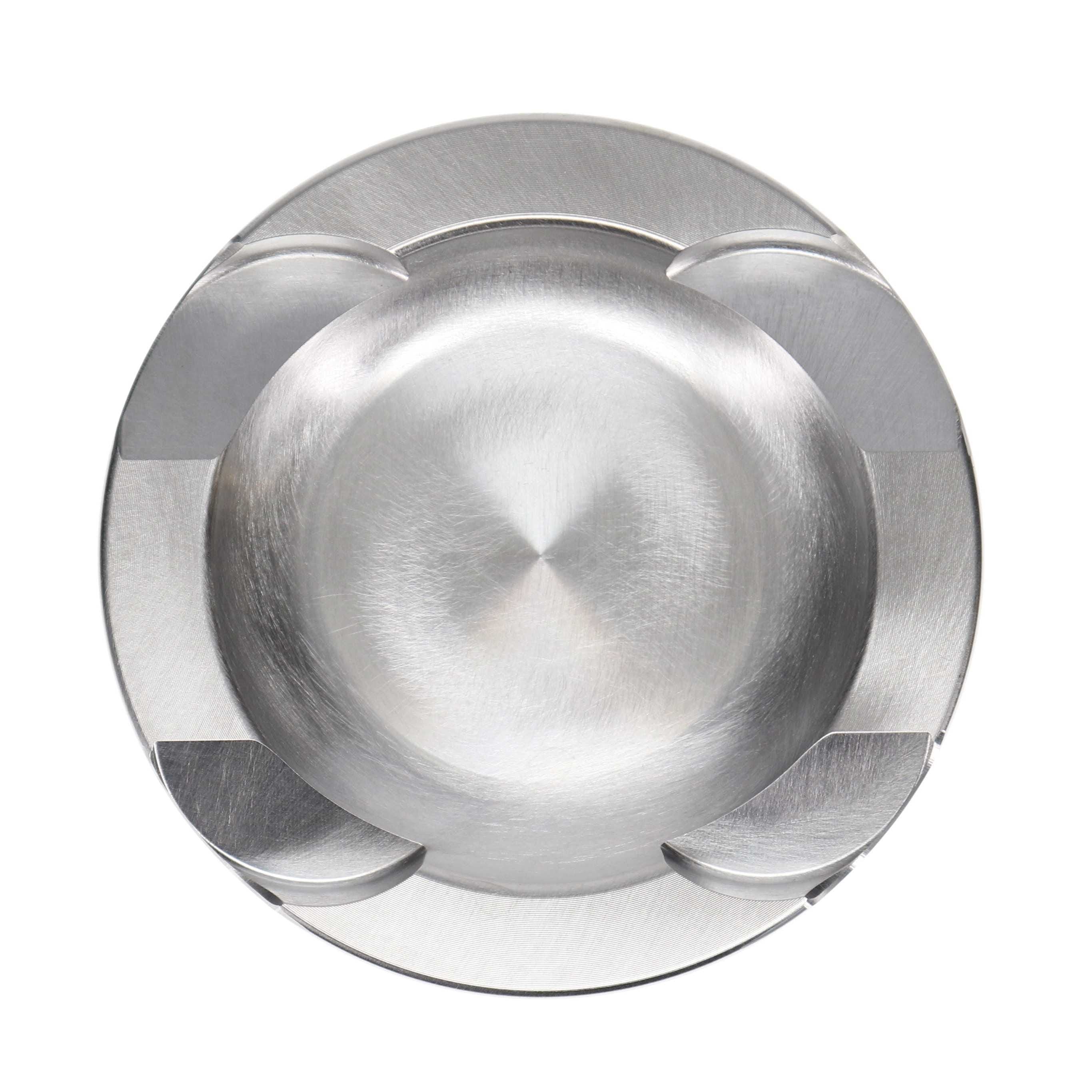

JE 338095S Piston BMW N54B30 (Single Piece Set) Photo-0
JE 338095S Piston BMW N54B30 (Single Piece Set) Photo-1
JE 338095S Piston BMW N54B30 (Single Piece Set) Photo-2

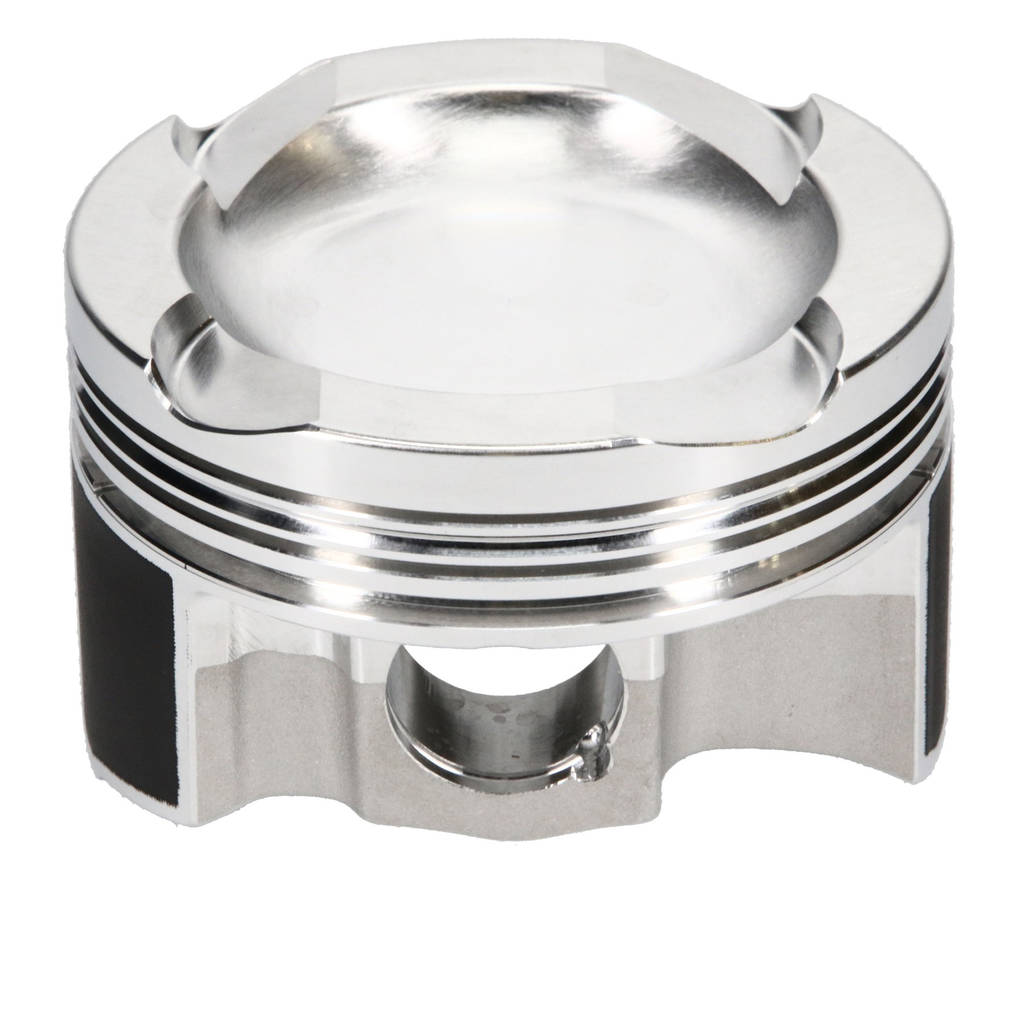

JE 338095S Piston BMW N54B30 (Single Piece Set) Photo-3
JE 338095S Piston BMW N54B30 (Single Piece Set) Photo-4

JE 338095S Piston BMW N54B30 (Single Piece Set)

€437,77

VAT included. Shipping calculated at checkout

JE PISTONS P/N: 338095S GTIN: 193564010223
Available for order at Partners Worldwide Usually ready in 1-2 weeks updated 30.06.2025
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

JE 338095S Piston BMW N54B30 (Single Piece Set)

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+4926916879995

DESCRIPTION:

Piston Single, 2618, Inv Dome/Dish, 3.327 Bore, 1.244 CD, 0.866, Pin Dia, Set of 1.






Bore (in) 3.327
Bore (mm) 84.5
Top Compression Ring Thickness 0.0400
Second Compression Ring Thickness 0.0480
Oil Ring Thickness 0.111
Forging Type FSR
Volume (cc) -22.00
Series JE Pistons
Piston Head Type Inv Dome/Dish
Pin Diameter (IN) 0.866
Compression Height 1.244
Make BMW
Wrist Pin Style - floating or press fit Floating
Wall Type CHAMFERED
Wall Thickness (IN) 0.150
Ringset Part Number JG1001-3327
Ring Brand ProSeal
Ringset Included Yes
Retainer Thickness 0.063
Retainer Lock Style Wire Lock
Retainer Lock Part Number 866-063-MW
Retainer Diameter (IN) 0.866
Replacement Single Piston 338095S
Piston Pin Inside Diameter 0.566
Piston Pin Material 5115 LOW CARBON STEEL, CASE HARDENED
Piston Material 2618
Piston Pin Length (IN) 2.250
Pin Offset Yes
Pin Brand JE Pistons
Pin Part Number 866-2250-15-51C
Pin Included Yes
Pin Diameter (mm) 22.00
Oil Rail Support Included No
Deck Clearance 0.000
Brand JE Pistons
