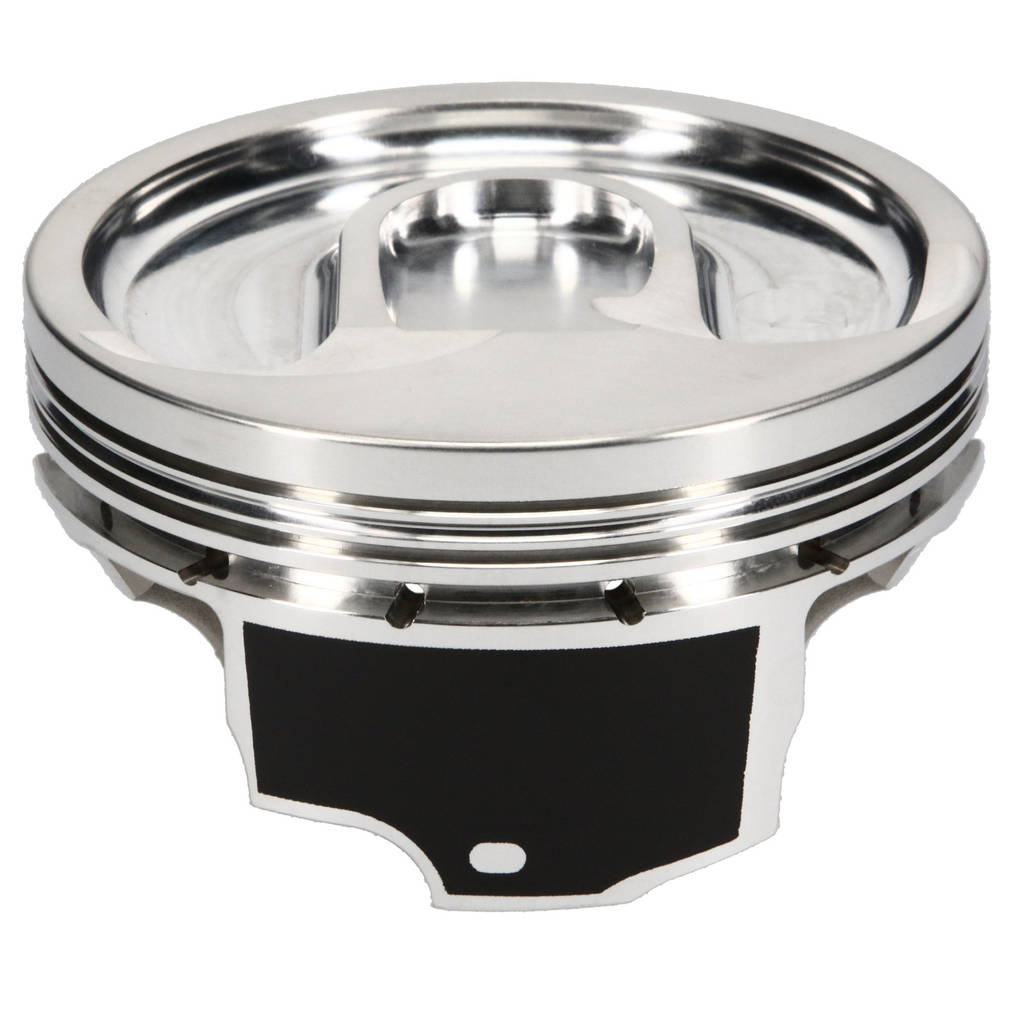

JE 338684 Piston Kit (4.075 in. Bore, 1.115 in. CH, -24.30 CC) for CHEVROLET LT1 Gen V Engine Photo-0

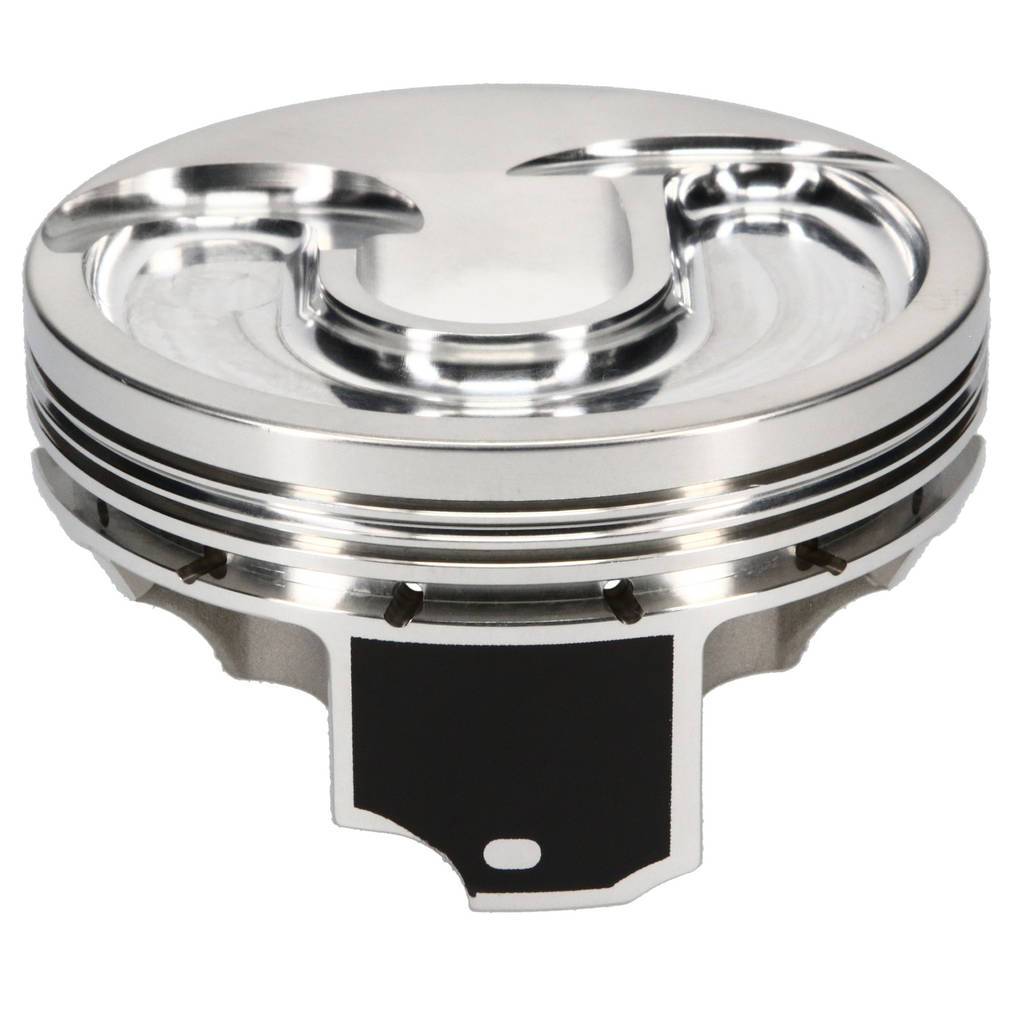

JE 338684 Piston Kit (4.075 in. Bore, 1.115 in. CH, -24.30 CC) for CHEVROLET LT1 Gen V Engine Photo-1

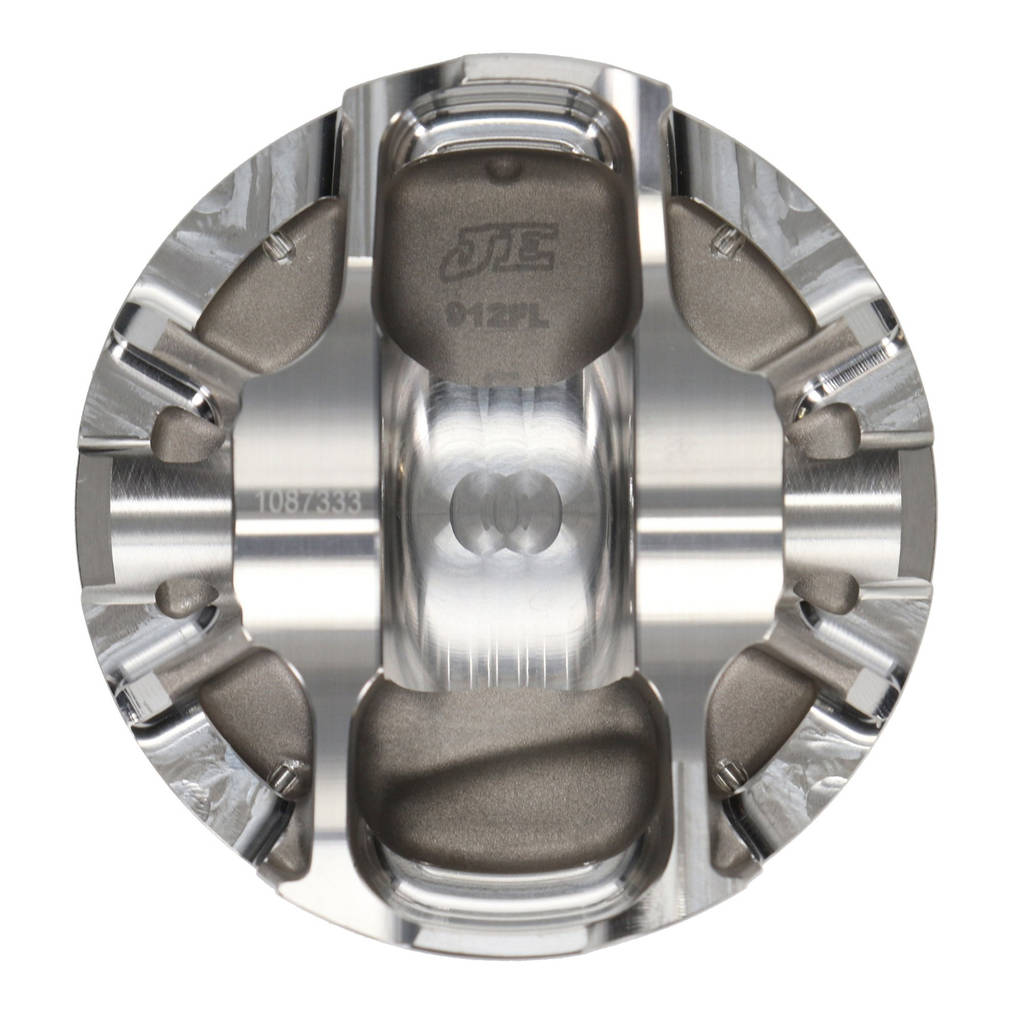

JE 338684 Piston Kit (4.075 in. Bore, 1.115 in. CH, -24.30 CC) for CHEVROLET LT1 Gen V Engine Photo-2

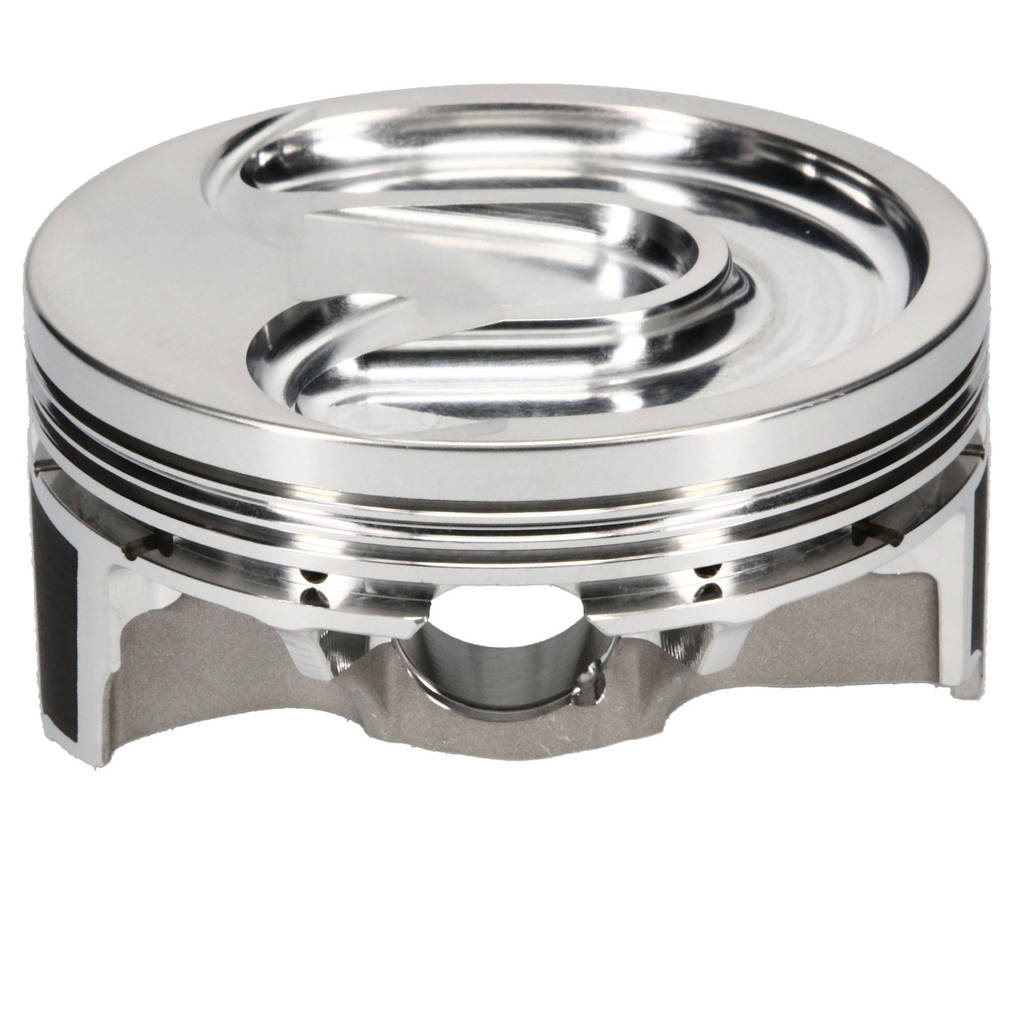

JE 338684 Piston Kit (4.075 in. Bore, 1.115 in. CH, -24.30 CC) for CHEVROLET LT1 Gen V Engine Photo-3

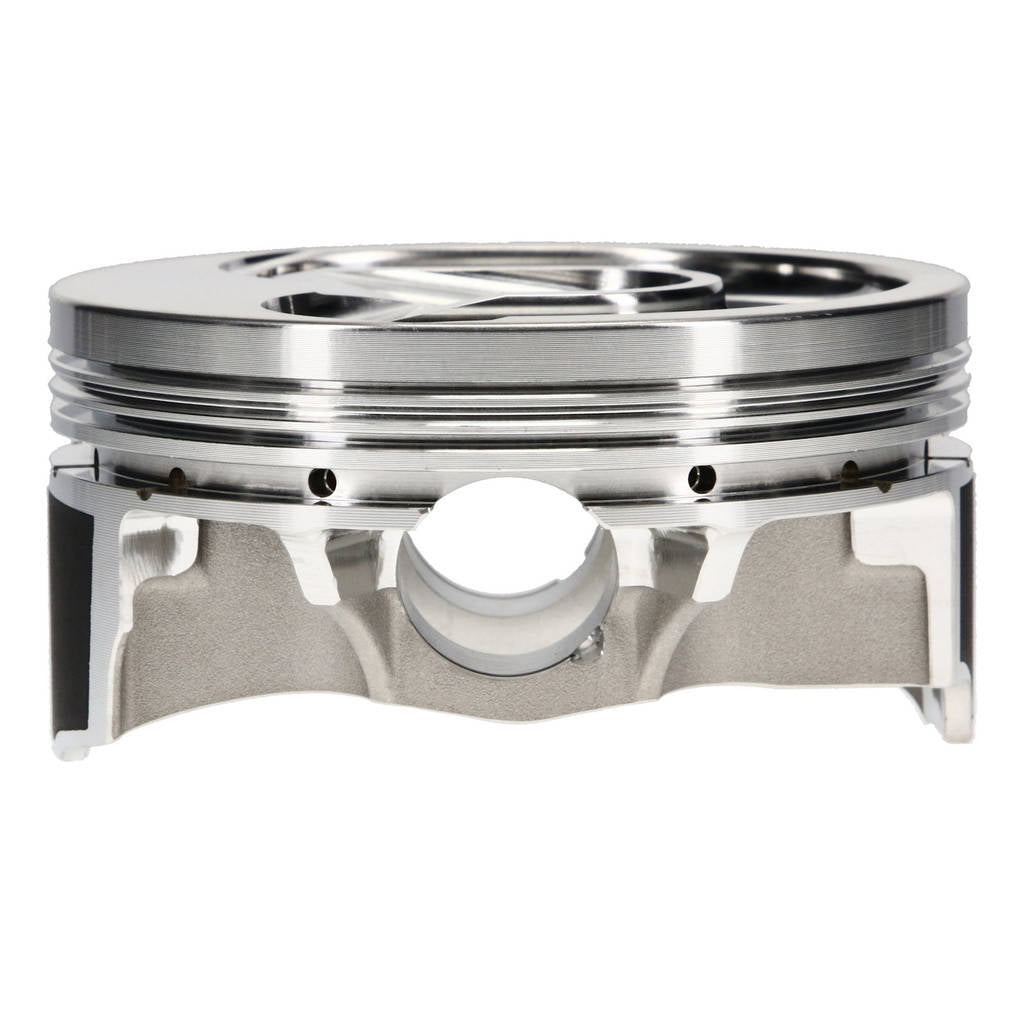

JE 338684 Piston Kit (4.075 in. Bore, 1.115 in. CH, -24.30 CC) for CHEVROLET LT1 Gen V Engine Photo-4

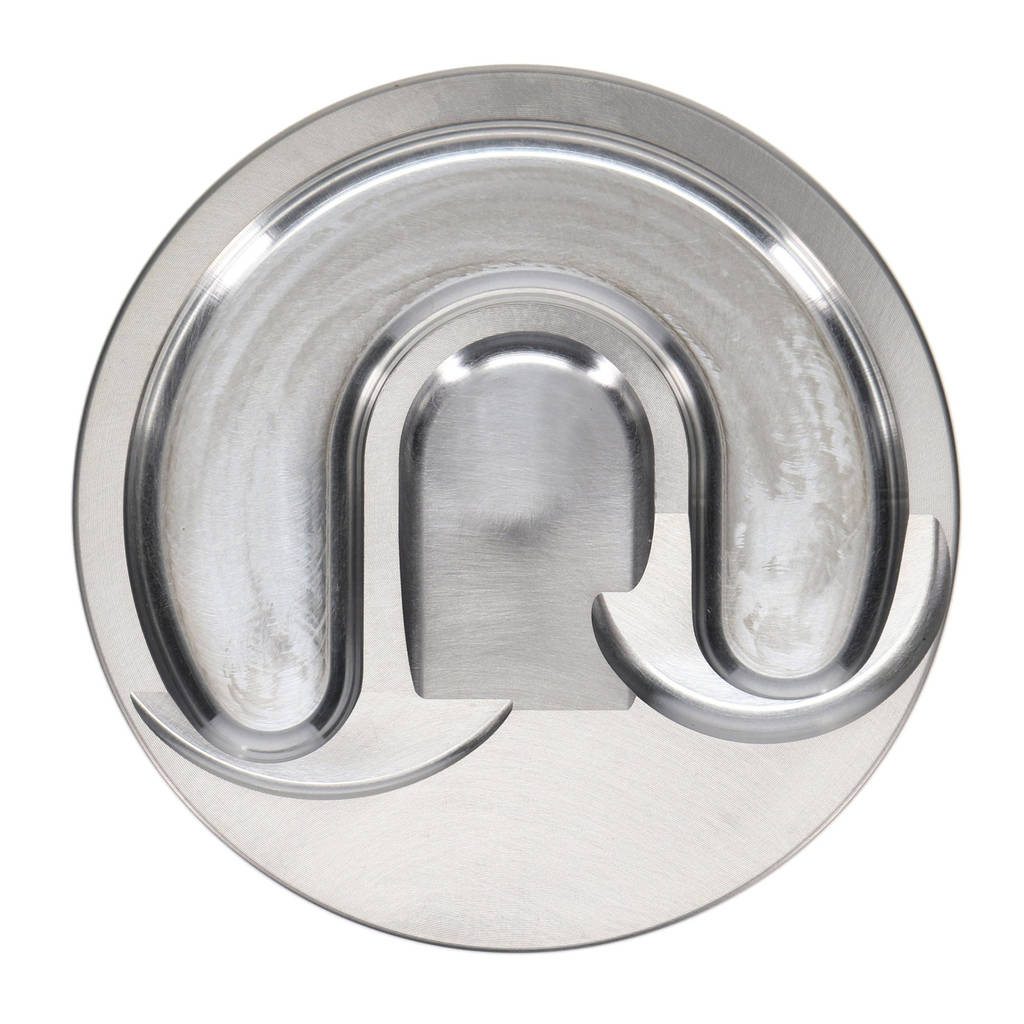

JE 338684 Piston Kit (4.075 in. Bore, 1.115 in. CH, -24.30 CC) for CHEVROLET LT1 Gen V Engine Photo-5

JE 338684 Piston Kit (4.075 in. Bore, 1.115 in. CH, -24.30 CC) for CHEVROLET LT1 Gen V Engine

€1.184,89

VAT included. Shipping calculated at checkout

JE PISTONS P/N: 338684 GTIN: 193564038036
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

JE 338684 Piston Kit (4.075 in. Bore, 1.115 in. CH, -24.30 CC) for CHEVROLET LT1 Gen V Engine

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+491732982897

Description JE 338684 Piston Kit (4.075 in. Bore, 1.115 in. CH, -24.30 CC) for CHEVROLET LT1 Gen V Engine

JE Pistons applies over 75 years of experience to its range of premium forged racing pistons for European, import, and sport compact applications.

Engineered, forged, and machined 100% in the USA, these pistons are Designed for each specific engine and racing application to provide durability and performance.

  • Forged from 4032 aluminum for tensile strength and minimal thermal expansion
  • Proprietary Forged Side Relief design minimizes friction and power loss while reducing skirt width, weight, and Wrist Pin length
  • Application-dependent skirt coating reduces friction, piston skirt and cylinder Wall wear, and operating noise
  • Application-dependent accumulator groove reduces combustion gas pressure and Piston Ring flutter while improving ring seal

Specifications:

  • Piston Series: JE Pistons
  • Cylinder Head: GEN 5 LT1
  • Bore Diameter: 4.075 IN
  • Piston Head Type: Dish
  • Compression Height: 1.115 IN
  • Piston Volume: -24.30 CC
  • Piston Material: 2618
  • Piston Quantity: 8
  • Forging Type: FSR
  • Ring Set Included: No
  • Top Compression Ring Thickness: 0.0480 IN
  • Second Compression Ring Thickness: 0.0600 IN
  • Oil Ring Thickness: 0.149 IN
  • Wrist Pin Included: Yes
  • Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
  • Wrist Pin Outer Diameter: 0.927 IN
  • Wrist Pin Length: 2.250 IN
  • Wrist Pin Wall Thickness: 0.150 IN
  • Wrist Pin Retainer Included: Yes
  • Ring Set Thickness: 1.20 MM x 1.50 MM x 3.00 MM

Vehicle Compatibility:

  • LT1 (Gen V)
