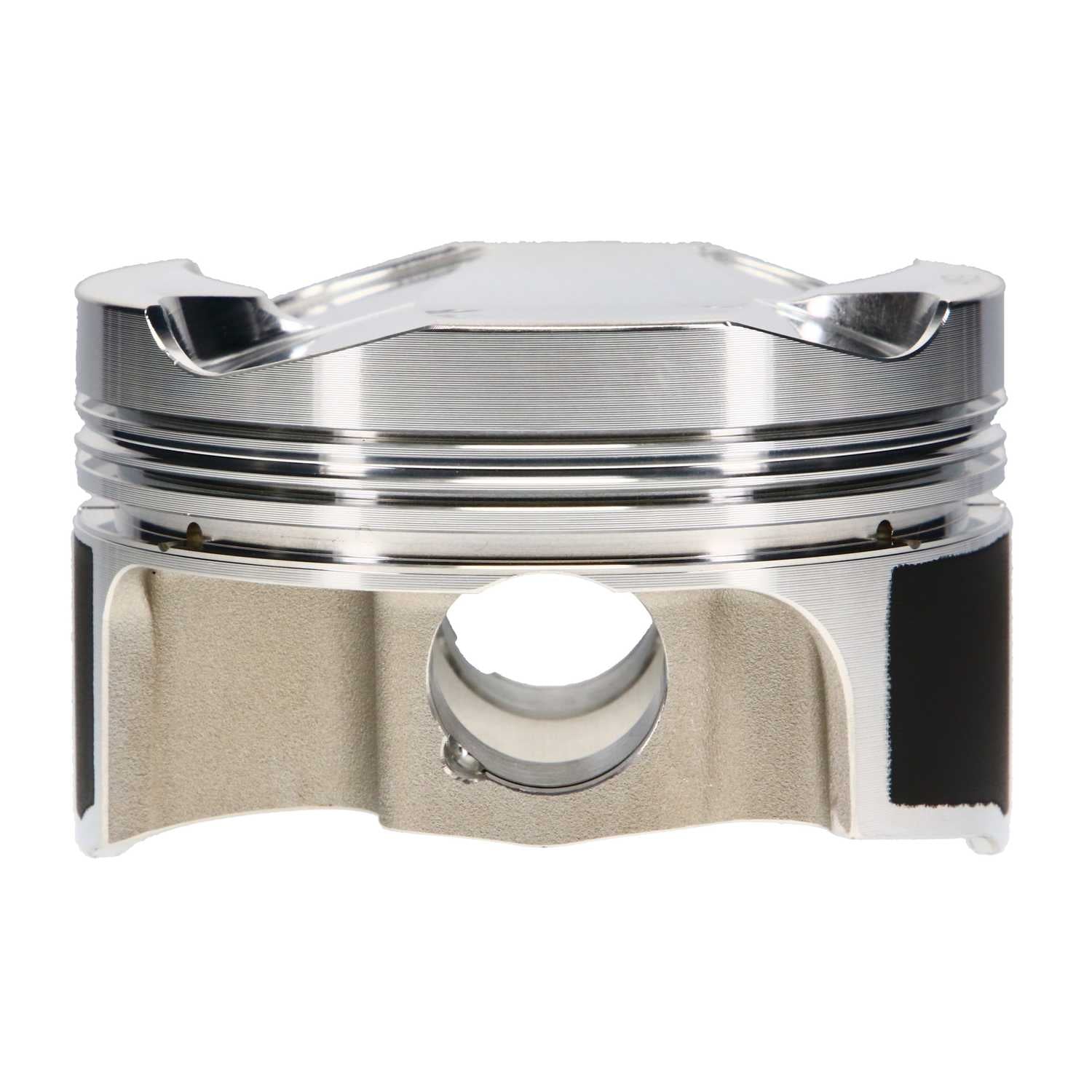

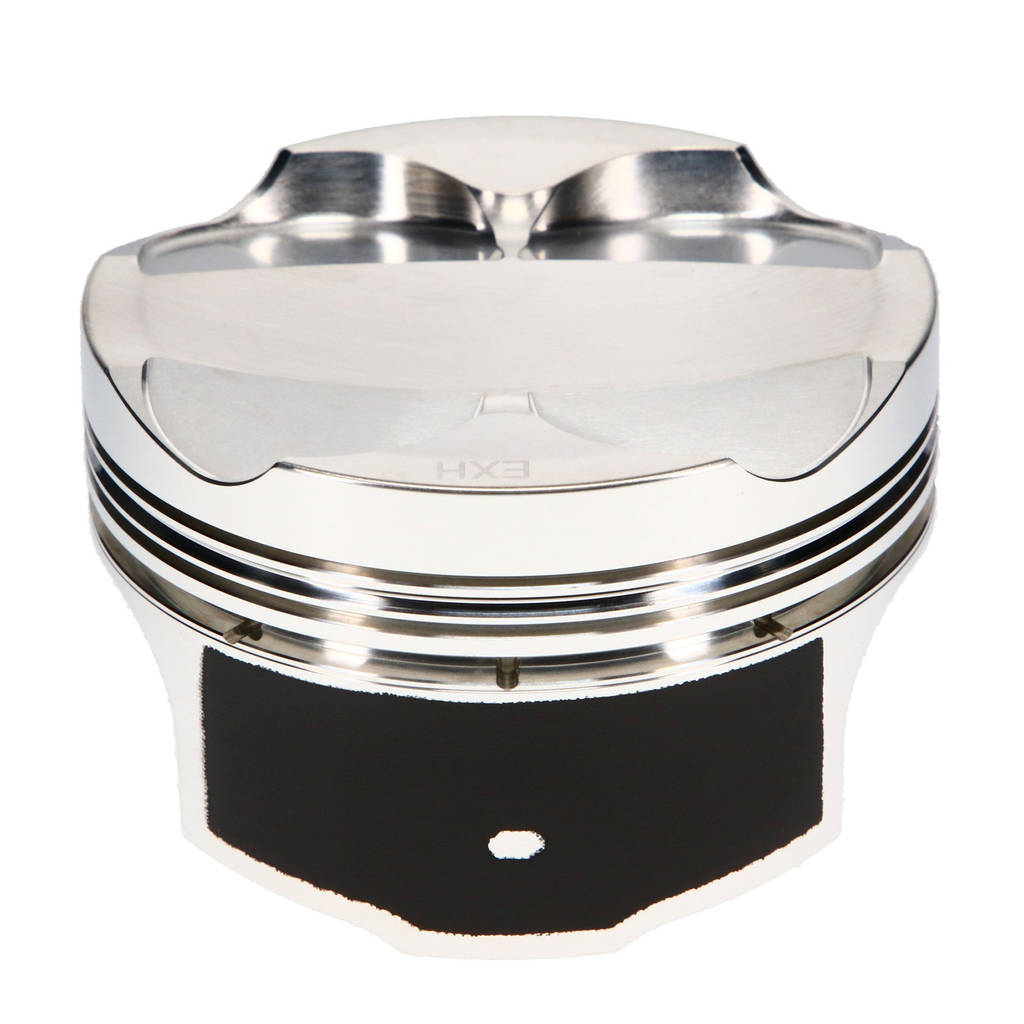

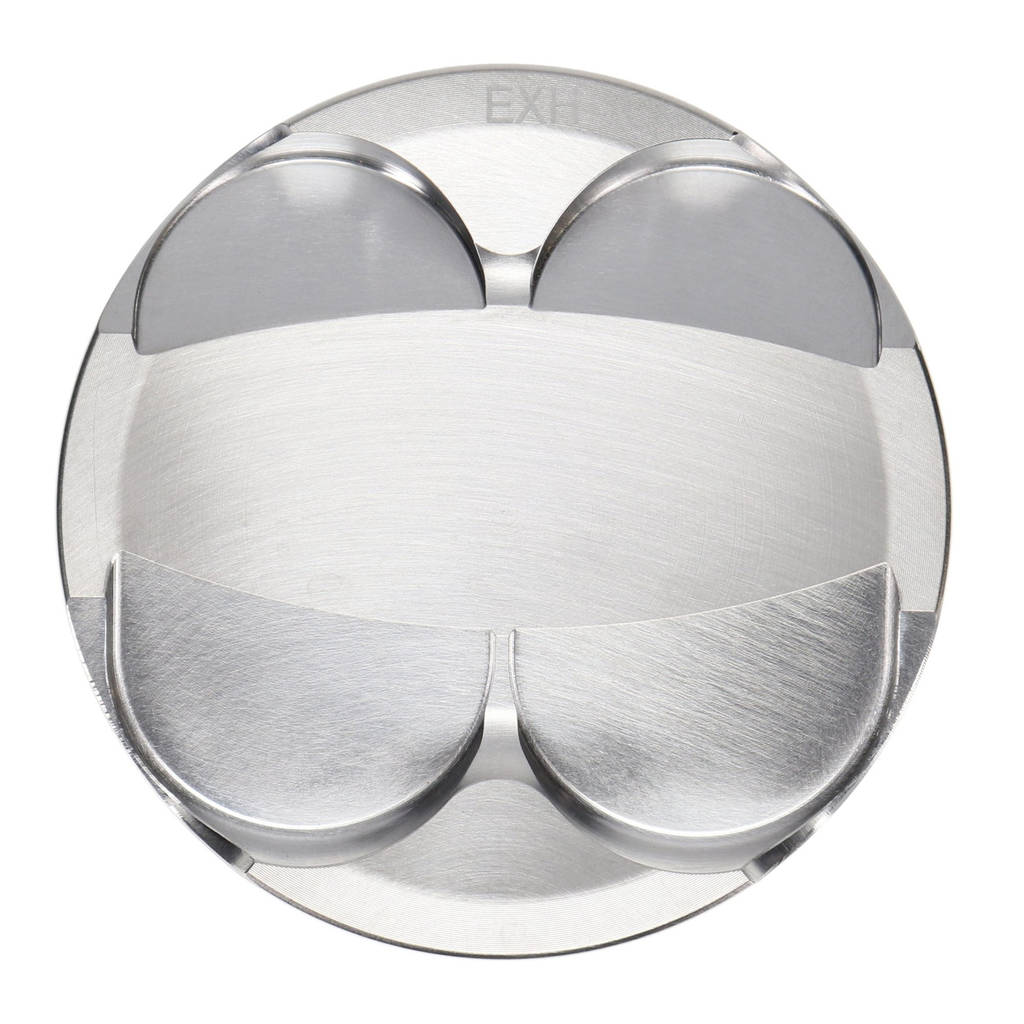

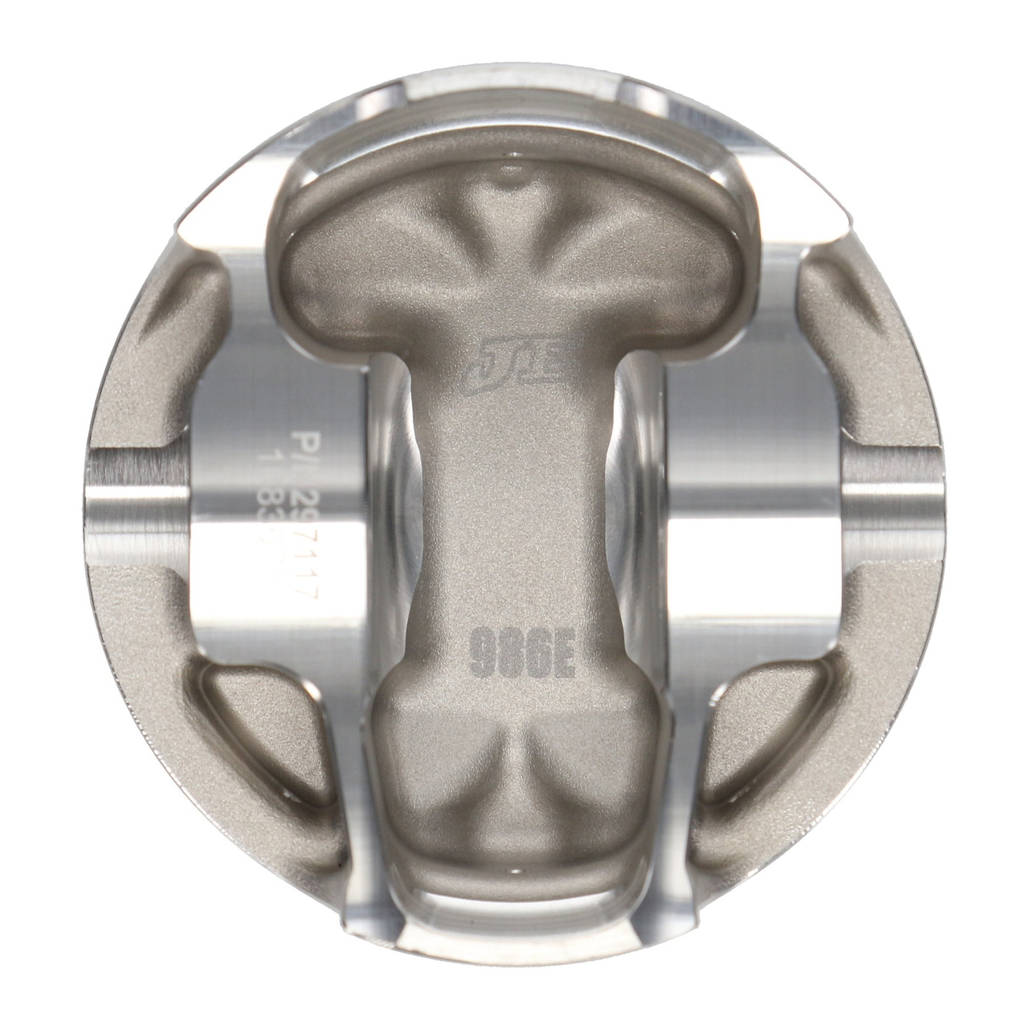

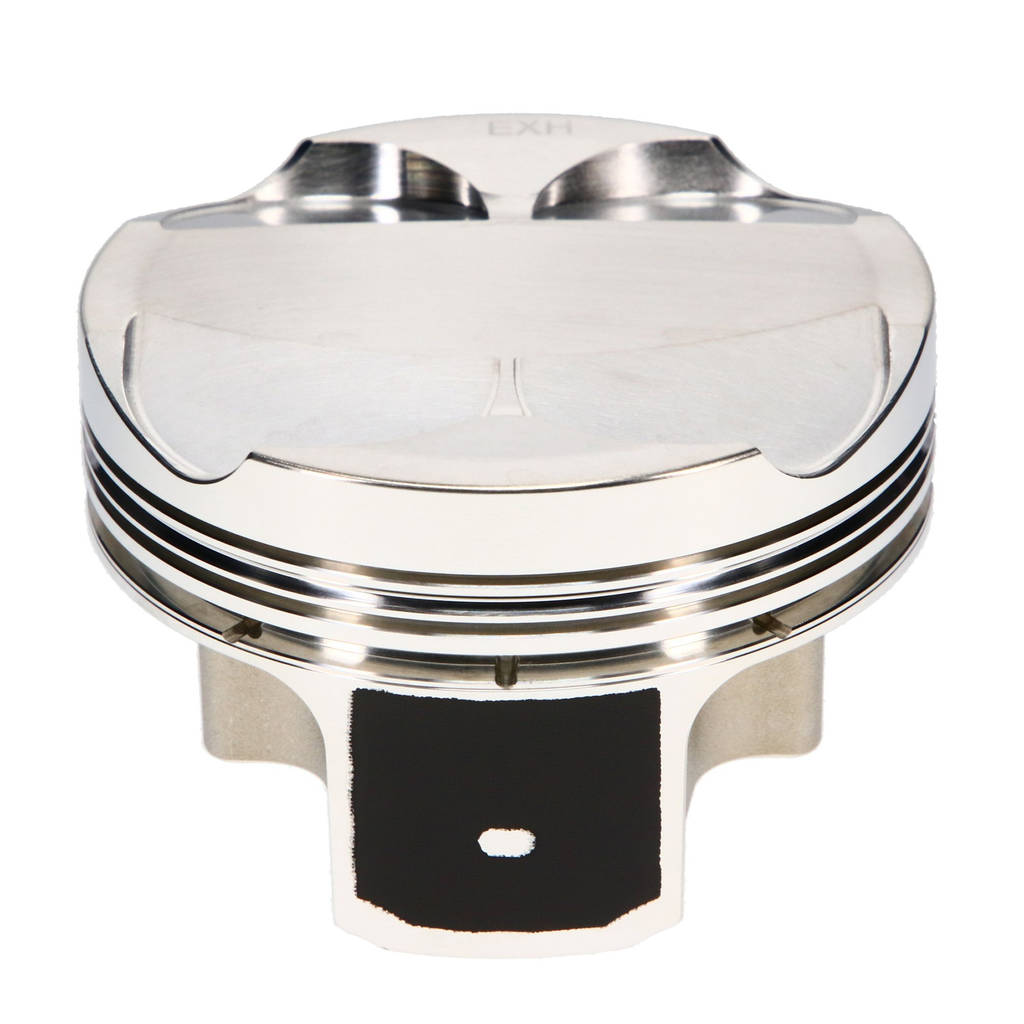

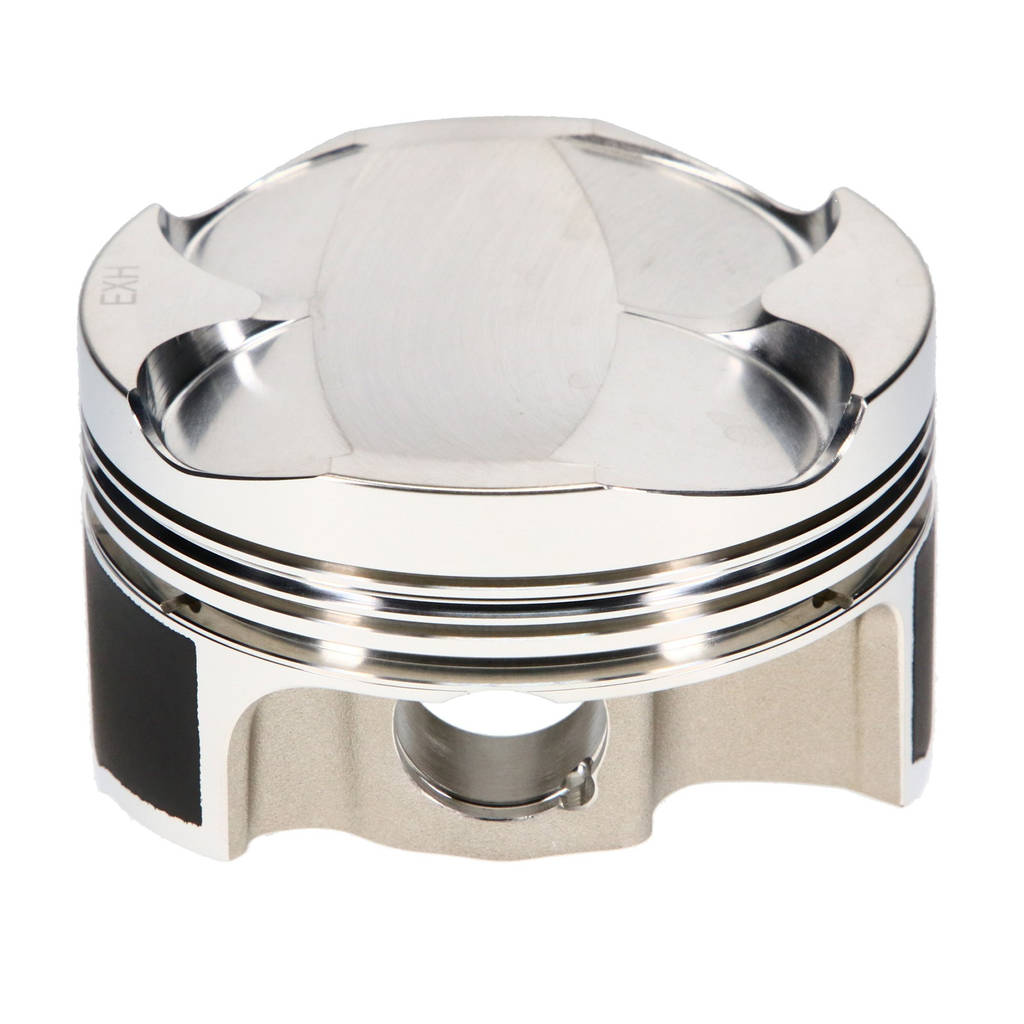

JE 345626S Piston BMW S50B30 9:1 (Single Piece Set)
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
JE 345626S Piston BMW S50B30 9:1 (Single Piece Set)
Kelberg Warehouse
Auf der Struth 4
53539 Kelberg
Germany
Nürburgring Showroom
Nürburgring Boulevard 2
53520 Nürburg
Germany
Choose options
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
DESCRIPTION:
| Bore (in) | 3.386 |
|---|---|
| Bore (mm) | 86. |
| Top Compression Ring Thickness | 0.0400 |
| Second Compression Ring Thickness | 0.0480 |
| Oil Ring Thickness | 0.111 |
| Forging Type | FSR |
| Volume (cc) | -4.30 |
| Series | JE Pistons |
| Piston Head Type | Dome |
| Pin Diameter (IN) | 0.827 |
| Compression Height | 1.245 |
| Make | BMW |
| Wrist Pin Style - floating or press fit | Floating |
| Wall Type | CHAMFERED |
| Wall Thickness (IN) | 0.150 |
| Ringset Part Number | JG1001-3386 |
| Ring Brand | ProSeal |
| Ringset Included | Yes |
| Retainer Thickness | 0.063 |
| Retainer Lock Style | Wire Lock |
| Retainer Lock Part Number | 827-063-MW |
| Retainer Diameter (IN) | 0.827 |
| Replacement Single Piston | 345626S |
| Replaced By | 289191 |
| Piston Pin Inside Diameter | 0.527 |
| Piston Pin Material | 5115 LOW CARBON STEEL, CASE HARDENED |
| Piston Material | 2618 |
| Piston Pin Length (IN) | 2.250 |
| Pin Offset | Yes |
| Pin Brand | JE Pistons |
| Pin Part Number | 827-2250-15-51C |
| Pin Included | Yes |
| Pin Diameter (mm) | 21.00 |
| Oil Rail Support Included | No |
| Deck Clearance | 0.020 |
| Brand | JE Pistons |
