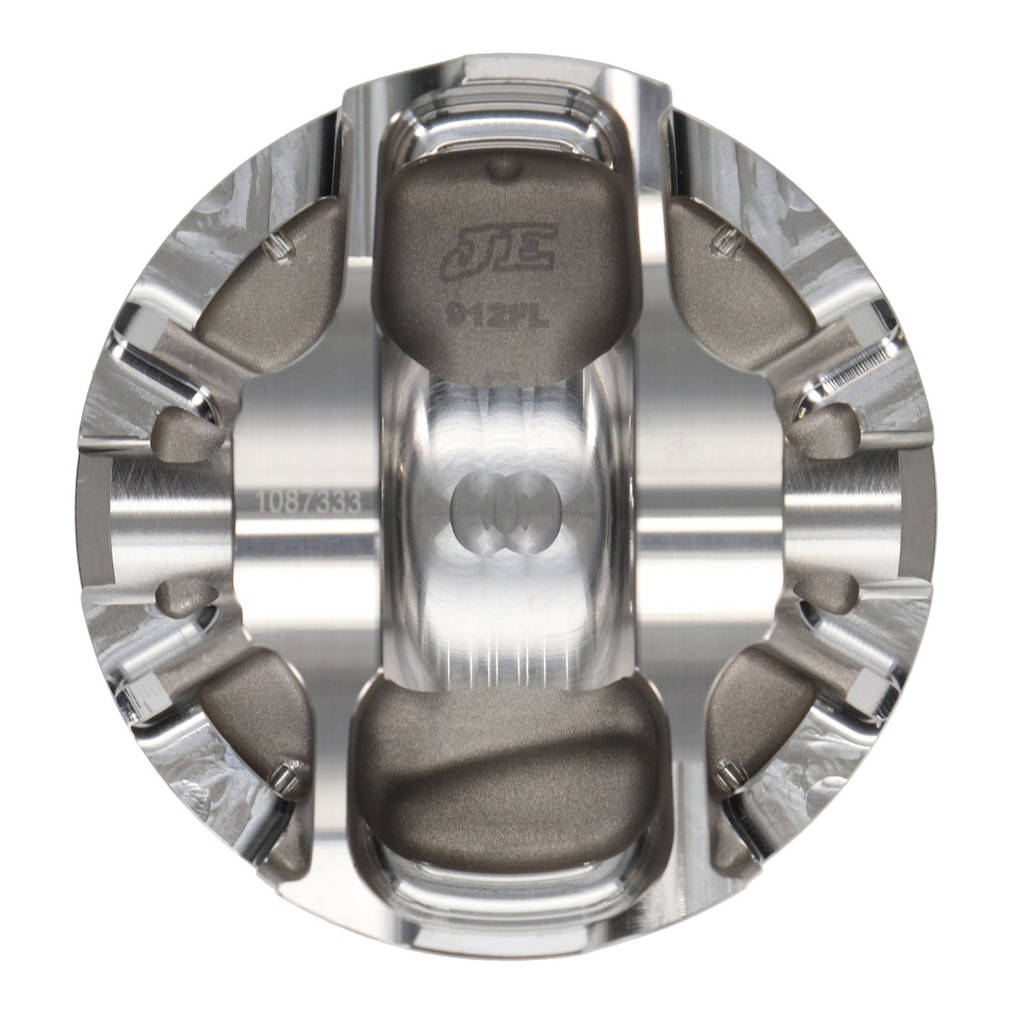

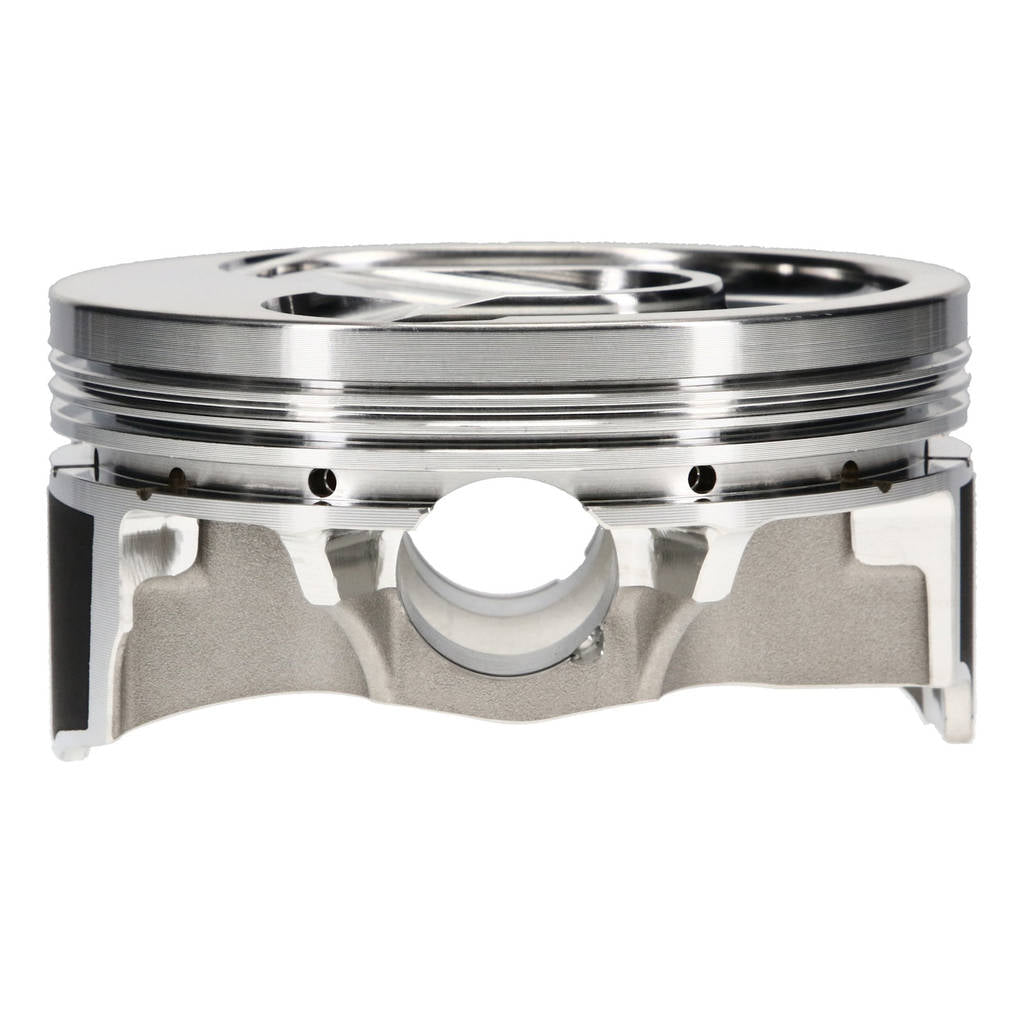

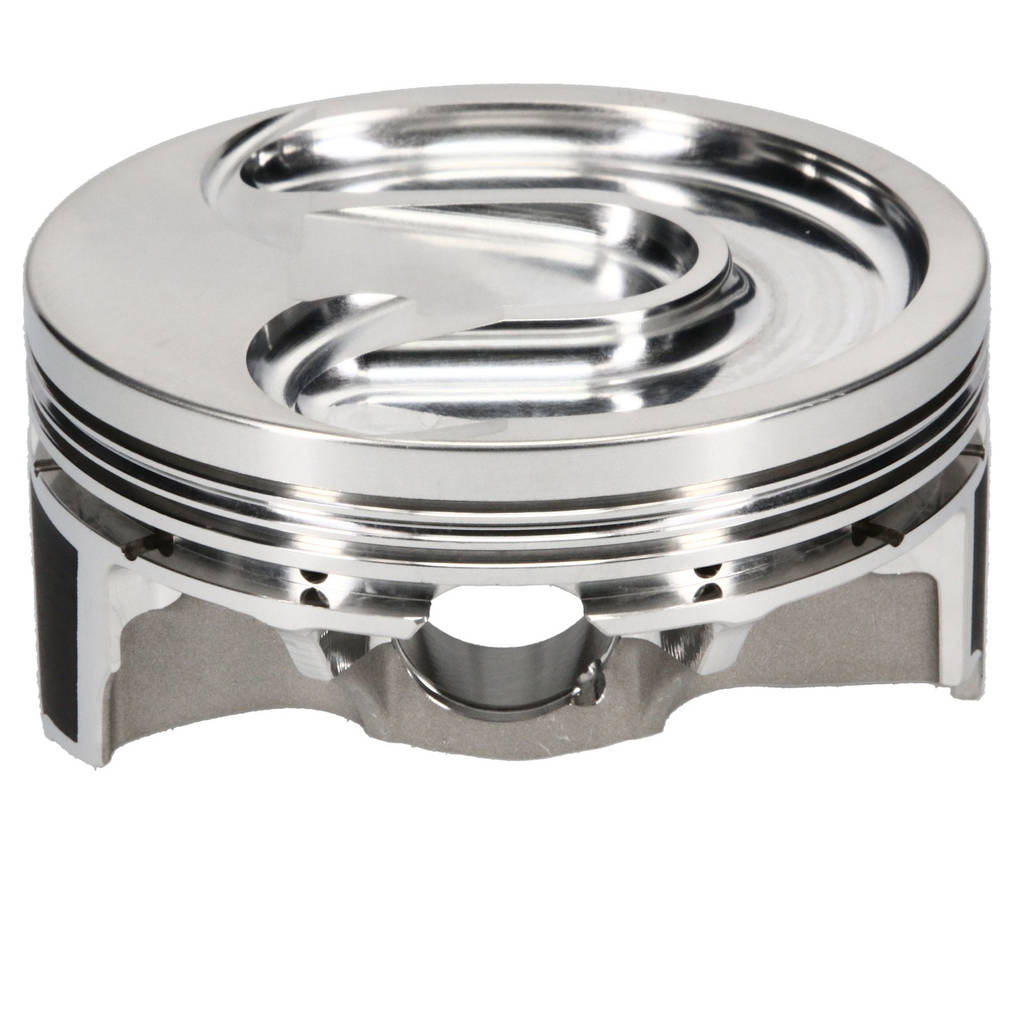

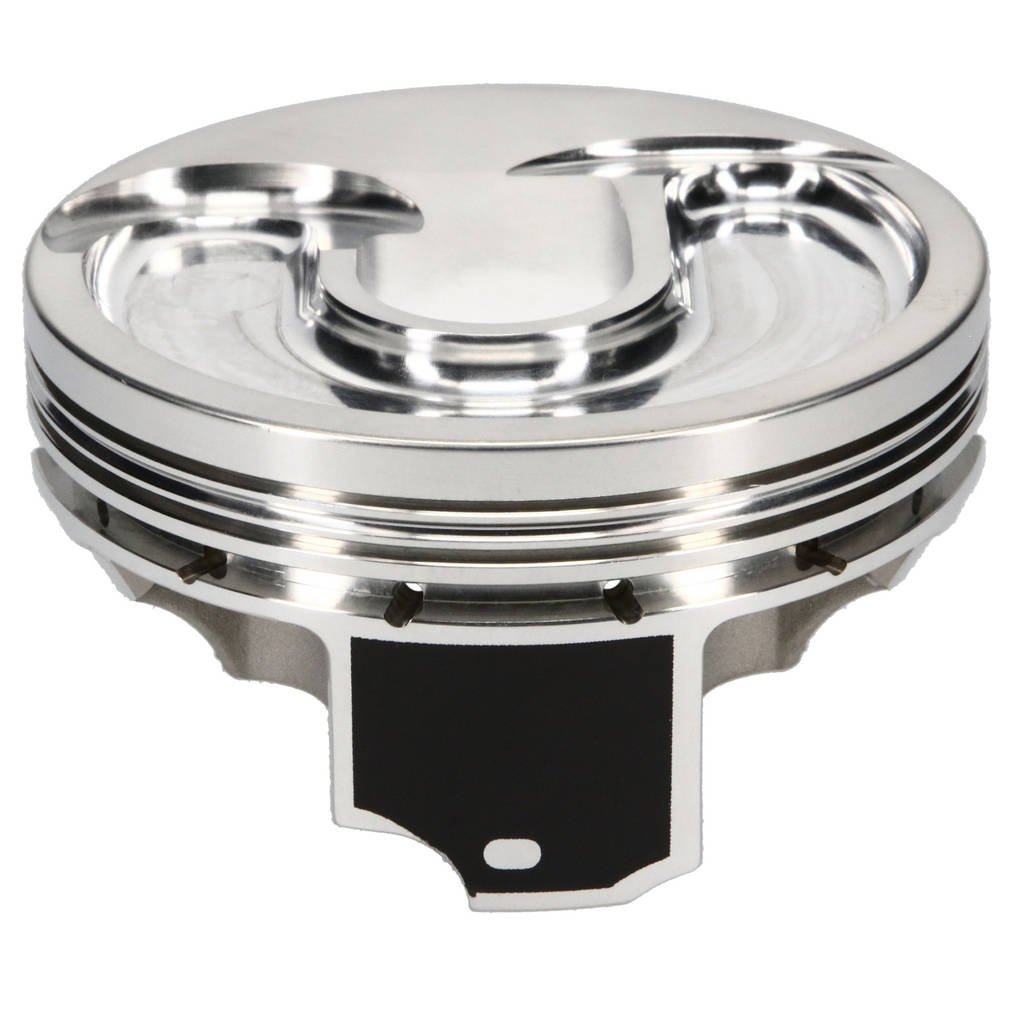

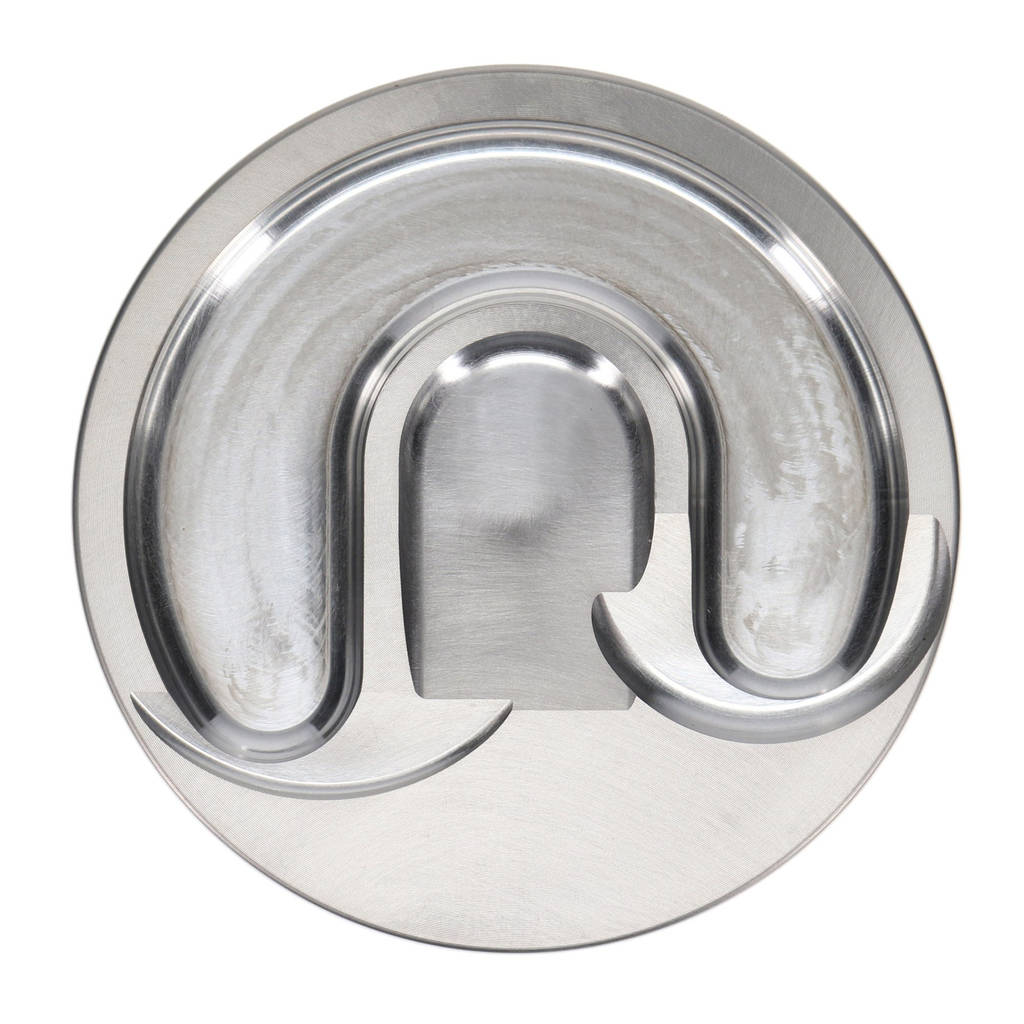

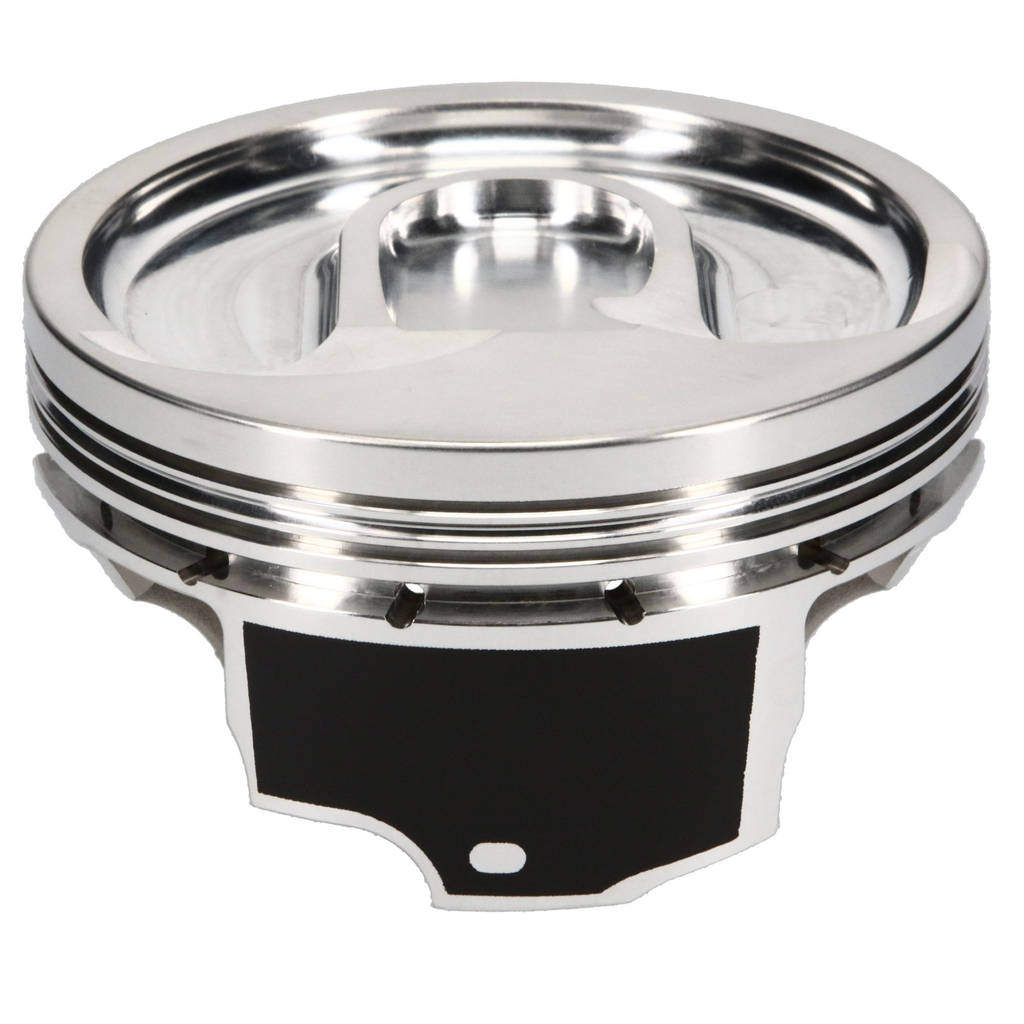

JE 353913 Piston Kit (4.075 in. Bore, 1.295 in. CH, -6.70 CC) for CHEVROLET LT1 Gen V Engine

Description JE 353913 Piston Kit (4.075 in. Bore, 1.295 in. CH, -6.70 CC) for CHEVROLET LT1 Gen V Engine

JE Pistons applies over 75 years of experience to its range of premium forged racing pistons for European, import, and sport compact applications.

Engineered, forged, and machined 100% in the USA, these pistons are Designed for each specific engine and racing application to provide durability and performance.

• Forged from 4032 aluminum for tensile strength and minimal thermal expansion
• Proprietary Forged Side Relief design minimizes friction and power loss while reducing skirt width, weight, and Wrist Pin length
• Application-dependent skirt coating reduces friction, piston skirt and cylinder Wall wear, and operating noise
• Application-dependent accumulator groove reduces combustion gas pressure and Piston Ring flutter while improving ring seal

Specifications:

• Piston Series: JE Pistons
• Cylinder Head: GEN 5 LT4
• Bore Diameter: 4.075 IN
• Piston Head Type: Dish
• Compression Height: 1.295 IN
• Piston Volume: -6.70 CC
• Piston Material: 2618
• Piston Quantity: 8
• Forging Type: FSR
• Ring Set Included: No
• Top Compression Ring Thickness: 0.0480 IN
• Second Compression Ring Thickness: 0.0600 IN
• Oil Ring Thickness: 0.119 IN
• Wrist Pin Included: Yes
• Wrist Pin Material: 9310 Nickel Carbon Steel Alloy
• Wrist Pin Outer Diameter: 0.927 IN
• Wrist Pin Length: 2.250 IN
• Wrist Pin Wall Thickness: 0.180 IN
• Wrist Pin Retainer Included: Yes
• Ring Set Thickness: 1.20 MM x 1.50 MM x 3.00 MM

Vehicle Compatibility:

• LT4 (Gen V)
