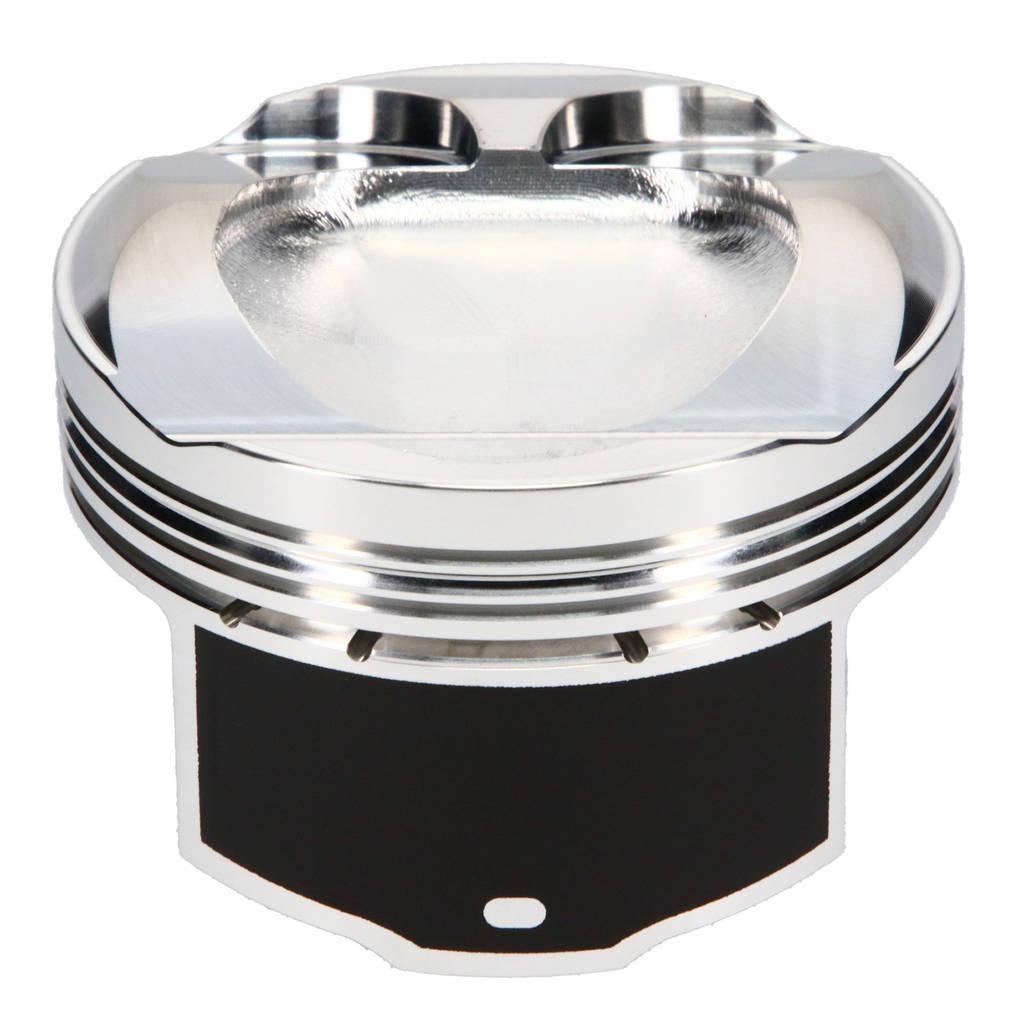

JE 357426 Piston Kit (86.50 mm Bore, 1.260 in. CH, 2.04 CC) for HONDA K Series Engine Photo-0
JE 357426 Piston Kit (86.50 mm Bore, 1.260 in. CH, 2.04 CC) for HONDA K Series Engine Photo-1
JE 357426 Piston Kit (86.50 mm Bore, 1.260 in. CH, 2.04 CC) for HONDA K Series Engine Photo-2

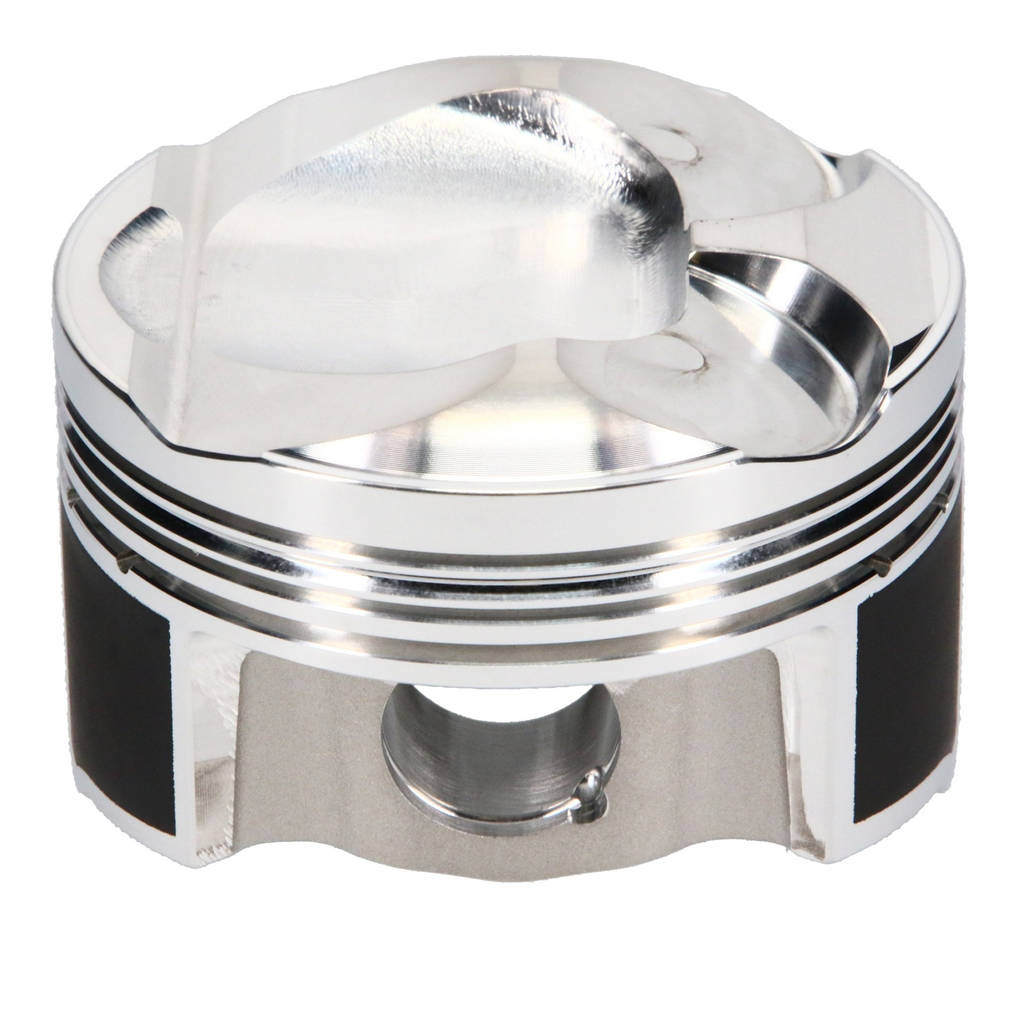

JE 357426 Piston Kit (86.50 mm Bore, 1.260 in. CH, 2.04 CC) for HONDA K Series Engine Photo-3

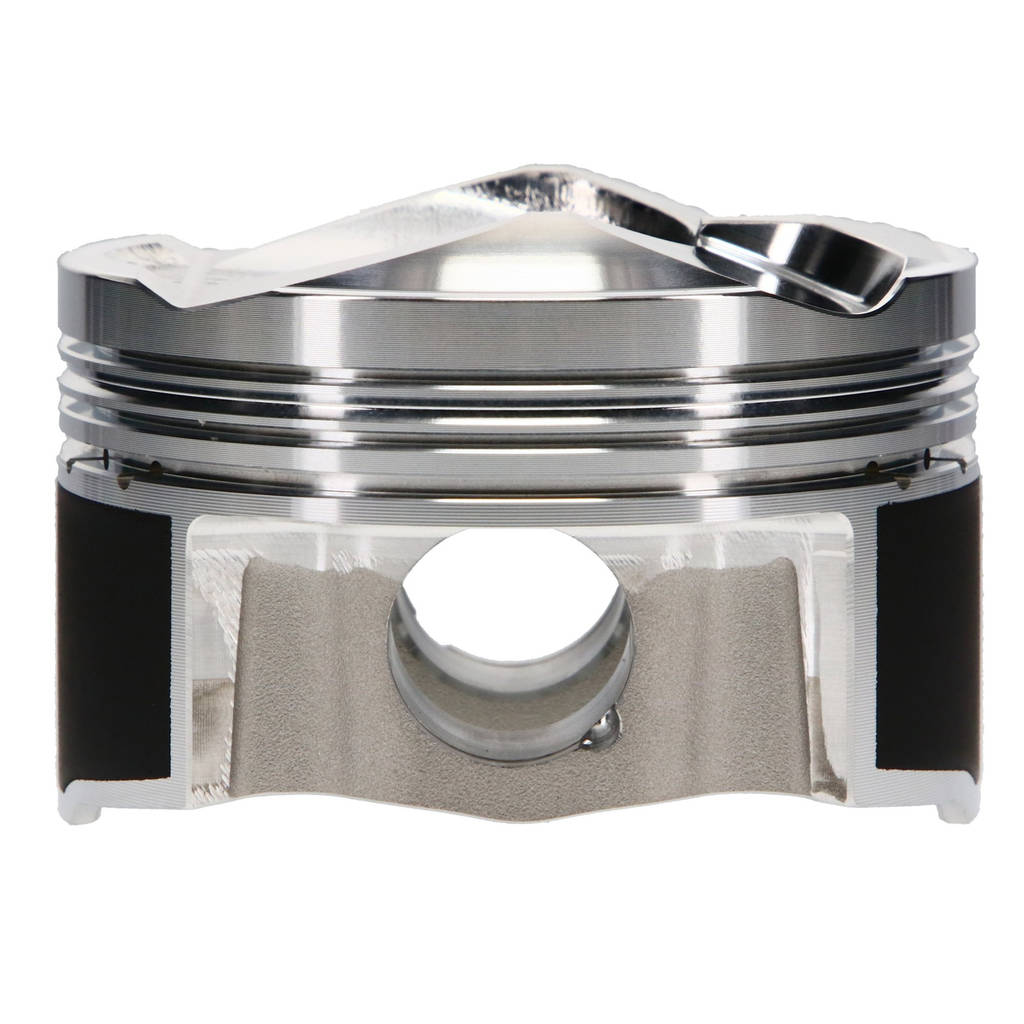

JE 357426 Piston Kit (86.50 mm Bore, 1.260 in. CH, 2.04 CC) for HONDA K Series Engine Photo-4
JE 357426 Piston Kit (86.50 mm Bore, 1.260 in. CH, 2.04 CC) for HONDA K Series Engine Photo-5

JE 357426 Piston Kit (86.50 mm Bore, 1.260 in. CH, 2.04 CC) for HONDA K Series Engine

€1.058,97

VAT included. Shipping calculated at checkout

JE PISTONS P/N: 357426 GTIN: 193564215031
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

JE 357426 Piston Kit (86.50 mm Bore, 1.260 in. CH, 2.04 CC) for HONDA K Series Engine

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+491732982897

Description JE 357426 Piston Kit (86.50 mm Bore, 1.260 in. CH, 2.04 CC) for HONDA K Series Engine

JE Pistons applies over 75 years of experience to its range of premium forged racing pistons for European, import, and sport compact applications.

Engineered, forged, and machined 100% in the USA, these pistons are Designed for each specific engine and racing application to provide durability and performance.

  • Forged from 4032 aluminum for tensile strength and minimal thermal expansion
  • Proprietary Forged Side Relief design minimizes friction and power loss while reducing skirt width, weight, and Wrist Pin length
  • Application-dependent skirt coating reduces friction, piston skirt and cylinder Wall wear, and operating noise
  • Application-dependent accumulator groove reduces combustion gas pressure and Piston Ring flutter while improving ring seal

Specifications:

  • Piston Series: JE Pistons
  • Cylinder Head: K20C
  • Bore Diameter: 86.50 MM
  • Piston Head Type: Dome
  • Compression Height: 1.260 IN
  • Piston Volume: 2.04 CC
  • Piston Material: 2618
  • Piston Quantity: 4
  • Forging Type: FSR
  • Ring Set Included: Yes
  • Top Compression Ring Thickness: 0.0480 IN
  • Second Compression Ring Thickness: 0.0480 IN
  • Oil Ring Thickness: 0.079 IN
  • Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
  • Wrist Pin Length: 2.250 IN
  • Wrist Pin Wall Thickness: 0.180 IN
  • Engine Detail: K20C Series
  • Intake Depth: .143 IN
  • Intake Diameter: 1.240 IN
  • Intake Angle: 14
  • Exhaust Depth: .151
  • Exhaust Diameter: 1.040
  • Exhaust Angle: 14
  • Top Groove Width: 0.04800 IN
  • 2nd Groove Width: 0.04800 IN
  • Oil Groove Width: 0.07900 IN
  • K Series
