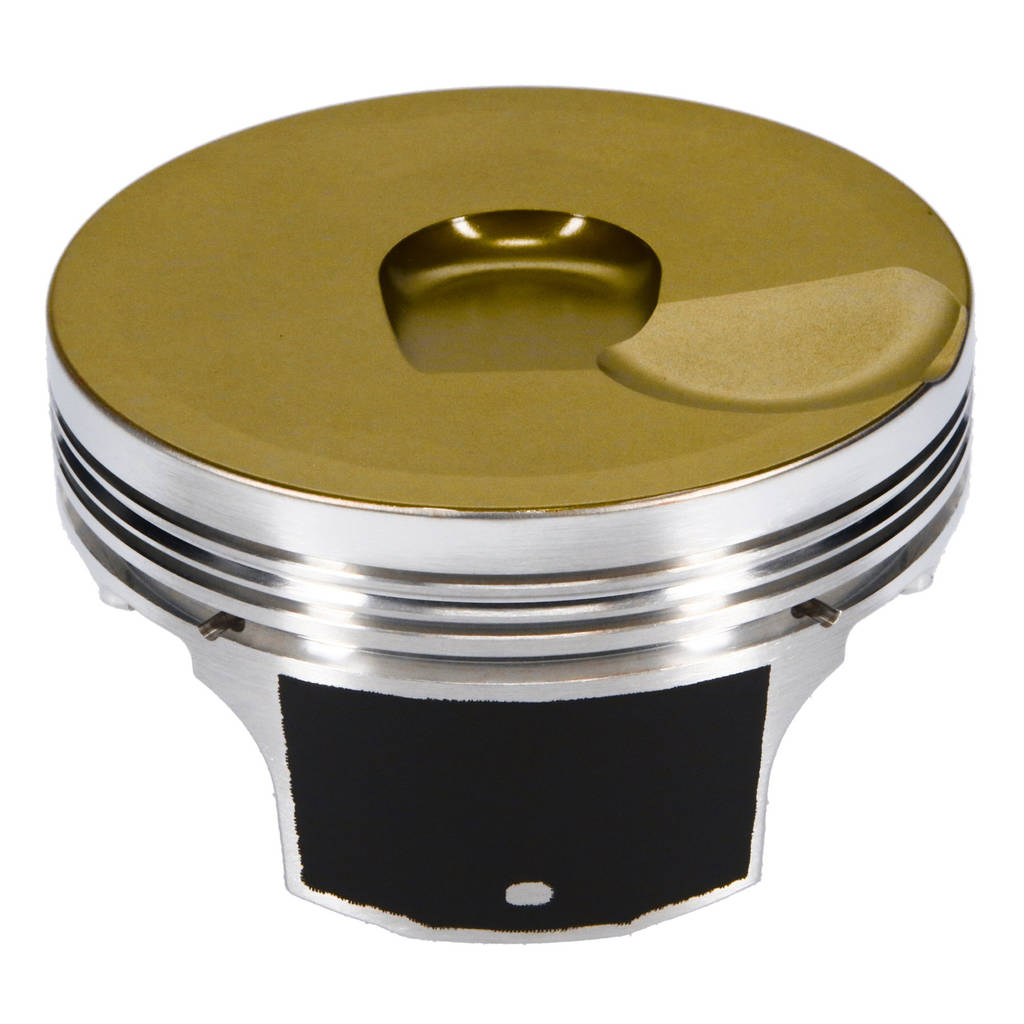

JE 360796 Piston Kit Ultra Series (4.070 in. Bore, 1.105 in. CH, -15.50 CC) for CHEVROLET LT1 Gen V Engine Photo-0

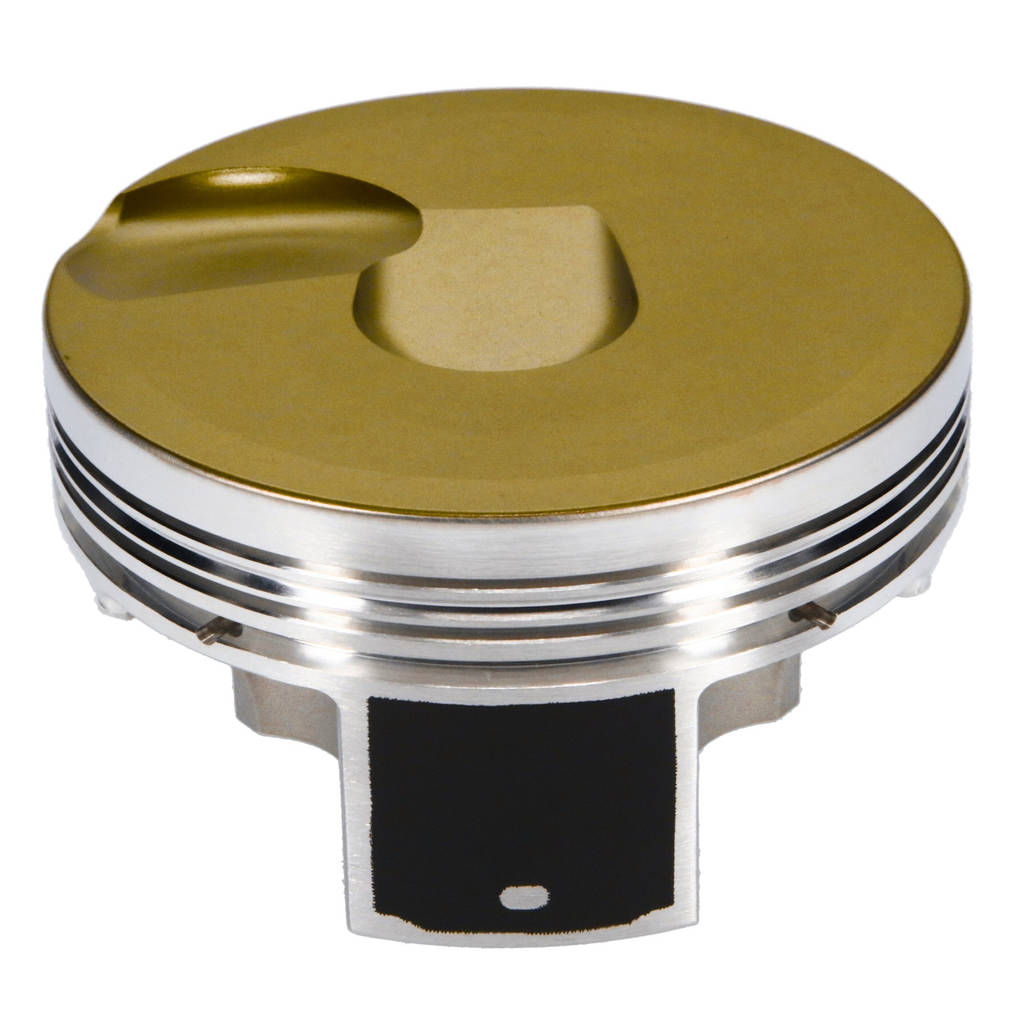

JE 360796 Piston Kit Ultra Series (4.070 in. Bore, 1.105 in. CH, -15.50 CC) for CHEVROLET LT1 Gen V Engine Photo-1

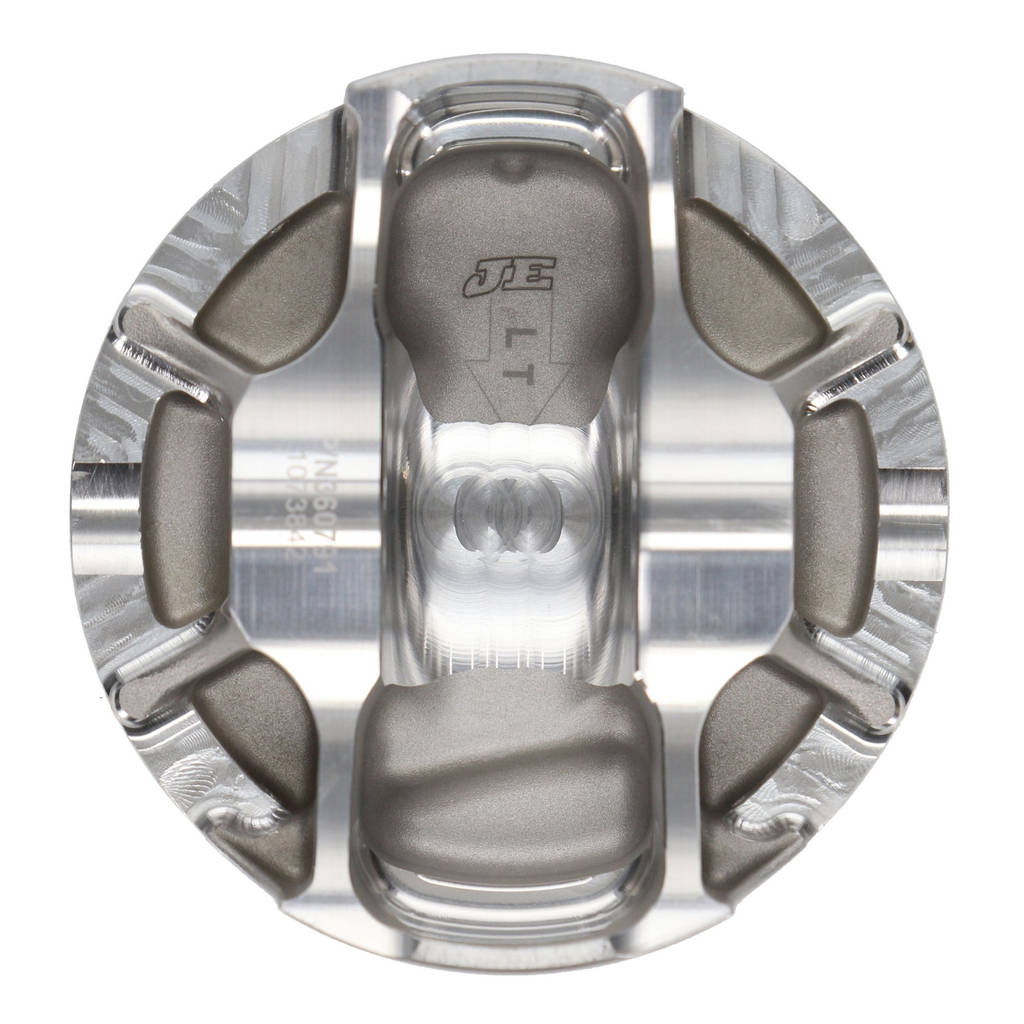

JE 360796 Piston Kit Ultra Series (4.070 in. Bore, 1.105 in. CH, -15.50 CC) for CHEVROLET LT1 Gen V Engine Photo-2

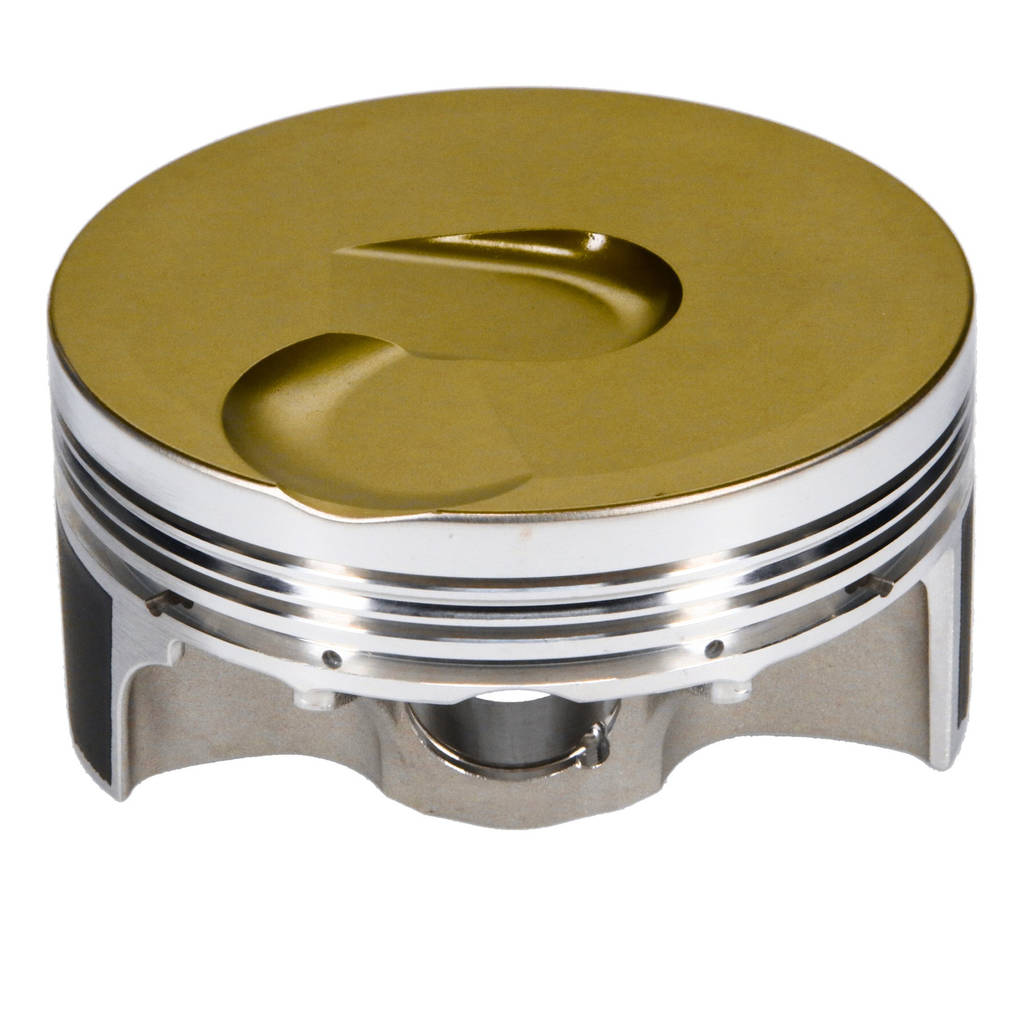

JE 360796 Piston Kit Ultra Series (4.070 in. Bore, 1.105 in. CH, -15.50 CC) for CHEVROLET LT1 Gen V Engine Photo-3

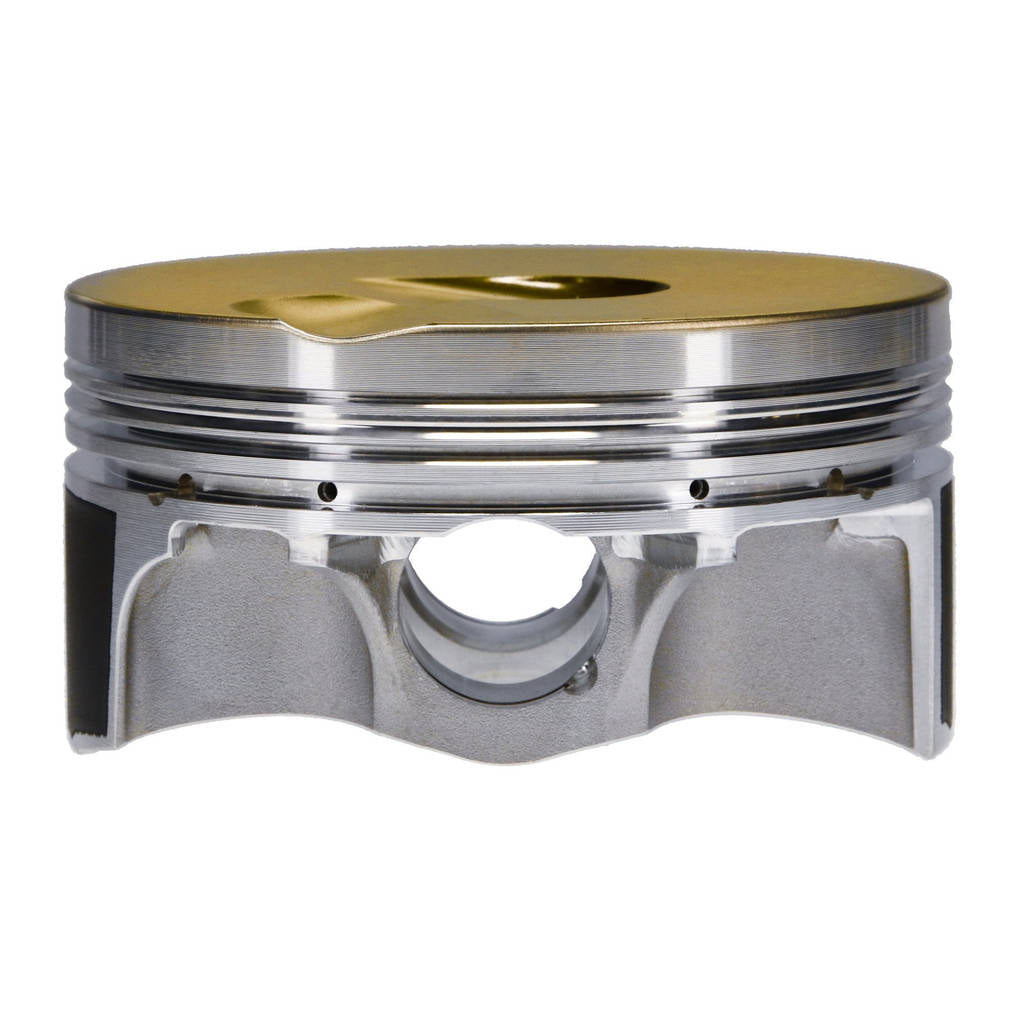

JE 360796 Piston Kit Ultra Series (4.070 in. Bore, 1.105 in. CH, -15.50 CC) for CHEVROLET LT1 Gen V Engine Photo-4

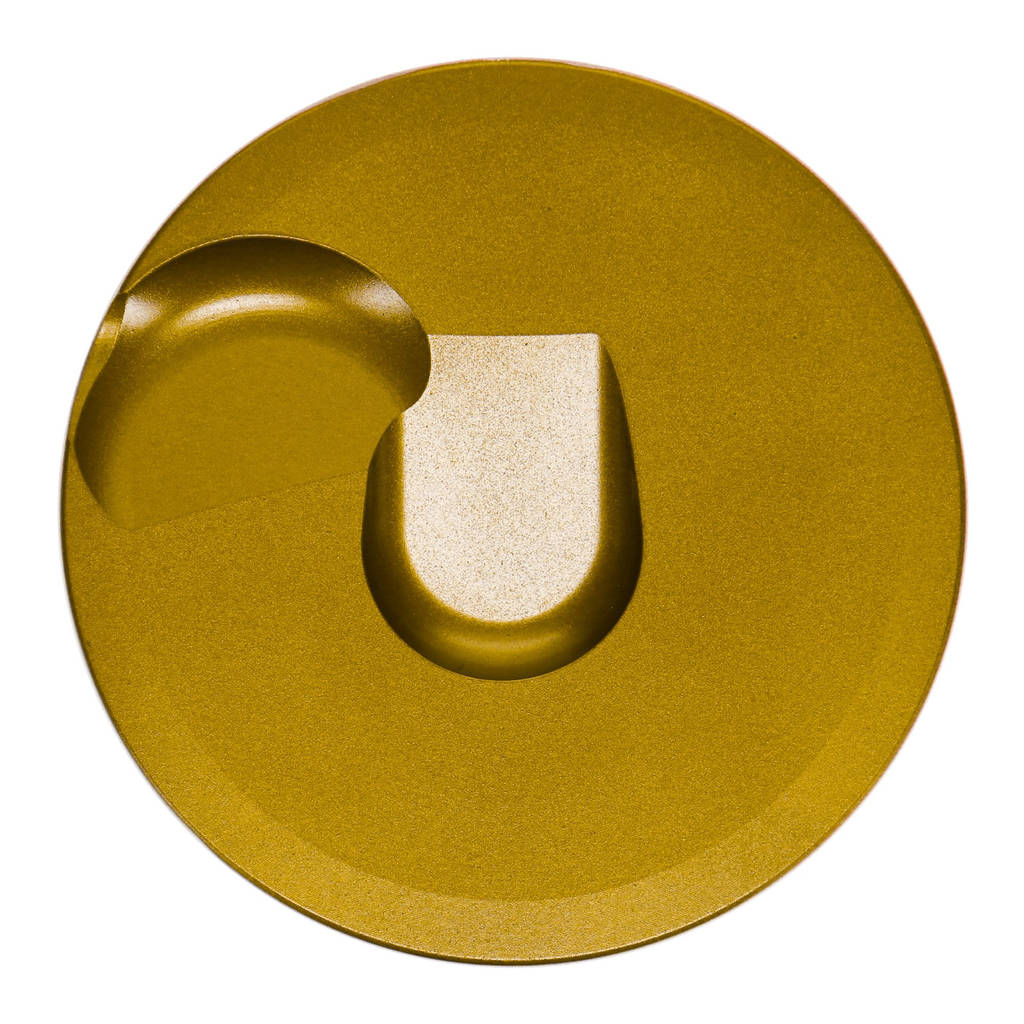

JE 360796 Piston Kit Ultra Series (4.070 in. Bore, 1.105 in. CH, -15.50 CC) for CHEVROLET LT1 Gen V Engine Photo-5

JE 360796 Piston Kit Ultra Series (4.070 in. Bore, 1.105 in. CH, -15.50 CC) for CHEVROLET LT1 Gen V Engine

€1.626,47

VAT included. Shipping calculated at checkout

JE PISTONS P/N: 360796 GTIN: 193564037862
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

JE 360796 Piston Kit Ultra Series (4.070 in. Bore, 1.105 in. CH, -15.50 CC) for CHEVROLET LT1 Gen V Engine

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+491732982897

Description JE 360796 Piston Kit Ultra Series (4.070 in. Bore, 1.105 in. CH, -15.50 CC) for CHEVROLET LT1 Gen V Engine

JE Ultra Series forged Pistons are among the industry’s strongest and most fully featured off-the-shelf Pistons. Designed for domestic applications from LS to Big Block and HEMI to Ford Modular, they feature JE’s proprietary Aligned Grain Flow forging technology for next-level tensile strength under extreme cylinder pressures.

Ultra Series Pistons include custom-level features for boost-heavy or nitrous V8 engine builds. All JE Ultra Series Pistons are made 100% in the USA.

  • Designed for Power: Every feature is optimized for high-Horsepower / HP racing engines. Aligned Grain Flow technology maximizes tensile strength for high-performance engine environments.
  • Piston Coatings: Skirt coating reduces friction, Wall wear, and operating noise, especially during cold starts. The ceramic-based thermal barrier crown coating reduces Piston crown temperatures and improves exhaust gas scavenging.
  • High-Strength Wrist Pins: Premium thick-Wall Wrist Pins are manufactured by Trend Performance in the USA and Designed for high-performance and power-adder builds.
  • Gas Ports and Pin Oiling: Lateral gas ports help maintain top compression ring seal at high RPM and boost. Enhanced oiling keeps the Wrist Pin, pin Bore, and small end lubricated to reduce heat, friction, and wear.

Specifications:

  • Piston Series: JE Ultra Series
  • Cylinder Head: GEN 5 LT4
  • Bore Diameter: 4.070 IN
  • Piston Head Type: Dish
  • Compression Height: 1.105 IN
  • Piston Volume: -15.50 CC
  • Piston Material: 2618
  • Forging Type: FSR
  • Ring Set Included: No
  • Top Compression Ring Thickness: 0.0475 IN
  • Second Compression Ring Thickness: 0.0600 IN
  • Oil Ring Thickness: 0.149 IN
  • Wrist Pin Included: Yes
  • Wrist Pin Part Number: 927-2250-18-93C
  • Wrist Pin Outer Diameter: 0.927 IN
  • Wrist Pin Length: 2.250 IN
  • Wrist Pin Wall Thickness: 0.200 IN
  • Wrist Pin Retainer Included: Yes
  • Ring Set Thickness: 1.20 MM x 1.50 MM x 3.00 MM

Vehicle Compatibility:

  • LT4 (Gen V)
