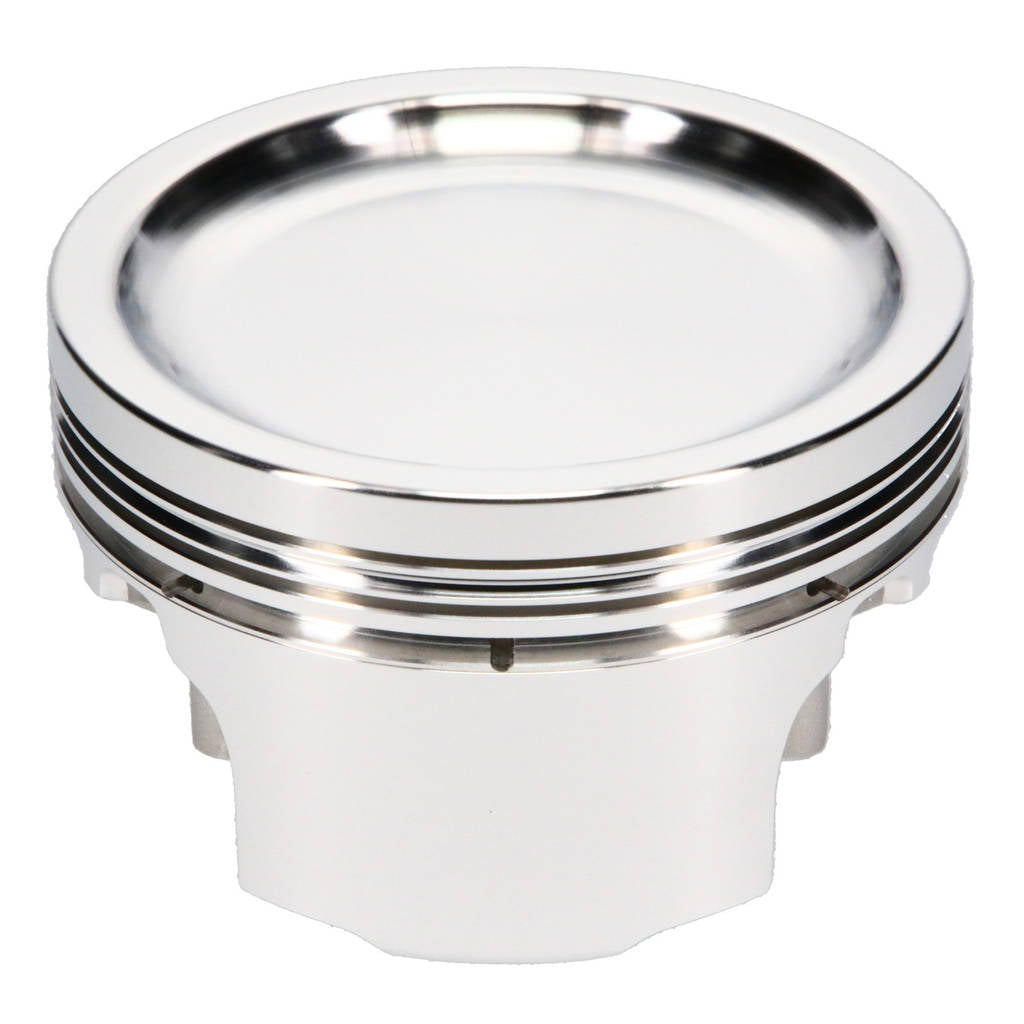

JE 361303 Piston Kit Ultra Series (86.50 mm Bore, 1.253 in. CH, -13.60 CC) for NISSAN SR Series Engine Photo-0
JE 361303 Piston Kit Ultra Series (86.50 mm Bore, 1.253 in. CH, -13.60 CC) for NISSAN SR Series Engine Photo-1

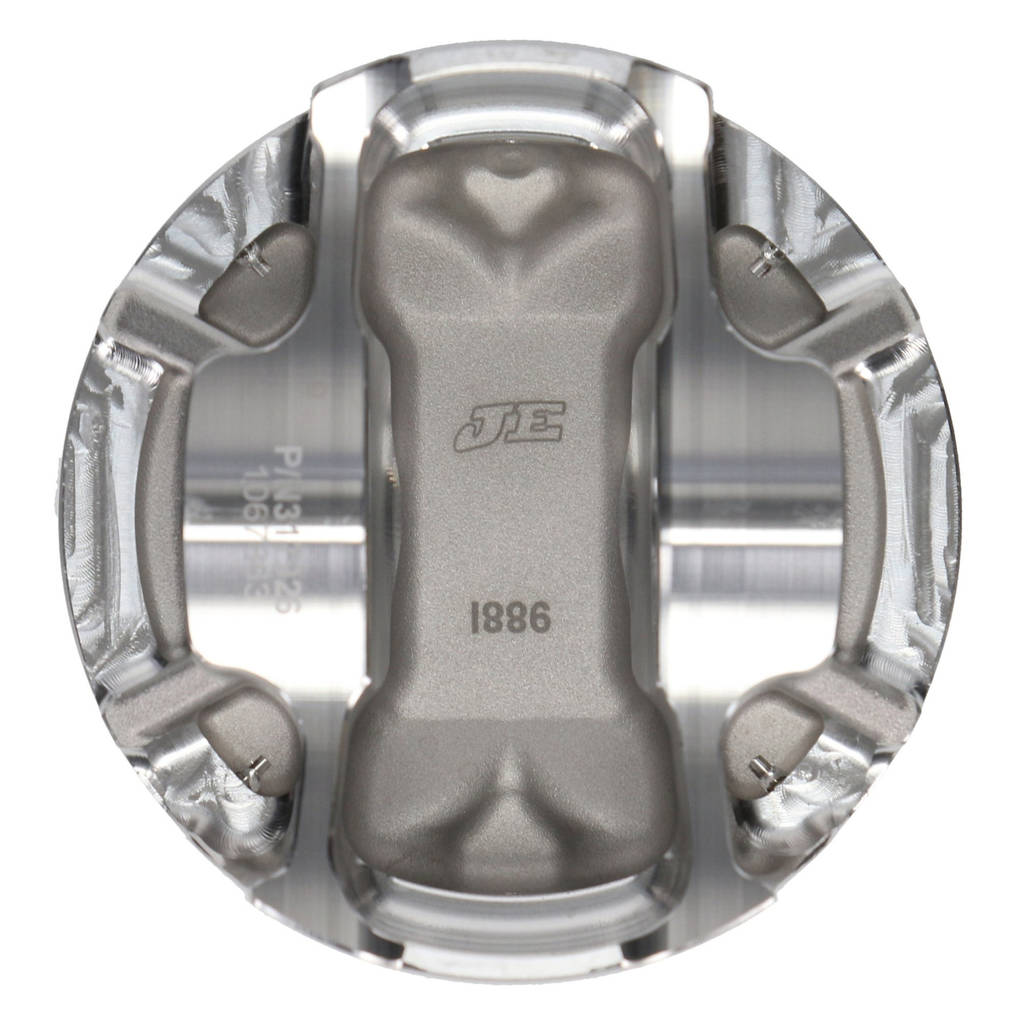

JE 361303 Piston Kit Ultra Series (86.50 mm Bore, 1.253 in. CH, -13.60 CC) for NISSAN SR Series Engine Photo-2

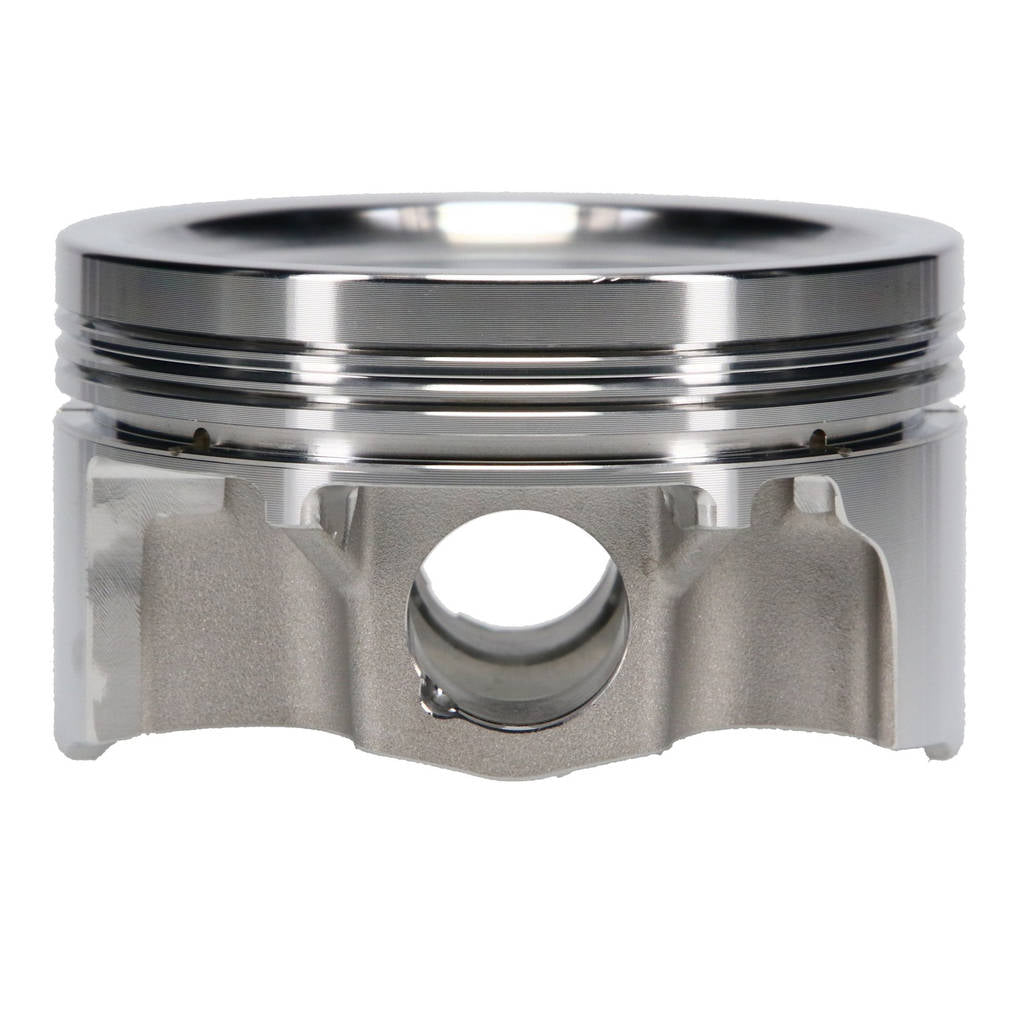

JE 361303 Piston Kit Ultra Series (86.50 mm Bore, 1.253 in. CH, -13.60 CC) for NISSAN SR Series Engine Photo-3

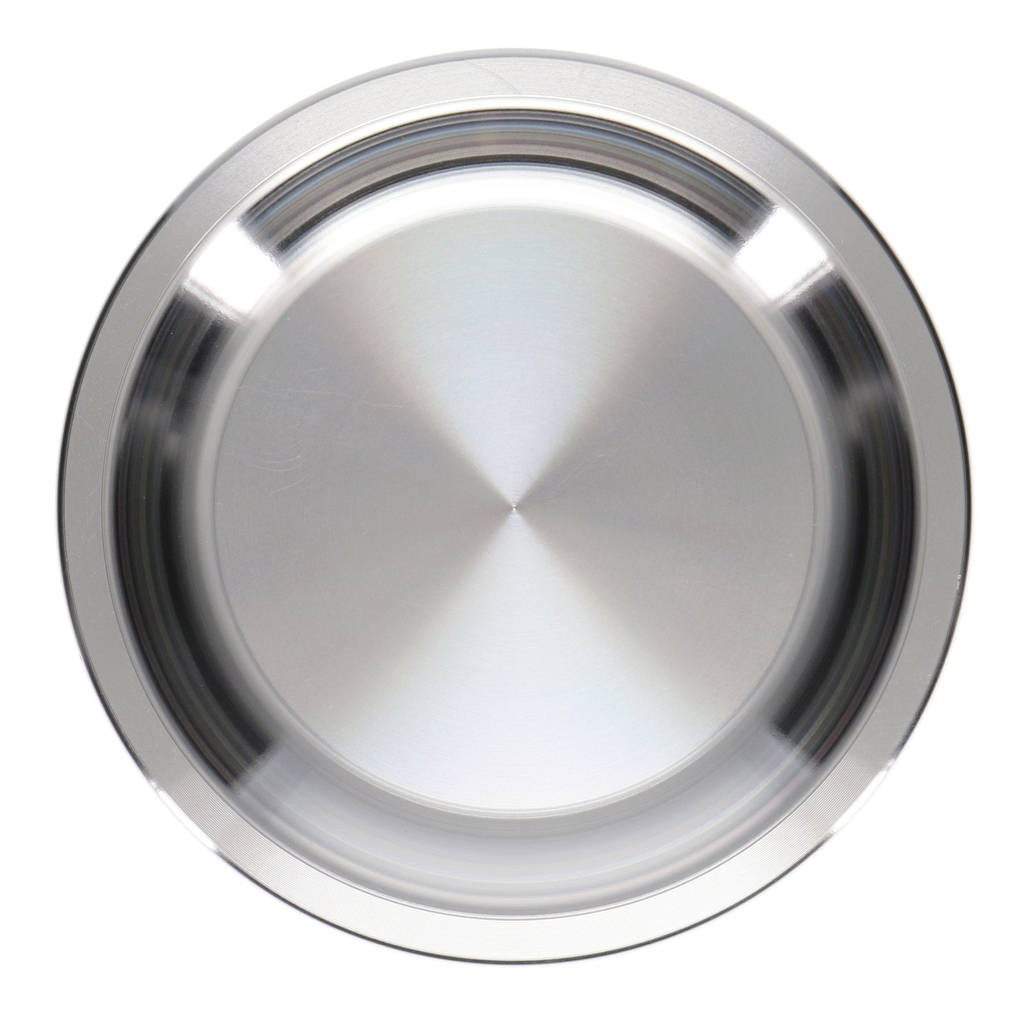

JE 361303 Piston Kit Ultra Series (86.50 mm Bore, 1.253 in. CH, -13.60 CC) for NISSAN SR Series Engine Photo-4

JE 361303 Piston Kit Ultra Series (86.50 mm Bore, 1.253 in. CH, -13.60 CC) for NISSAN SR Series Engine

€1.323,71

VAT included. Shipping calculated at checkout

JE PISTONS P/N: 361303 GTIN: 193564032591
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

JE 361303 Piston Kit Ultra Series (86.50 mm Bore, 1.253 in. CH, -13.60 CC) for NISSAN SR Series Engine

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+491732982897

Description JE 361303 Piston Kit Ultra Series (86.50 mm Bore, 1.253 in. CH, -13.60 CC) for NISSAN SR Series Engine

JE Ultra Series forged Pistons are among the industry’s strongest and most fully featured off-the-shelf Pistons. Designed for domestic applications from LS to Big Block and HEMI to Ford Modular, they feature JE’s proprietary Aligned Grain Flow forging technology for next-level tensile strength under extreme cylinder pressures.

Ultra Series Pistons include custom-level features for boost-heavy or nitrous V8 engine builds. All JE Ultra Series Pistons are made 100% in the USA.

  • Designed for Power: Every feature is optimized for high-Horsepower / HP racing engines. Aligned Grain Flow technology maximizes tensile strength for high-performance engine environments.
  • Piston Coatings: Skirt coating reduces friction, Wall wear, and operating noise, especially during cold starts. The ceramic-based thermal barrier crown coating reduces Piston crown temperatures and improves exhaust gas scavenging.
  • High-Strength Wrist Pins: Premium thick-Wall Wrist Pins are manufactured by Trend Performance in the USA and Designed for high-performance and power-adder builds.
  • Gas Ports and Pin Oiling: Lateral gas ports help maintain top compression ring seal at high RPM and boost. Enhanced oiling keeps the Wrist Pin, pin Bore, and small end lubricated to reduce heat, friction, and wear.

Specifications:

  • Piston Series: JE Ultra Series
  • Cylinder Head: SR20DE
  • Bore Diameter: 86.50 MM
  • Piston Head Type: Dish
  • Compression Height: 1.253 IN
  • Piston Volume: -13.60 CC
  • Piston Material: 2618
  • Forging Type: FSR
  • Piston Average Weight: 320 GR
  • Ring Set Included: Yes
  • Top Compression Ring Thickness: 0.0395 IN
  • Second Compression Ring Thickness: 0.0480 IN
  • Oil Ring Thickness: 0.111 IN
  • Wrist Pin Material: 9310 Nickel Carbon Steel Alloy
  • Wrist Pin Length: 2.250 IN
  • Wrist Pin Wall Thickness: 0.230 IN
  • Intake Depth: .160 IN
  • Intake Diameter: 1.500 IN
  • Intake Angle: 14.5
  • Exhaust Depth: .150
  • Exhaust Diameter: 1.300
  • Exhaust Angle: 14.5
  • Top Groove Width: 0.03950 IN
  • 2nd Groove Width: 0.04800 IN
  • Oil Groove Width: 0.11100 IN
  • Product Type: Engine Piston Kit
  • SR Series
