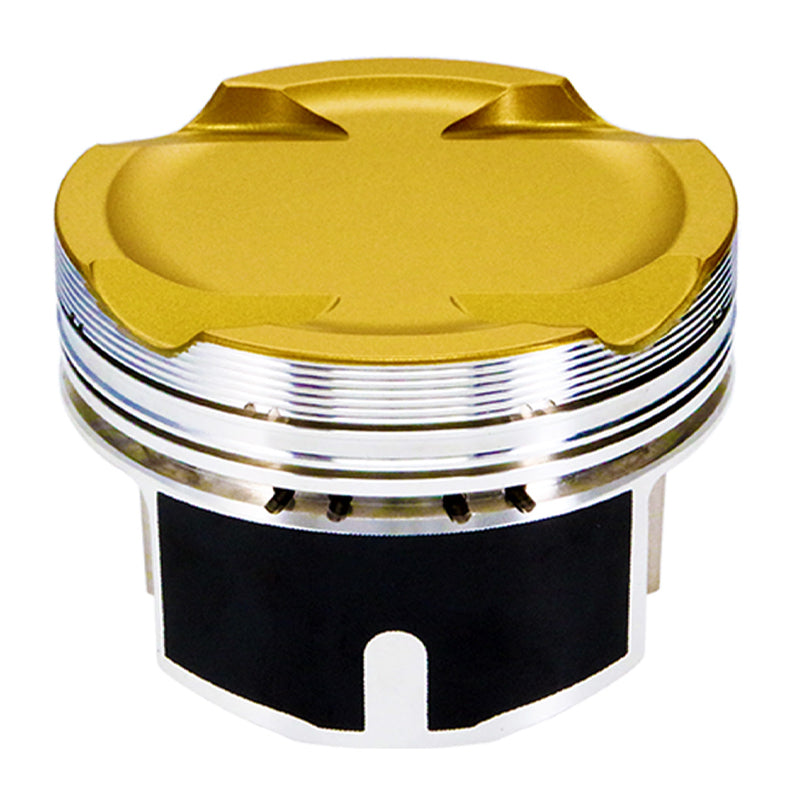

JE 389619 Piston Kit Ultra Series (83.00 mm Bore, 30.91 mm CH, -13.20 CC) for TOYOTA BMW B58B30 Engine Photo-0

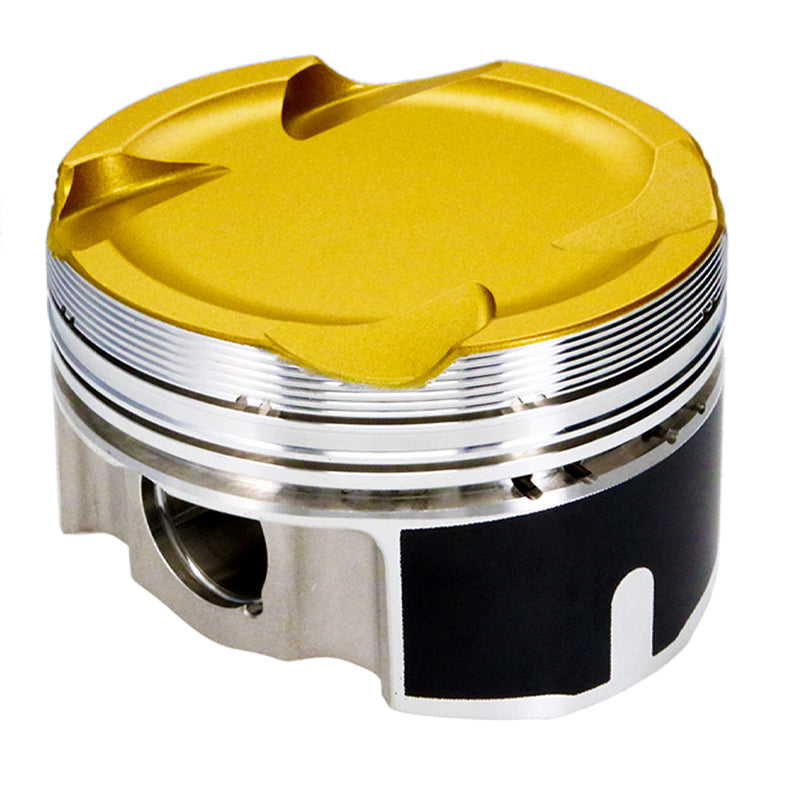

JE 389619 Piston Kit Ultra Series (83.00 mm Bore, 30.91 mm CH, -13.20 CC) for TOYOTA BMW B58B30 Engine Photo-1

JE 389619 Piston Kit Ultra Series (83.00 mm Bore, 30.91 mm CH, -13.20 CC) for TOYOTA BMW B58B30 Engine

€2.027,05

VAT included. Shipping calculated at checkout

JE PISTONS P/N: 389619 GTIN: 193564517722
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

JE 389619 Piston Kit Ultra Series (83.00 mm Bore, 30.91 mm CH, -13.20 CC) for TOYOTA BMW B58B30 Engine

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+491732982897

Description JE 389619 Piston Kit Ultra Series (83.00 mm Bore, 30.91 mm CH, -13.20 CC) for TOYOTA BMW B58B30 Engine

JE Ultra Series forged Pistons are among the industry’s strongest and most fully featured off-the-shelf Pistons. Designed for domestic applications from LS to Big Block and HEMI to Ford Modular, they feature JE’s proprietary Aligned Grain Flow forging technology for next-level tensile strength under extreme cylinder pressures.

Ultra Series Pistons include custom-level features for boost-heavy or nitrous V8 engine builds. All JE Ultra Series Pistons are made 100% in the USA.

  • Designed for Power: Every feature is optimized for high-Horsepower / HP racing engines. Aligned Grain Flow technology maximizes tensile strength for high-performance engine environments.
  • Piston Coatings: Skirt coating reduces friction, Wall wear, and operating noise, especially during cold starts. The ceramic-based thermal barrier crown coating reduces Piston crown temperatures and improves exhaust gas scavenging.
  • High-Strength Wrist Pins: Premium thick-Wall Wrist Pins are manufactured by Trend Performance in the USA and Designed for high-performance and power-adder builds.
  • Gas Ports and Pin Oiling: Lateral gas ports help maintain top compression ring seal at high RPM and boost. Enhanced oiling keeps the Wrist Pin, pin Bore, and small end lubricated to reduce heat, friction, and wear.

Specifications:

  • Piston Series: JE Ultra Series
  • Bore Diameter: 83.00 MM
  • Piston Head Type: Inv Dome/Dish
  • Compression Height: 30.91 MM
  • Piston Volume: -13.20 CC
  • Piston Material: 2618
  • Piston Quantity: 6
  • Forging Type: FSR
  • Piston Average Weight: 316 GR
  • Ring Set Included: Yes
  • Ring Set Part Number: UX1001-3268
  • Ring Quantity: 6
  • Wrist Pin Included: Yes
  • Wrist Pin Part Number: 866-2250-23-93C
  • Wrist Pin Outer Diameter: 0.866 IN
  • Wrist Pin Length: 2.250 IN
  • Wrist Pin Retainer Included: Yes
  • Wrist Pin Retainer Quantity: 12
  • Engine Detail: 2015+
  • Ring Set Thickness: 1.00 MM x 1.20 MM x 2.80 MM
  • Top Groove Width: 0.03970 IN
  • B58B30
