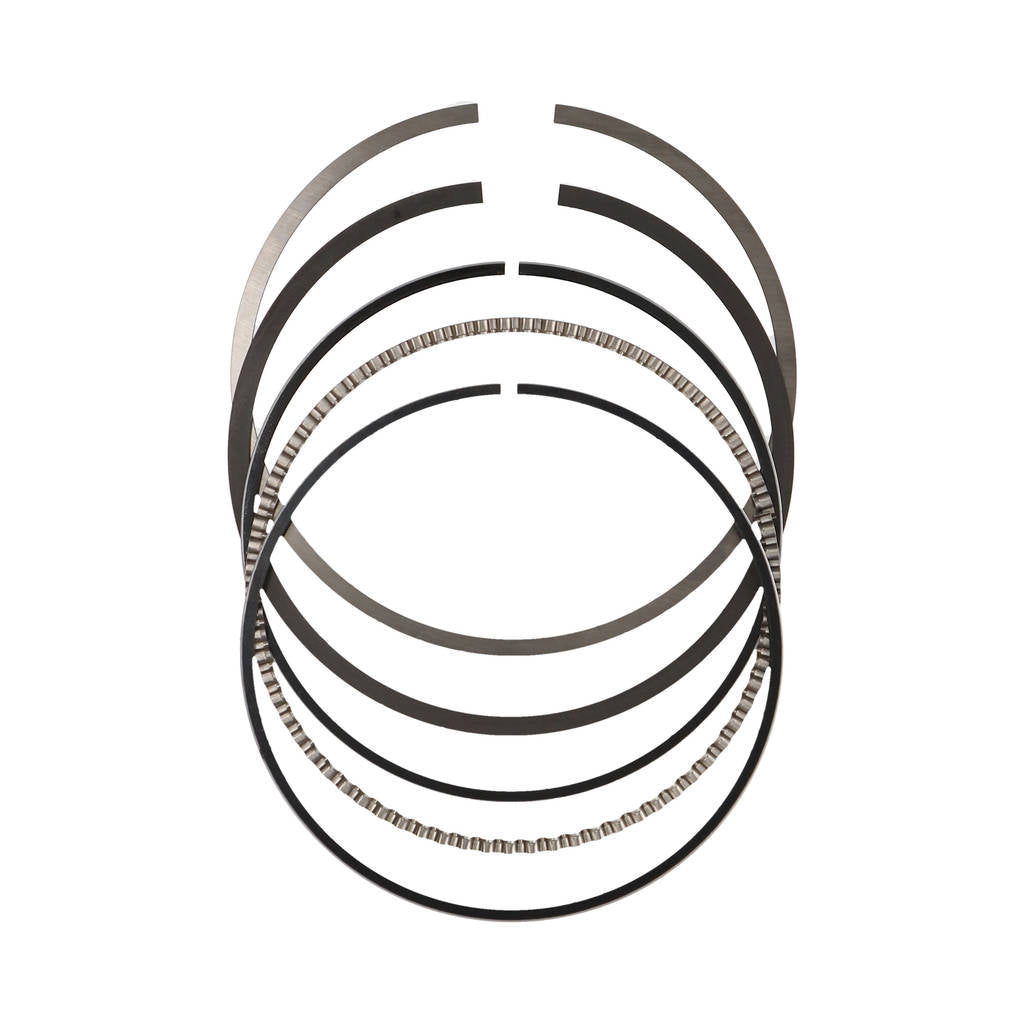

JE J30008-4185-5 Piston Ring Set (4.185 in. Bore, 0.0640 in. Top / 0.0640 in. 2nd / 0.118 in. Oil, 8 Cyl.) Photo-0

JE J30008-4185-5 Piston Ring Set (4.185 in. Bore, 0.0640 in. Top / 0.0640 in. 2nd / 0.118 in. Oil, 8 Cyl.)

€243,08

VAT included. Shipping calculated at checkout

JE PISTONS P/N: J30008-4185-5 GTIN: 193564229847
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

JE J30008-4185-5 Piston Ring Set (4.185 in. Bore, 0.0640 in. Top / 0.0640 in. 2nd / 0.118 in. Oil, 8 Cyl.)

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+491732982897

Description JE J30008-4185-5 Piston Ring Set (4.185 in. Bore, 0.0640 in. Top / 0.0640 in. 2nd / 0.118 in. Oil, 8 Cyl.)

JE Piston Rings are designed to maximize Horsepower / HP through precision sealing of combustion pressure. They are available in a wide selection of sizes, materials, and thicknesses to suit various engines.

JE Pistons also offers custom Piston Ring services, including back cutting, Dykes cutting, lapping, grinding, and PVD coating. Used by top NHRA Pro Stock and NASCAR teams, these services are available to the public and provide increased durability, power through reduced friction, and improved Piston Ring sealing.

Specifications:

  • Bore Diameter: 106.30 | 4.185 mm
  • Ring Type: 3 Ring
  • File Fit: Yes
  • Top Ring Axial Height: 1/16 in.
  • Top Ring Radial Width: 0.192 in.
  • Top Compression Ring Thickness: 0.0640 in.
  • Top Ring Facing Material: Plasma Moly
  • Top Ring Material: Ductile Iron
  • Top Ring Shape: Barrel Face, D-wall, Torsional
  • Second Ring Axial Height: 1/16 in.
  • Second Ring Radial Width: 0.194 in.
  • Second Compression Ring Thickness: 0.0640 in.
  • Second Ring Facing Material: Phosphate
  • Second Ring Shape: Taper Face, D-wall, Reverse Torsional
  • Oil Ring Axial Height: 3.00 mm
  • Oil Ring Radial Width: 0.152 in.
  • Oil Ring Thickness: 0.118 in.
  • Third Ring Facing Material: Carbon Steel
  • Third Ring Material: Carbon Steel
  • Third Ring Shape: Full Seal, Flex Vent
  • Ring Set Thickness: 0.0640 in. Top x 0.0640 in. 2nd x 0.118 in. Oil
  • Product Type: Engine Piston Ring Set
