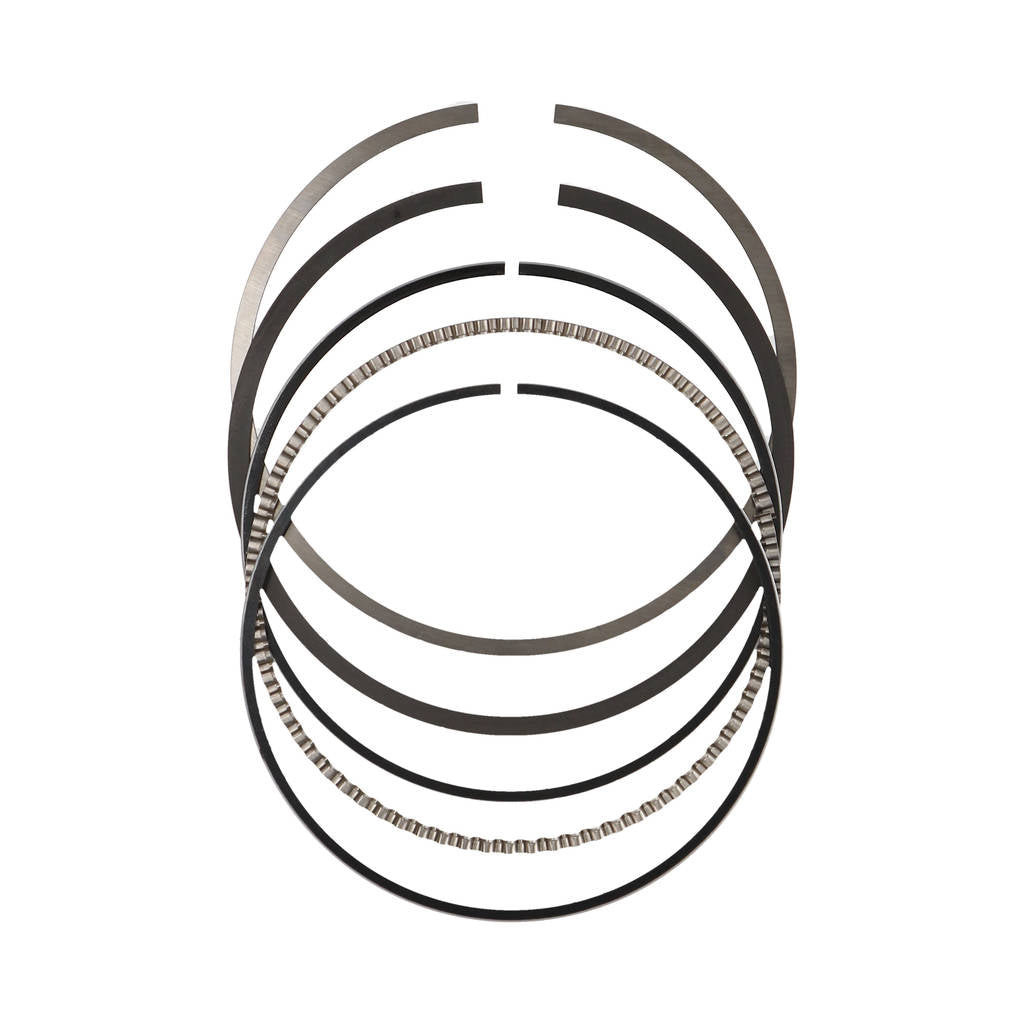

JE XA6650 Piston Ring Set (2.618 in. Bore, 0.0315 in. Top / 0.0315 in. 2nd / 0.059 in. Oil, 1 Cyl.) Photo-0

JE XA6650 Piston Ring Set (2.618 in. Bore, 0.0315 in. Top / 0.0315 in. 2nd / 0.059 in. Oil, 1 Cyl.)

€29,18

VAT included. Shipping calculated at checkout

JE PISTONS P/N: XA6650 GTIN: 193564222824
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

JE XA6650 Piston Ring Set (2.618 in. Bore, 0.0315 in. Top / 0.0315 in. 2nd / 0.059 in. Oil, 1 Cyl.)

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+491732982897

Description JE XA6650 Piston Ring Set (2.618 in. Bore, 0.0315 in. Top / 0.0315 in. 2nd / 0.059 in. Oil, 1 Cyl.)

JE Piston Rings are designed to maximize Horsepower / HP through precision sealing of combustion pressure. They are available in a wide selection of sizes, materials, and thicknesses to suit various engines.

JE Pistons also offers custom Piston Ring services, including back cutting, Dykes cutting, lapping, grinding, and PVD coating. Used by top NHRA Pro Stock and NASCAR teams, these services are available to the public and provide increased durability, power through reduced friction, and improved Piston Ring sealing.

Specifications:

  • Bore Diameter: 2.618 / 66.50 MM
  • Ring Type: 3 Ring
  • File Fit: Yes
  • Top Ring Axial Height: 0.80 MM
  • Top Ring Radial Width: 0.109 IN
  • Top Compression Ring Thickness: 0.0315 IN
  • Top Ring Facing Material: Chrome
  • Top Ring Material: Carbon Steel
  • Top Ring Shape: Barrel Face, Back Cut, Neutral
  • Second Ring Axial Height: 0.80 MM
  • Second Ring Radial Width: 0.109 IN
  • Second Compression Ring Thickness: 0.0315 IN
  • Second Ring Facing Material: Phosphate
  • Second Ring Shape: Taper Face, Back Cut, Neutral
  • Oil Ring Axial Height: 1.50 MM
  • Oil Ring Radial Width: 0.095 IN
  • Oil Ring Thickness: 0.059 IN
  • Third Ring Facing Material: Carbon Steel
  • Third Ring Material: Carbon Steel
  • Third Ring Shape: Full Seal, Flex Vent
  • Ring Set Thickness: 0.0315 in. Top x 0.0315 in. 2nd x 0.059 in. Oil
  • Product Type: Engine Piston Ring Set
