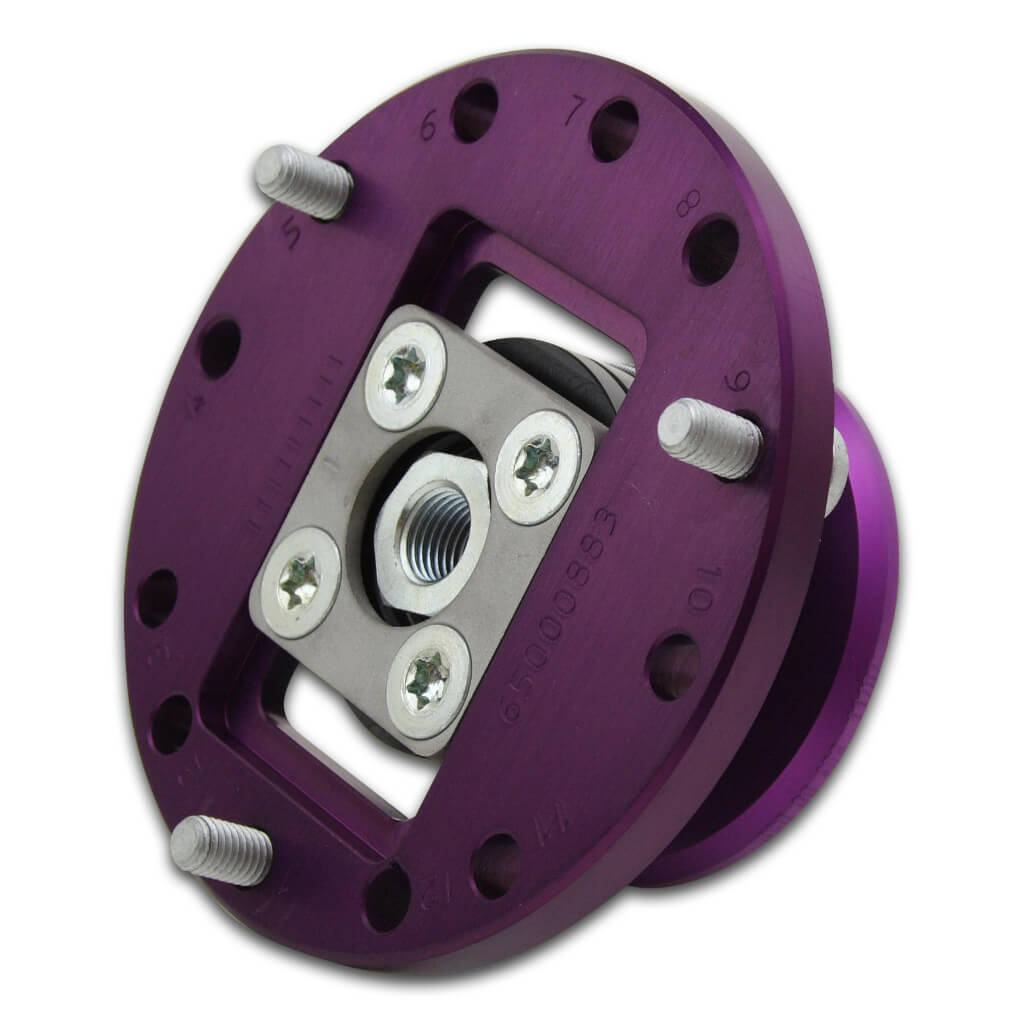

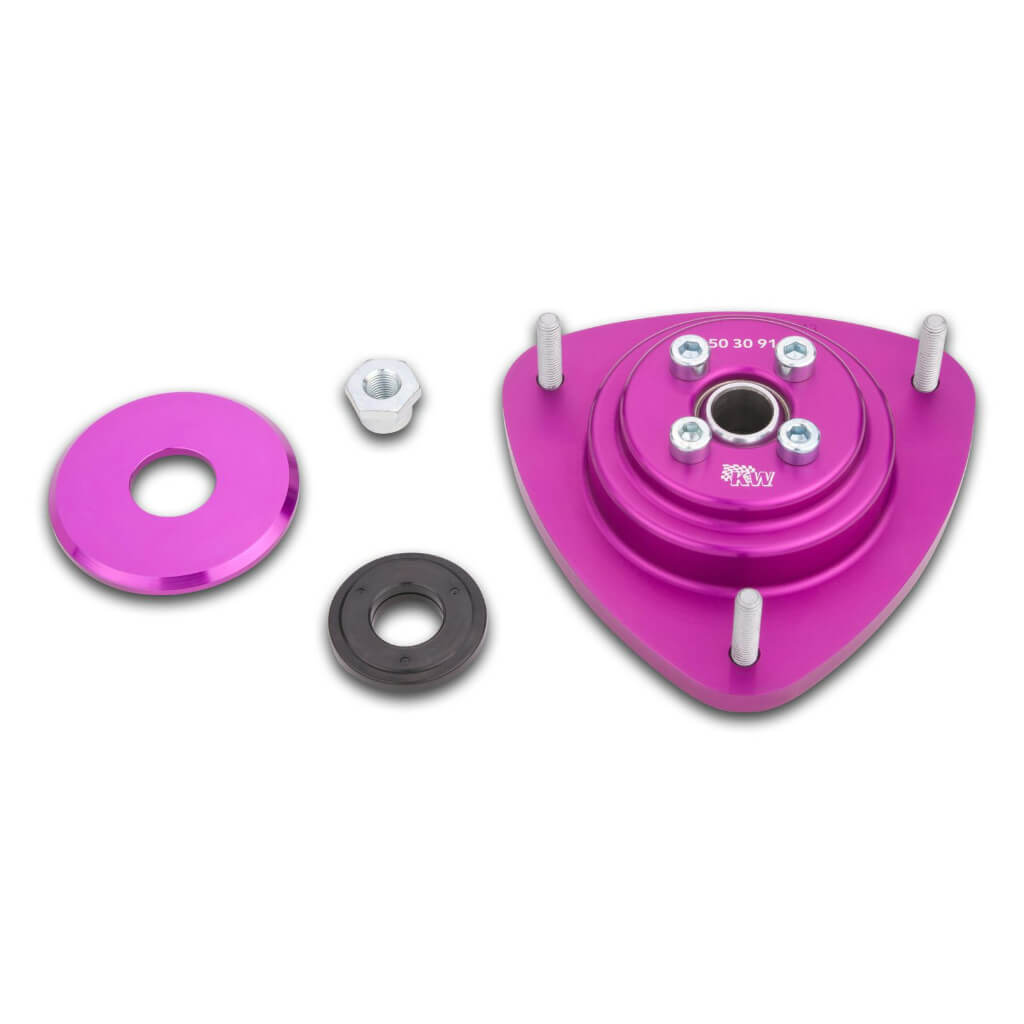

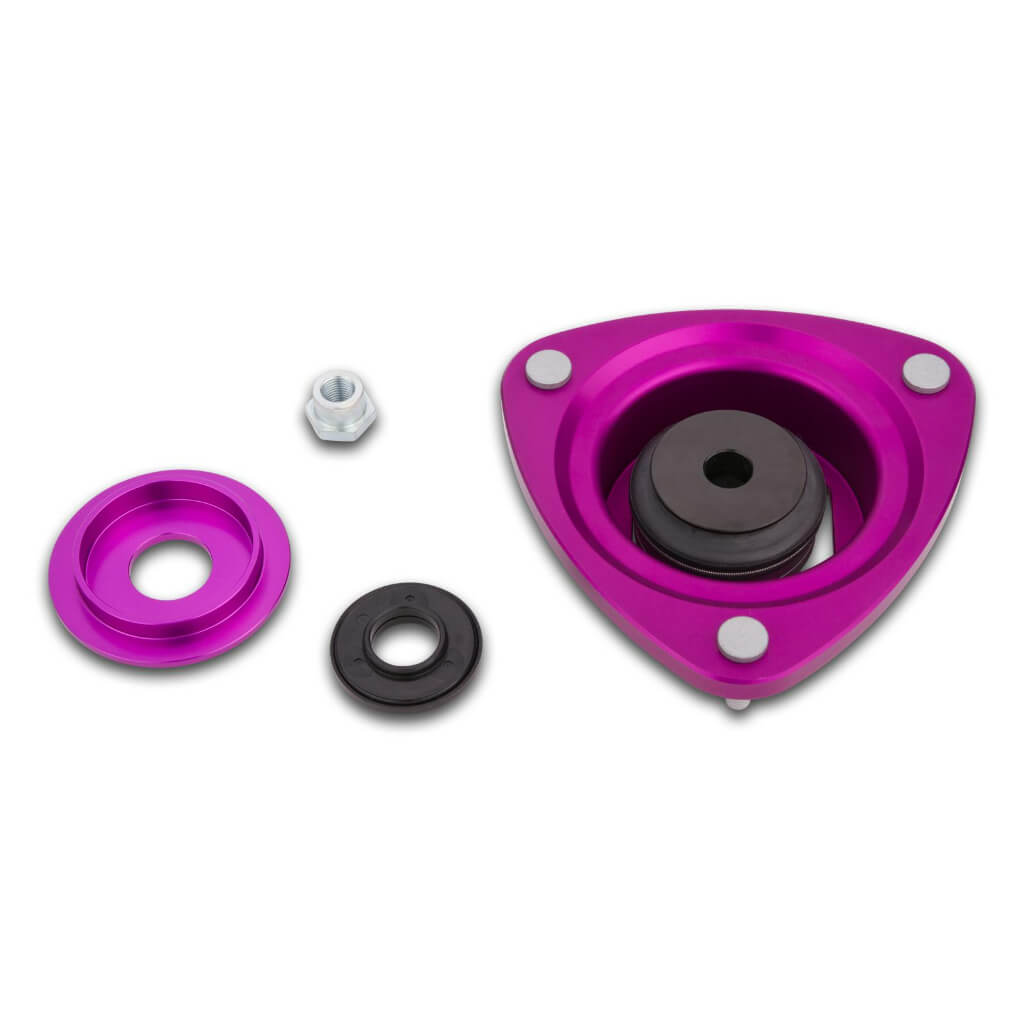

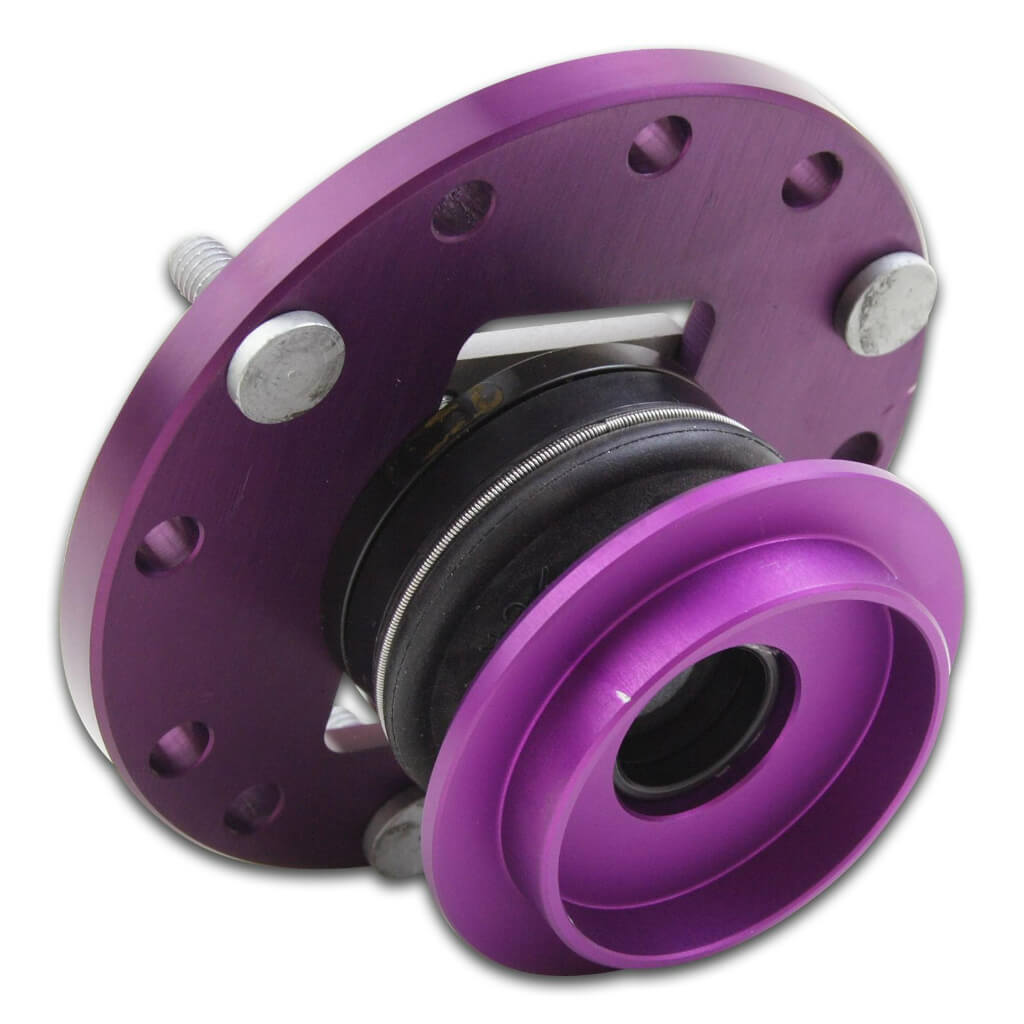

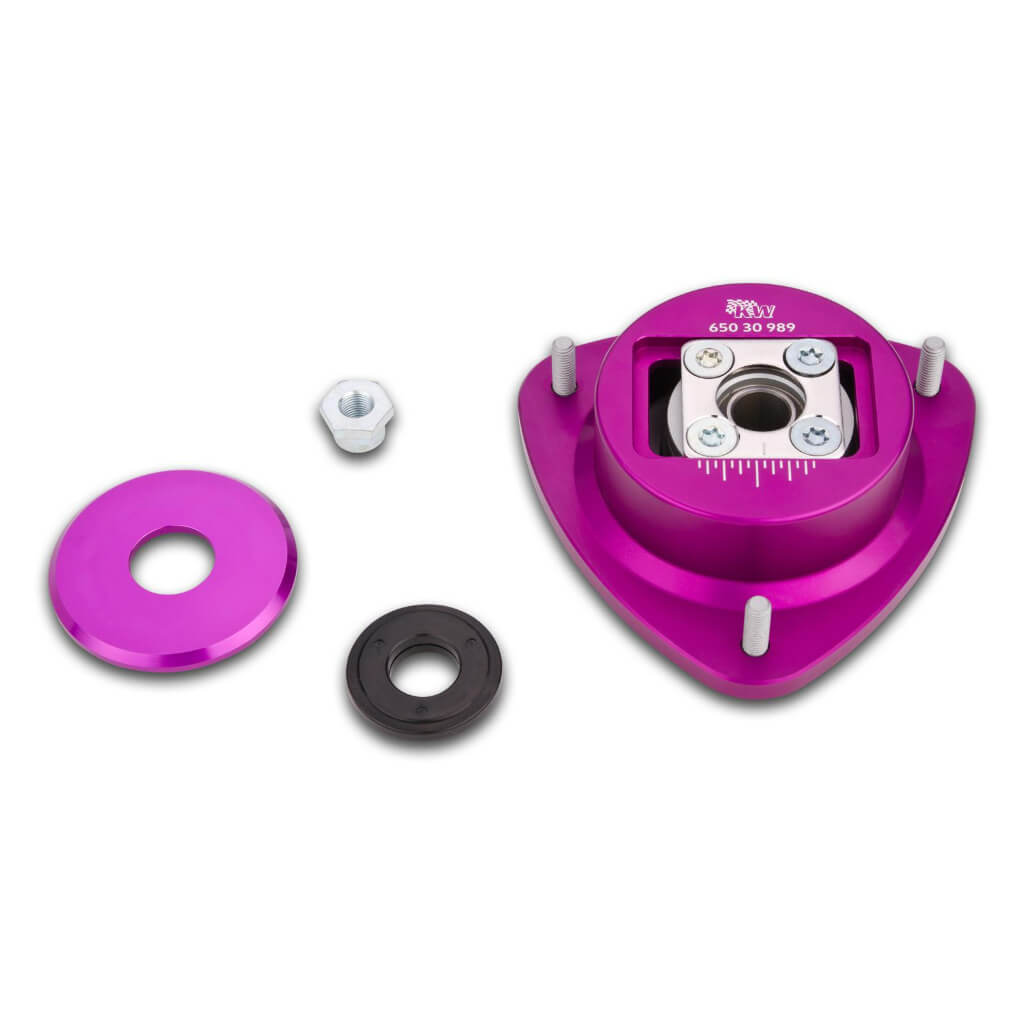

KW Clubsport Adjustable Top Mounts – Motorsport precision for the street
KW aluminium unibal top mounts are derived directly from professional motorsport and engineered for road-legal KW Clubsport coilover kits. Built from high-strength aluminum alloy, these top mounts offer precise camber and (in select applications) caster adjustments — ideal for maximizing grip and fine-tuning suspension geometry.
Tested and proven on the Nürburgring Nordschleife
A proprietary KW sealing system protects the sealed and preloaded spherical bearings from dirt and moisture, ensuring long-term performance. Axial bearings are integrated for McPherson struts, allowing proper spring rotation during suspension travel.
Key features:
- Scaled camber adjustment for precise alignment
- Preloaded and sealed unibal spherical bearing for zero play
- Axial bearings support spring rotation (McPherson struts)
- Unibal bearing core made from tool steel (100Cr6), hardened to 58–64 HRC, chrome-plated
- PTFE-coated surface and stainless steel outer ring (X20Cr13)
