Link ECU 101-0295 MAP Sensor EU 5 bar
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at Kelberg Warehouse
Usually ready in 24 hours
Link ECU 101-0295 MAP Sensor EU 5 bar
Kelberg Warehouse
Pickup available, usually ready in 24 hours
Auf der Struth 4
53539 Kelberg
Germany
Nürburgring Showroom
Pickup available, usually ready in 24 hours
Nürburgring Boulevard 2
53520 Nürburg
Germany

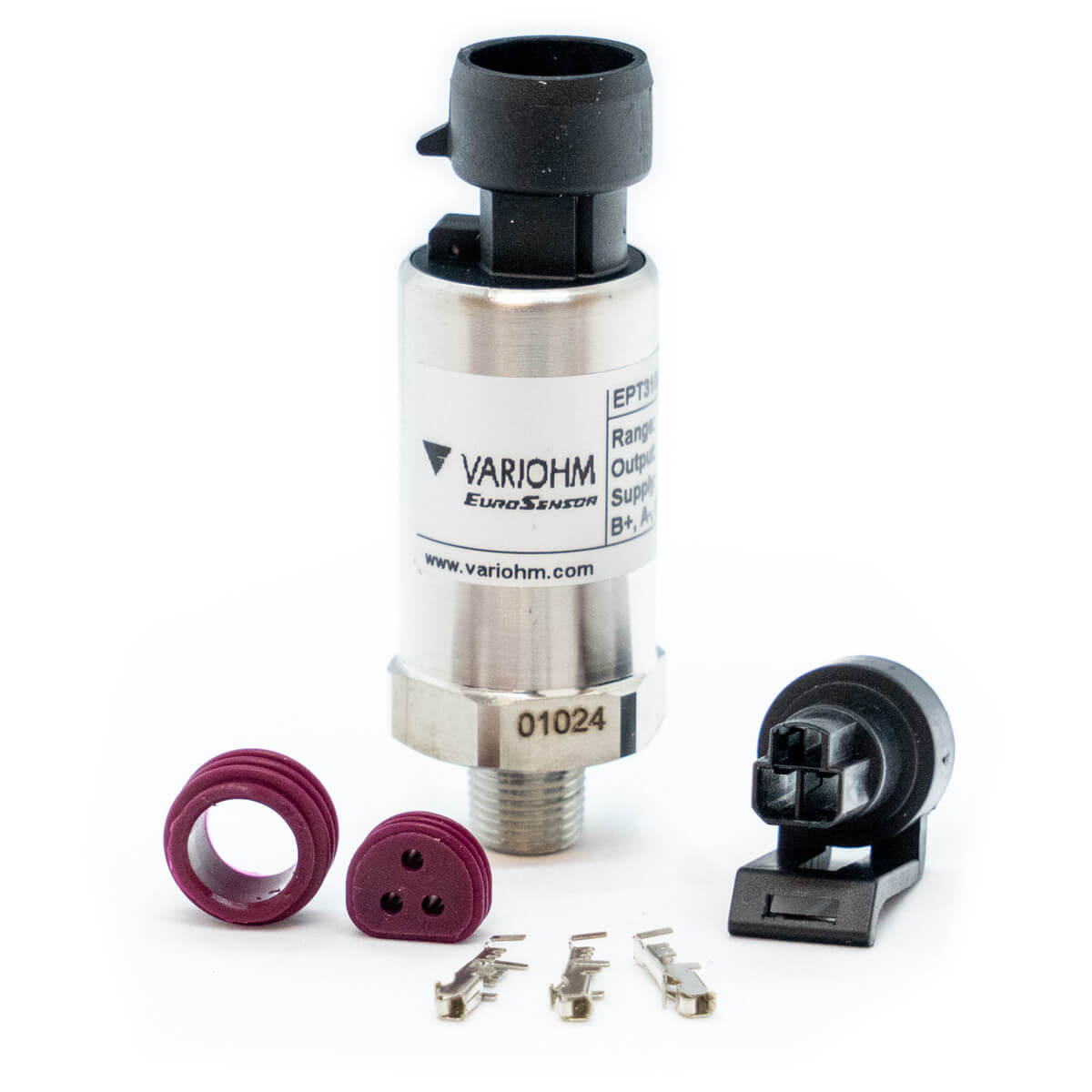

The 5 Bar MAP Variohm Eurosensor reads up to 4 Bar absolute pressure.
This means that it is suitable for turbo or supercharged applications running up to 4 Bar (or 58psi) of boost pressure.
- Includes Plug and Pins
- Push wire through connector; crimp on terminal; pull wire/terminal back into connector
- Using Link G4/G4+/G4X ECU’s select the MAP sensor type in PC Link as ‘Variohm 5 Bar’
Calibration - 0kpa = 0.5v, 500kpa = 4.5v
PIN A = 0v
PIN B = 5v
PIN C = Signal
