LINK ECU 212-4000 MiataLink Mazda MX5 1600-1800 Photo-0

LINK ECU 212-4000 MiataLink Mazda MX5 1600-1800

€1.466,68

VAT included. Shipping calculated at checkout

Link ECU P/N: 212-4000
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

LINK ECU 212-4000 MiataLink Mazda MX5 1600-1800

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+4926916879995

Nürburgring Showroom

Pickup available, usually ready in 24 hours

Nürburgring Boulevard 2
53520 Nürburg
Germany

+4926916879995
MX5LINK - #MX5+
MX5Link - #MX5+ Free yourself from the constraints of the factory ECU.

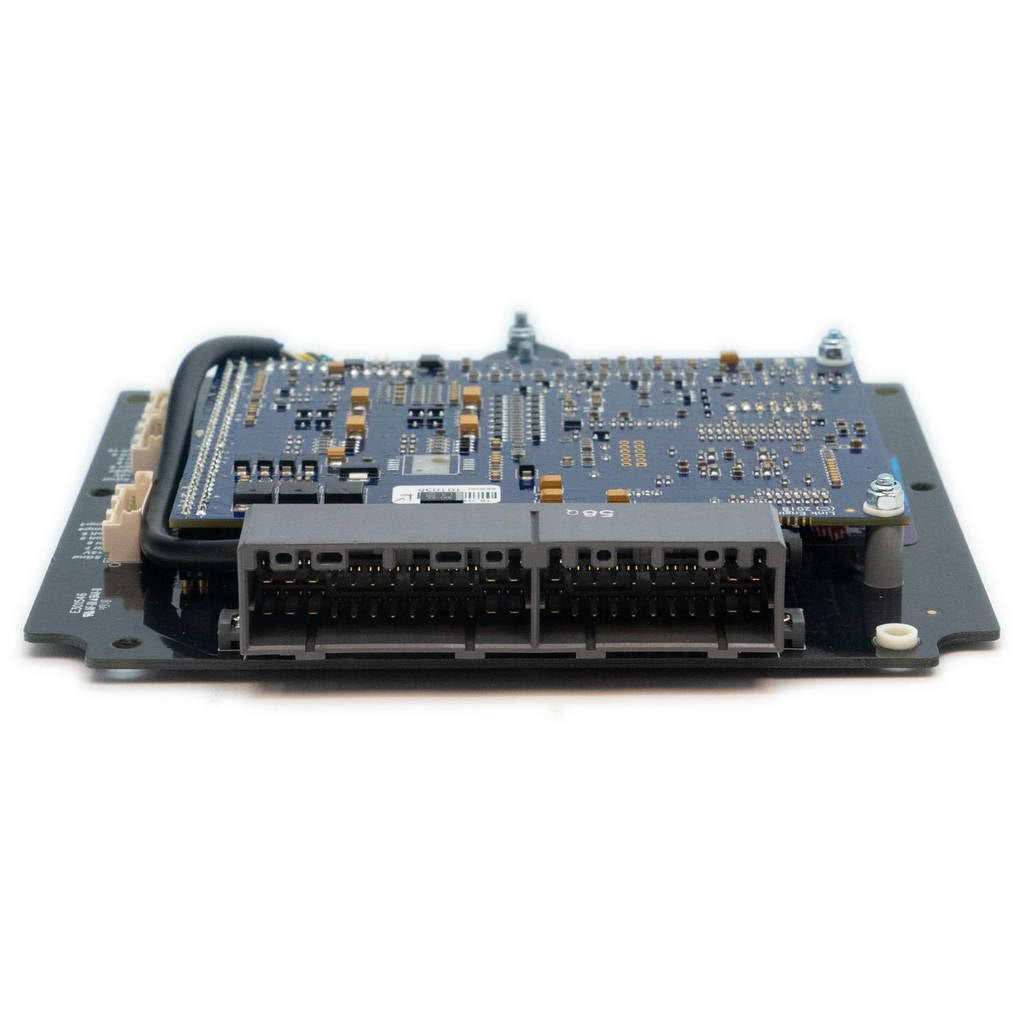

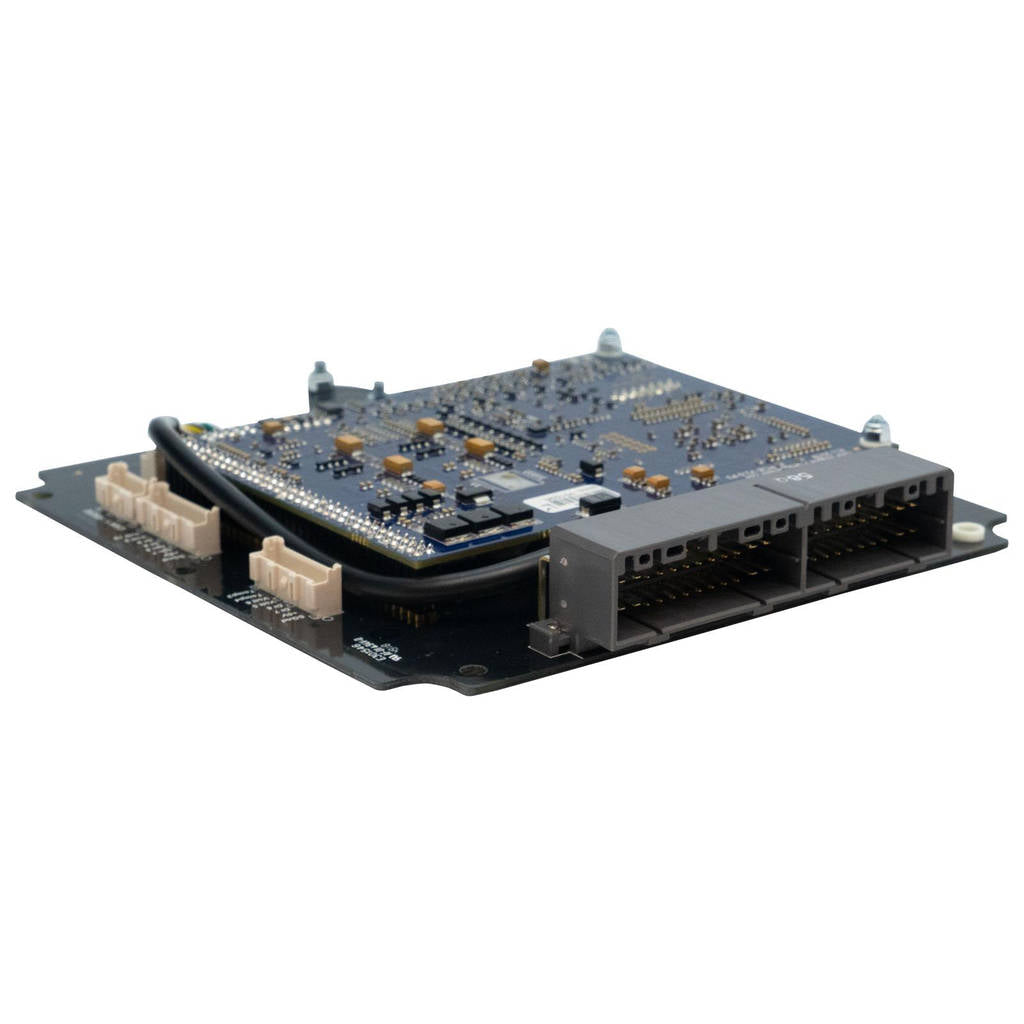

The Link G4+ MX5Link MX5+ PlugIn fits the Mazda MX5 1600-1800 (NA models) and the GTX/R (1800cc). The ECU PCB fits discretely inside the original factory enclosure.

Installation of Link's MX5 ECU is a breeze with no alteration of the factory wiring loom required.
A built-in connector (or pins in some models) provides additional inputs and outputs such as oil pressure inputs or anti-lag / logging switches.
Factory features are supported - see Features for any exceptions.

Need more inputs and outputs?
The XS Expansion Loom offers the ability to add additional inputs & outputs on our range of plug-in ECUs.

Includes Integrated 4 Bar MAP Sensor.

Specifications
Features
G4+ PlugIn Key Features (Where Applicable)

Up to 6D fuel and ignition mapping
Precision closed loop cam control (four cam, independent control)
Sequential fuel delivery
Digital triggering, all OEM patterns
OEM idle hardware supported
5D boost control with three switchable tables
Motorsport features - antilag, launch, flat shift
Continuous barometric correction (on board)
CAN port
QuickTune - automated fuel tuning
Individual cylinder correction
USB tuning cable included
Stats recording into on-board memory
Gear compensations for spark, boost and fuel
Real time selectable dual fuel, ignition and boost maps
Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
Boost control referenced to gear, speed or throttle position
Up to 32Mbit internal logging memory
Staged injection
Knock with "windowing"
