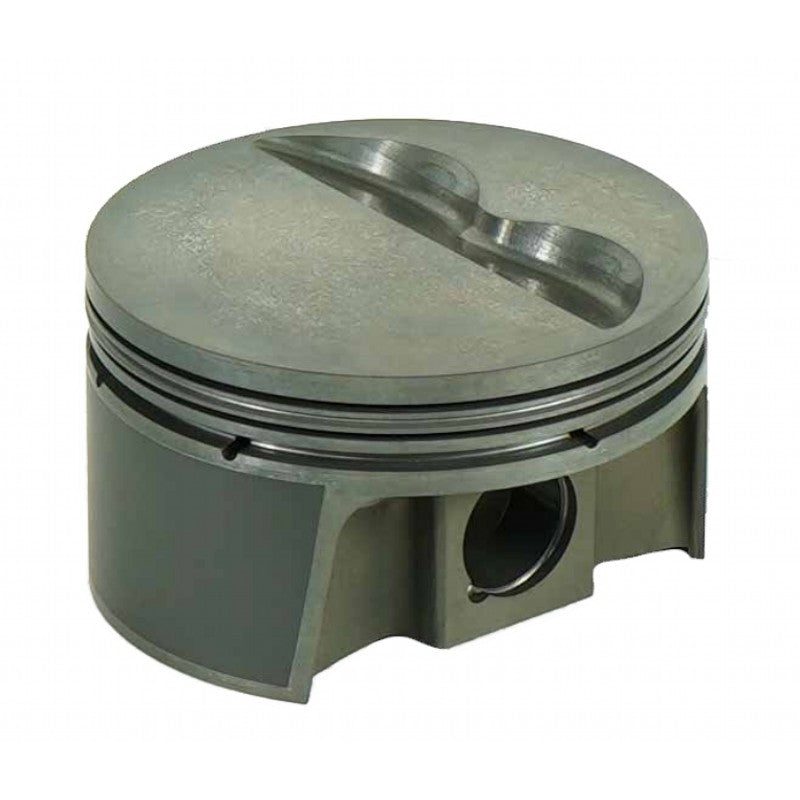

MAHLE 197725140T Piston Kit with TBC (357cid 4.040 x 1.550CH, 3.480/3.500stroke, 5.700rod, 0.927pin, -5.0cc, 467g, 10.3CR, 4032) for CHEVROLET Small Block Photo-0

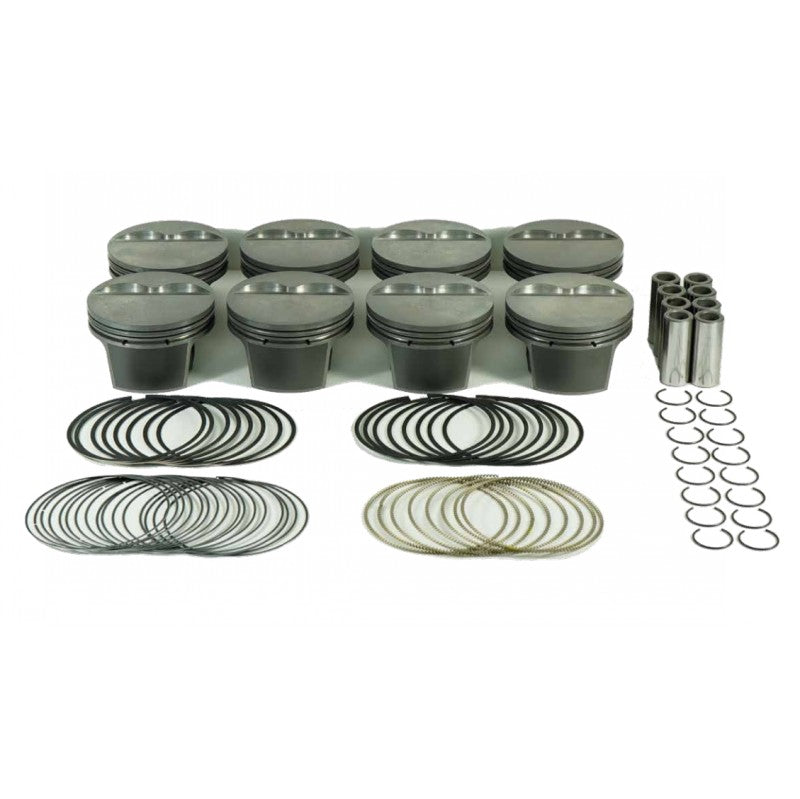

MAHLE 197725140T Piston Kit with TBC (357cid 4.040 x 1.550CH, 3.480/3.500stroke, 5.700rod, 0.927pin, -5.0cc, 467g, 10.3CR, 4032) for CHEVROLET Small Block Photo-1

MAHLE 197725140T Piston Kit with TBC (357cid 4.040 x 1.550CH, 3.480/3.500stroke, 5.700rod, 0.927pin, -5.0cc, 467g, 10.3CR, 4032) for CHEVROLET Small Block

Sale price€1.264,70

VAT included. Shipping calculated at checkout

MAHLEP/N: 197725140T
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

MAHLE 197725140T Piston Kit with TBC (357cid 4.040 x 1.550CH, 3.480/3.500stroke, 5.700rod, 0.927pin, -5.0cc, 467g, 10.3CR, 4032) for CHEVROLET Small Block

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+4926916879995

Nürburgring Showroom

Pickup available, usually ready in 24 hours

Nürburgring Boulevard 2
53520 Nürburg
Germany

+4926916879995

SMALL BLOCK CHEVY WISSOTA CONCEPT ENGINE

  • 1.5, 1.5, 3.0mm File Fit Performance Ring Set included
  • APPROVED PN w/ Laser Etch for WISSOTA Series

Small Block Chevy PowerPak & PowerPak+ Piston Kits

MAHLE Motorsport's PowerPak and PowerPak+ piston kits offer superior reliability and performance, letting you take your small block chevy engine build to the next level. Small Block Chevy PowerPak Piston Kits feature pistons, rings, clips, and pins. Forged piston choice for Small Block Chevy include Flat Top, Dish, Dome, and they are offered in 2618 and 4032 alloy. From a classic Chevy 350 build to those looking to find the best pistons for a nitrous and blower engines look no further than MAHLE Motorsport. Backed by over 95 years of performance experience and using MAHLE manufactured machinery to offer advanced features found nowhere else; make no compromises, trust MAHLE Motorsport.

Advanced Features

  • Slipper Skirt Style Forgings: strong, lightweight, low drag forging superior to the traditional full round design.
  • Phosphate Coating: helps prevent microwelding in the ring grooves and pin galling.
  • Grafal® Anti-Friction Skirt Coating: reduces drag, scuffing, friction, cylinder bore wear, and reduces piston noise.
  • 4032 or 2618 Aluminum Alloy: whether building a street engine or an all out race engine, both 4032 and 2618 alloys are available depending on the application.

Introducing Thermal Barrier Coating

Thermal Barrier Coating is a ceramic based application that helps reduce heat transfer and protect the piston crown.

  • Durable and resistant to Thermal Shock
  • Designed to withstand the demands of the harshest engine environments

Specifications

  • Bore, in: 4.04
  • Bore, mm: 102.616
  • Stroke, in: 3.480/3.500
  • Rod, in: 5.7
  • Compression height, in: 1.55
  • Piston Style: Flattop, with 2 valve reliefs
  • Crown volume, cc: -5
  • Piston weight, g: 467
  • Piston material: Forged, 4032
  • Pin diameter, in: 0.927
  • Pin diameter, mm: 23.55
  • Pin length, in: 2.287
  • Pin length, mm: 58.1
  • Pin wall thickness:0.168
  • Pin material:Steel
  • Pin mass, g: 118
  • Pin style: Floating
  • Pin Included: Yes
  • Clip style: Round Wire
  • Clips Included: Yes
  • Piston ring thickness: 1.5mm, 1.5mm, 3.0mm
  • Rings Included: Yes
  • Top compression ring thickness, mm: 1.5
  • Top compression ring material: Ductile Iron
  • Top compression ring coating: Plasma Moly
  • 2nd compression ring thickness, mm: 1.5
  • 2nd compression ring material: Cast Iron
  • 2nd compression ring coating: Phosphate
  • Oil ring thickness, mm: 3.0
  • Oil ring material: Chrome plated stainless steel
  • Oil ring tension: Standard
  • Package: Sold as a set of 8
  • Coatings: Phosphate + Grafal + TBC
