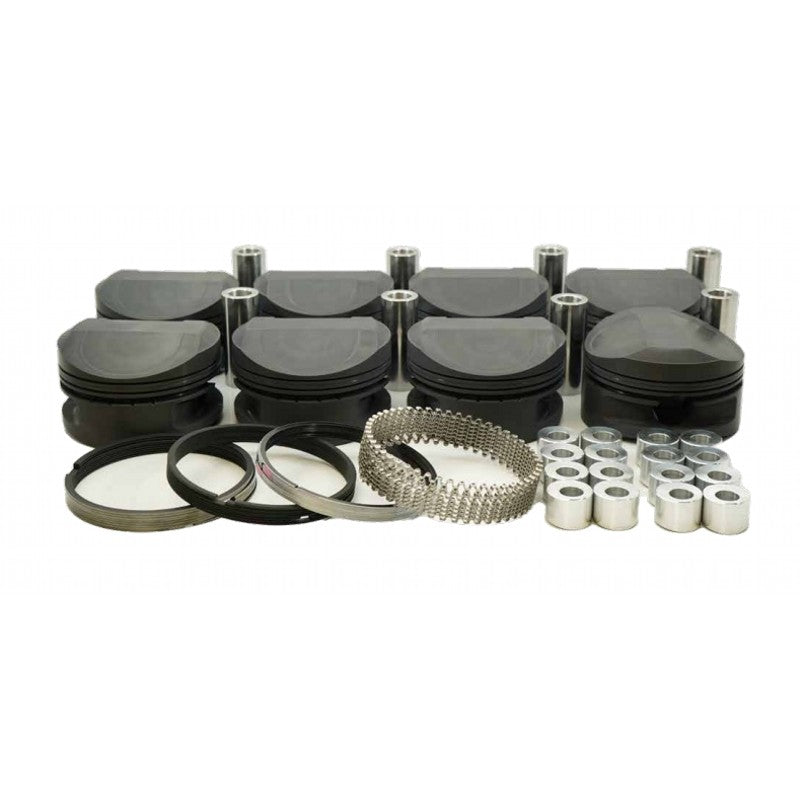

MAHLE 197884168T Piston Kit with TBC (527cid 4.468 x 1.425BCH, 4.200stroke, 7.280/7.310rod, 1.094pin, 17.6cc, 760g, 12.6CR, 2618) for MOPAR Big Block Photo-0
MAHLE 197884168T Piston Kit with TBC (527cid 4.468 x 1.425BCH, 4.200stroke, 7.280/7.310rod, 1.094pin, 17.6cc, 760g, 12.6CR, 2618) for MOPAR Big Block Photo-1

MAHLE 197884168T Piston Kit with TBC (527cid 4.468 x 1.425BCH, 4.200stroke, 7.280/7.310rod, 1.094pin, 17.6cc, 760g, 12.6CR, 2618) for MOPAR Big Block

€1.804,31

VAT included. Shipping calculated at checkout

MAHLEP/N: 197884168T
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

MAHLE 197884168T Piston Kit with TBC (527cid 4.468 x 1.425BCH, 4.200stroke, 7.280/7.310rod, 1.094pin, 17.6cc, 760g, 12.6CR, 2618) for MOPAR Big Block

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+4926916879995

Nürburgring Showroom

Pickup available, usually ready in 24 hours

Nürburgring Boulevard 2
53520 Nürburg
Germany

+4926916879995

TOP ALCOHOL HEMI

  • 0.290" dome height, 0.330" Intake / 0.315" Exhaust pocket depths
  • 1/16", 1/16", 3/16" File Fit Performance Ring Set included

Introducing the Top Alcohol Hemi PowerPak piston set from Mahle Motorsports. Shelfstock availability, with a race proven design, made of 2618 forged alloy. PowerPak piston sets feature the highest quality, and reliability, from the technology leader in piston and ring design.

Introducing Thermal Barrier Coating

Thermal Barrier Coating is a ceramic based application that helps reduce heat transfer and protect the piston crown.

  • Durable and resistant to Thermal Shock
  • Designed to withstand the demands of the harshest engine environments

Specifications

  • Bore, in: 4.4675
  • Bore, mm: 113.475
  • Stroke, in: 4.2
  • Rod, in: 7.280/7.310
  • Compression height, in: 1.425B
  • Piston Style: Dome, with 2 valve reliefs
  • Crown volume, cc: 17.6
  • Piston weight, g: 760
  • Piston material: Forged, 2618
  • Pin diameter, in: 1.094
  • Pin diameter, mm: 27.788
  • Pin length, in: 2.85
  • Pin length, mm: 72.39
  • Pin wall thickness:0.2
  • Pin material:H13
  • Pin mass, g: 205
  • Pin style: Floating
  • Pin Included: Yes
  • Clip style: Buttons
  • Clips Included: Yes
  • Piston ring thickness: 1/16, 1/16, 3/16
  • Rings Included: Yes
  • Top compression ring thickness, mm: 1/
  • Top compression ring material: 9254 Steel
  • Top compression ring coating: PVD
  • 2nd compression ring thickness: 1/16
  • 2nd compression ring material: 9254 Steel
  • 2nd compression ring coating: Phosphate
  • Oil ring thickness: 3/16
  • Oil ring material: Chrome plated stainless steel
  • Oil ring tension: High
  • Package: Sold as a set of 8
  • Coatings: Phosphate + TBC
