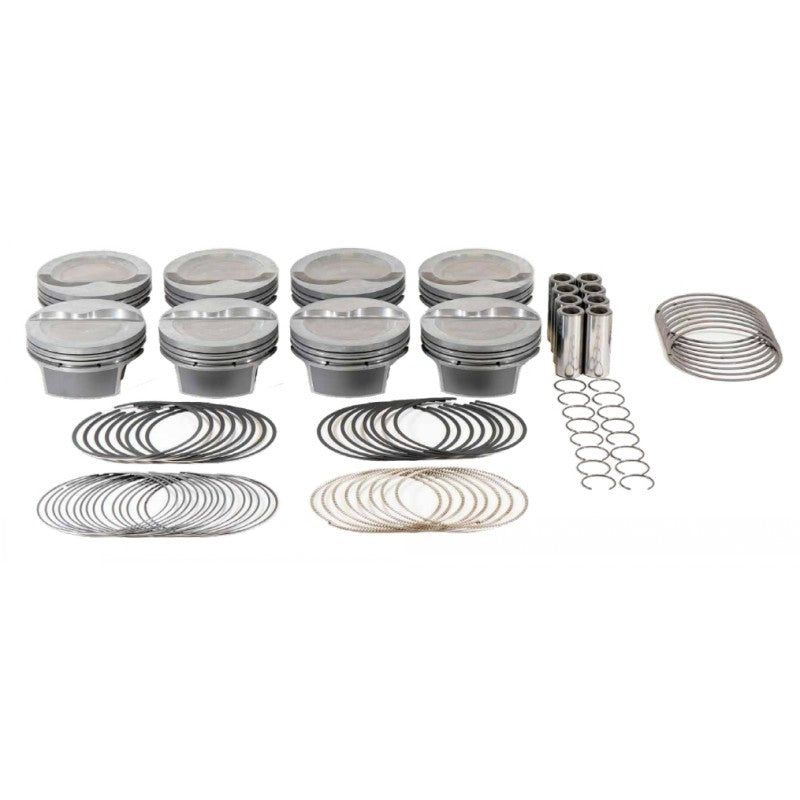

MAHLE 928905940T Piston Kit with TBC (349cid 4.040 x 1.090RCH, 3.400stroke, 5.400rod, 0.927pin, -16.0cc, 388g, 9.1CR, 4032) for FORD Small Block
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
MAHLE 928905940T Piston Kit with TBC (349cid 4.040 x 1.090RCH, 3.400stroke, 5.400rod, 0.927pin, -16.0cc, 388g, 9.1CR, 4032) for FORD Small Block
Kelberg Warehouse
Auf der Struth 4
53539 Kelberg
Germany
Nürburgring Showroom
Nürburgring Boulevard 2
53520 Nürburg
Germany
SMALL BLOCK FORD WISSOTA CONCEPT PISTON
- 1.5, 1.5, 3.0mm File Fit Performance Ring Set Included
- APPROVED PN w/ Laser Etch for WISSOTA Series
Small Block Ford PowerPak & PowerPak+ Piston Kits
MAHLE Motorsport's PowerPak and PowerPak Plus piston kits offer superior reliability and performance, letting you take your build to the next level. Motorsport Small Block Ford forged pistons are made of 2618 or 4032 alloy and come complete with pins, clips, and pistons rings known as PowerPak. Available in Flat Top, Dish, or Dome, they come complete with a 1mm, 1mm, 2mm Ring Pack that is proven to increase horsepower & torque. Whether its a SBF 302 build or using 2618 alloy for a nitrous or blower build MAHLE Motorsport has you covered. Backed by over 95 years of performance experience and using MAHLE manufactured machinery to offer advanced features found nowhere else; make no compromises, trust MAHLE Motorsport.
Introducing Thermal Barrier Coating
Thermal Barrier Coating is a ceramic based application that helps reduce heat transfer and protect the piston crown.
- Durable and resistant to Thermal Shock
- Designed to withstand the demands of the harshest engine environments
Specifications
- Bore, in: 4.04
- Bore, mm: 102.616
- Stroke, in: 3.4
- Rod, in: 5.4
- Compression height, in: 1.090R
- Piston Style: Flattop, with 2 valve reliefs
- Crown volume, cc: -16
- Piston weight, g: 388
- Piston material: Forged, 4032
- Pin diameter, in: 0.927
- Pin diameter, mm: 23.55
- Pin length, in: 2.287
- Pin length, mm: 58.1
- Pin wall thickness:0.168
- Pin material:Steel
- Pin mass, g: 118
- Pin style: Floating
- Pin Included: Yes
- Clip style: Round Wire
- Clips Included: Yes
- Piston ring thickness: 1.5mm, 1.5mm, 3.0mm
- Rings Included: Yes
- Top compression ring thickness, mm: 1.5
- Top compression ring material: Ductile Iron
- Top compression ring coating: Plasma Moly
- 2nd compression ring thickness, mm: 1.5
- 2nd compression ring material: Cast Iron
- 2nd compression ring coating: Phosphate
- Oil ring thickness, mm: 3.0
- Oil ring material: Chrome plated stainless steel
- Oil ring tension: Standard
- Package: Sold as a set of 8
- Coatings: Phosphate + Grafal + TBC
