MAHLE 928989305 Pistons Kit TOYOTA 2JZ-GTE (Supra) 3.0L 86.50mm x 34.0mm CH, 86.0mm Stroke,142.0mm Rod, 22mm Pin, -14.2cc, 337g, 8.6CR, 2618 Photo-0

MAHLE 928989305 Pistons Kit TOYOTA 2JZ-GTE (Supra) 3.0L 86.50mm x 34.0mm CH, 86.0mm Stroke,142.0mm Rod, 22mm Pin, -14.2cc, 337g, 8.6CR, 2618

€1.012,37

VAT included. Shipping calculated at checkout

MAHLE P/N: 928989305
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

MAHLE 928989305 Pistons Kit TOYOTA 2JZ-GTE (Supra) 3.0L 86.50mm x 34.0mm CH, 86.0mm Stroke,142.0mm Rod, 22mm Pin, -14.2cc, 337g, 8.6CR, 2618

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+4926916879995

Nürburgring Showroom

Pickup available, usually ready in 24 hours

Nürburgring Boulevard 2
53520 Nürburg
Germany

+4926916879995

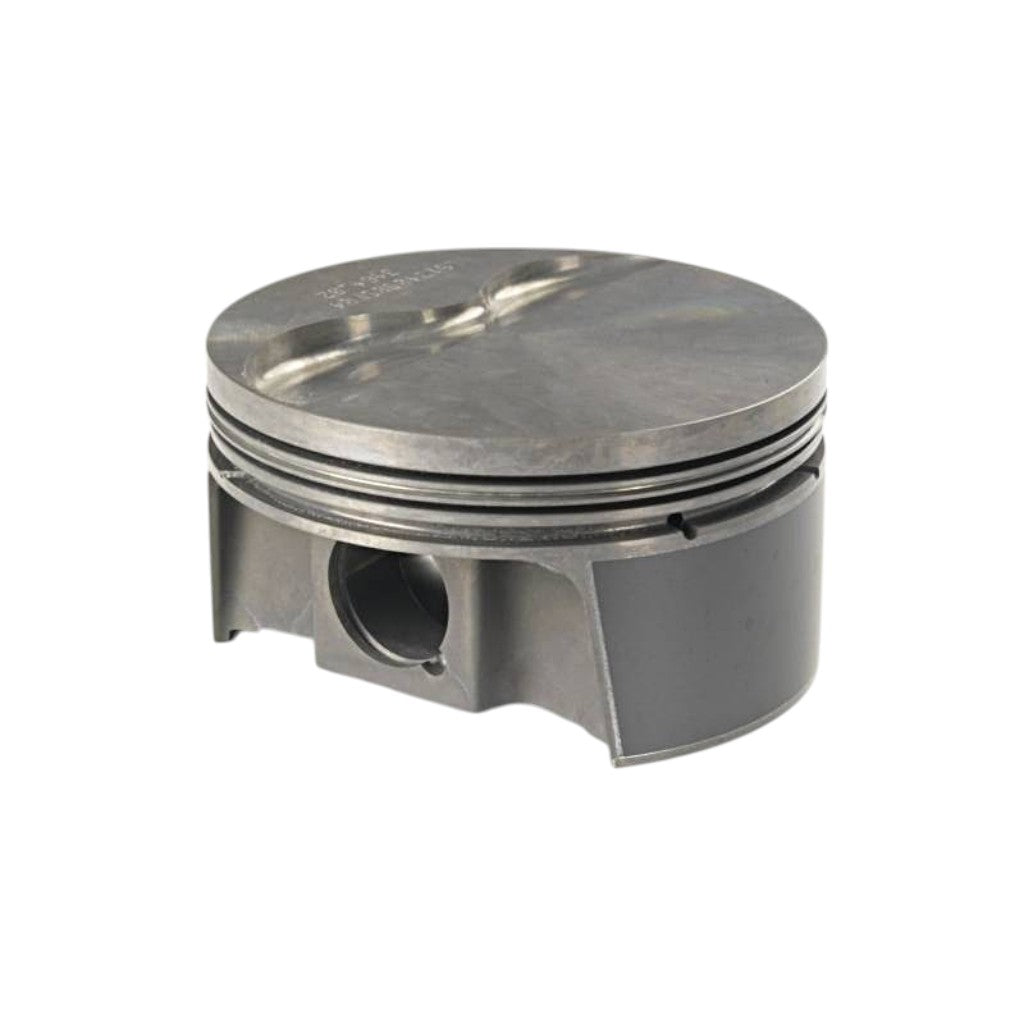

MAHLE 928989305 is a forged piston kit engineered for high-performance TOYOTA 2JZ-GTE 3.0L engines. Made from 2618 aluminum alloy with an anodized top ring groove to withstand extreme load conditions.

  • Bore: 86.50 mm
  • Compression Height (CH): 34.0 mm
  • Stroke: 86.0 mm
  • Rod Length: 142.0 mm
  • Dish Volume: -14.2 cc
  • Compression Ratio: 8.6:1 (with 46 cc chamber)
  • Piston Pin: 22 mm, steel, 103 g
  • Piston Weight: 337 g
  • Material: Forged 2618 aluminum
  • Ring Grooves: 1.2 / 1.2 / 2.8 mm

Application: TOYOTA 2JZ-GTE (Supra) 3.0L — ideal for turbocharged and racing builds.
