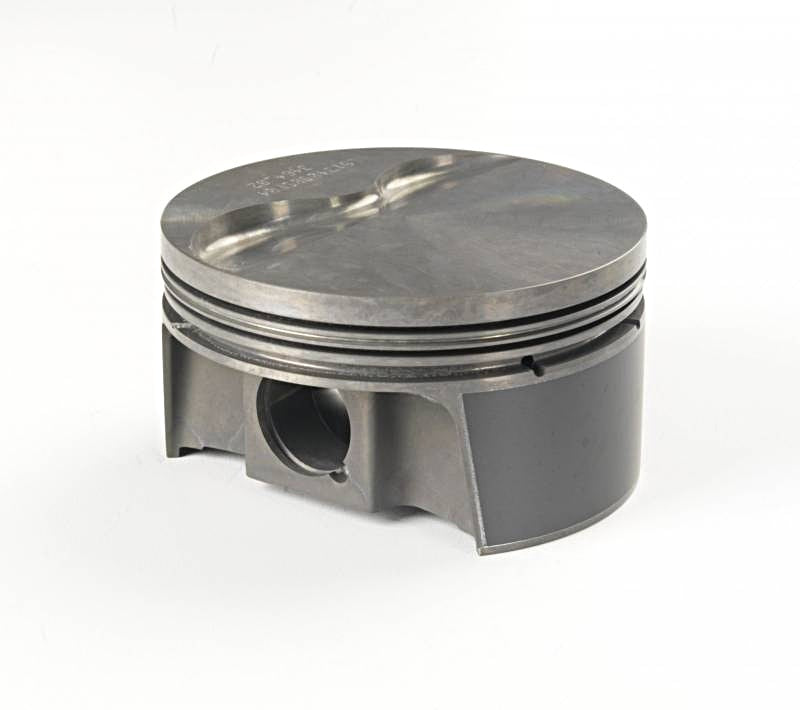

High-Performance Forged Pistons for Mitsubishi 4B11T Engine

The Mahle PowerPak Plus piston and ring kit is engineered for high-performance applications in the 4B11T engine platform. Designed for motorsport and tuning purposes, this kit includes precision-machined forged aluminum pistons with four valve reliefs and a dish top configuration. Each set includes performance piston rings, floating wrist pins, and retainers, offering a complete solution for high-revving, turbocharged setups.

  • Forged aluminum pistons provide enhanced strength under extreme conditions
  • Dish top design with valve reliefs supports optimized combustion and valve clearance
  • Includes stainless steel gas nitrided top rings for improved durability and sealing
  • Complete kit with rings, wrist pins, and retainers ensures reliable installation

Specifications:

  • Bore: 3.406 in. (86.50 mm)
  • Stroke: 86.00 mm
  • Engine Displacement: 2.0L / 2022 cc
  • Rod Length: 143.750 mm
  • Compression Height: 1.314 in.
  • Piston Head Volume: +4.50 cc
  • Piston Material: Forged aluminum
  • Piston Style: Dish, with four valve reliefs
  • Wrist Pin Diameter: 0.905 in.
  • Piston Ring Thickness: 1.20 mm x 1.20 mm x 2.80 mm
  • Top Ring Material: Stainless steel, gas nitrided
  • Second Ring Material: Cast iron, phosphate coated
  • Oil Ring Material: Stainless steel, chrome faced
  • Oil Ring Tension: Standard
  • Quantity: Sold as a set of 4
