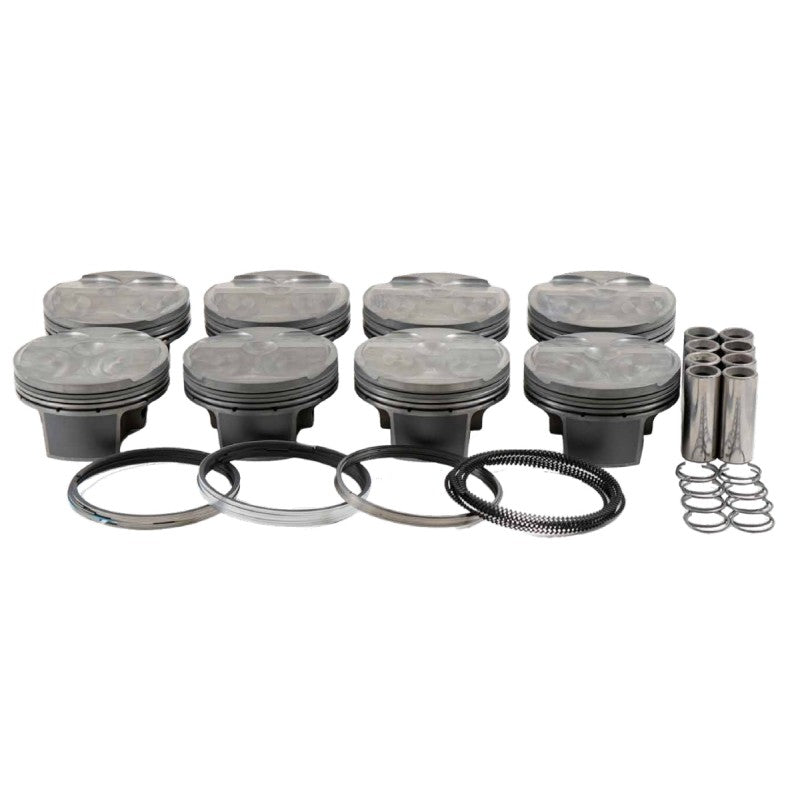

MAHLE 930258401T Piston Kit with TBC (315cid 3.701 x 1.161CH, 3.661stroke, 5.933rod, 0.827pin, 7.8cc, 380g, 12.0CR, M142P) for FORD Voodoo 5.2L
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
MAHLE 930258401T Piston Kit with TBC (315cid 3.701 x 1.161CH, 3.661stroke, 5.933rod, 0.827pin, 7.8cc, 380g, 12.0CR, M142P) for FORD Voodoo 5.2L
Kelberg Warehouse
Auf der Struth 4
53539 Kelberg
Germany
Nürburgring Showroom
Nürburgring Boulevard 2
53520 Nürburg
Germany
FORD 5.2L VOODOO DROP-IN FORGED REPLACMENT ASSEMBLY NO BALANCING, NO COMP RATIO CHANGE
- 1.0, 1.0, 2.0mm Performance Ring Set Included
Ford Modular PowerPak & PowerPak+ Piston Kits
MAHLE Motorsport's PowerPak and PowerPak Plus Ford Modular piston kits offer superior reliability and performance, letting you take your build to the next level. Also offered is a full line of forged Coyote / Voodoo pistons in both M142 and 2618 alloy. PowerPak Plus is offered in 2618 alloy with a hard anodized ring groove for extreme conditions with a 1mm, 1mm, 2mm Ring Pack. Applications are also available for NHRA Legal Cobra Jet ( 2014, 2015, 2016) with a 1.2mm, 1.2mm, 2.5mm Ring Pack. Forged pistons are available in Flat Top, Dish, and Dome. Backed by over 95 years of performance experience and using MAHLE manufactured machinery to offer advanced features found nowhere else, make no compromises, trust MAHLE Motorsport.
Advanced Features
- Slipper Skirt Style Forgings: strong, lightweight, low drag forging superior to the traditional full round design.
- Phosphate Coating: helps prevent microwelding in the ring grooves and pin galling.
- Grafal® Anti-Friction Skirt Coating: reduces drag, scuffing, friction, cylinder bore wear, and reduces piston noise.
- Hard Anodized Top Ring Grooves (PowerPak+ Piston Kits): extra protection against ring groove microwelding for extreme duty applications.
- 4032 or 2618 Aluminum Alloy: whether building a street engine or an all out race engine, both 4032 and 2618 alloys are available depending on the application.
Introducing Thermal Barrier Coating
Thermal Barrier Coating is a ceramic based application that helps reduce heat transfer and protect the piston crown.
- Durable and resistant to Thermal Shock
- Designed to withstand the demands of the harshest engine environments
Specifications
- Bore, in: 3.701
- Bore, mm: 94.005
- Stroke, in: 3.661
- Rod, in: 5.933
- Compression height, in: 1.161

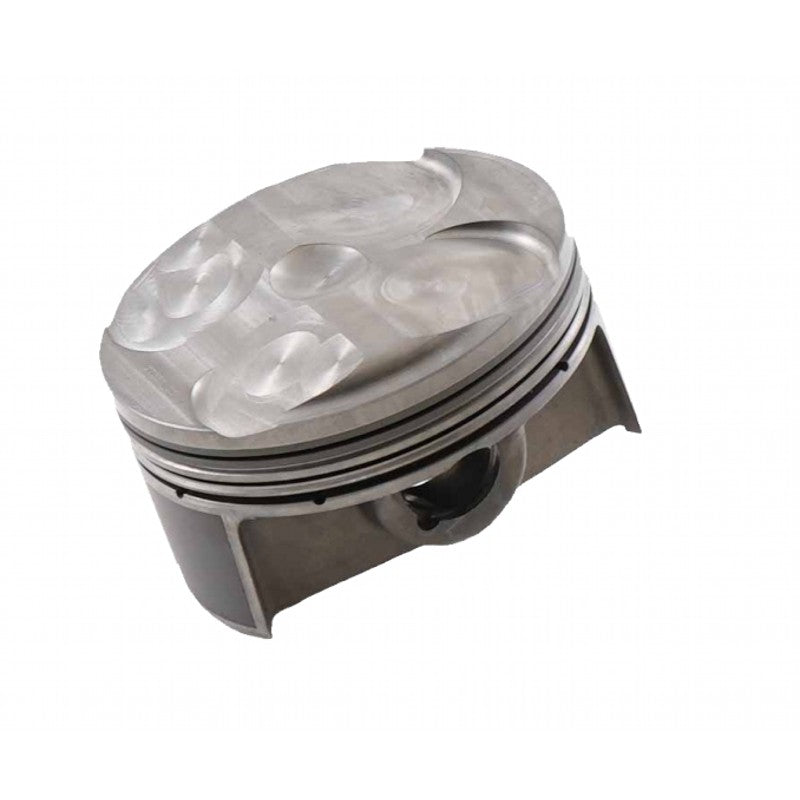

- Piston Style: Dome, with 4 valve reliefs
- Crown volume, cc: 7.8
- Piston weight, g: 380
- Piston material: Forged, M142P
- Pin diameter, in: 0.827
- Pin diameter, mm: 21
- Pin length, in: 2.138
- Pin length, mm: 54.3
- Pin wall thickness:0.187
- Pin material:Steel
- Pin mass, g: 100
- Pin style: Floating
- Pin Included: Yes
- Clip style: Round Wire
- Clips Included: Yes
- Piston ring thickness: 1.0mm, 1.2mm, 2.0mm
- Rings Included: Yes
- Top compression ring thickness, mm: 1.0
- Top compression ring material: 9254 Steel
- Top compression ring coating: HV385
- 2nd compression ring thickness, mm: 1.2
- 2nd compression ring material: 9254 Steel
- 2nd compression ring coating: Chrome
- Oil ring thickness, mm: 2.0
- Oil ring material: Nitrided stainless steel
- Oil ring tension: Standard
- Package: Sold as a set of 8
- Coatings: Phosphate + Grafal + Hard Anodized top ring groove + TBC
