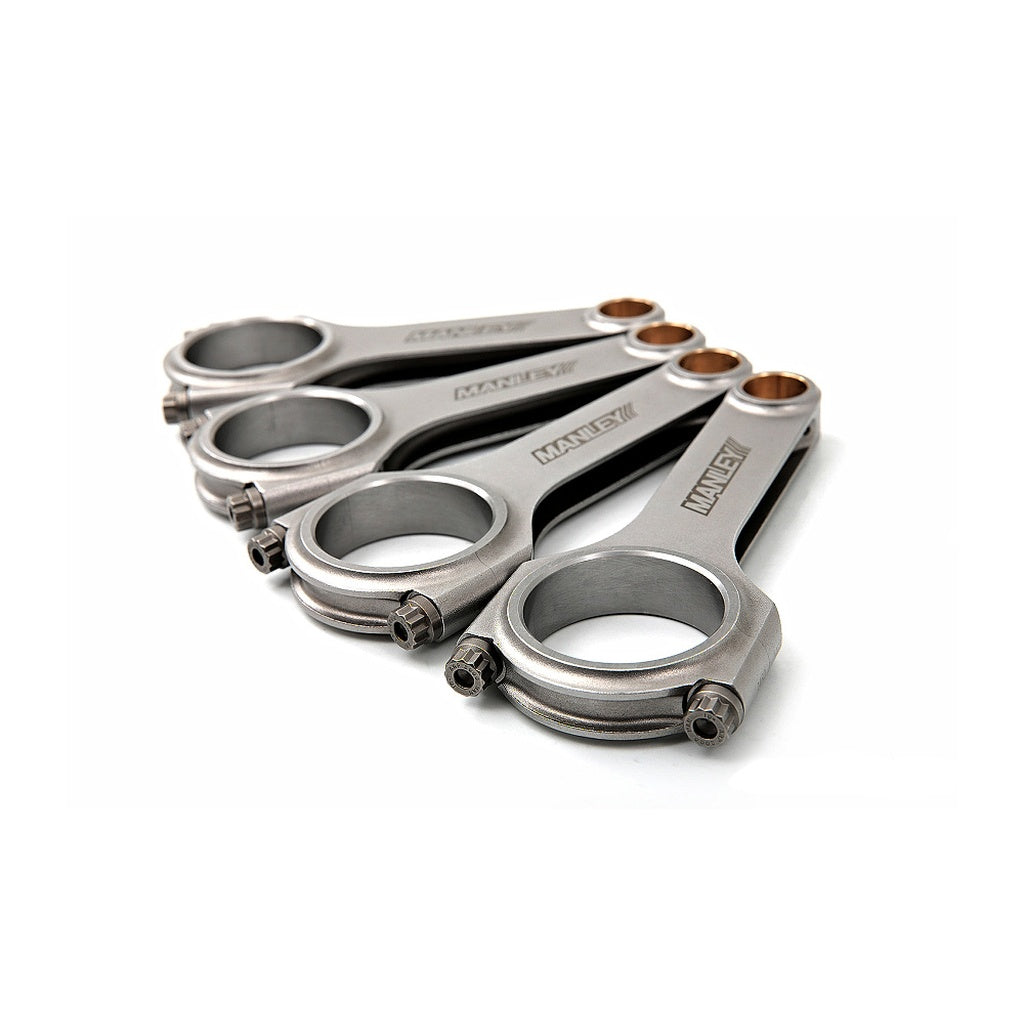

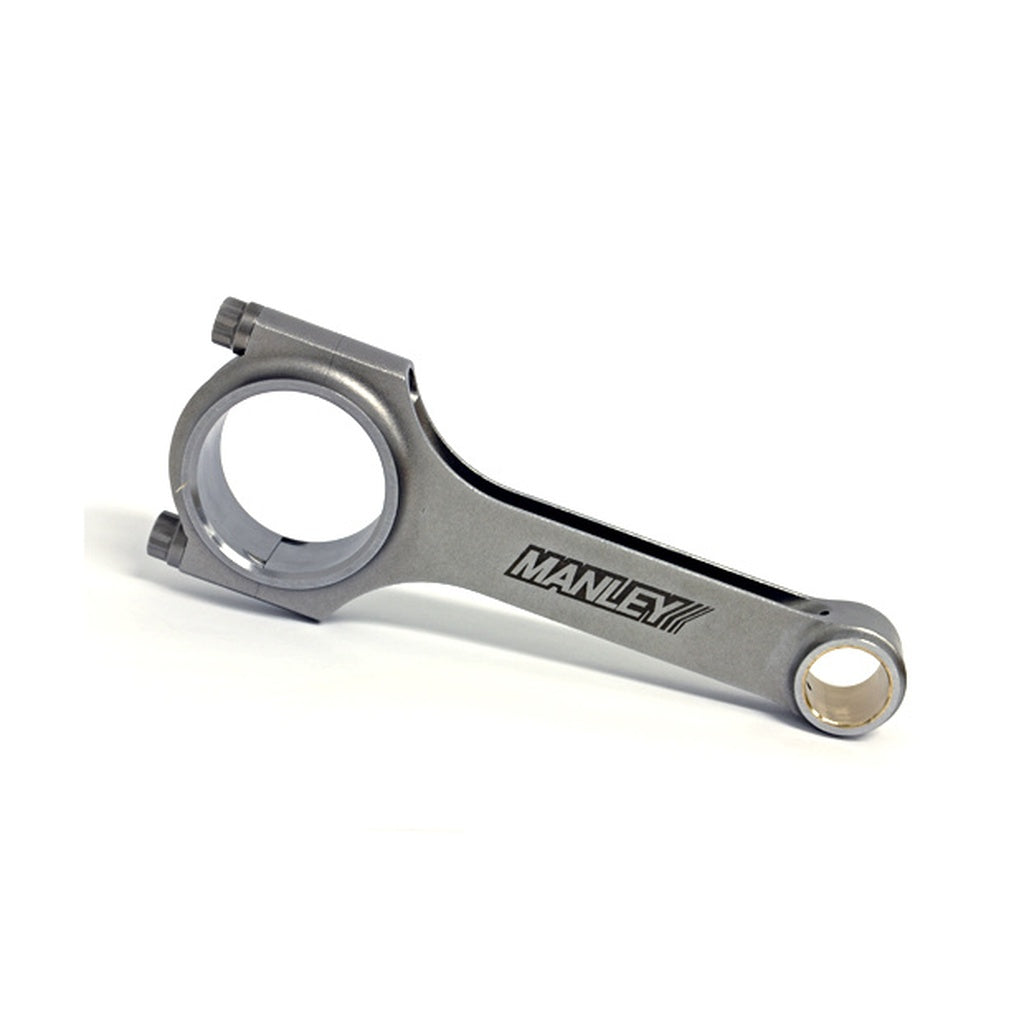

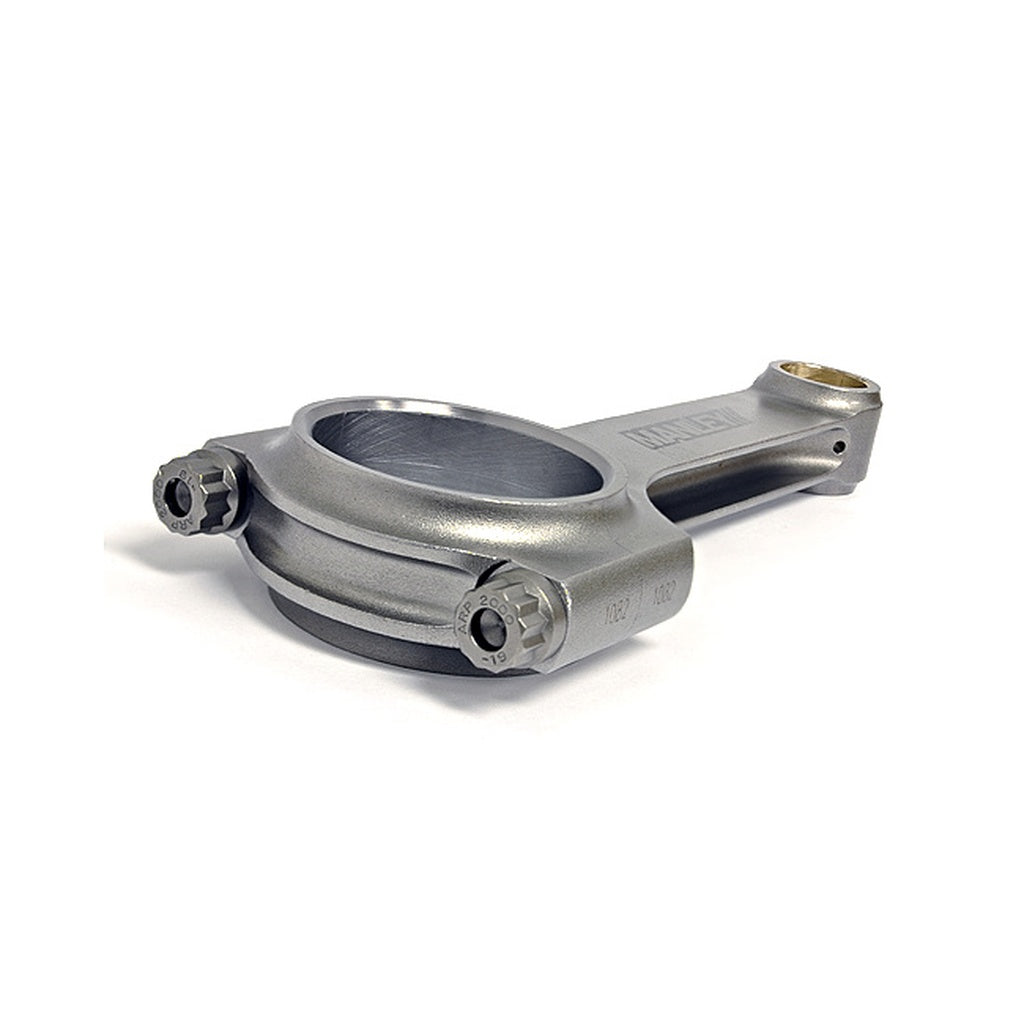

MANLEY 14020-4 Connecting Rod Set H-Beam (156 mm) for MITSUBISHI 4G63 Engine

High-Precision H-Beam Connecting Rods for Sport Compact Engines

Manley’s H-Beam connecting rods deliver an exceptional balance of performance and affordability, crafted to the same rigorous standards as the Sportsmaster® and Pro Series lines. Ideal for sport compact applications, these rods are manufactured with meticulous attention to detail, including critical aspects such as final hone dimensions, thread integrity, and resistance to bend and twist. Engineered for superior strength and performance, they offer flexibility in bolt configurations and are built to perform in demanding racing environments.

• Exacting tolerances ensure consistent precision and performance
• Crafted with detailed focus on hone size, threads, and structural integrity
• Outperforms comparable options for a competitive edge on the track
• Available with ARP 8740 or ARP 2000 bolts for application-specific tuning
• Manufactured from high-strength 4340 alloy for endurance and reliability

Specifications:

• Product Market: Sport Compact
• Average Gram Weight: 545 GR
• Big End Bore: 1.890 IN
• Center To Center Length: 6.142 IN
• Journal Size: Stock
• Length: 0.237 IN longer
• Pin End Bore: 0.8671 IN
• Wrist Pin Diameter: 0.866 IN
• Connecting Rod Series: H-Beam
• Product Type: Engine Connecting Rod Set
• Rod Quantity: 4
• Rod Bolt Material: ARP 2000
• Connecting Rod Material: 4340
• Engine Detail: 7 Bolt
