MANLEY 632601C-4 PLATINUM SERIES Lightweight pistons for SUBARU BRZ, TOYOTA 86 (FA20 applications)
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
MANLEY 632601C-4 PLATINUM SERIES Lightweight pistons for SUBARU BRZ, TOYOTA 86 (FA20 applications)
Kelberg Warehouse
Auf der Struth 4
53539 Kelberg
Germany
Nürburgring Showroom
Nürburgring Boulevard 2
53520 Nürburg
Germany

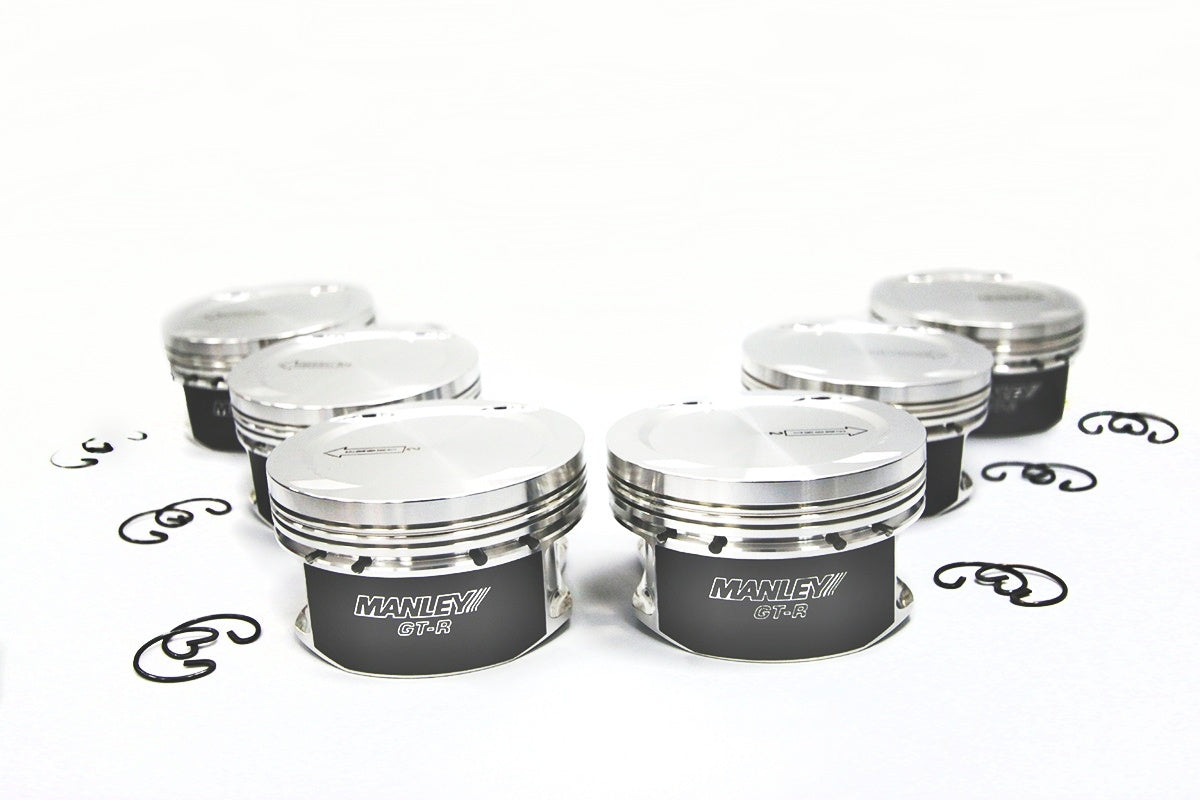

Manley pistons are machined of high strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Offset wrist pin design is utilized for quiet start-ups. Perfect ring groove to skirt squareness is achieved through our unique "one fixturing" manufacturing method that assures maximum horsepower. All pistons come with moly coated skirts and will accommodate +1mm valve sizes. Round wire locks, premium chrome moly wrist pins (P/N 42251), premium steel top ring, Napier style second ring and higher tension oil ring sets from Total Seal are included with every kit at no additional charge. 9310 alloy .210" wall upgraded wrist pins (P/N 42551) are available. Recommended clearance: .003" for mildly boosted and .0035" for highly boosted measured .850" from the bottom of the oil ring groove.
Subaru BRZ 2013-Up - .866"/22mm x 2.250" Pin x .150" Wall
Bore Size (mm) |
Over Size |
Rod Length |
Stroke |
Comp. Distance |
Dome Volume (cc) |
Comp. Ratio |
Piston Type |
Piston Wt / Gms |
Included Ring Set |
| 86.10 | +.1mm | 5.090" | 86 | 1.292" | -11.4 | 10.0 | Dish | TBA | 46861-4 |
