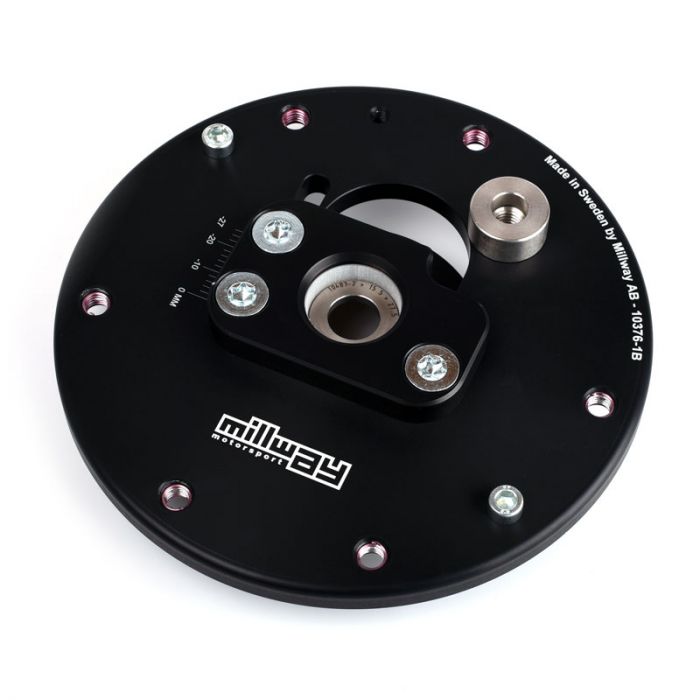

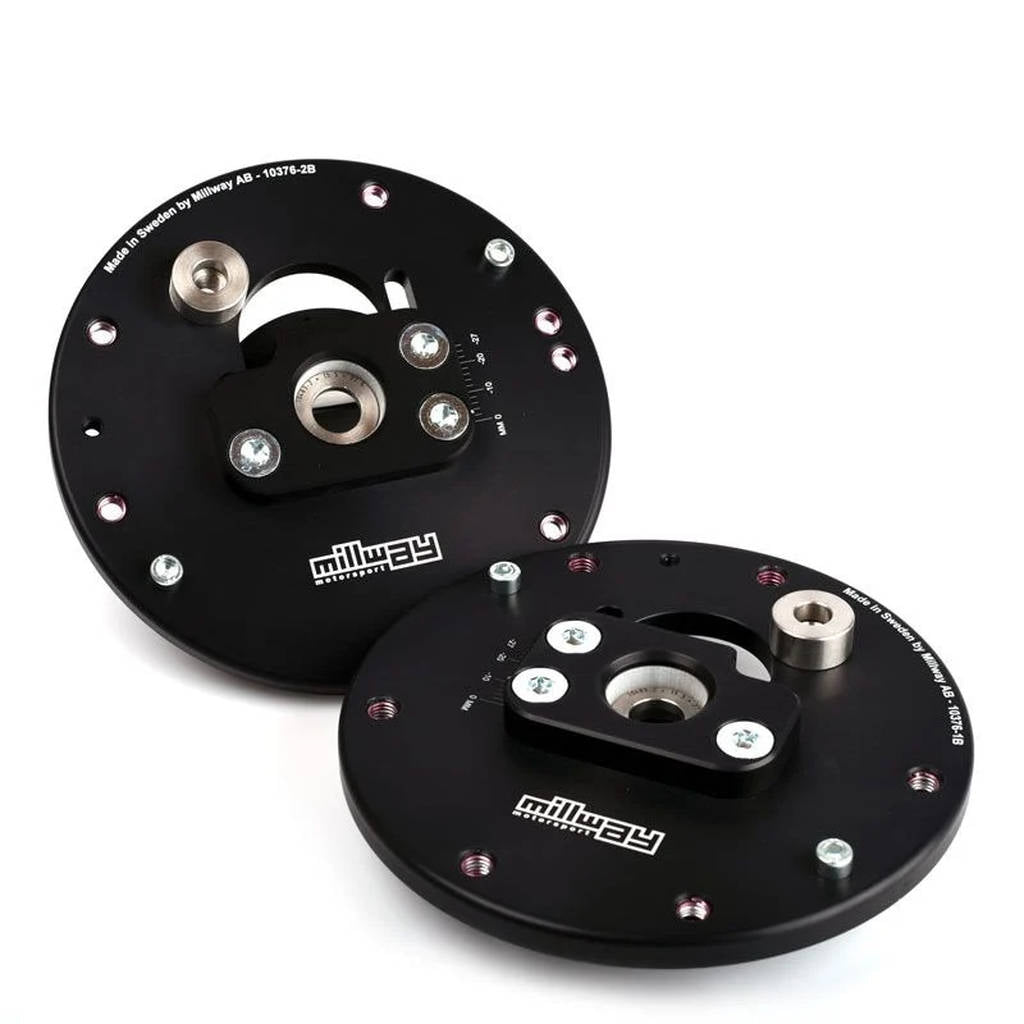

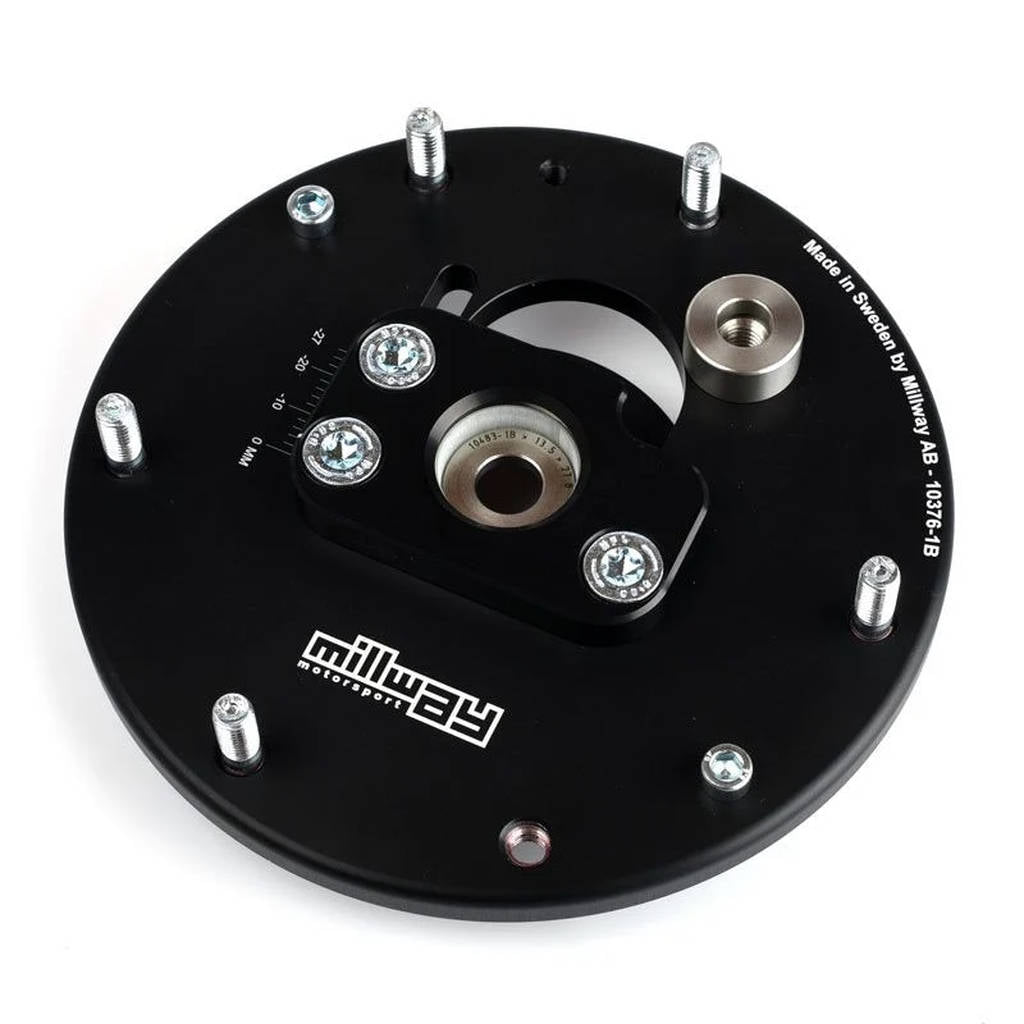

MILLWAY 90481-M10 Street Camber Plates 3x M10 for BMW 1 Series (F20 / F21) / 2 Series (F22) / 3 Series (F30 / F31) / 4 Series (F32)

Description MILLWAY 90481-M10 Street Camber Plates 3x M10 for BMW 1 Series (F20 / F21) / 2 Series (F22) / 3 Series (F30 / F31) / 4 Series (F32)

Millway Motorsport manufactures premium suspension components for motorsport and track-day applications, including adjustable camber plates, solid bushings (uniballs), and control arm bushings.

This street-version camber plate uses polyurethane bushings to reduce suspension and tire noise compared with the uniball version. It fits original and aftermarket suspension systems and accepts OEM-size or 60 mm springs.

The camber plates improve front-end response, grip, and steering feedback while reducing outer-edge front tire wear.

Note: When using 60 mm springs, the upper spring plate from the Suspension kit must be used.

Installation Note: Depending on the Shock absorber / Damper and adjustment knob, modification of the upper rubber protection in the engine compartment may be necessary. The Shock absorber / Damper nut supplied with the Suspension kit must always be used.

Important: The roller bearings shown in one image are not included. They demonstrate installation with the original upper spring plate, which must be transferred from the original BMW camber plates.

Features:

• Broad adjustment range
• Low noise compared with solid mounts
• No lubrication or rubber seals required, with threaded inserts featuring a locking function
• Fits most suspension systems on the market, including OE systems

Pros:

• Reduces outer-edge front tire wear
• More front-end grip
• Better steering wheel feedback

Cons:

• More noise from the road surface and suspension

Specifications:

• Shock absorber / Damper thread: M12
• Mounting version: 5x M8
• Bushings: Polyurethane
• Spring compatibility: OEM-size or 60 mm springs
• Height: Same as the OEM camber plates
• Adjustment range: 22 mm
• Additional camber: Approximately -2.0 degrees compared with OEM
• Maximum expected camber: Approximately -3.0 degrees, depending on the suspension setup

Vehicle Compatibility:

• All BMW F-Series vehicles with M12-thread Shock absorber / Dampers
• BMW 1, 2, 3, and 4 Series with original or aftermarket suspension
• 3-bolt and 5-bolt vehicles with the 5x M8 version
