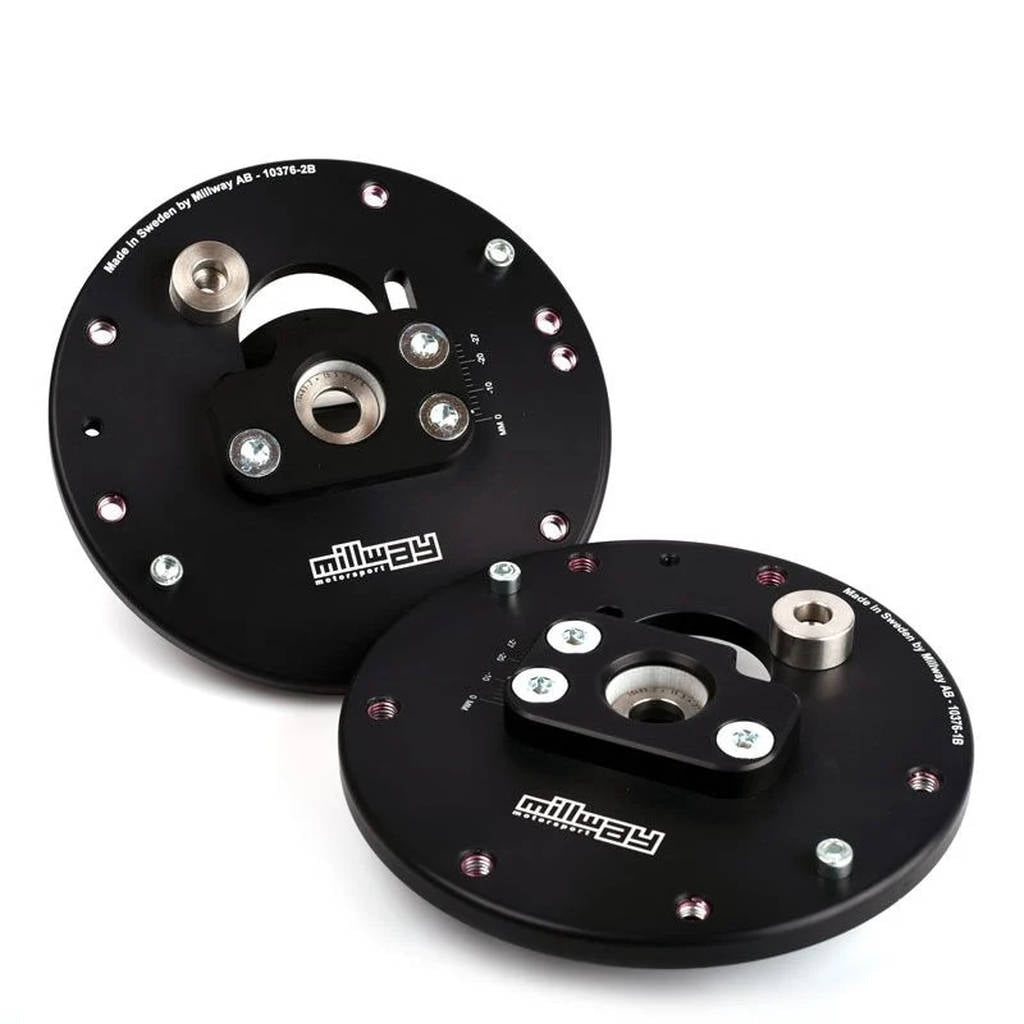

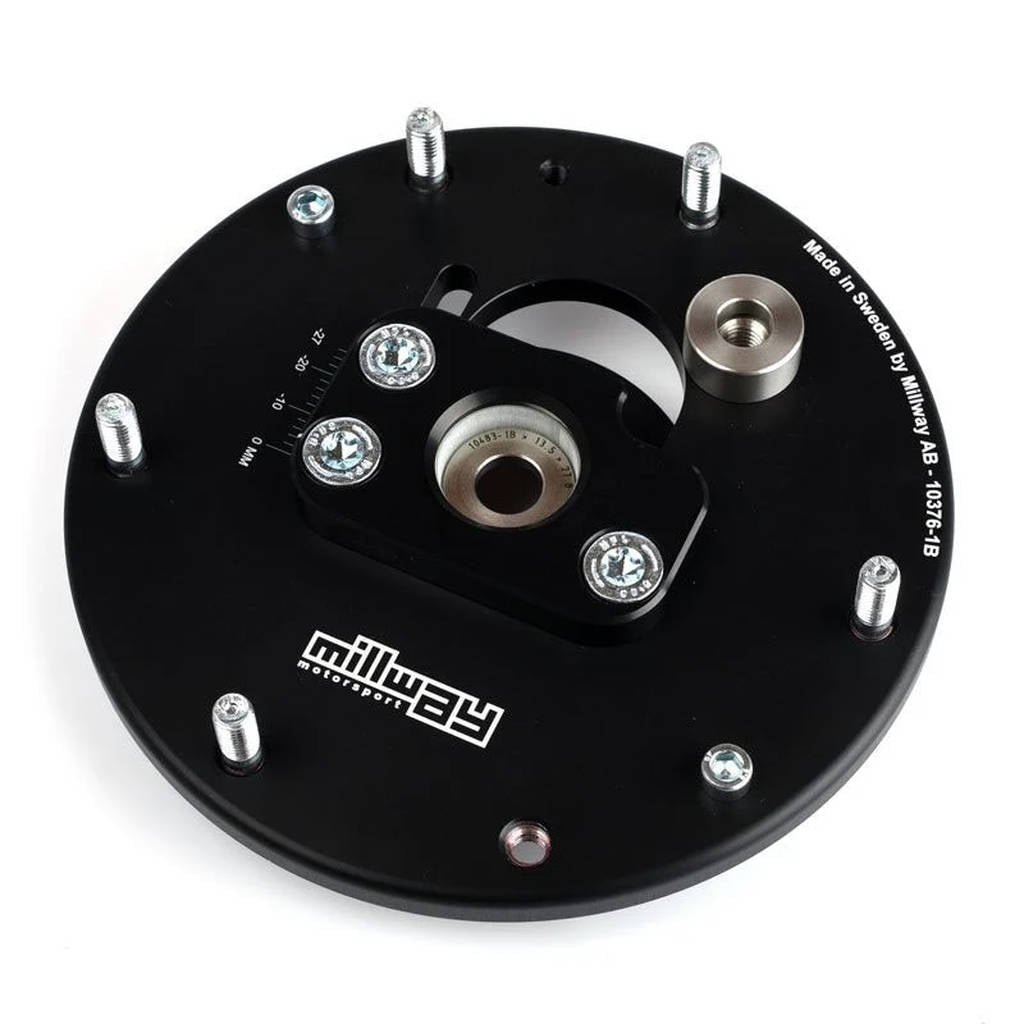

MILLWAY 90481 Street Camber Plates for BMW 1 Series (F20 / F21) / 2 Series (F22) / 3 Series (F30 / F31) / 4 Series (F32)

Description MILLWAY 90481 Street Camber Plates for BMW 1 Series (F20 / F21) / 2 Series (F22) / 3 Series (F30 / F31) / 4 Series (F32)

Millway Motorsport is a premium manufacturer of suspension components for motorsport and track days, specializing in adjustable camber plates, solid bushings (uniballs), and control arm bushings. Millway products provide handling precision and durability under extreme racing conditions.

This street version uses polyurethane bushings to reduce suspension and tire noise compared with the uniball version. It fits the latest BMW 1, 2, 3, and 4 Series with original or aftermarket suspension.

The design supports OEM-size springs and 60 mm springs. For 60 mm springs, the upper spring plate from the suspension kit must be used. The camber plates are the same height as the OEM plates and will not raise or lower the vehicle.

Fitment Note: This version fits all F-Series vehicles with shock absorbers / dampers featuring an M12 thread. The 5x M8 version fits both 3-bolt and 5-bolt vehicles.

Installation Note: Depending on the shock absorber / damper and its adjustment knob, modification of the upper rubber protection in the engine compartment may be necessary. The damper nut supplied with the suspension kit must always be used.

Note: The roller bearings or upper spring plates shown in one picture are not included. They are shown only to demonstrate installation with the original spring plate. These parts must be transferred from the original BMW plates to the camber plates.

Features:

• Broad adjustment range
• Lower noise than solid mounts, with no lubrication or rubber seals required
• Thread inserts with a locking function
• Fits most suspension systems on the market, including OE suspension

Advantages:

• Increased front-end response and grip
• Improved steering feedback
• Reduced wear on the outer edges of the front tires

Disadvantages:

• Increased noise from the road surface and suspension

Specifications:

• Adjustment Range: 22 mm
• Additional Camber: Approximately -2.0 compared with OEM
• Maximum Camber: Approximately -3.0 degrees, depending on the suspension setup
