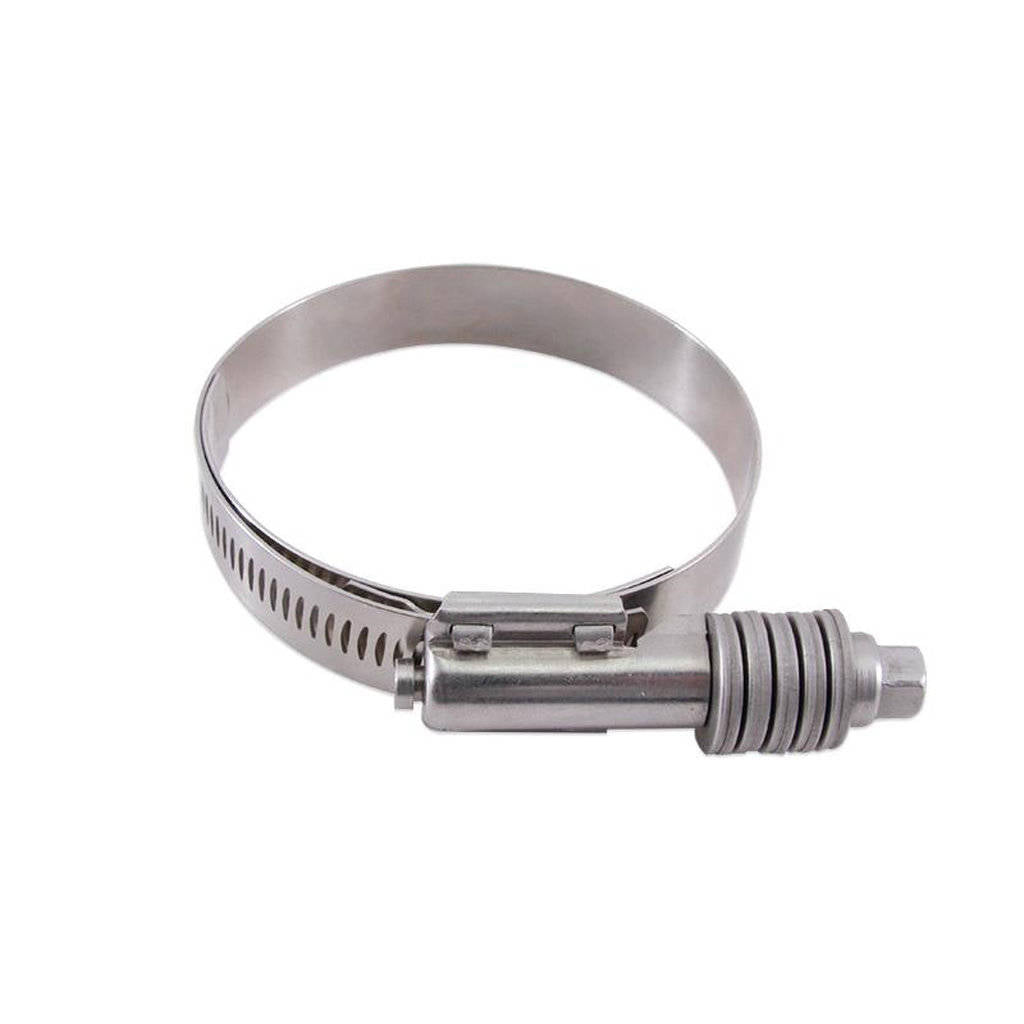

MISHIMOTO MMCLAMP-CTWG-79 Constant Tension Worm Gear Clamp, 2.24" - 3.11" (57mm - 79mm)

Description MISHIMOTO MMCLAMP-CTWG-79 Constant Tension Worm Gear Clamp, 2.24" - 3.11" (57mm - 79mm)

Mishimoto's Constant Tension Worm Gear Clamps provide an effective solution for a wide range of clamping needs, similar to their high-torque worm gear clamps. This 2.24in - 3.11in (57mm - 79mm) constant tension worm gear clamp is particularly well-suited for high-temperature applications.

The spring on the adjustment bolt allows the clamp to maintain continuous pressure across a wide temperature range, ensuring parts remain securely clamped over time. Constructed from stainless steel, this clamp is designed to withstand harsh environments and provide a reliable seal for years.

This constant tension worm gear clamp is available in various sizes for applications from coolant lines to intake pipes.

• Designed for high-temperature applications
• Spring mechanism maintains continuous clamping pressure
• Stainless steel construction for durability
• Available in multiple sizes for different uses

Specifications:

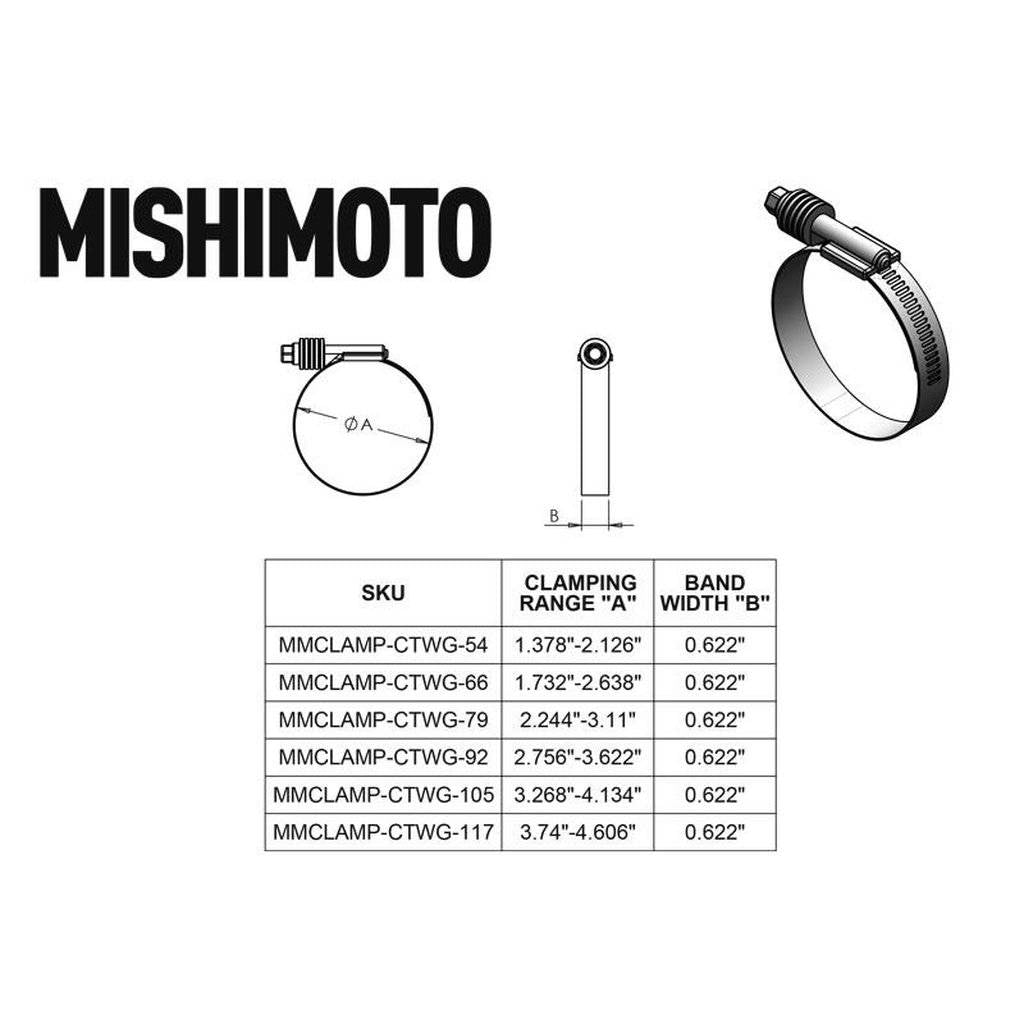

• Minimum Clamp Diameter (in): 2.24
• Clamp Style: Constant Tension Worm Gear Clamp
• Material: Stainless Steel
• Recommended Tightening Torque: 14 lb-ft (20 NM)
• Band Width (in): 0.62
• SAE Number: 312

Recommendation: If using this clamp, it is recommended to purchase: MMICP-SS-21, MMICP-SS-250, MMICP-SS-259, MMICP-SS-251, MMICP-SS-30, MMICP-SS-39, MMICP-SS-31, MMICP-250, MMICP-259, MMICP-251, MMICP-AL-2750, MMICP-AL-2759, MMICP-AL-2751, MMICP-AL-30, MMICP-AL-39, MMICP-AL-31, MMICP-AL-40, MMICP-AL-41, MMICP-SS-151, MMICP-SS-1751.
