MISHIMOTO MMINT-CTR-17KBKWRD HONDA Civic Type R Performance Intercooler Kit, 2017+

Description MISHIMOTO MMINT-CTR-17KBKWRD HONDA Civic Type R Performance Intercooler Kit, 2017+

The 2017-2021 Honda Civic Type R is recognized as one of the fastest front-wheel drive production cars in the world. However, to balance track performance and daily usability, compromises were made, including the stock intercooling system. Under intense driving or high temperatures, the factory tube-and-fin intercooler is prone to heat soak, reducing performance.

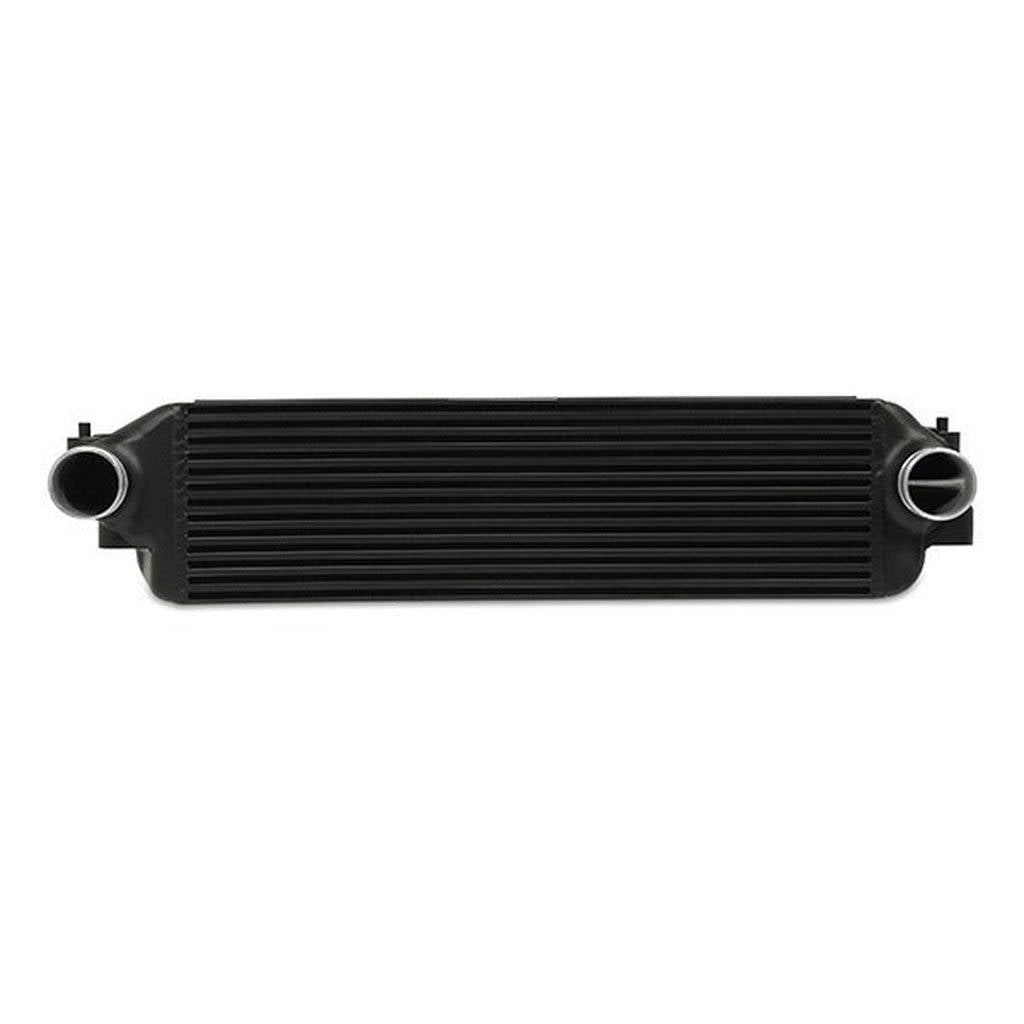

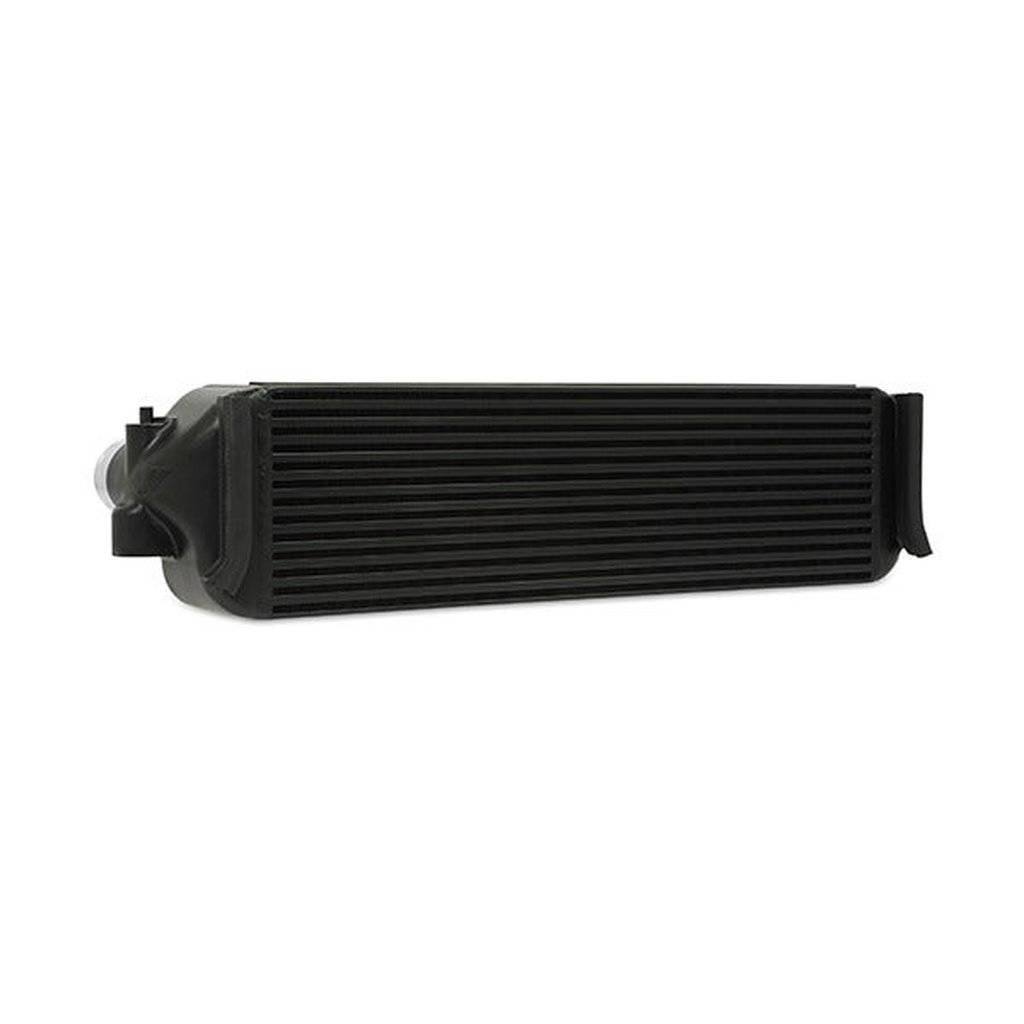

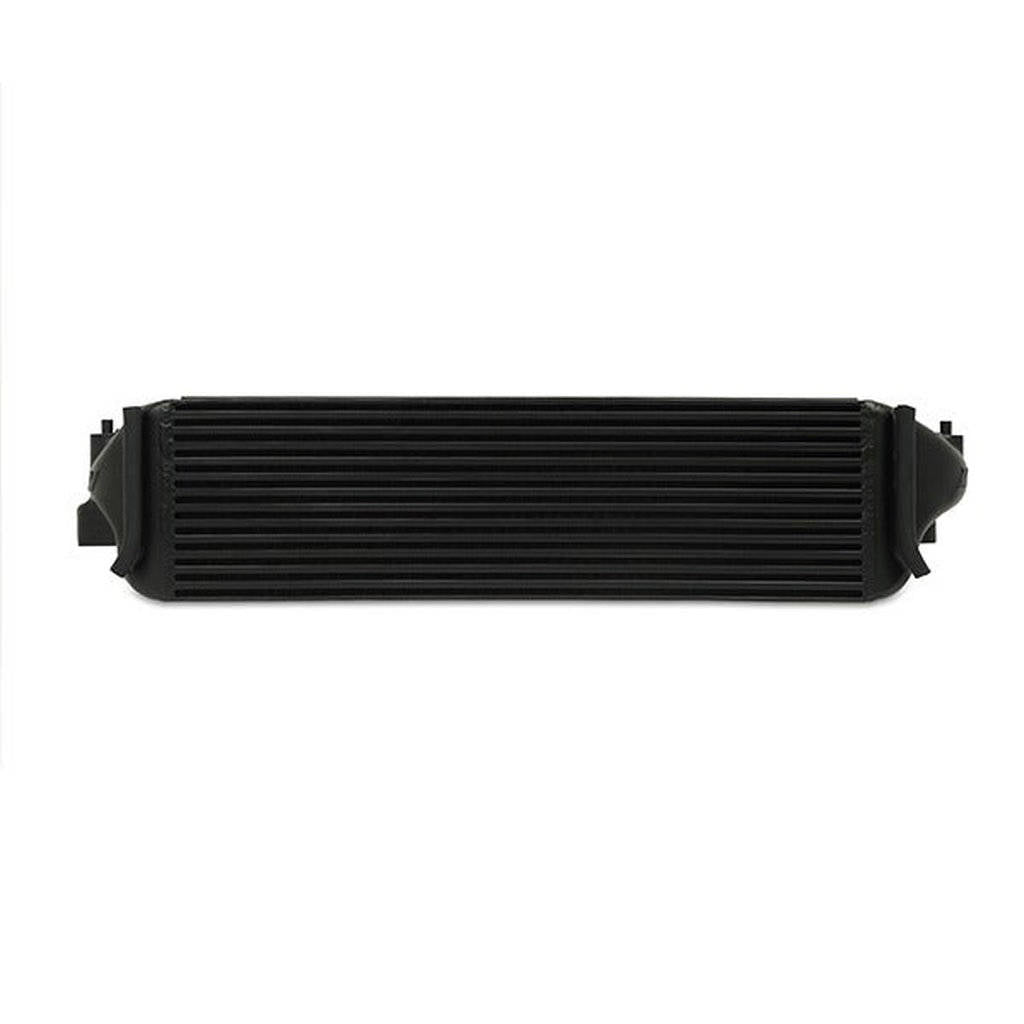

The Mishimoto 2017-2021 Honda Civic Type R Performance Intercooler Kit addresses these issues by significantly increasing the core size to more than double the stock dimensions. The 4.7-inch thick core provides a 169% increase in overall volume and a 189% increase in external fin surface area for improved heat rejection. The bar-and-plate core construction enhances flow and heat transfer, while cast aluminum end tanks replace the original plastic units for better airflow management.

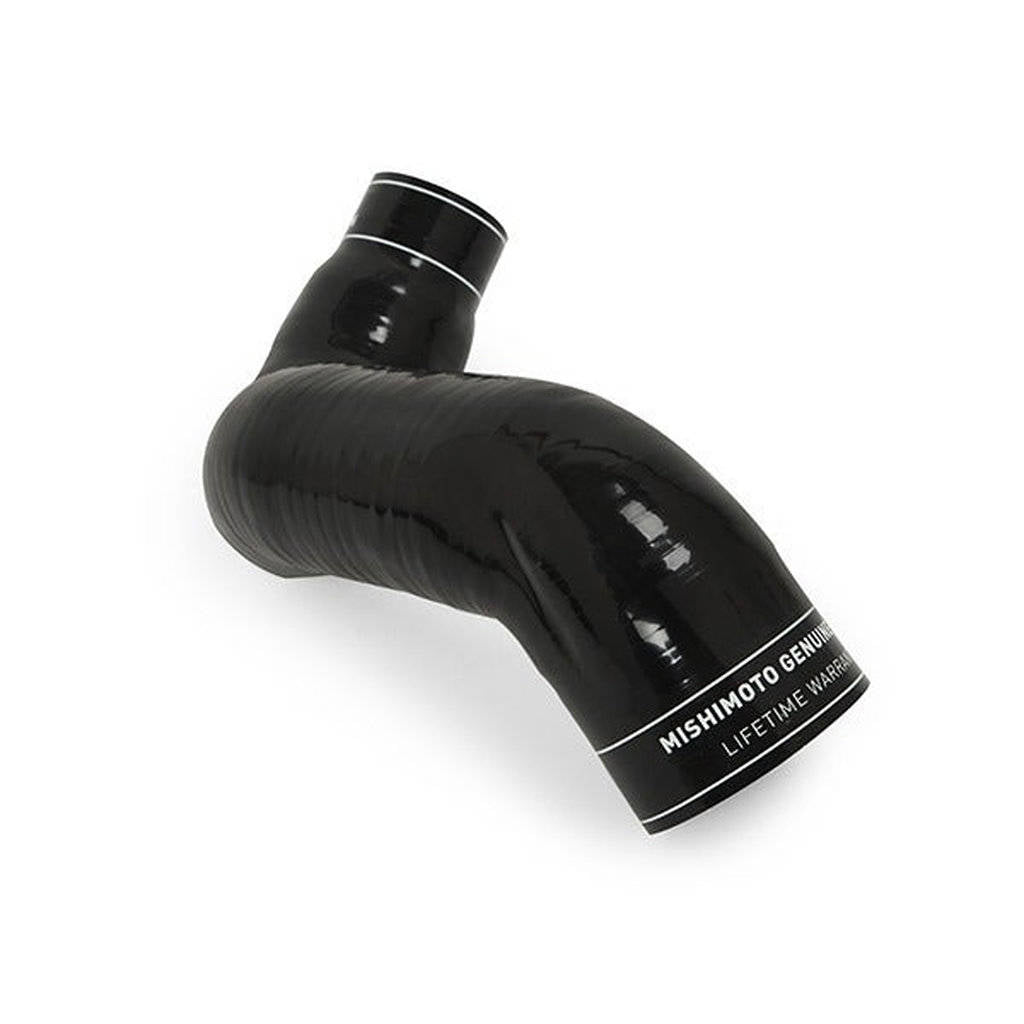

This kit also upgrades the intercooler piping. The restrictive factory piping is replaced with a 2.5" mandrel-bent aluminum cold-side pipe and 5-layer heat-resistant silicone for the hot-side pipe. These improvements increase airflow and help prevent boost leaks. The kit is available with either a black or silver intercooler and offers wrinkle black or wrinkle red piping options.

Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).

• Significantly increases intercooler core size and volume
• Bar-and-plate core construction for improved flow and heat transfer
• Upgraded cast aluminum end tanks for better airflow
• Includes mandrel-bent aluminum and silicone piping for increased airflow and durability

Specifications:

• Engine Codes: K20C1
• Chassis Codes: FK8
• Inlet (in): 2.5
• Outlet (in): 2.5

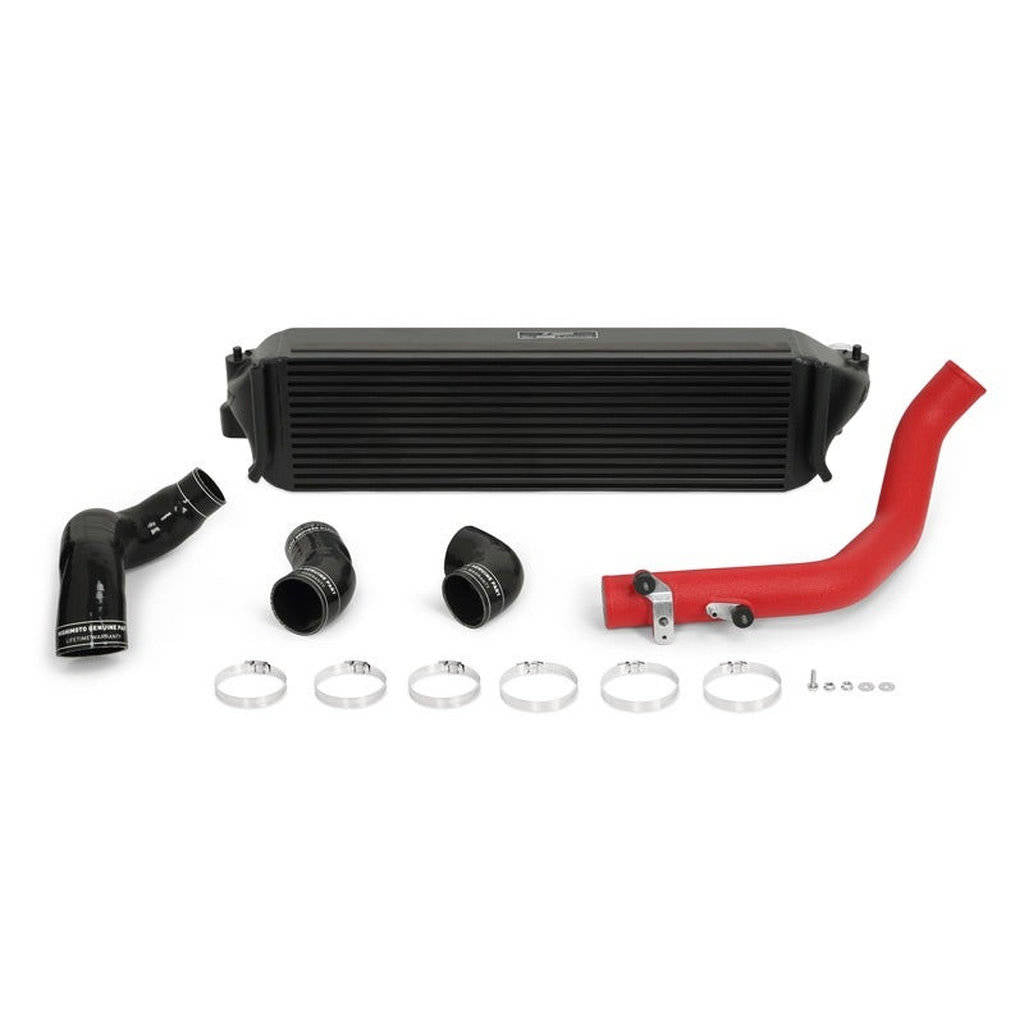

Kit comes with::

• Intercooler
• Mandrel-Bent Aluminum Cold-Side Pipe
• Silicone Hot-Side Pipe
• 2 Silicone Couplers
• 6 High-Torque Worm Gear Clamps
• CARB EO Sticker
• Mounting Hardware
• Mishimoto Lifetime Warranty

Vehicle Compatibility:

• 2017-2021 Honda Civic Type R (K20C1, FK8)
