MISHIMOTO MMINT-MK7-15KP VW MK7 Golf TSI/GTI/R Performance Intercooler Kit, Polished, 2015+

Description MISHIMOTO MMINT-MK7-15KP VW MK7 Golf TSI/GTI/R Performance Intercooler Kit, Polished, 2015+

The 2015+ Golf TSI/GTI/R, now in its 7th generation, and its intercooling system receive a significant upgrade with the Mishimoto Performance Intercooler Kit. The stock intercooler, positioned between the radiator and AC condenser, uses a tube-and-fin construction with plastic end tanks, which may be adequate for standard driving but struggles under increased boost and intense conditions.

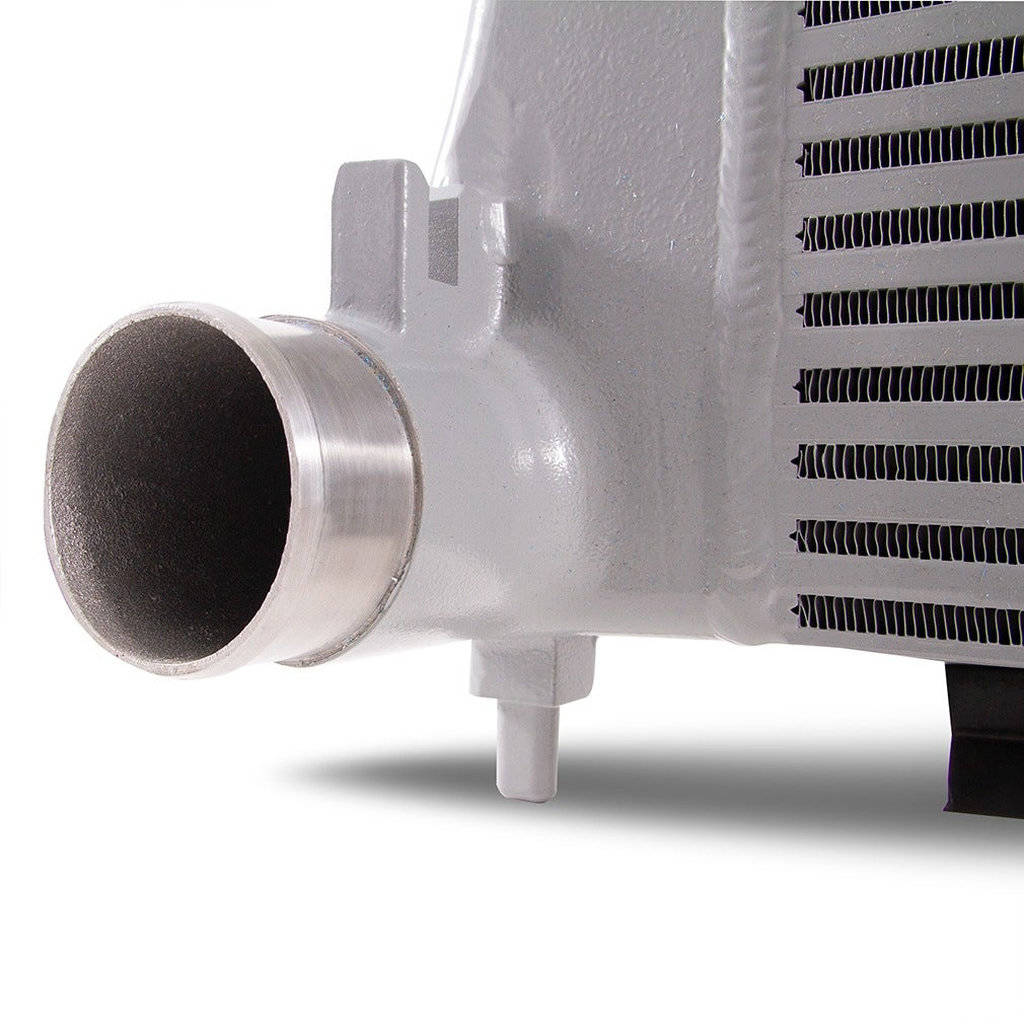

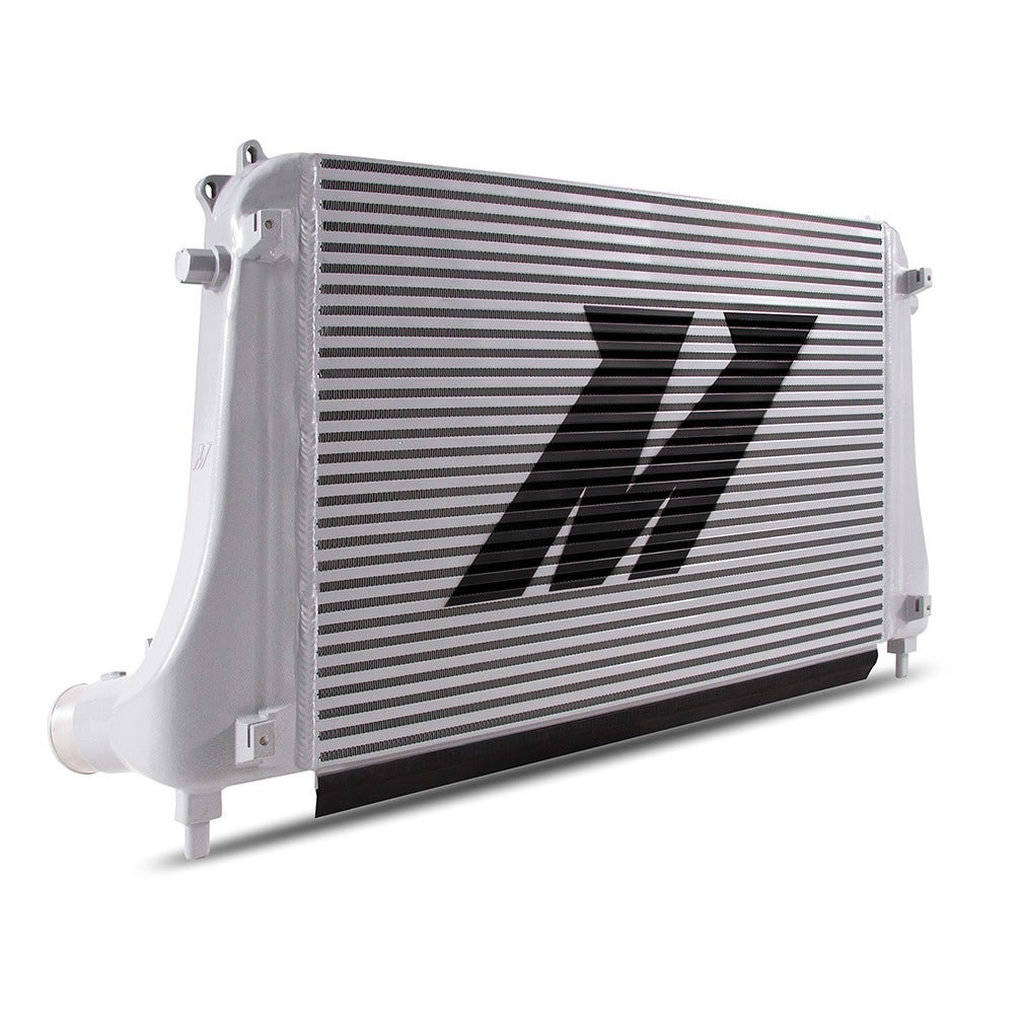

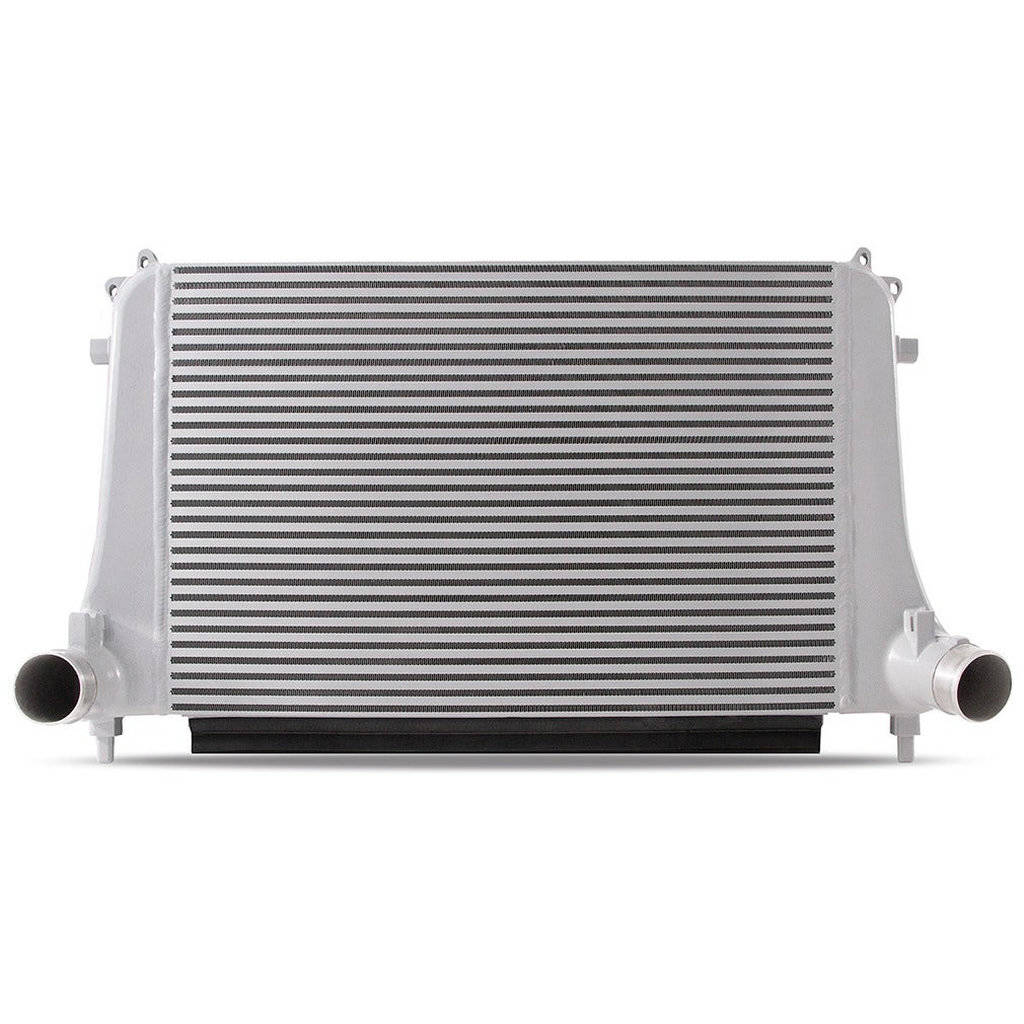

The Mishimoto 2015+ Volkswagen MK7 Golf TSI/GTI/R Performance Intercooler replaces the factory unit with a larger, all-aluminum, TIG-welded bar-and-plate core, increasing overall volume by 89% and external fin surface area by 162%. Cast aluminum end tanks with integrated airflow diverters ensure optimal use of the full core. The kit also includes a Performance Intercooler Pipe Kit, featuring mandrel-bent aluminum piping and 5-layer silicone couplers, increasing airflow channels to 2.75 inches and improving flow by 30%.

Combined, these upgrades deliver maximum power gains of 14.5 whp and 13 wtq on stock tuning, and reduce intercooler outlet temperatures by 23°F compared to stock. The kit includes CNC-machined aluminum mounting brackets, and piping is available in wrinkle black and polished finishes. The Mishimoto Lifetime Warranty is included.

Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).

Note: This kit is compatible with the EA888 Gen3 engine and manual or 6-speed DSG transmissions only. Hot-side intercooler piping may not fit properly on vehicles equipped with 7-speed DSG transmissions.

• All-aluminum, TIG-welded bar-and-plate intercooler core

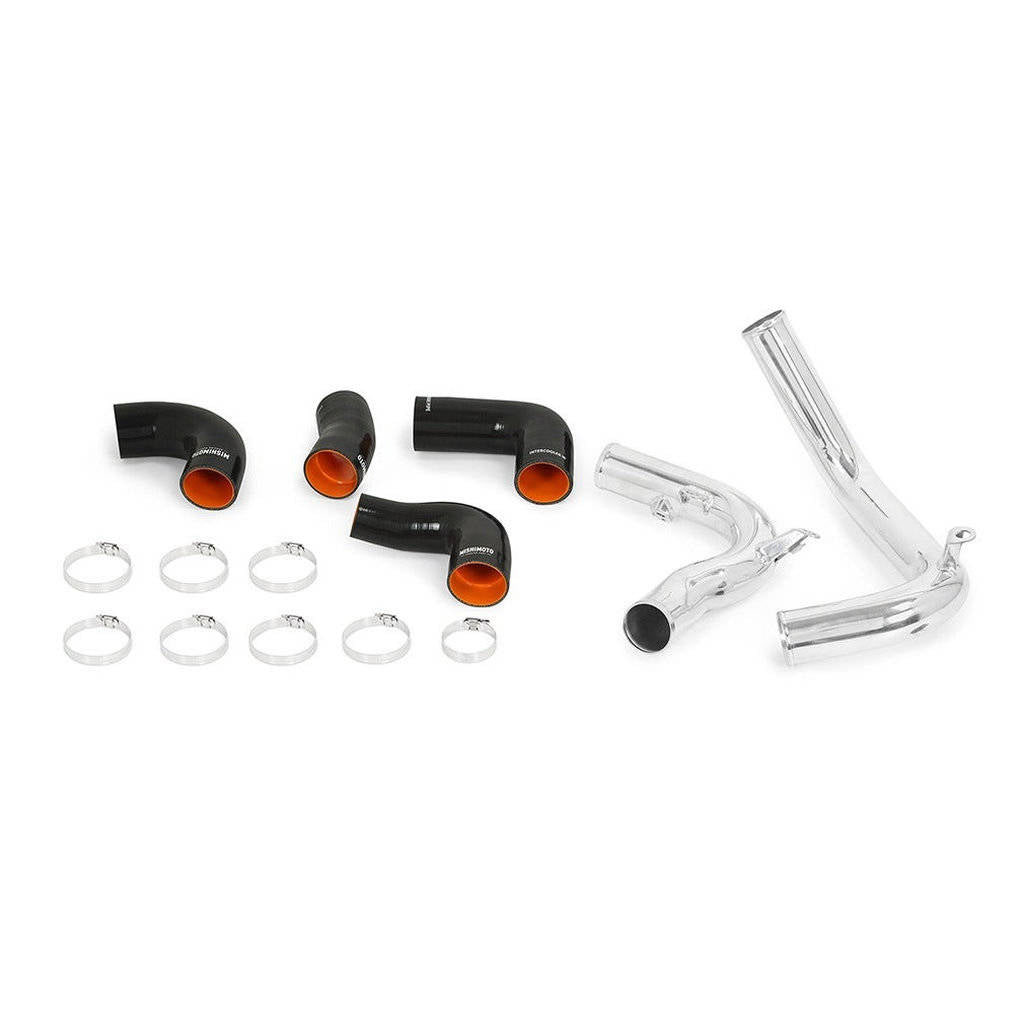

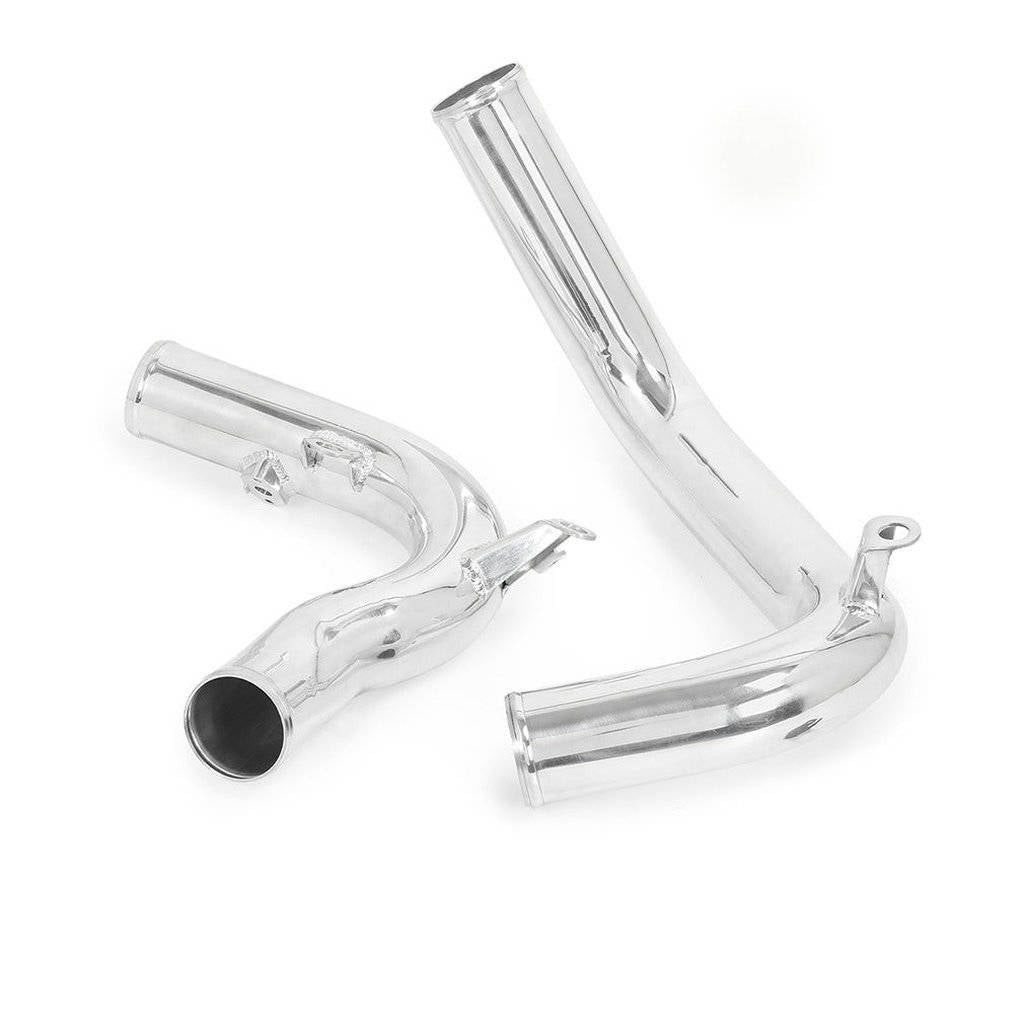

• Mandrel-bent aluminum piping and 5-layer silicone couplers
• Increases intercooler volume by 89% and fin surface area by 162%
• Delivers up to 14.5 whp and 13 wtq gains on stock tuning

Specifications:

• Chassis Codes: MQB
• Core Thickness (in): 2.2
• Inlet (in): 2.1
• Outlet (in): 2.1

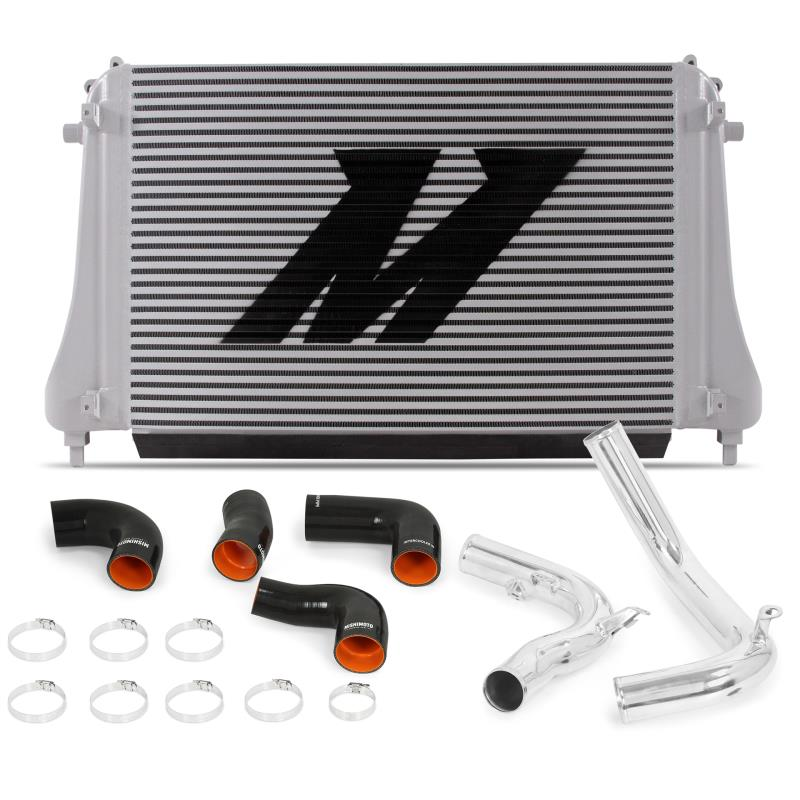

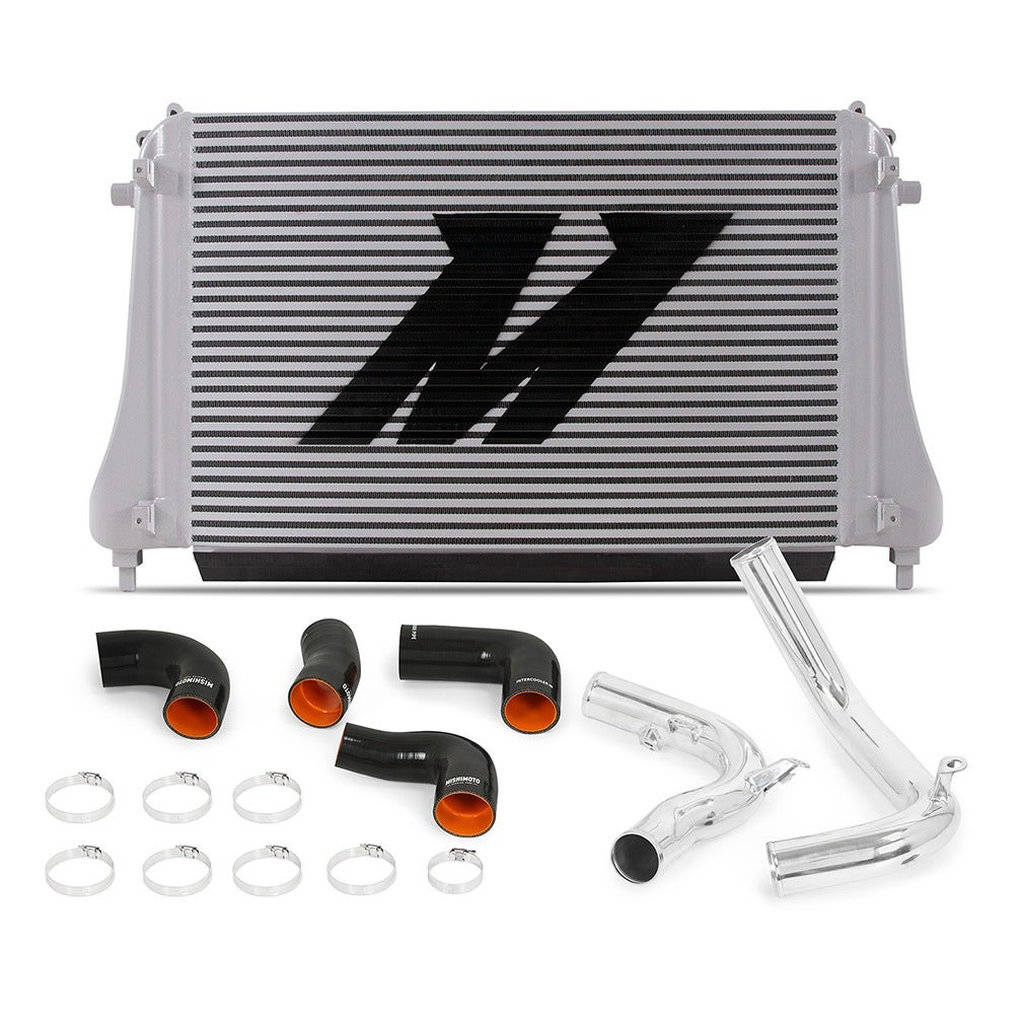

Kit comes with::

• Performance Intercooler
• Performance Piping Kit

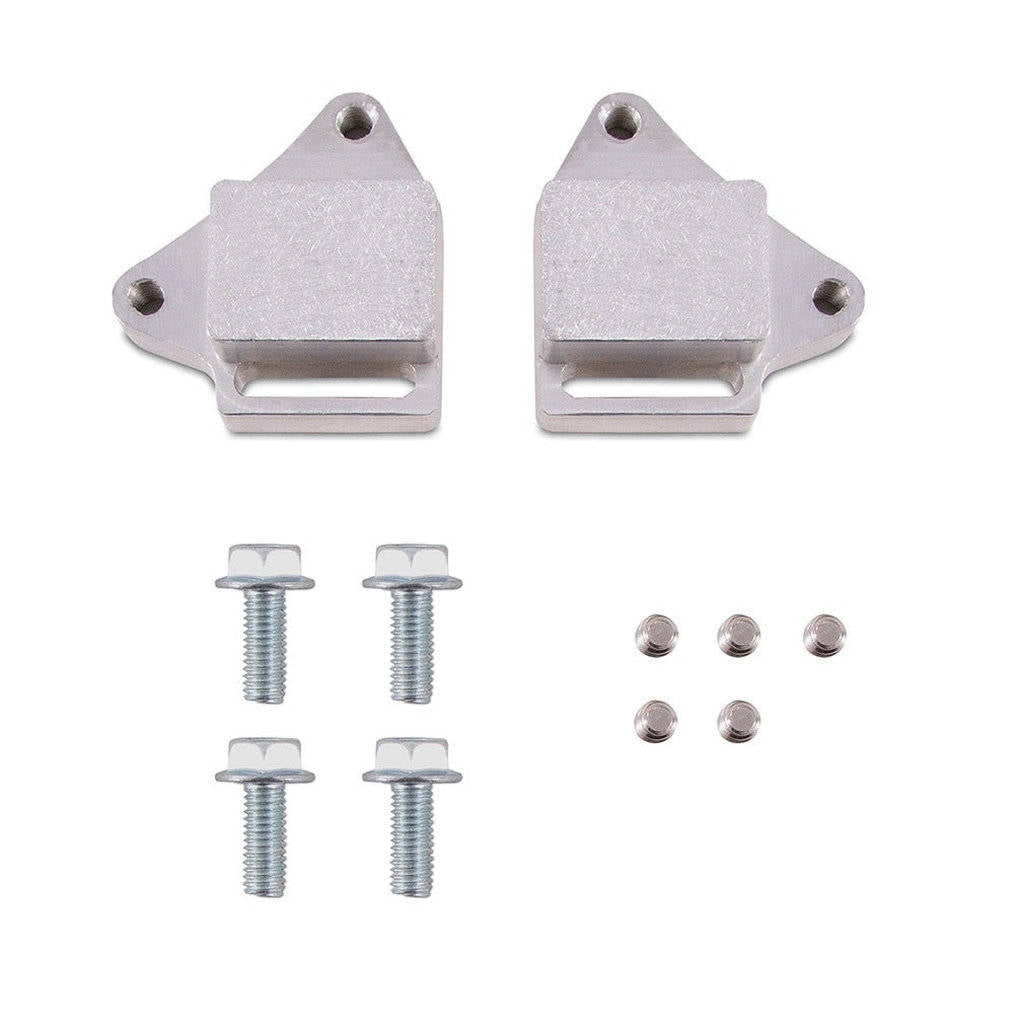

• 2 CNC-Machined Aluminum Mounting Brackets

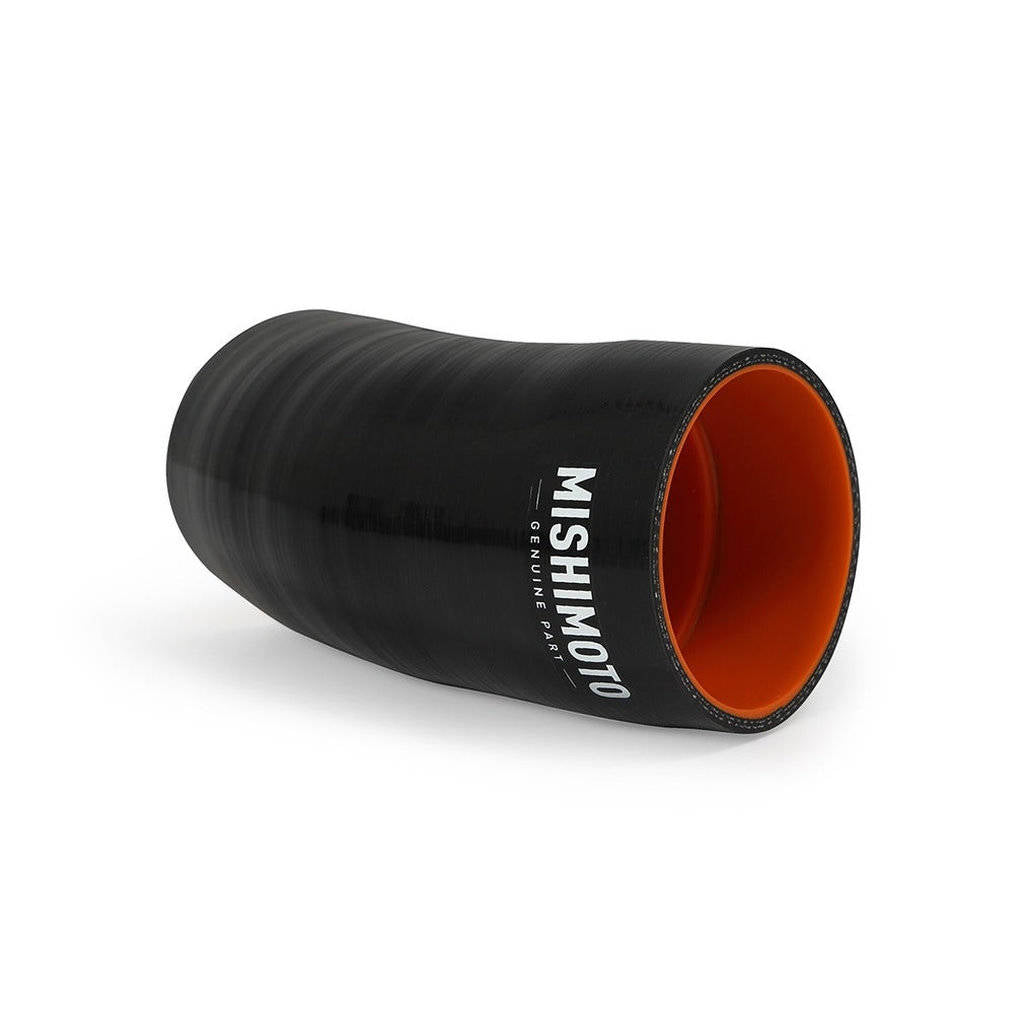

• 4 Silicone Couplers
• 8 High-Torque Worm Gear Clamps
• Mounting Hardware
• Mishimoto Lifetime Warranty

Vehicle Compatibility:

• 2015+ Volkswagen Golf TSI
• 2015+ Volkswagen GTI
• 2015+ Volkswagen Golf R
• 2015+ Audi A3
• 2015+ Audi S3
• 2016+ Audi TT
