MISHIMOTO MMOCC-SA Aluminum Oil Catch Can - Small

Description MISHIMOTO MMOCC-SA Aluminum Oil Catch Can - Small

The Mishimoto Aluminum Oil Catch Can is designed to prevent harmful oil buildup inside the turbocharger, intake manifold, intercooler, and piping. This catch can stops oil from entering pressurized turbo plumbing and prevents oil vapors from reaching the intake system, which could lead to lower combustion temperatures and reduced efficiency.

The polished Mishimoto Aluminum Oil Catch Can is supplied as a complete kit, including a mounting bracket, hose, necessary clamps, fittings, and mounting hardware. This provides an upgrade in both performance and aesthetics. Mishimoto catch cans are not heated, allowing all blow-by, including low-octane oil vapors and contaminated fuel vapors, to condense in the can. Unlike most air-oil-separator (AOS) systems that drain blow-by back into the oil pan, Mishimoto catch cans trap blow-by and keep it out of the engine permanently.

• Prevents oil buildup in turbocharger, intake manifold, intercooler, and piping
• Stops oil vapors from entering the intake system
• Non-heated design allows full condensation of blow-by vapors
• Traps blow-by and keeps it out of the engine permanently

Specifications:

• Height (in): 7
• Catch Can Diameter (in): 2.5
• Inlet: M12x1.0
• Outlet: M12x1.0
• Drain Plug Thread Size: M14x1.25

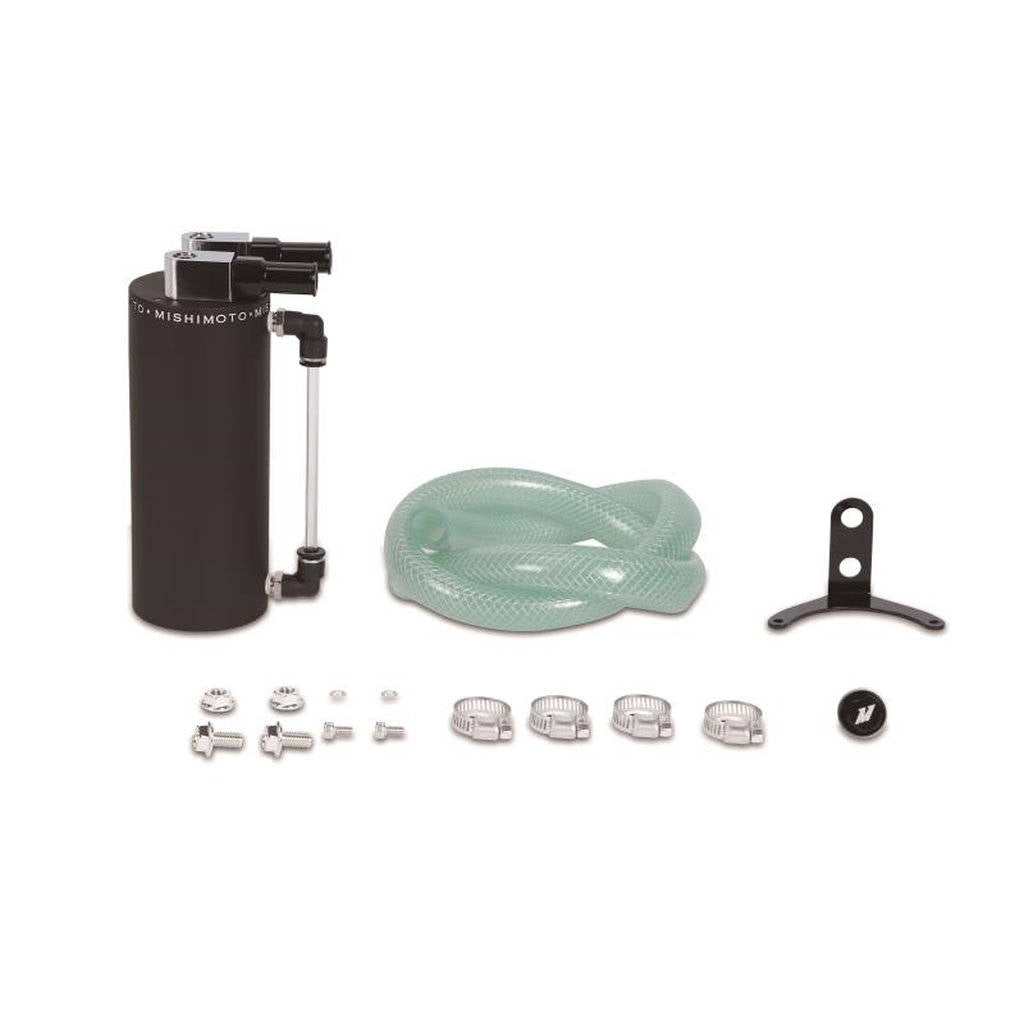

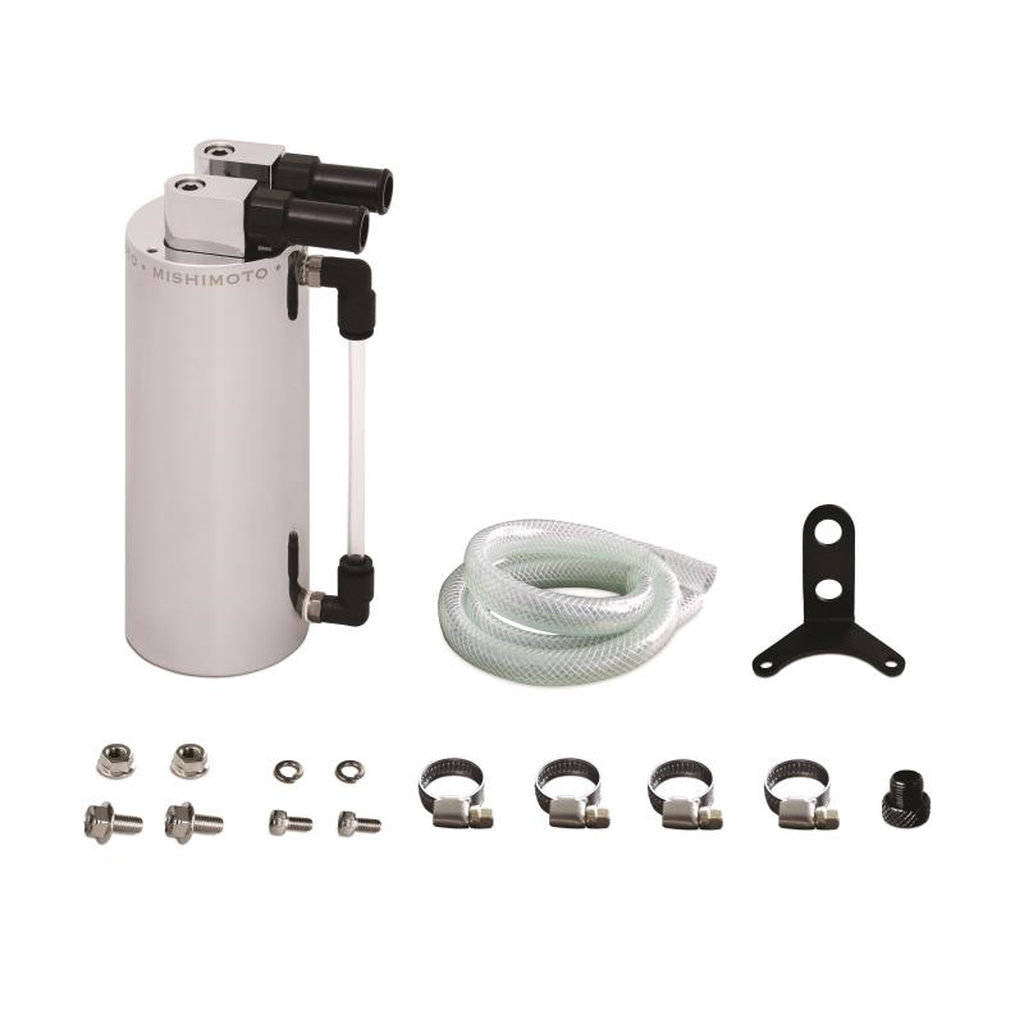

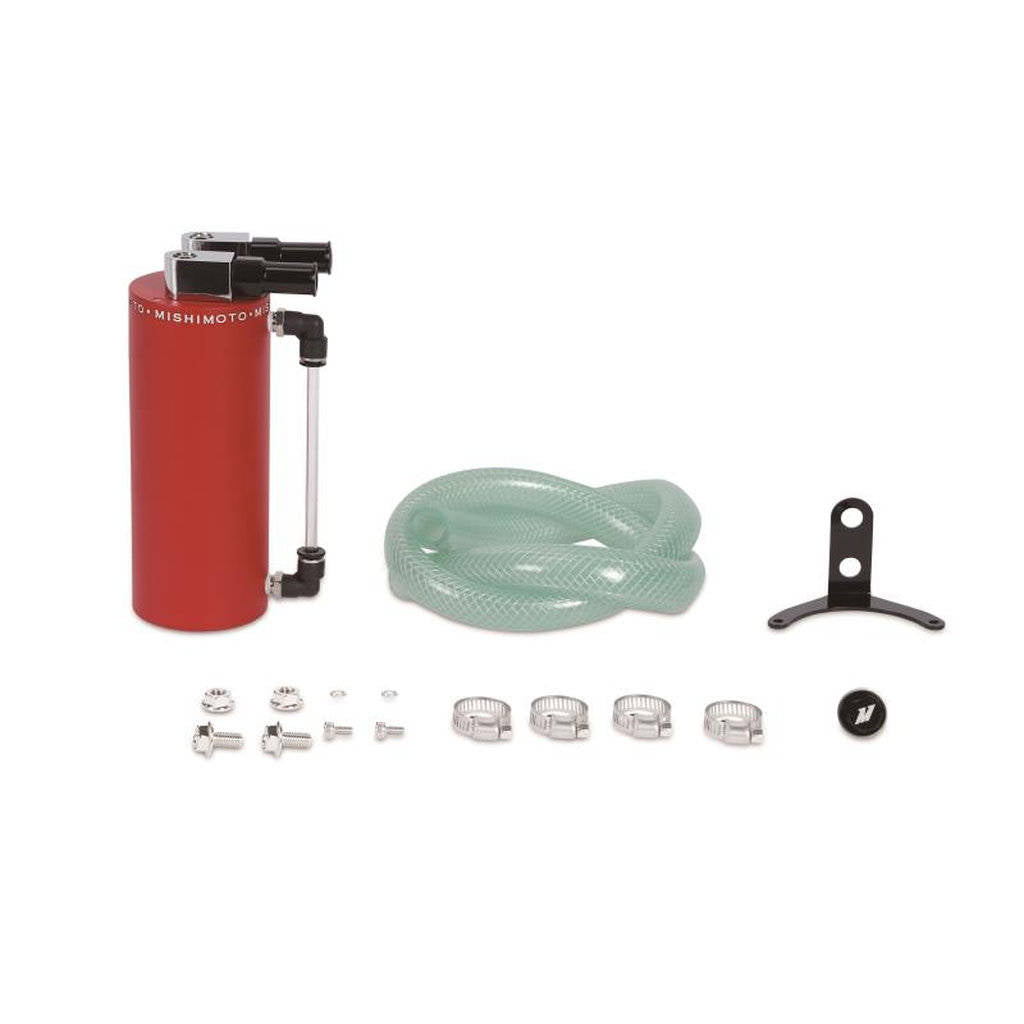

Kit comes with::

• Aluminum tank
• Black fittings 10mm I.D.
• Black bracket
• Allen bolts
• Allen bolt washers
• Black magnetic drain plug
• Dowty seal
• Small clamps
• Bolts
• Nuts
• 80cm reinforced hose
