MISHIMOTO MMRAD-EVO-10 Aluminium Radiator for MITSUBISHI Lancer EVO X (CZ4A) 2008–2015

Description MISHIMOTO MMRAD-EVO-10 Aluminium Radiator for MITSUBISHI Lancer EVO X (CZ4A) 2008–2015

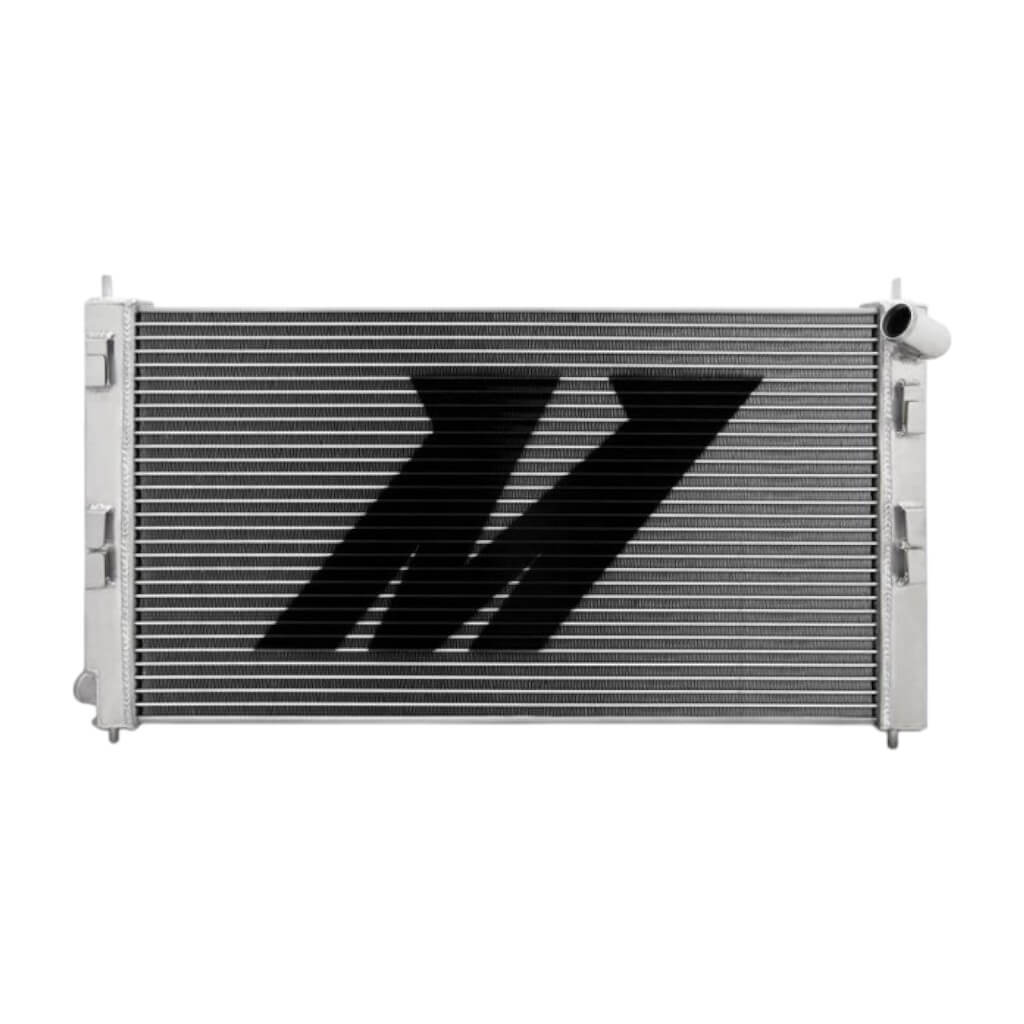

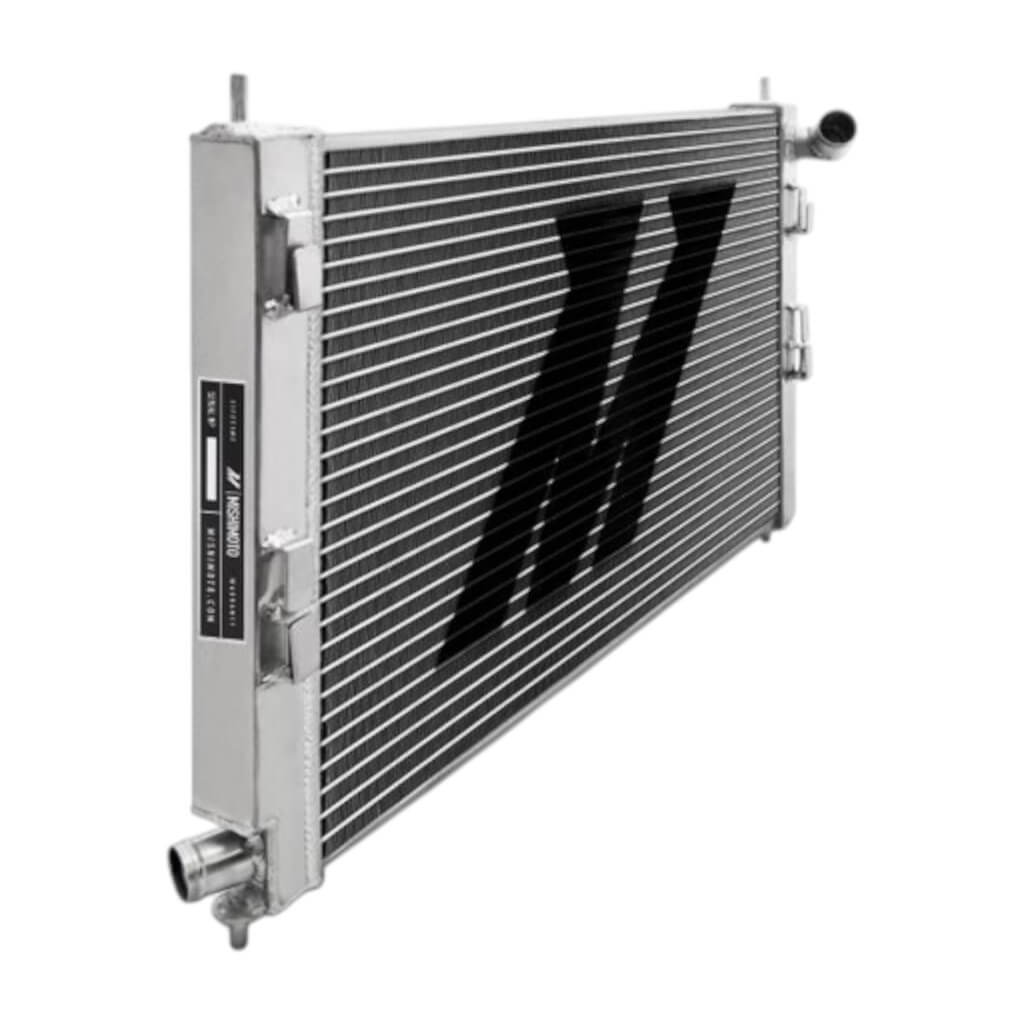

The MISHIMOTO MMRAD-EVO-10 aluminium radiator is engineered as a direct-fit cooling upgrade for 2008–2015 Mitsubishi Lancer Evolution X and Lancer Ralliart models, along with other specified applications. Constructed entirely from aluminium with TIG-welded end tanks, it offers superior durability and performance compared to factory units with plastic end tanks. The two-row, 1.57-inch thick brazed aluminium core increases fluid capacity and improves thermal dissipation, ensuring stable coolant temperatures even under extreme load. Suitable for both standard and performance-modified engines, it is designed to excel in demanding environments such as track days, autocross, and high-performance street driving. A magnetic drain plug is included to capture metallic particles, helping to extend cooling system service life. Covered by the Mishimoto Lifetime Warranty.

• Direct-fit design for 2008–2015 Mitsubishi Lancer Evolution X and Lancer Ralliart

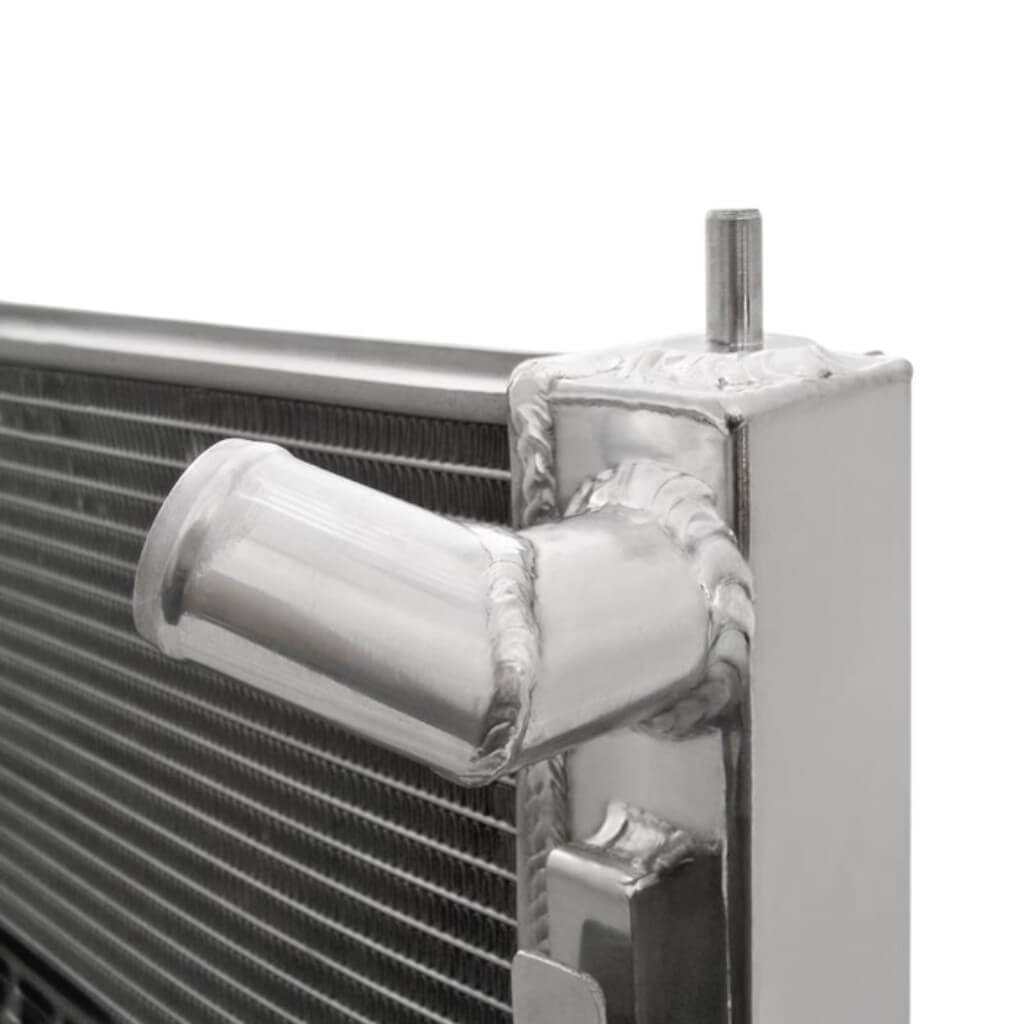

• Full aluminium construction with TIG-welded end tanks for enhanced durability
• Two-row, 1.57-inch brazed aluminium core for improved cooling performance
• Increased fluid capacity and superior heat dissipation
• Magnetic drain plug to capture metal debris and protect the cooling system
• Optimised for high-performance and extreme driving conditions

Specifications:

• Overall Height: 32.5 in
• Overall Length: 19.3 in
• Overall Width: 2.07 in
• Core Length: 27.56 in
• Core Height: 16.06 in
• Core Thickness: 1.57 in
• Fluid Capacity: 2.24 gal
• Rows: 2
• Inlet: 1.4 in
• Outlet: 1.4 in
• Drain Plug Thread Size: M12 x 1.5
• DPI: 2978
• Applications: 2008–2015 Mitsubishi Evolution, 2009–2015 Mitsubishi Lancer Ralliart, 2007–2009 Mitsubishi Outlander ES/LS/SE/XLS
• Engine Codes: 4B11T, 4G69, 4B12, 6B31 (Outlander)
• Chassis Codes: CZ4A
