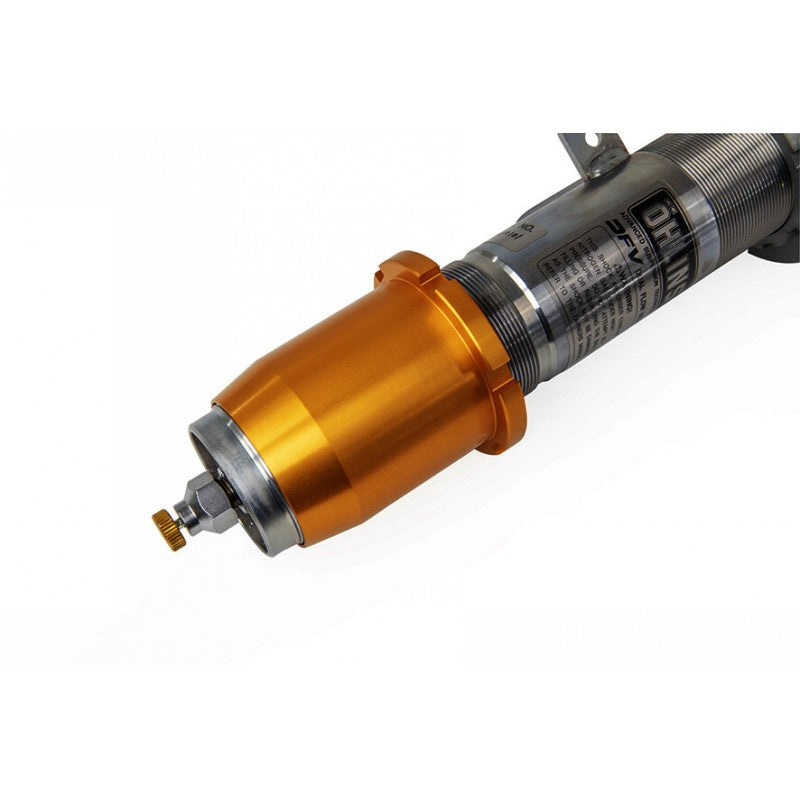

OHLINS BMS MW10S1 Coilover kit ROAD & TRACK for BMW M3 (G80/G81), M4 (G82/G83) xDrive Photo-0

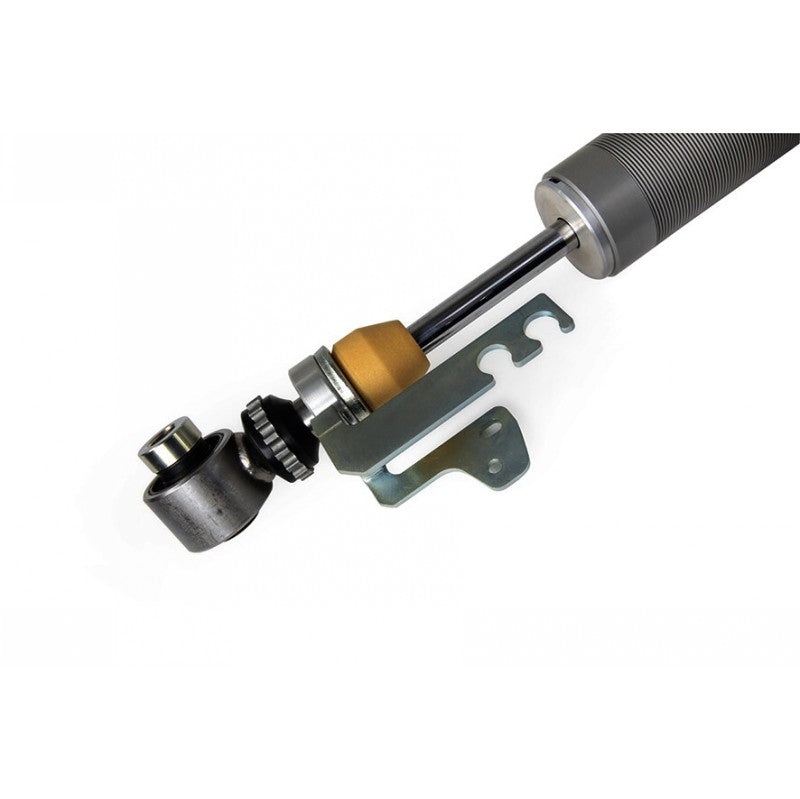

OHLINS BMS MW10S1 Coilover kit ROAD & TRACK for BMW M3 (G80/G81), M4 (G82/G83) xDrive Photo-1

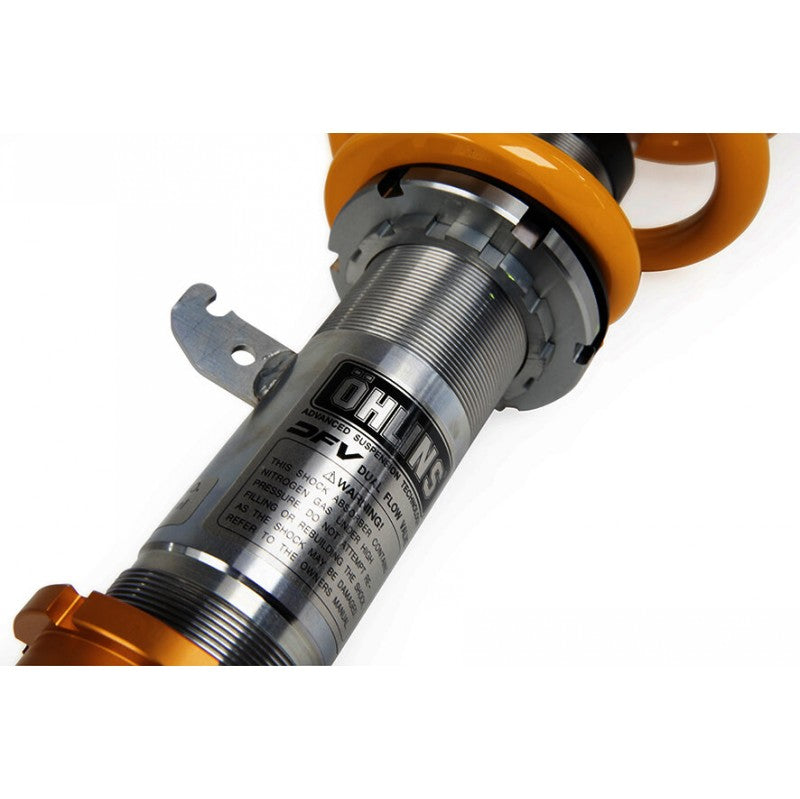

OHLINS BMS MW10S1 Coilover kit ROAD & TRACK for BMW M3 (G80/G81), M4 (G82/G83) xDrive Photo-2

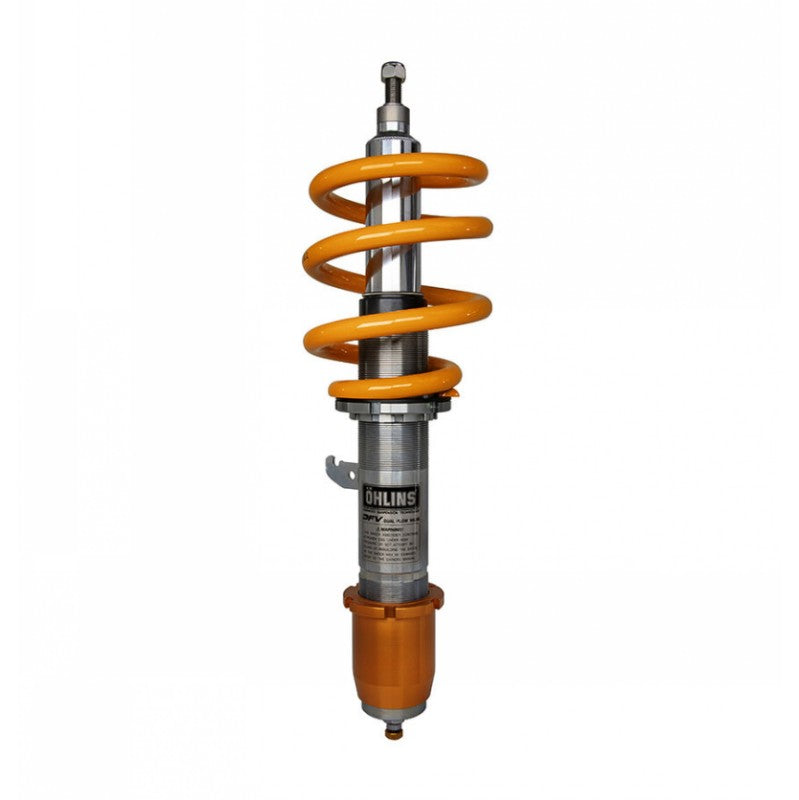

OHLINS BMS MW10S1 Coilover kit ROAD & TRACK for BMW M3 (G80/G81), M4 (G82/G83) xDrive Photo-3

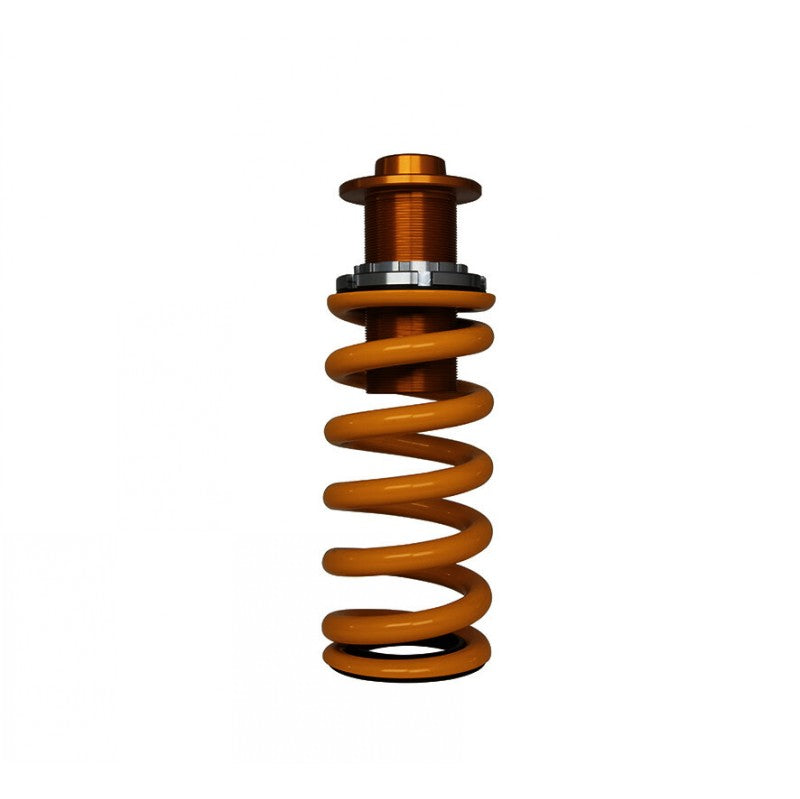

OHLINS BMS MW10S1 Coilover kit ROAD & TRACK for BMW M3 (G80/G81), M4 (G82/G83) xDrive Photo-4

OHLINS BMS MW10S1 Coilover kit ROAD & TRACK for BMW M3 (G80/G81), M4 (G82/G83) xDrive

Sale price€4.016,48

VAT included. Shipping calculated at checkout

OHLINSP/N: BMS MW10S1
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

OHLINS BMS MW10S1 Coilover kit ROAD & TRACK for BMW M3 (G80/G81), M4 (G82/G83) xDrive

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+4926916879995

Nürburgring Showroom

Pickup available, usually ready in 24 hours

Nürburgring Boulevard 2
53520 Nürburg
Germany

+4926916879995

A more than 40 year long tradition of high-end racing commitments and state-of-the-art solutions within advanced suspension technology is now available for street cars all over the world. The focus has been clear from the very beginning – superior road handling without sacrificing comfort in your day-to-day transports. The time of compromises is over. All shocks have suffered through vast corrosion tests according to ISO 9227. The end result is a worldwide 2-year limited warranty on all of our products.

General Features:

  • Patented DFV technology (Dual Flow Valve)
  • Individual height adjustment
  • Rebuildable
  • Corrosion salt spray tested (ISO 9227)
  • 2 year warranty
  • Approx. 10 kgs less weight compared to standard suspension

Features Front:

  • McPherson strut, upside down
  • Compression and rebound damping with one adjuster
  • Spring preload adjuster
  • Separate length adjustment
  • Approx. 25 mm lower than standard with recommended setup
  • Spring rate 100 N/mm
  • Use with original top mounts

Features Rear:

  • Conventional shock absorber
  • Compression and rebound damping with one adjuster
  • Spring preload adjuster
  • Separate length adjustment
  • Approx. 20 mm lower than standard with recommended setup
  • Spring rate 190 N/mm
  • Use with original top mounts

Purchased Parts Package:

  • Coil over kit incl. springs and mounting parts
  • C-Spanner (for spring preload adjustment)
  • Owners manual and mounting instruction
  • Sticker set
