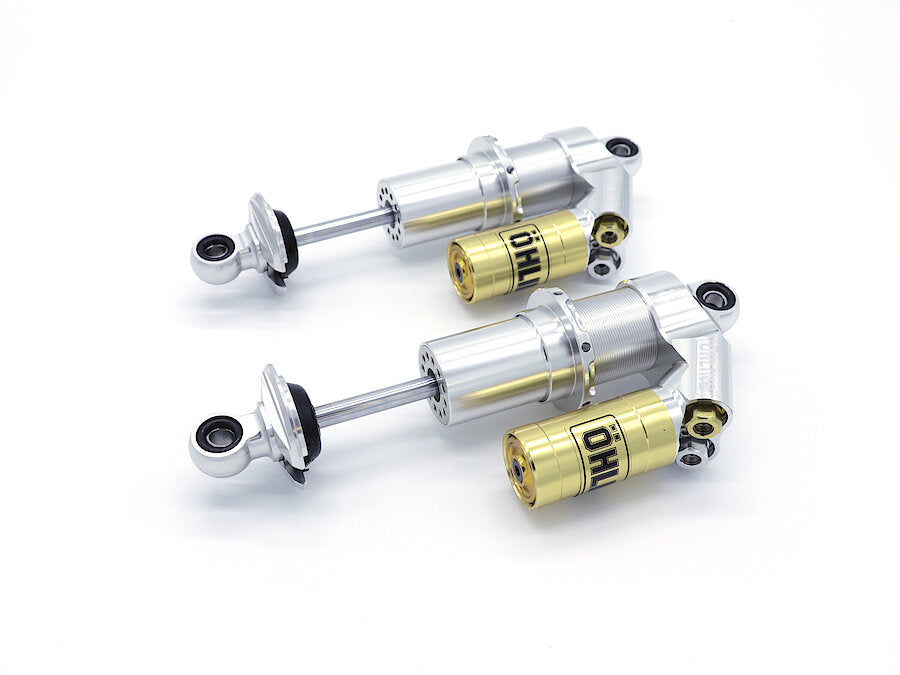

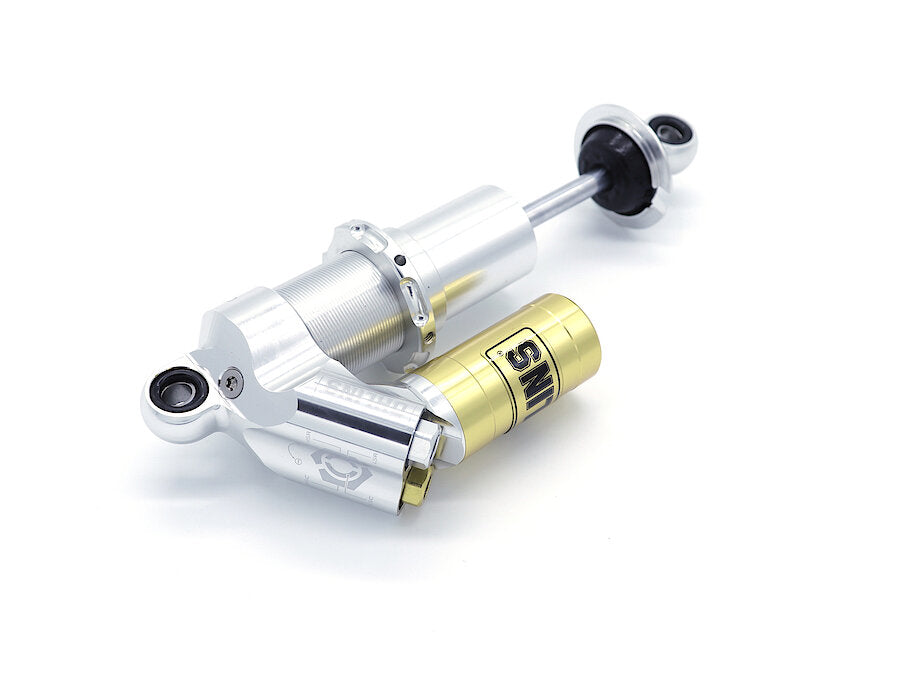

Öhlins understands the importance of relationships from beginning to end, from racers in training to experienced veterans. It’s for this reason that we developed the TTX 25 MkII FSAE - a shock absorber specifically for Formula SAE/Formula student racing.
The TTX 25 MkII FSAE uses our well-proven twin tube technology, in a small package. The 4-way externally adjustable damper is completely serviceable and offers the possibility for setting changes. With a wide range of springs together with dynamometer plots, CAD models, and other technical information, the TTX25 FSAE provides the perfect package for Formula Student racing teams.
Technical Specifications
- Overall length: 200 mm (center to center of spherical bearings, fully extended)
- Stroke: 57 mm
- Weight: 394 g (without spring)
Spherical Bearing dimensions
- Inner diameter: 8 mm
- Ball width: 8 mm
- Outer diameter: 15 mm
Available Spring Rates
- 150 lb/in
- 175 lb/in
- 200 lb/in
- 225 lb/in
- 250 lb/in
- 300 lb/in
- 350 lb/in
- 400 lb/in
- 450 lb/in
- 500 lb/in
- 550 lb/in
- 600 lb/in
- 650 lb/in
