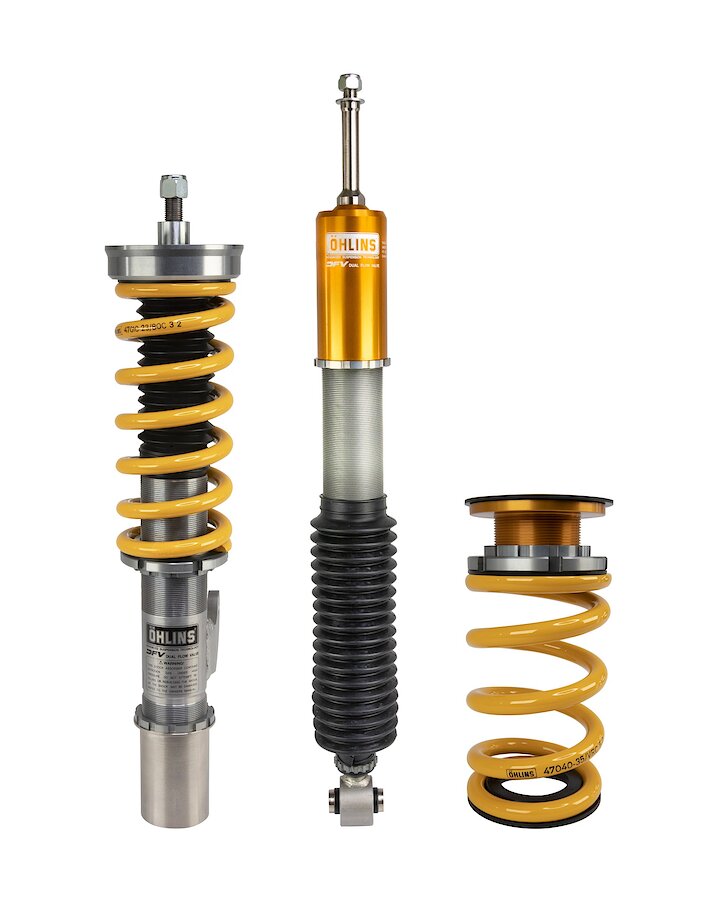

OHLINS MES MV10S1 Road & Track (DFV) Damper kit for MERCEDES-BENZ A45 AMG W177, set with springs
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
OHLINS MES MV10S1 Road & Track (DFV) Damper kit for MERCEDES-BENZ A45 AMG W177, set with springs
Kelberg Warehouse
Auf der Struth 4
53539 Kelberg
Germany
Nürburgring Showroom
Nürburgring Boulevard 2
53520 Nürburg
Germany
A more than 40 year long tradition of high-end racing commitments and state-of-the-art solutions within advanced suspension technology is now available for street cars all over the world. The focus has been clear from the very beginning – superior road handling without sacrificing comfort in your day-to-day transports. The time of compromises is over. All shocks have suffered through vast corrosion tests according to ISO 9227. The end result is a worldwide 2-year limited warranty on all of our products.
General Features:
- Patented DFV technology (Dual Flow Valve)
- Individual height adjustment
- Rebuildable
- Corrosion salt spray tested (ISO 9227)
- 2 year warranty
- Approx. 10 kgs less weight compared to standard suspension
Features Front:
- McPherson strut, upside down
- Compression and rebound damping with one adjuster
- Spring preload adjuster
- Separate length adjustment
- Approx. 20 mm lower than standard with recommended setup
- Spring rate 80 N/mm
- Use with original top mounts

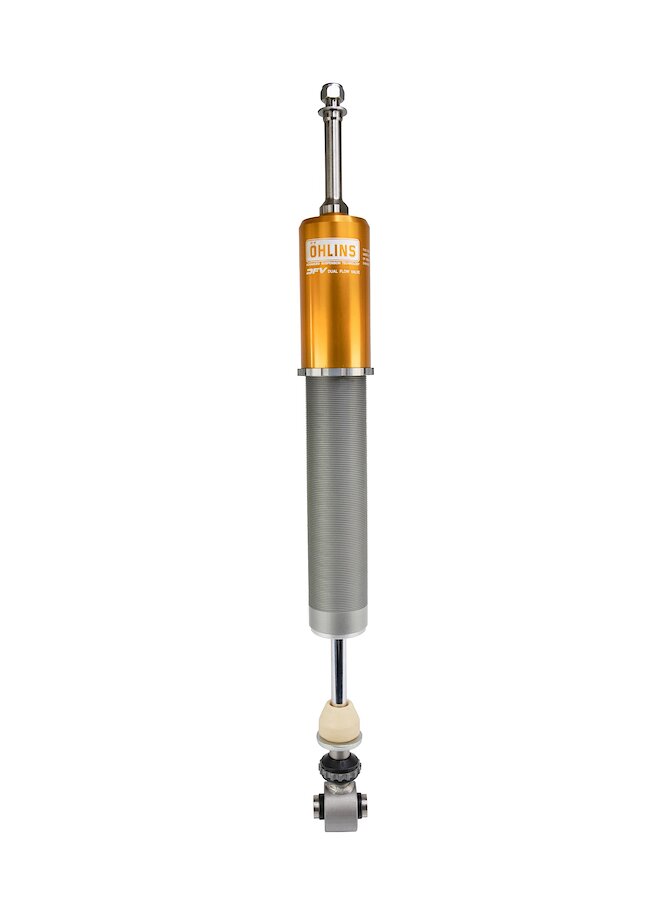

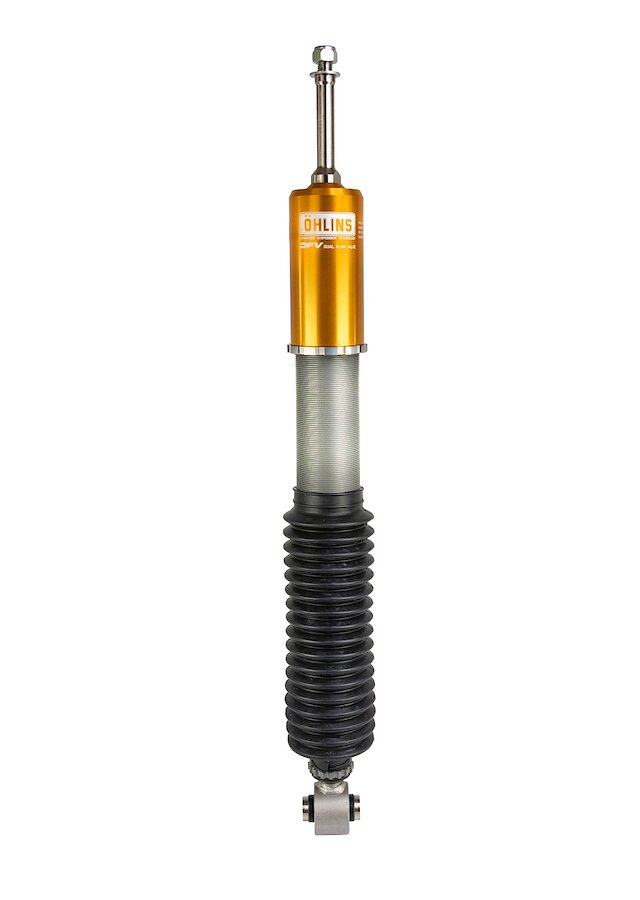

Features Rear:
- Conventional shock absorber
- Compression and rebound damping with one adjuster
- Spring preload adjuster
- Separate length adjustment
- Approx. 15 mm lower than standard with recommended setup
- Spring rate 110 N/mm
- Use with original top mounts
Purchased Parts Package:
- Coil over kit incl. springs and mounting parts
- C-Spanner (for spring preload adjustment)
- Owners manual and mounting instruction
- Sticker set
EDC Cancellation Kit:
- 35020-35: A45 AMG (W177)
Cancellation kits are not included and need to be ordered separately.
Fits the following vehicles
Owners Manual Öhlins Automotive Road Track (English) (2.333,41 KB)
Mounting Instruction Öhlins Automotive MES MV10S1 (English) (2.464,41 KB)
