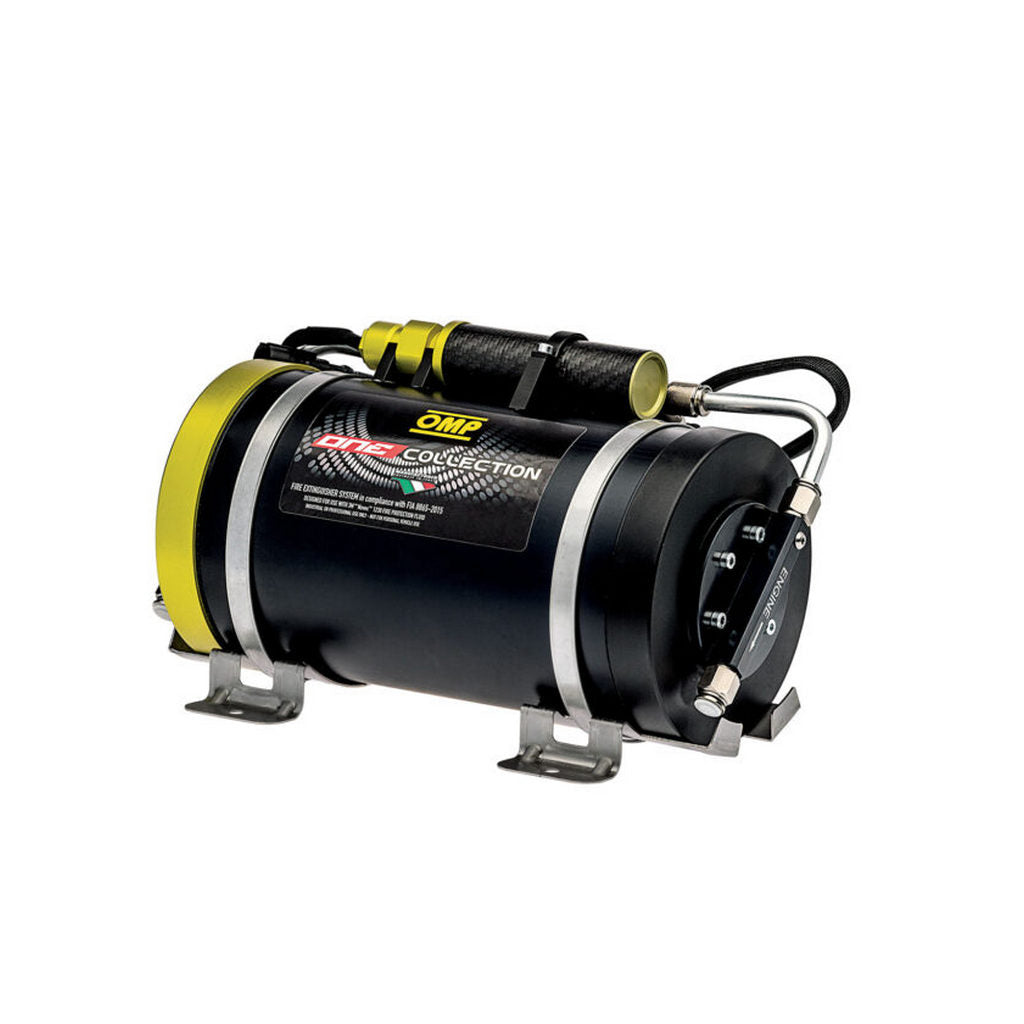

OMP CE0-SAL4-F01 Extinguishing Sytem CESAL4E, Elettrically, Saloon, Alluminium, FIA 8865, Size S

Description OMP CE0-SAL4-F01 Extinguishing Sytem CESAL4E, Elettrically, Saloon, Alluminium, FIA 8865, Size S

The OMP electric fire extinguishing system is a compact and lightweight solution for touring cars that complies with FIA 8865-2015 requirements.

Technical specifications

• Fire extinguishing agent: FK-5-1-12
• Cylinder material: aluminum
• Weight: 5.5 kg
• Diameter: 134 mm
• Length: 275 mm
• Homologated for gasoline, gasoline + up to 30% ethanol or methanol, as well as E85 (up to 85%)
• Suitable for electric and hybrid vehicles
• The S version is designed for small cockpits (from 2.2 m³ to 1.2 m³).
• Complete mounting kit

Components

• 2.5× Aluminum tubes 8 mm, 4 m (CD0-0323-A01)
• 2.5× Protective covers 10 mm (CD0-0324-A01)
• 3× Gas nozzles (CD0-0454)
• 2× Cockpit nozzles (CD0-0410)
• 2× Brackets for cockpit nozzles (XMC-CD00059)
• 5× 90-degree 8 mm connection (CD0-0391-A02)
• 1× T-connection 8 mm (CD0-0412)
• 2× 8 mm Y-connectors (CD0-0414)
• 6× 8 mm straight connectors (CD0-0416)
• 2× Brackets with clamps (CD0-0408)
• 1× Control unit (CD0-0380-A01)
• 1× Control unit wiring (CD0-0436)
• 1× M5 Y-splitter (CD0-0435)
• 1× Activation button with M5 connector, 0.5 m (CD0-0432-A01)
• 1× Activation button with M5 connector, 1.5 m (CD0-0432-A02)
• 1× M5 extension cable (CD0-0431)
• 2× Activation button protection (CD0-0441)
