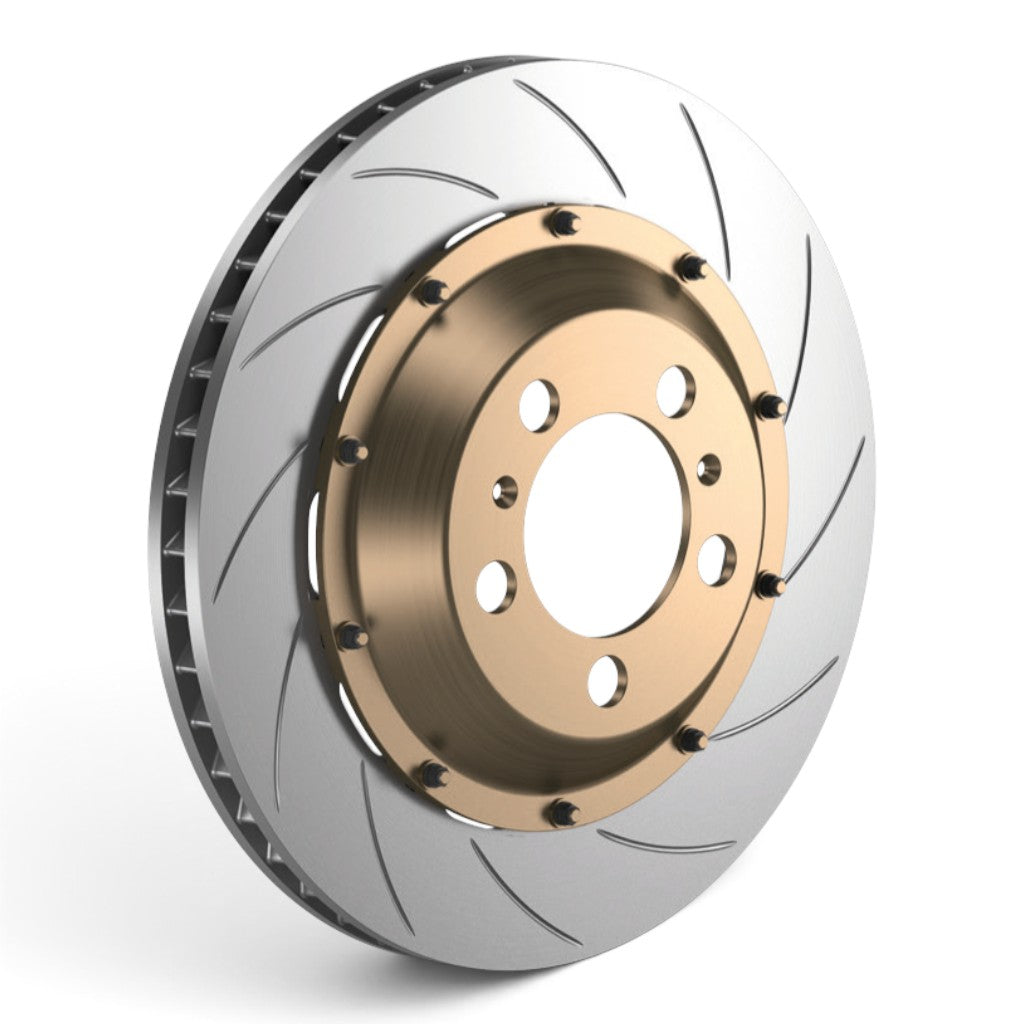

PAGID ED380320101 Front Left Brake Disc Sprint RBD 380x32 mm for PORSCHE 997 GT3 Cup

Description PAGID ED380320101 Front Left Brake Disc Sprint RBD 380x32 mm for PORSCHE 997 GT3 Cup

An uncompromising and highly efficient partnership between brake pad and brake disc was the development criterion for the PAGID Racing brake disc. Under this aspect, the full characteristics were developed and set up for the intended purpose.

Strict quality controls during a long development process result in a high-performance racing brake disc optimized for weight, cooling performance and crack resistance. In conjunction with PAGID Racing brake pads, the products create a highly efficient brake team.

The modular design allows, in most cases, the use of either the lightweight version for sprint races or rally, or the endurance version with the same hat (bell) for the specific vehicle applications.

• Floating connection between bobbin and brake disc eliminates wear on the hard-anodized hat and makes it reusable multiple times.
• Airflow onto the outside friction face is achieved through properly sized openings in the connection flange to the brake disc.
• Specially designed ventilation chamber optimizes the thermal exchange rate between the brake disc and cooling airflow.
• The surface finish (groove pattern) was developed in combination with PAGID Racing brake pads for system performance and wear characteristics.

Specifications

• Side: Left
• Outside diameter: 380 mm
• Thickness: 32 mm
• Inside diameter: 250 mm
• Hat interface PCD: 10 x 228.6
• Max. pad depth: 65 mm
• Vent opening: 17 mm
• Weight: 8.63 kg
