RACELOGIC RLVBDSP05-H2 VBOX OLED Display with Hirose 6 Way Connector

Description RACELOGIC RLVBDSP05-H2 VBOX OLED Display with Hirose 6 Way Connector

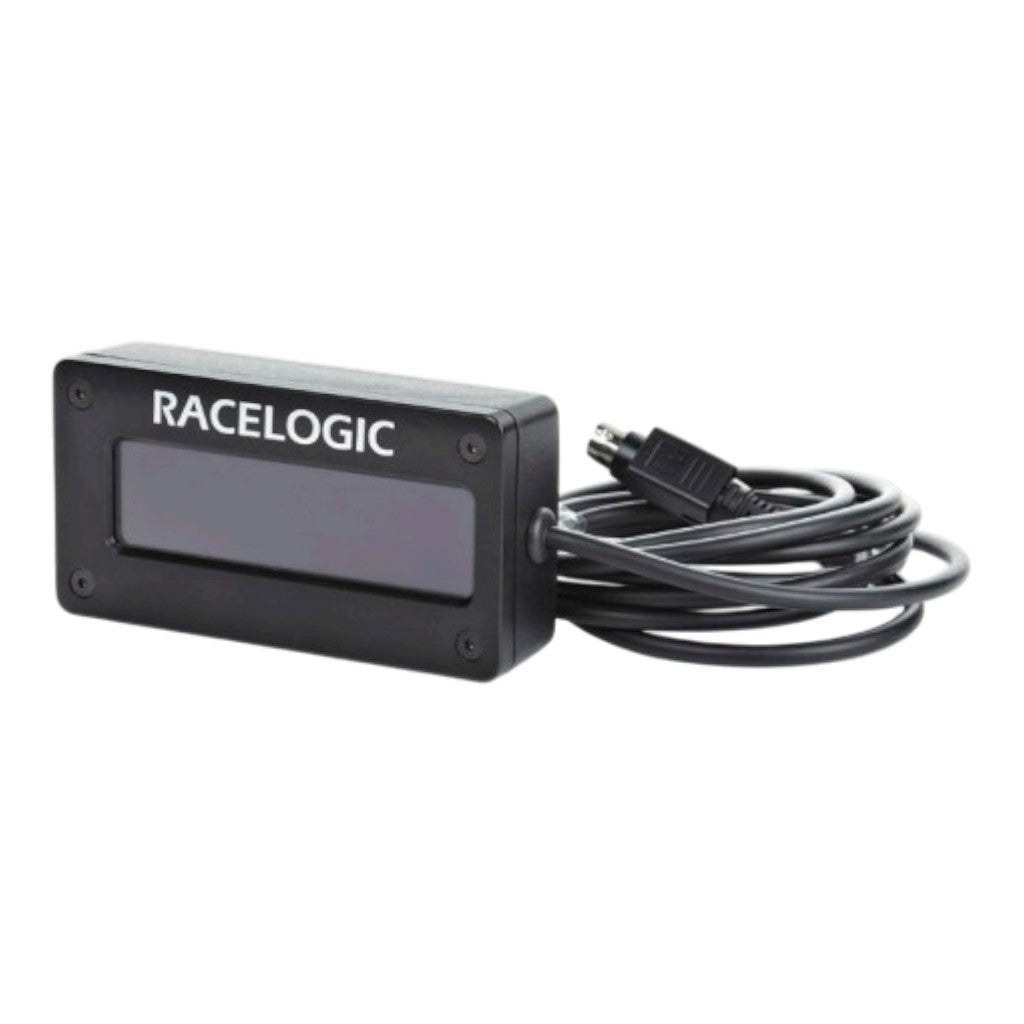

The Racelogic VBOX OLED Display RLVBDSP05-H2 is a high-contrast remote display designed for use with VBOX video logging and telemetry systems. Housed in a splashproof black aluminium and plastic enclosure, the display provides the driver with real-time performance feedback during track driving and motorsport applications. Its compact format and high brightness ensure clear readability even in direct sunlight.

The display supports predictive lap timing based on GPS position, allowing live comparison of the current lap against the best recorded lap. Key driving data such as speed, lap times, sector splits, lap count, and G-force values are presented directly on screen. Integrated menu control enables start and stop of data logging as well as selection of video scenes when connected to compatible VBOX recorders.

• High-contrast OLED screen for clear visibility in bright conditions
• Predictive lap timing with real-time comparison to best lap
• Displays speed, lap times, sector splits, lap count, and G-force data
• Integrated LED bar indicating Delta-V relative to the reference lap
• On-screen control of data recording and video scene selection

Specifications:

• Display Type: OLED
• Operating Voltage: 6–30 V DC
• Ingress Protection: IP64 / IP65 splashproof housing
• Dimensions: 101 x 51.5 x 26.5 mm (excluding cable)
• Orientation Sensor: Built-in accelerometer with automatic image rotation
• Connector Type: Hirose 6-way
