RACELOGIC RLVBVDHD2H-2 VBOX Video HD2 with HDMI Output - 2 Camera System
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
RACELOGIC RLVBVDHD2H-2 VBOX Video HD2 with HDMI Output - 2 Camera System
Kelberg Warehouse
Auf der Struth 4
53539 Kelberg
Germany
Choose options
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Description RACELOGIC RLVBVDHD2H-2 VBOX Video HD2 with HDMI Output - 2 Camera System
The RACELOGIC VBOX Video HD2 is a dual-camera video and data logging system designed to support lap-time analysis and improve driving consistency. It records high-definition footage together with GNSS and vehicle CAN data, providing synchronized information for motorsport review, driver development, and race-team analysis.
The system records 1080p video at 30 frames per second through two camera inputs, allowing a main camera view with picture-in-picture footage. Integrated HDMI output enables real-time video and audio transmission to compatible monitors, recorders, or streaming devices. Camera positioning can be adjusted through the Android or iOS application, which displays the live camera feed on a mobile device.
- Dual-camera recording with main-view and picture-in-picture display
- Wide-angle lenses capture track activity in high-definition video
- Records directly to an SD card or USB flash drive
- Logs up to 80 channels of CAN data from compatible dashboards and ECUs
- Supports vehicle data including throttle angle, RPM, and brake pressure
- HDMI output provides real-time video and audio for monitoring, recording, or live streaming
- Android and iOS application supports precise camera alignment using a live camera feed
- Customizable high-definition graphics overlays for dashboard and gauge layouts
- Integrated GNSS receiver automatically recognizes racetracks and configures track maps and lap timing
- Automatic recording, pre-record buffer, and internal power backup help prevent data loss
Specifications:
- Video Resolution: 1080p
- Frame Rate: 30 fps
- Camera Inputs: 2
- CAN Data Logging Capacity: Up to 80 channels
- GNSS Receiver Frequency: 25 Hz
- Video Storage: SD card or USB flash drive
- Video Output: HDMI

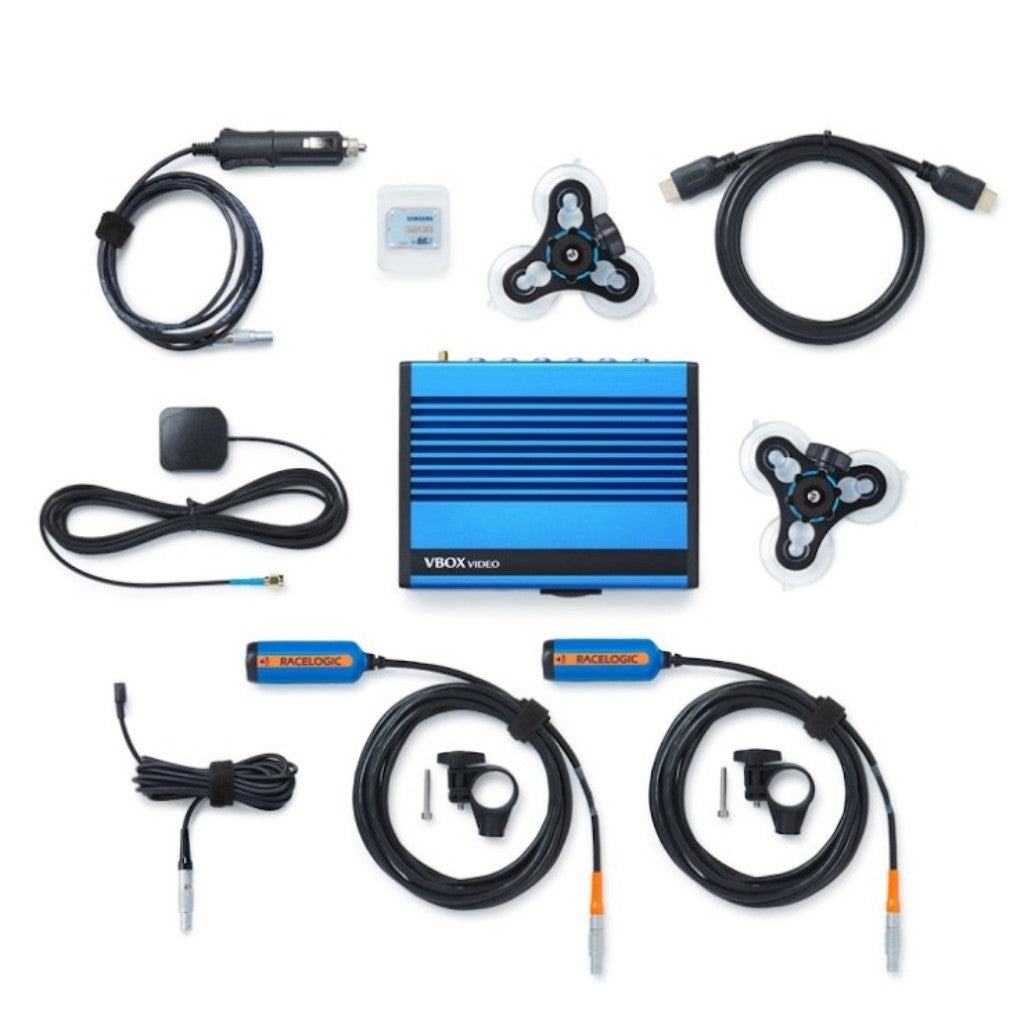

Package Contents:
- VBOX Video HD2 Data Logger
- Cameras × 2
- Microphone
- Windscreen Suction Mounts × 2
- Unterminated In-Car Power Cable
- GNSS Antenna
- 32 GB SD Card
- HDMI Cable
