Description RACELOGIC RLVDHD2HTR VBOX Video HD2 with HDMI Output - 2 Camera Track System
The RACELOGIC VBOX Video HD2 Track Package is a dual-camera video and data logging system configured for installation in fully race-prepared vehicles. The package includes roll cage camera mounts and an unterminated in-car power cable, supporting easier integration with dedicated motorsport electrical systems and vehicle interiors.
The system records synchronized high-definition video, GNSS data, and vehicle CAN information for lap analysis, driver development, and race-team review. Two camera inputs provide a primary view with picture-in-picture display, while the HDMI output enables real-time video and audio transmission to compatible monitors, recorders, and streaming devices.
- Track-focused package with roll cage camera mounts and an unterminated power cable
- Dual-camera recording with primary and picture-in-picture views
- Wide-angle lenses capture track activity in high-definition video
- Records directly to an SD card or USB flash drive
- Logs up to 80 channels of CAN data from compatible dashboards and ECUs
- Supports vehicle parameters including throttle angle, RPM, and brake pressure
- HDMI output provides real-time video and audio for monitoring, recording, or streaming
- Android and iOS application supports precise camera alignment using a live video feed
- Customizable high-definition graphics overlays for dashboard and gauge layouts
- Integrated GNSS receiver automatically recognizes racetracks and configures track maps and lap timing
- Automatic recording, pre-record buffer, and internal power backup help prevent data loss
Specifications:
- Video Resolution: 1080p
- Frame Rate: 30 fps
- Camera Inputs: 2
- CAN Data Logging Capacity: Up to 80 channels
- GNSS Receiver Frequency: 25 Hz
- Video Storage: SD card or USB flash drive
- Video Output: HDMI

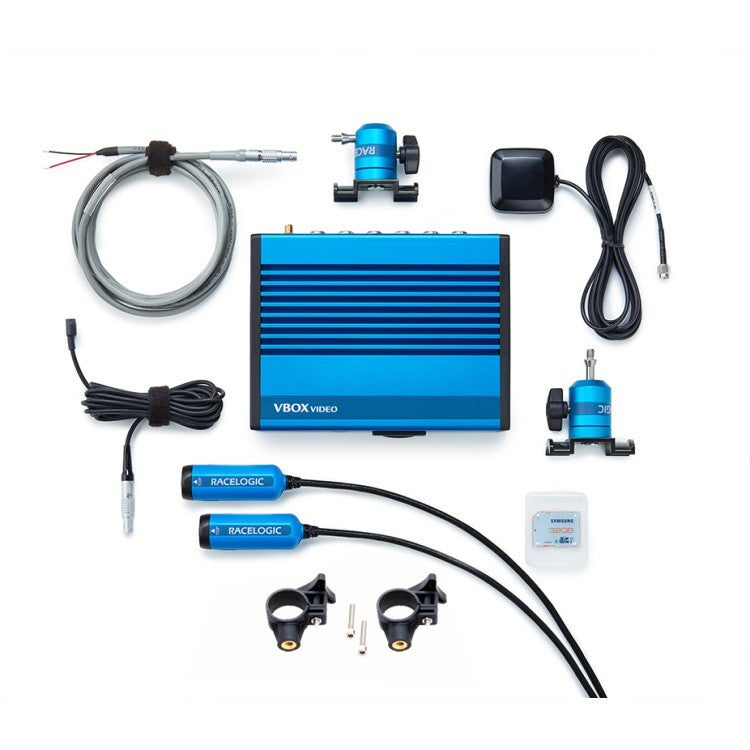

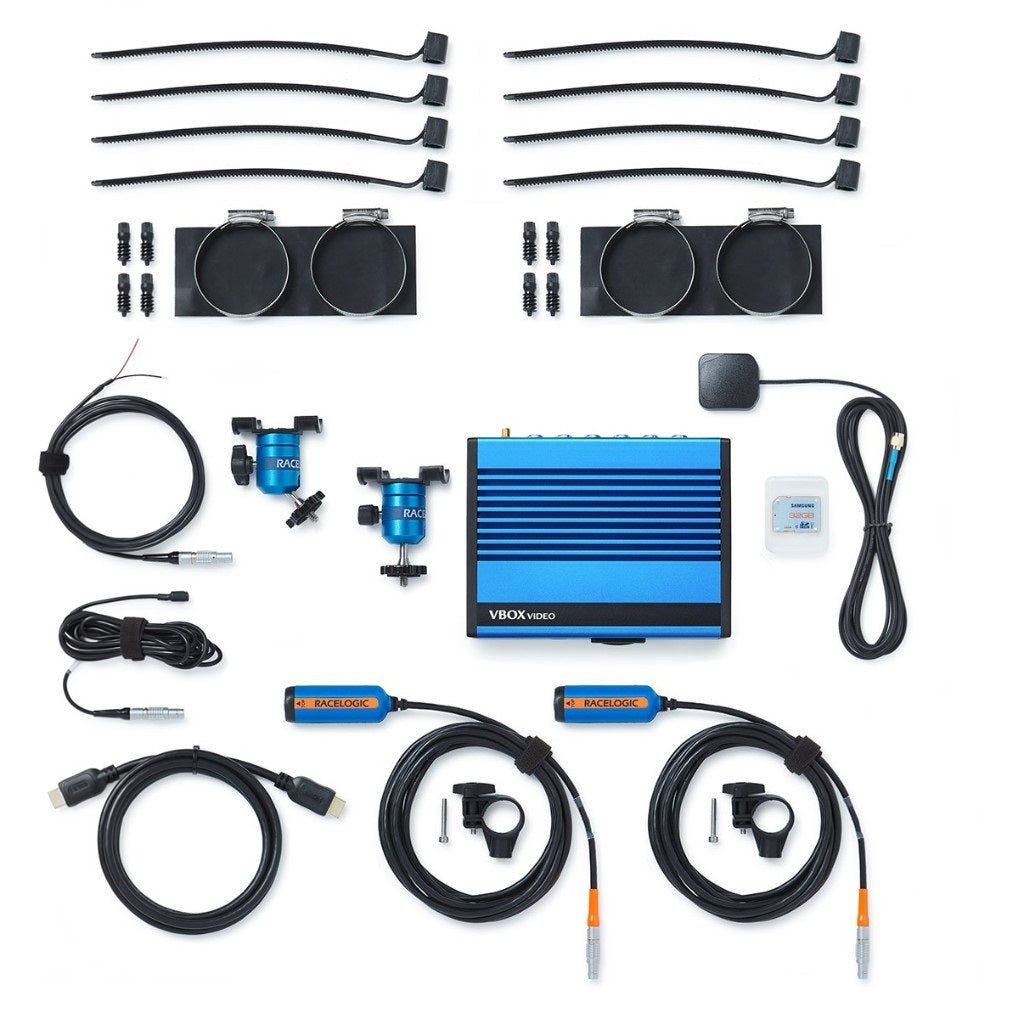

Package Contents:
- VBOX Video HD2 Data Logger
- Cameras × 2
- Microphone
- Roll Cage Camera Mounts × 2
- Unterminated In-Car Power Cable
- GNSS Antenna
- 32 GB SD Card
- HDMI Cable
