RADIUM 20-0547 Remote Mount Fill Neck, 24AN Elbow, 1.5in Barb Photo-0

RADIUM 20-0547 Remote Mount Fill Neck, 24AN Elbow, 1.5in Barb

€164,51

VAT included. Shipping calculated at checkout

Radium P/N: 20-0547
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

RADIUM 20-0547 Remote Mount Fill Neck, 24AN Elbow, 1.5in Barb

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+4926916879995

Nürburgring Showroom

Pickup available, usually ready in 24 hours

Nürburgring Boulevard 2
53520 Nürburg
Germany

+4926916879995

Remote Mount Fill Neck, 24AN Elbow, 1.5in Barb

Remote Mount Fill Neck is primarily used with a body-mounted remote filler (see 20-0505-V). The -24AN fill neck mates to a 24AN hose end capable of 360 degree rotation. It features a 75 degee elbow and uses a 1.5" barb. A bespoke 1-7/8" aluminum wrench is provided for tightening the B-nut and prevent marring. The fill neck features a flapper check valve for rollover protection.

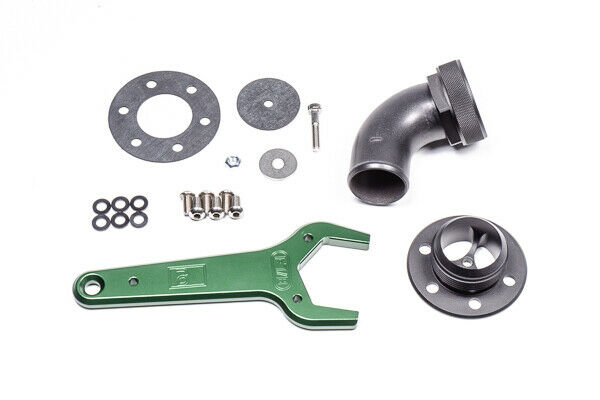

In the Box:

  • 24AN Flanged Fill Neck
  • 24AN Hose End Elbow for 1.5" ID Hose
  • Aluminum Wrench, 1-7/8"
  • FKM Gasket Flange Seal
  • FKM Flapper Valve
  • Nylon Sealing Washers
  • Stainless Steel Hardware

Note: Does not include filler hose, fuel cap, etc.

INSTALLATION INSTRUCTIONS can be downloaded here
