RADIUM 20-0753 Port Injection Kit for TOYOTA MK5 Supra 2020

The Radium Engineering Port Injection Kit (PIK) installs between the intake manifold and the cylinder head. It permits the use of port injectors for the additional fuel required for highly-modified B58TU engines. This does NOT replace the OEM direct injection system. The fuel rail is CNC machined from extruded 6063 aluminum and laser etched for a high quality surface finish. Both end ports are machined with 8AN ORB (3/4-16 female) threads. The injectors are mounted at a calculated angle to ensure proper spray into the center of the intake ports without sacrificing interference from surrounding components.

The PIK adapter plate can also be used as a simple intake manifold spacer without using the fuel rail. All that is required are 2AN ORB Plugs. Relocation hardware is provided to allow the OEM engine vanity cover to be reused. These 4 adapters install into the underside of the vanity engine cover and make up for the intake manifold shifting.

NOTES:

1. Compatible with the 2nd generation B58TU engines B58B30O1 (B58B30B), B58B30M1 (B58B30C)

2. NOT compatible with the 1st generation B58B30M0 (B58B30A) engine.

3. Fuel injectors, port fittings, fuel hose, wiring, injector controller, charge pipe, etc. are NOT included in 20-0735.

4. Because the PIK will space the intake manifold off the head, an aftermarket charge pipe will be required for the throttle body connection.

5. Compatible with all fuel types including popular alcohol mixtures such as E85.

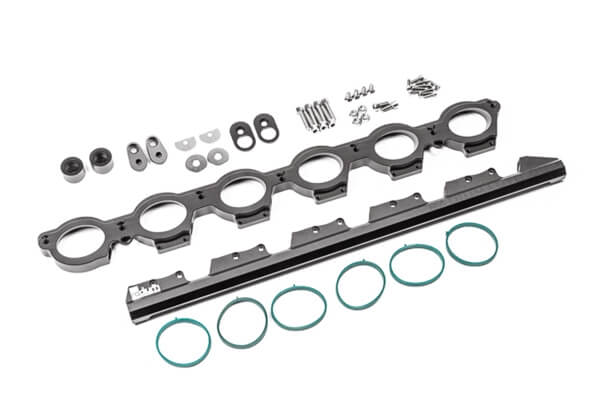

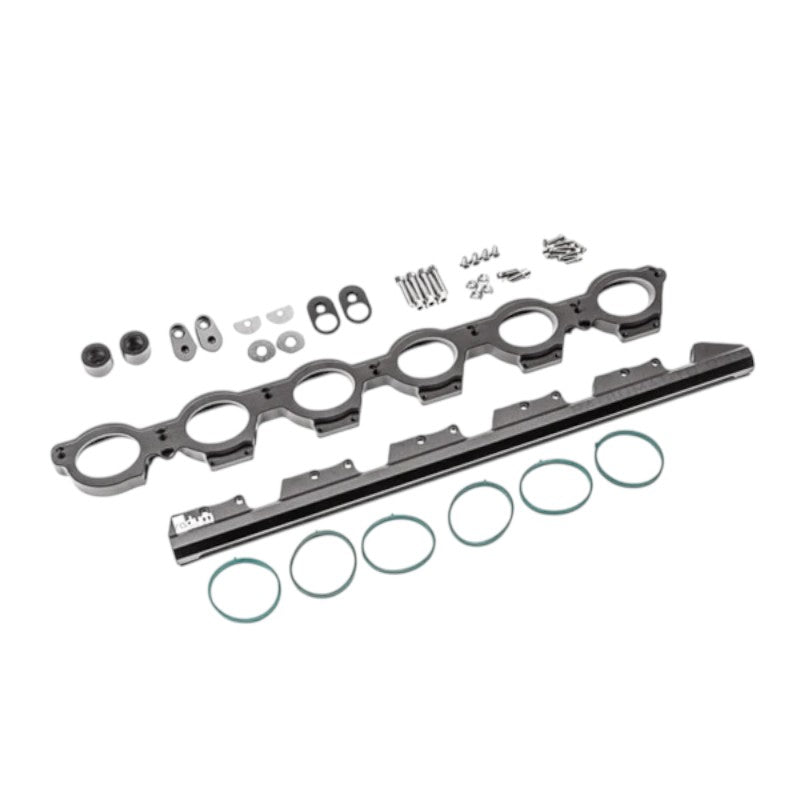

INCLUDED

• Anodized Aluminum PIK Adapter Plate
• Anodized Aluminum Fuel Rail
• Engine Cover Relocation Hardware
• B58TU Intake Port Gaskets (x6)
• Stainless Steel Hardware
