Since 2010, external Radium Engineering fuel surge tanks have been an excellent way to eliminate fuel starvation that occurs in racing. After 10 years of kaizen, the transformation brings the release of the FCST-X (Fuel Cell Surge Tank-10 Years).
The new FCST-X rendition is packed with innovations.
- Fast lift and surge pump access (9 bolts total)
- Integrated lift handle for fuel pump servicing
- Lightweight surge tank increased from 2.2L to 2.6L
- Compatible with up to 4 brushless fuel pumps
- Up to 4 Bosch BR540 fuel pumps (DW400)
- Up to 3 Ti Automotive E5LM brushless pumps
- Up to 4 brushless Bosch pumps (DW440)
- Compatible with 16AN inlet mechanical pumps
- Easily swappable pump modules (sold separately)
- Compatible with shrouded level sensors
- Designed with less potential leak points
- Improved fluid control for quick filling
- Optimized internal fluid management
- Enhanced roll over protection
- Anti-rotation electrical terminals

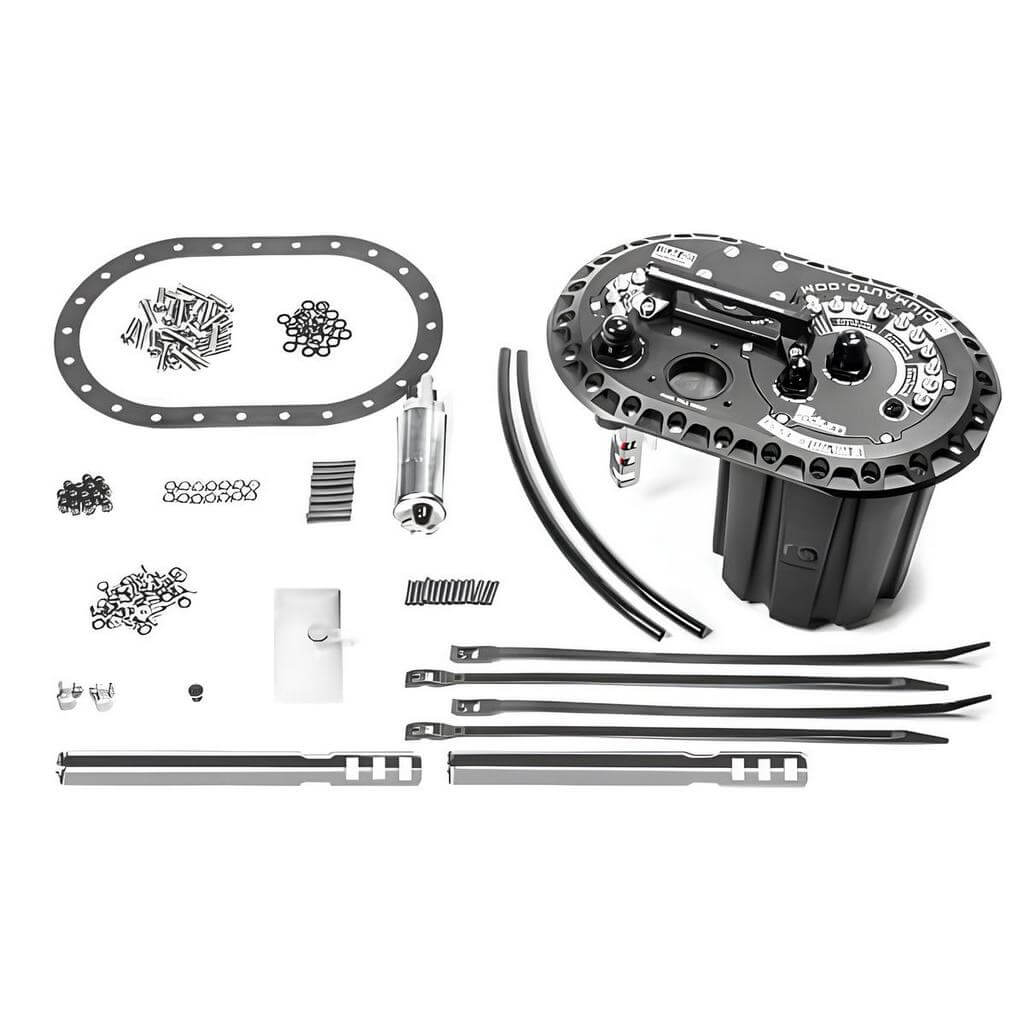

This FCST-X is preassembled with 1 Walbro GSS342 lift pump and 1 Walbro GSS342 surge tank pump.
