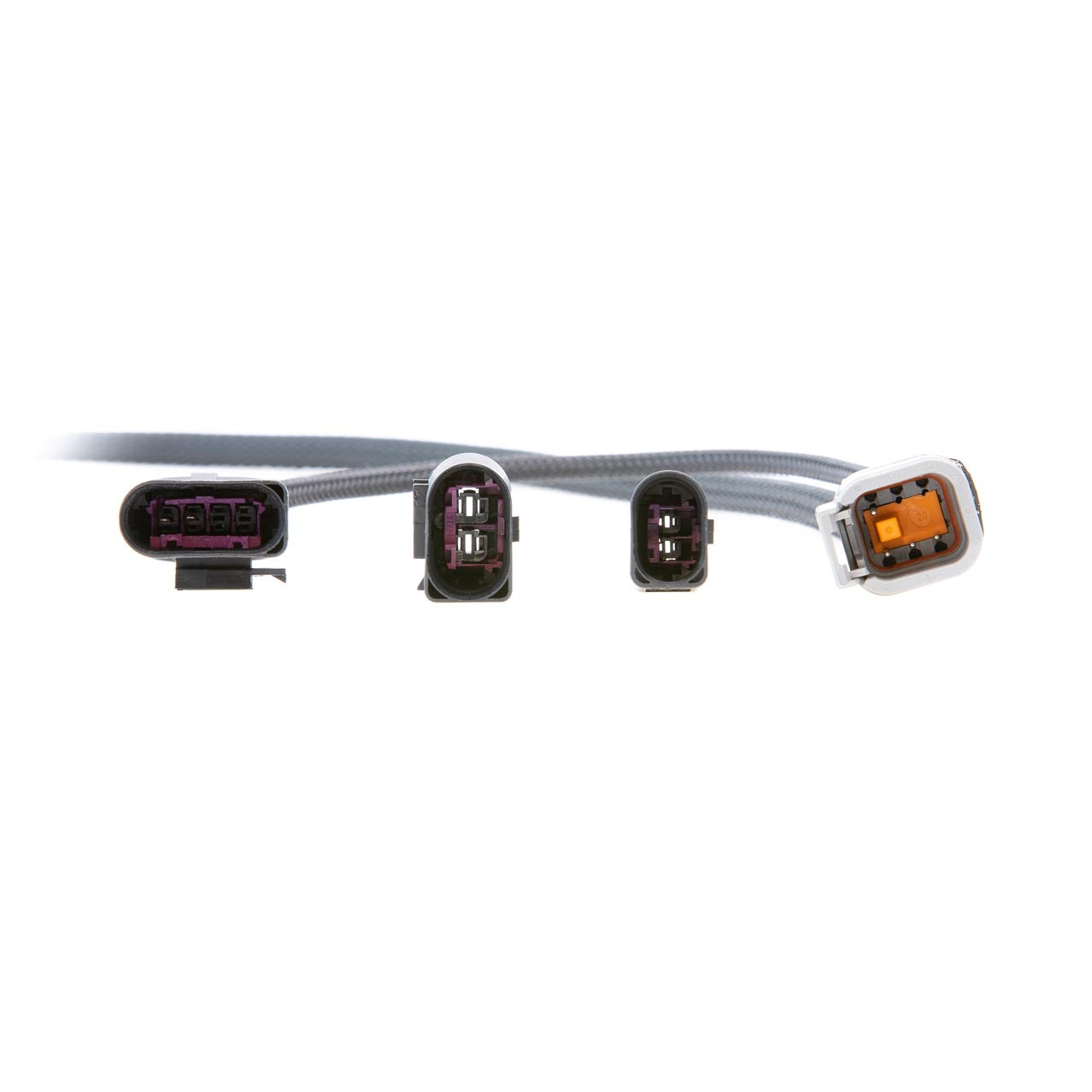

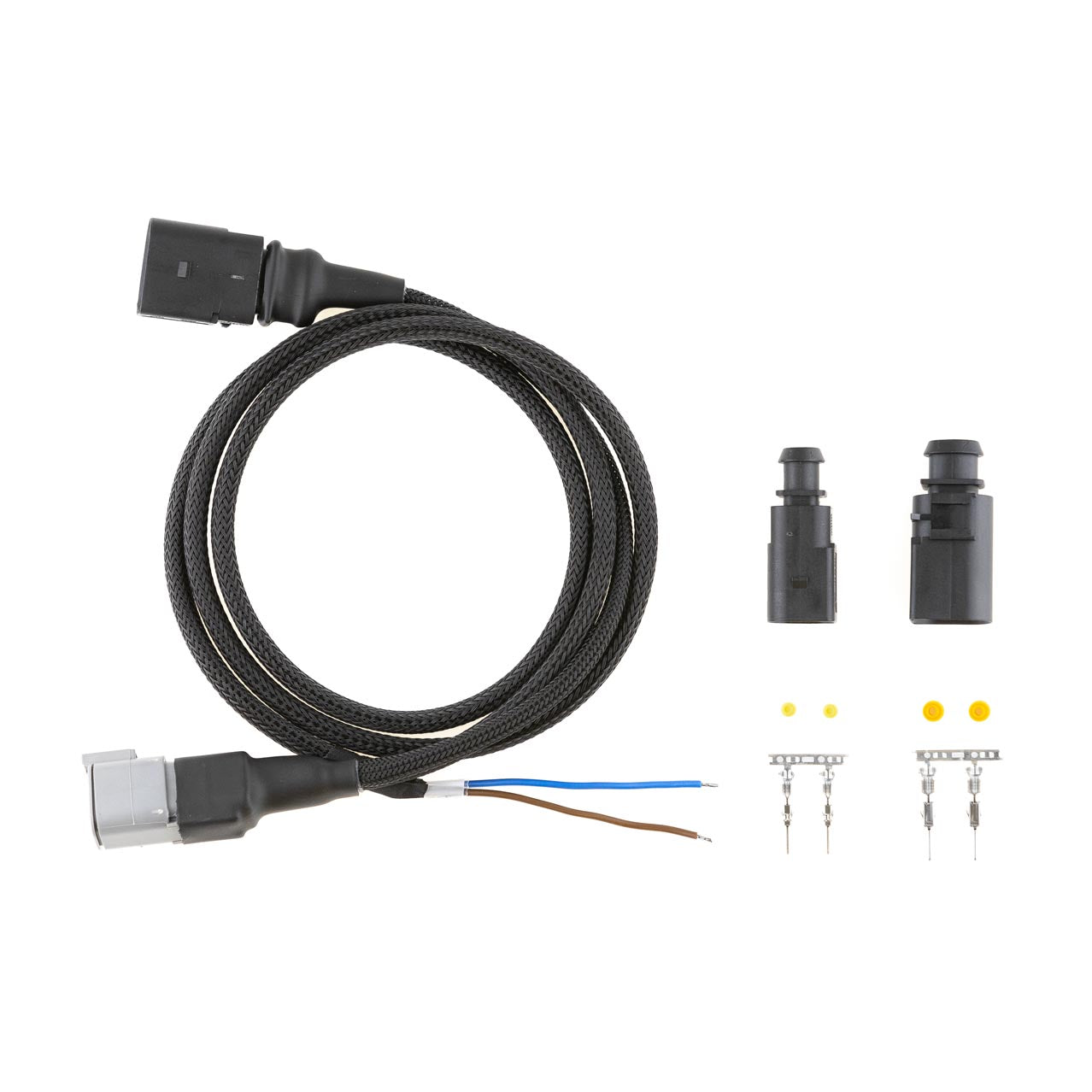

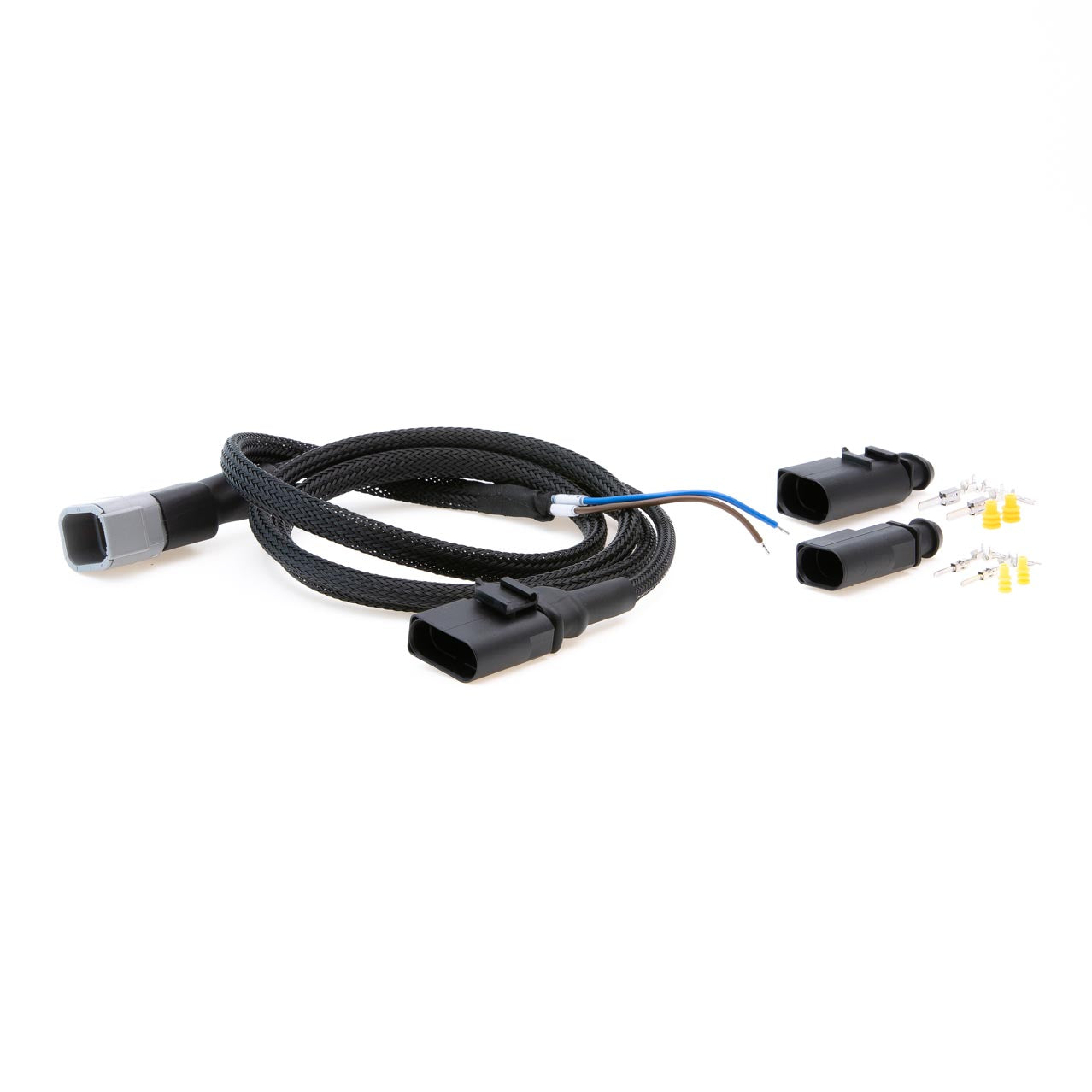

CAN loom for Lamborghini Huracan GT3 Evo

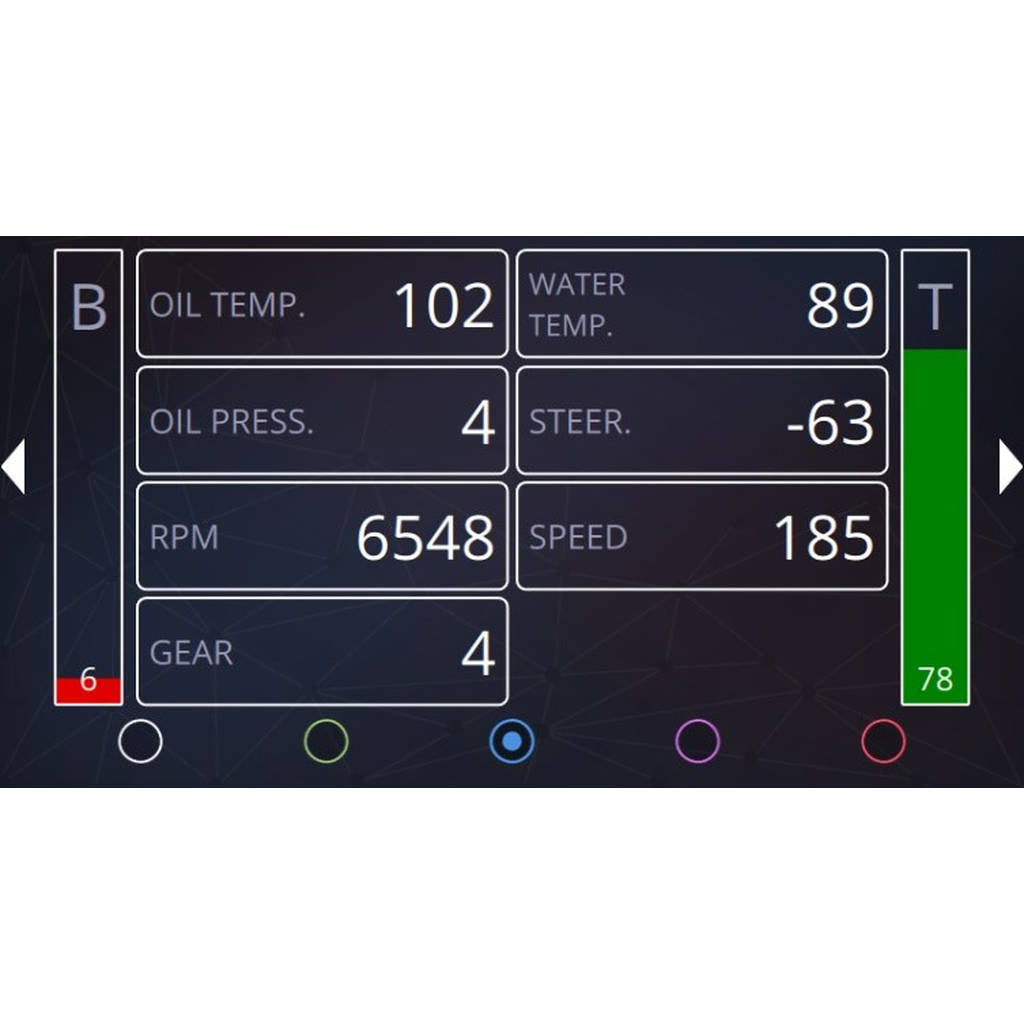

Allows to read additional data via the car's CAN Bus.
Please note: This CAN Adapter will only work in combination with the 12V CAN Cable. One end the 12V CAN Cable is connected to the Race Navigator, while the other end is connected to this CAN Adapter. The 12V CAN Cable is not included in this article and must be ordered separately.
Technical data:
Pinout DTM04-6P
PIN 4: Brown Signal: 12V +
PIN 1: Blue Signal: System GND
PIN 5: Red Signal: Can High
PIN 6: Black Signal: Can Low
Pinout 1K0973804
PIN 3: Red Signal: Can High
PIN 4: Black Signal: Can Low
Power Connector
PIN 1: Brown Signal: 12V +
PIN 2: Blue Signal: System GND
