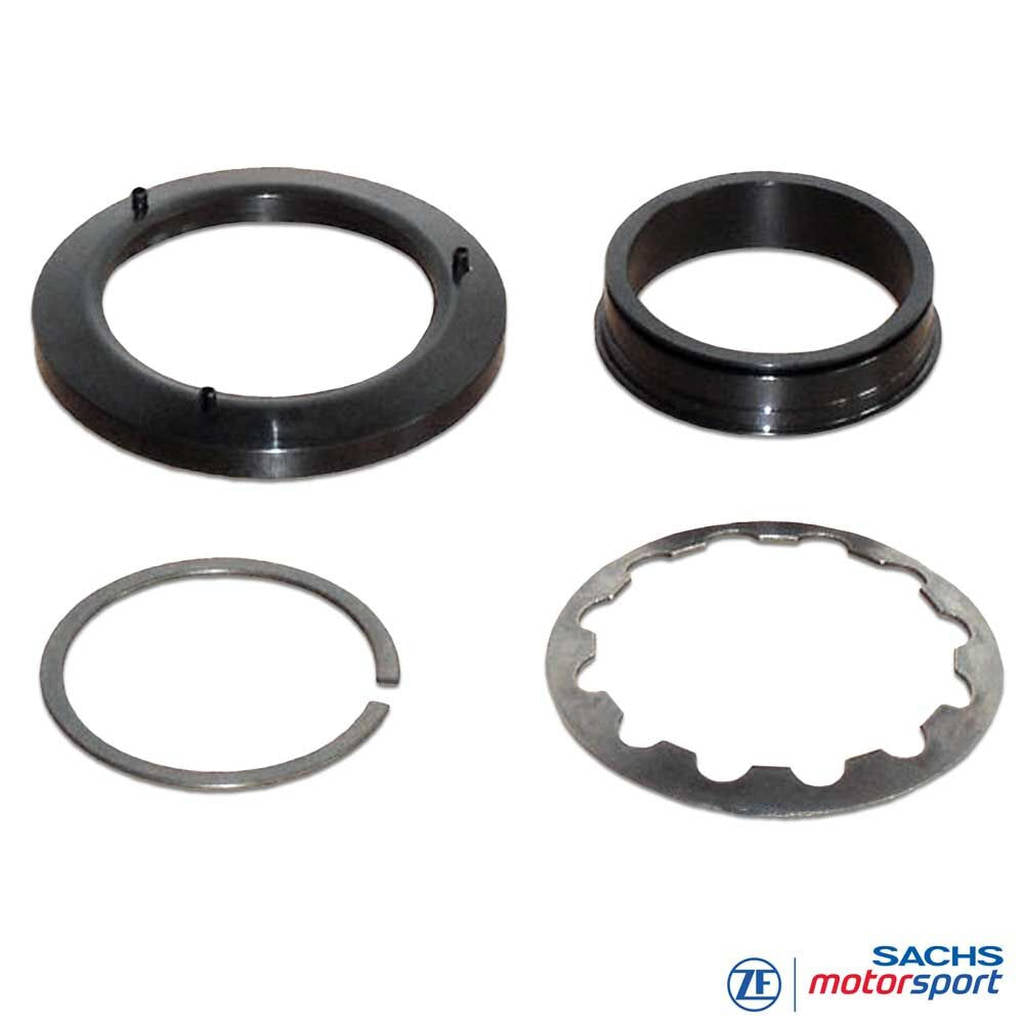

SACHS PERFORMANCE 003074000339 Clutch Release Ring RCS 140

SACHS PERFORMANCE 003074000339 Clutch Release Ring RCS 140

€178,50

VAT included. Shipping calculated at checkout

SACHS PERFORMANCE P/N: 003074000339 GTIN: 4050451008373
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

SACHS PERFORMANCE 003074000339 Clutch Release Ring RCS 140

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+491732982897

Description SACHS PERFORMANCE 003074000339 Clutch Release Ring RCS 140

SACHS RCS racing clutches from ZF-Motorsport are not designed for a specific vehicle and must be adapted to the available installation space. Release rings correctly set the axial position of the release bearing or concentric slave cylinder relative to the diaphragm spring.

The release rings are mounted on the diaphragm spring of the SACHS RCS 140 clutch. They enable the use of a release bearing or slave cylinder with a flat contact face.

Design: Before installation, the clutch, flywheel, gearbox, release bearing, actuation system, and available installation space must be measured together.

  • Changes the axial contact position of the release bearing relative to the diaphragm spring
  • Allows the SACHS RCS 140 racing clutch to be adapted to the available installation space
  • Forms a defined contact face for release bearings or concentric slave cylinders with a flat contact face

Specifications:

  • RCS140 clutch release ring
  • Ring height: 12.5 mm
  • For release diameter: 49 mm
  • Fits RCS 140 clutch housing:
  • 003072000097 | 003072000166 | 003072000170
  • 003072000289 | 003072000290 | 003072000291
