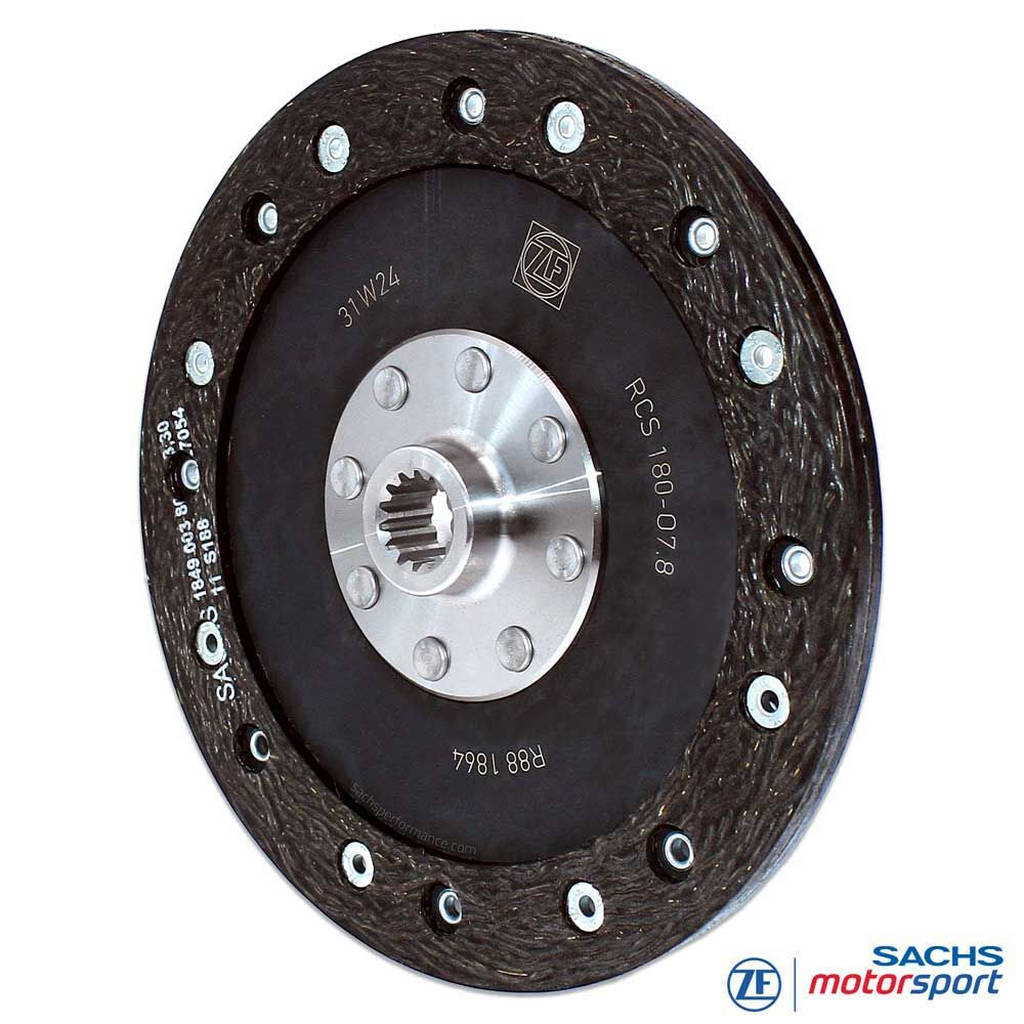

SACHS PERFORMANCE 881864002032 Clutch Disc RCS 180-O7.8

Description SACHS PERFORMANCE 881864002032 Clutch Disc RCS 180-O7.8

The SACHS RCS 184 with organic friction lining is the right choice when drivability and component protection are priorities. Its 184 mm diameter combines a compact design and low rotational inertia with sufficient friction surface area, making it ideal for track days, club racing, slalom, and vehicles where smooth, predictable Pedal feel is important.

Compared with sintered pad solutions, the organic lining engages more smoothly and predictably. This reduces load peaks in the drivetrain, helps protect the gearbox and joints, and improves traction when pulling away and accelerating out of slow corners. Noise and vibration levels are also lower, while the engagement point remains consistent and reproducible over many stints.

The organic lining is more conservative in terms of thermal performance than a sintered pad solution. However, the 184 mm platform provides sufficient reserve through its larger friction surface and even pressure distribution. For applications with moderate to medium temperatures, it delivers stable, finely controllable Torque transfer without aggressive engagement. The friction linings are securely bonded to the carrier plate using a controlled manufacturing process, ensuring consistent friction characteristics within the relevant temperature range.

The Technology

The SACHS RCS 184 7.8 Organic clutch disc from ZF Motorsport is designed for high-performance motorsport applications. Organic is a relatively soft Friction material, making it easier on the gearbox, although it is less resistant to high temperatures. For this reason, the organic RCS lining is used less frequently in extreme racing applications.

The high-performance organic clutch lining provides a smooth, progressive response and clean engagement during race starts. As a key component of the modular SACHS RCS 184 clutch system, it is suited to motorsport use, from slalom and classic vehicle applications to track-day cars.

SACHS RCS Hub

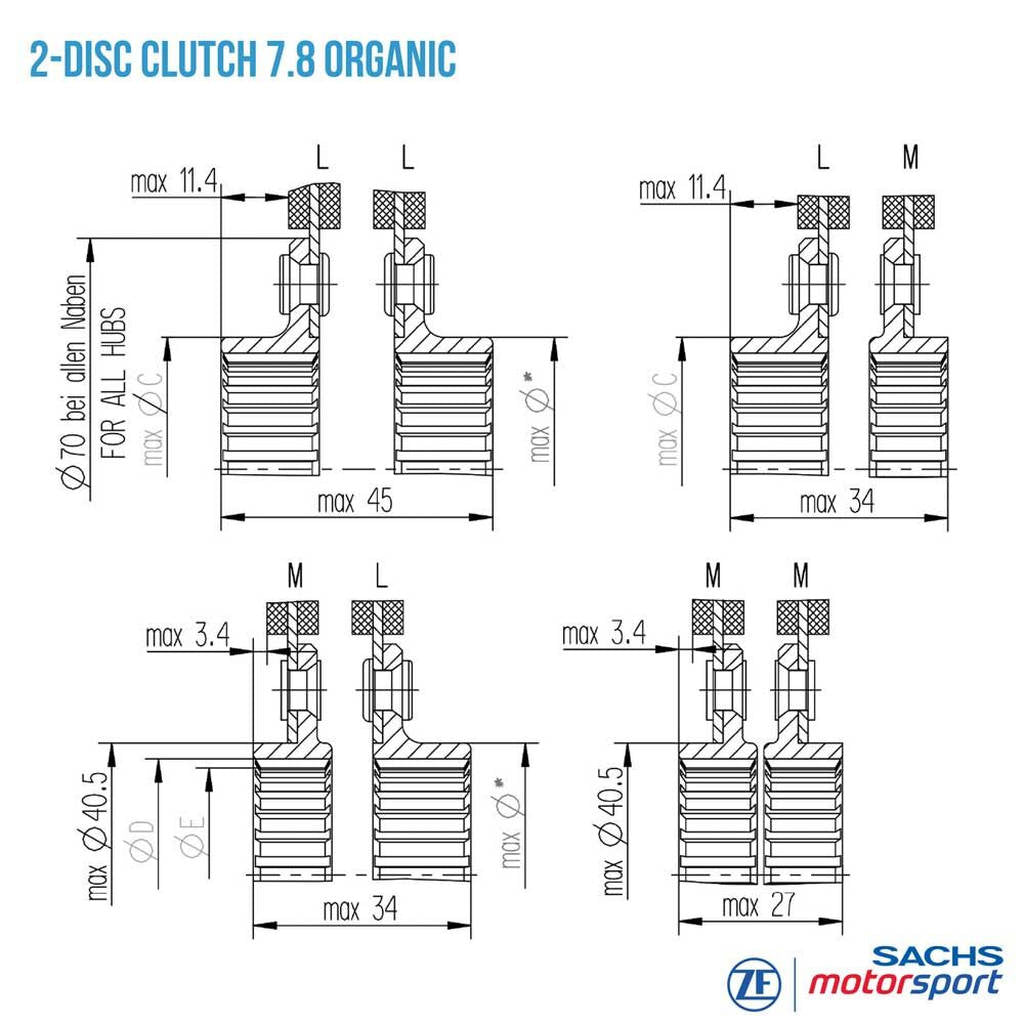

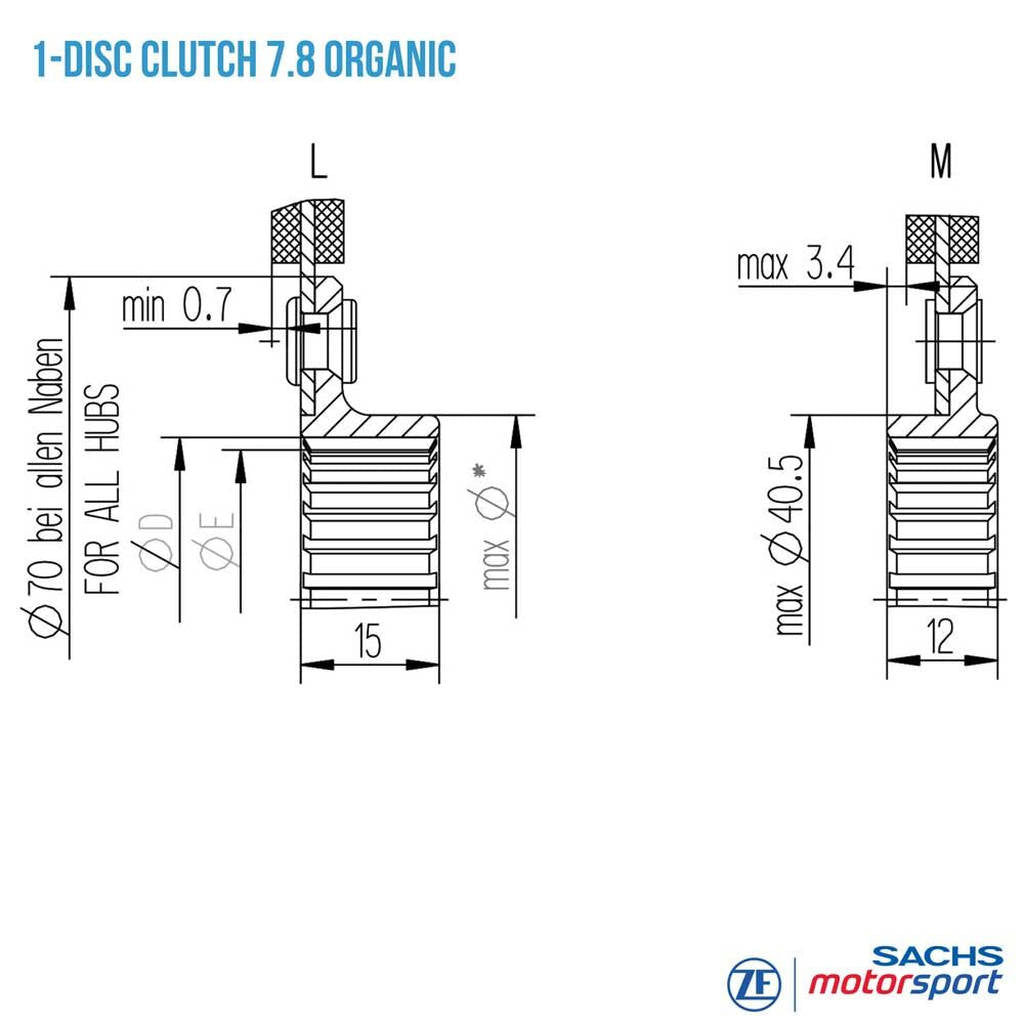

The SACHS RCS 184 7.8 motorsport clutch discs are available with different hub spline profiles precisely matched to the respective gearbox input shaft. This ensures maximum fit accuracy, reliable Torque transfer, and outstanding durability under demanding motorsport conditions.

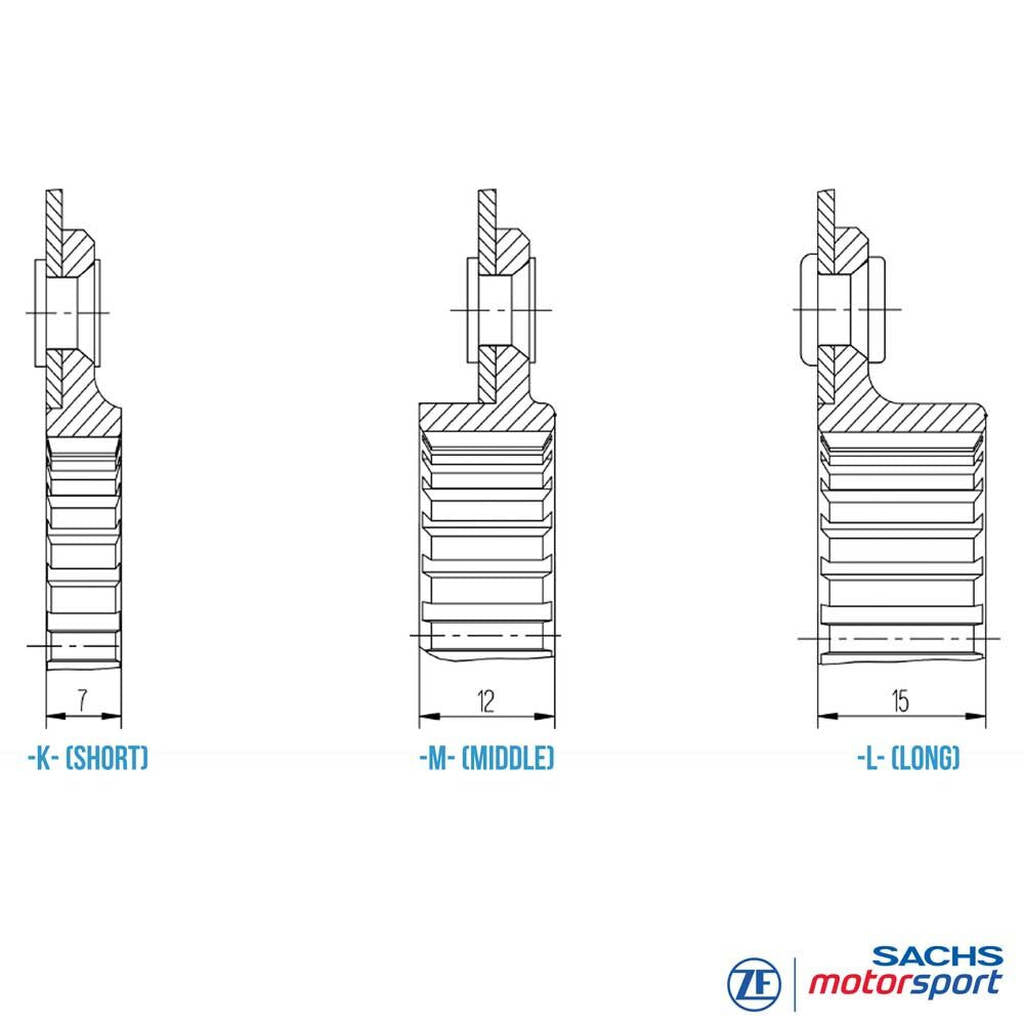

The hubs are also available in different Length options: short, medium, and long. This allows the clutch to be adapted to the available installation space while ensuring correct operation.

The modular RCS 184 system from ZF Motorsport therefore enables an individually configured motorsport clutch with maximum performance, thermal capacity, and service life.

Specifications:

• Clutch disc RCS 180-O7.8-M-016
• Friction material: Organic, 7.8 mm
• Spline profile: (016) - A 10 x 28 x 035
• Hub length: medium
